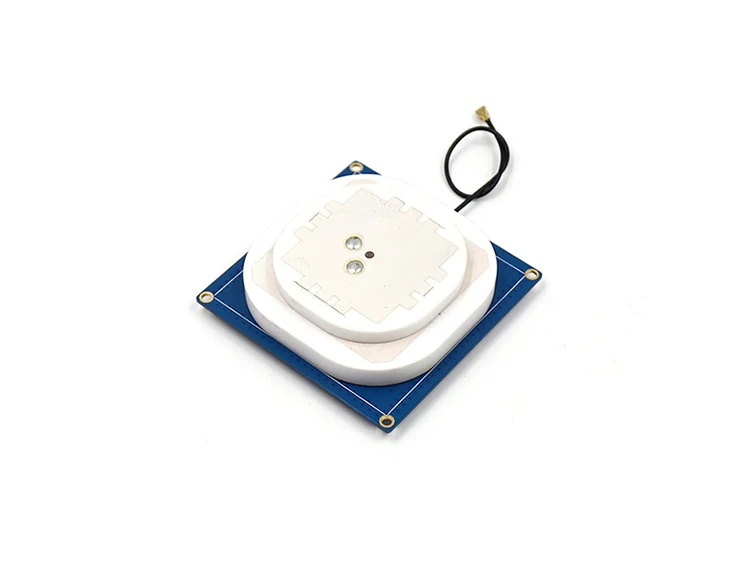

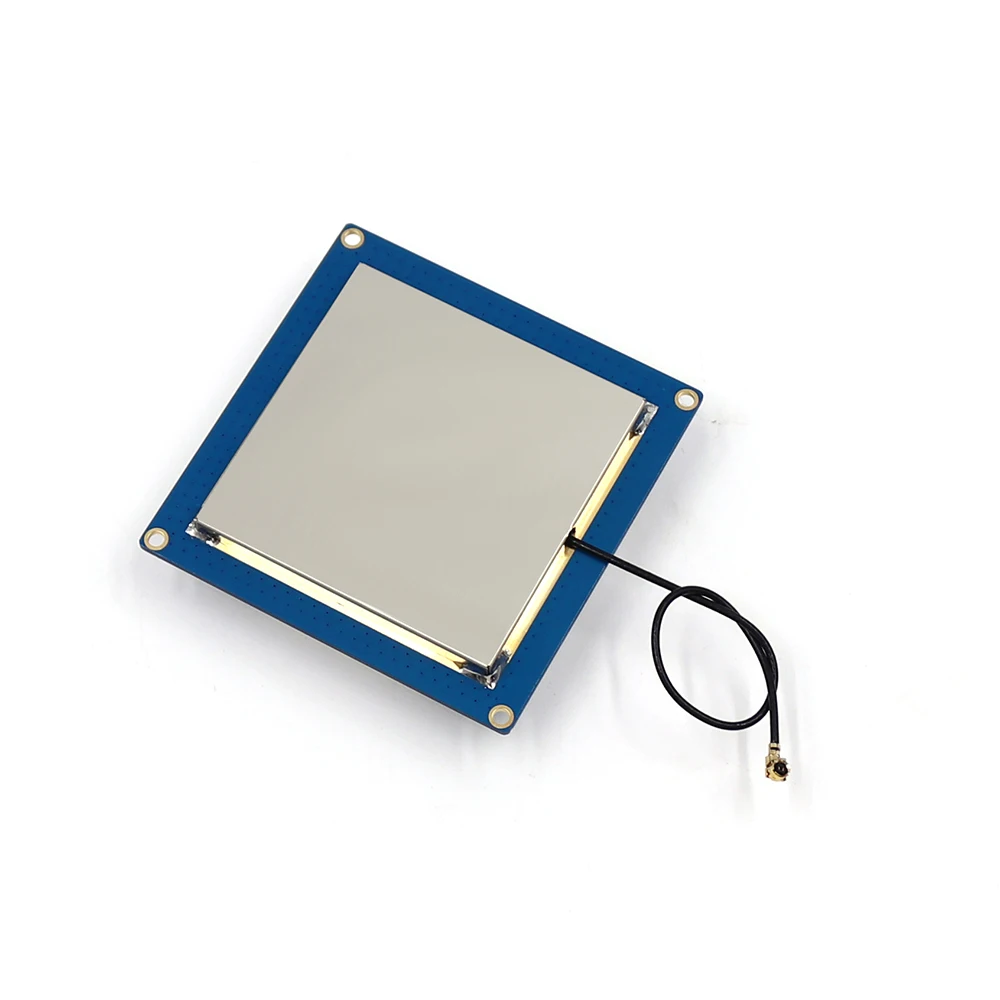

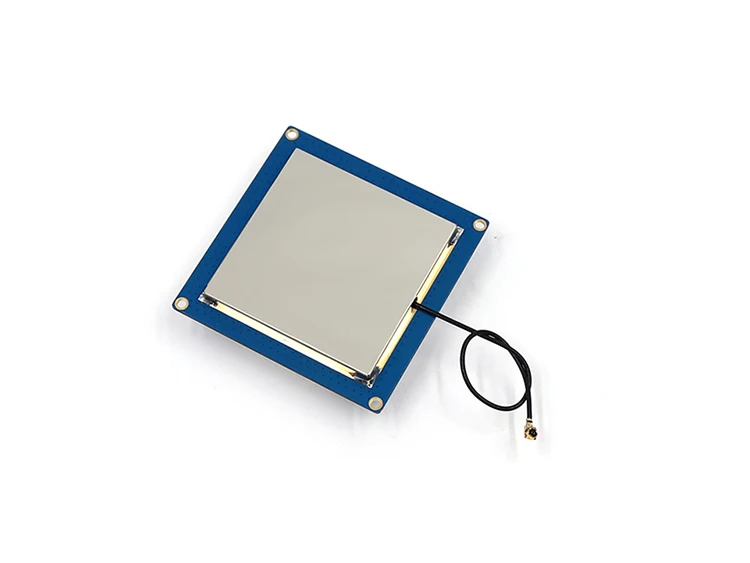

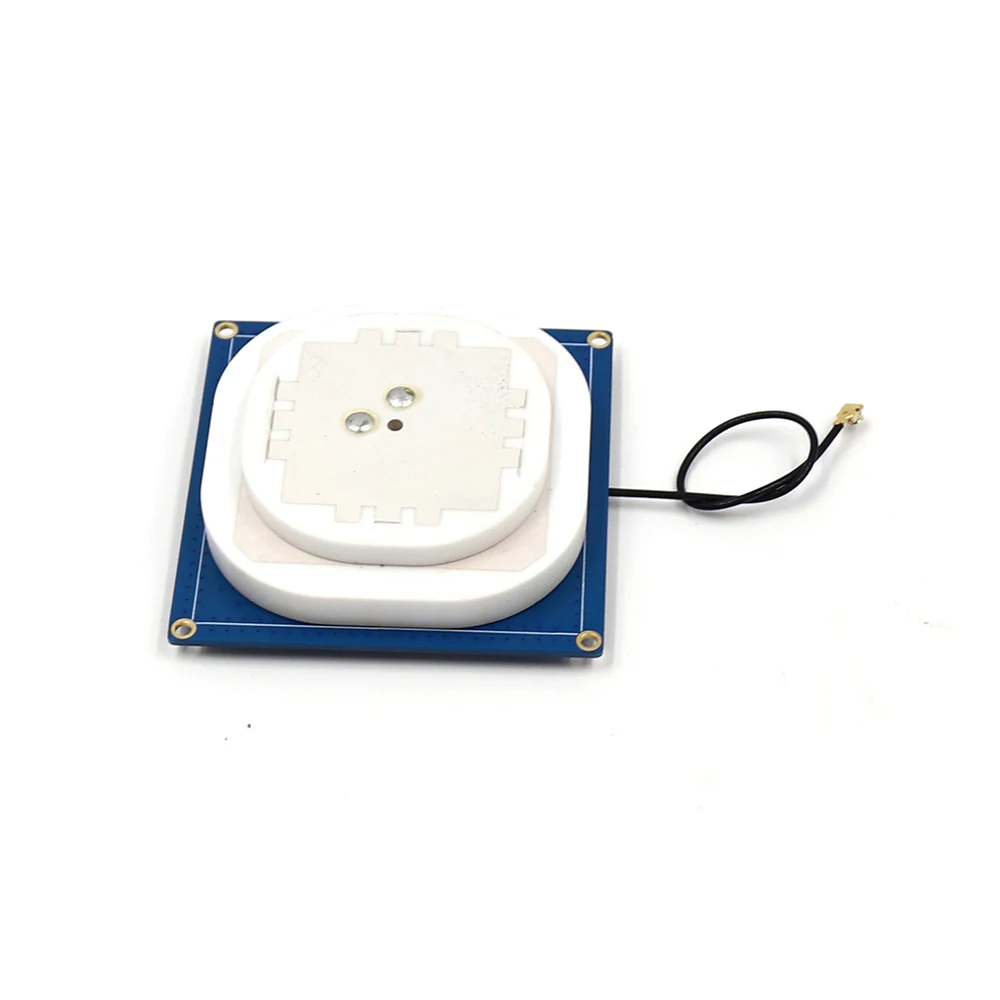

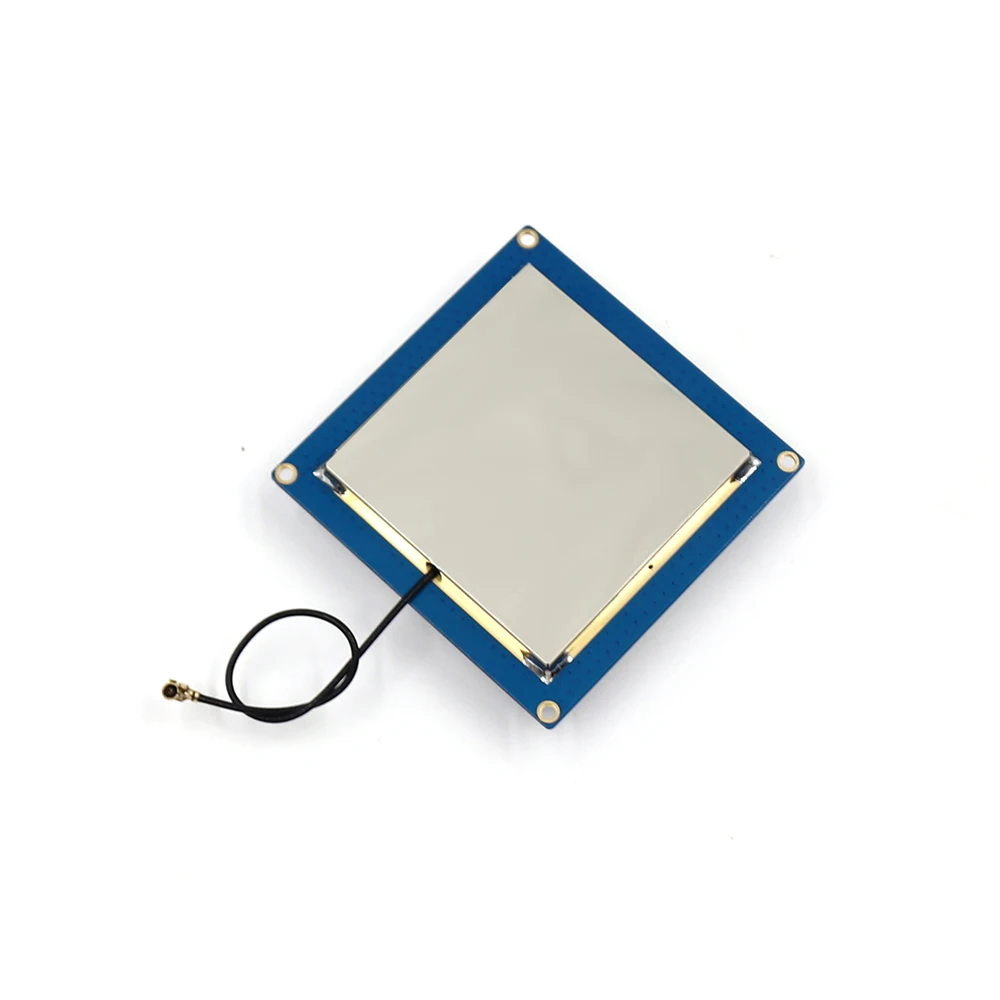

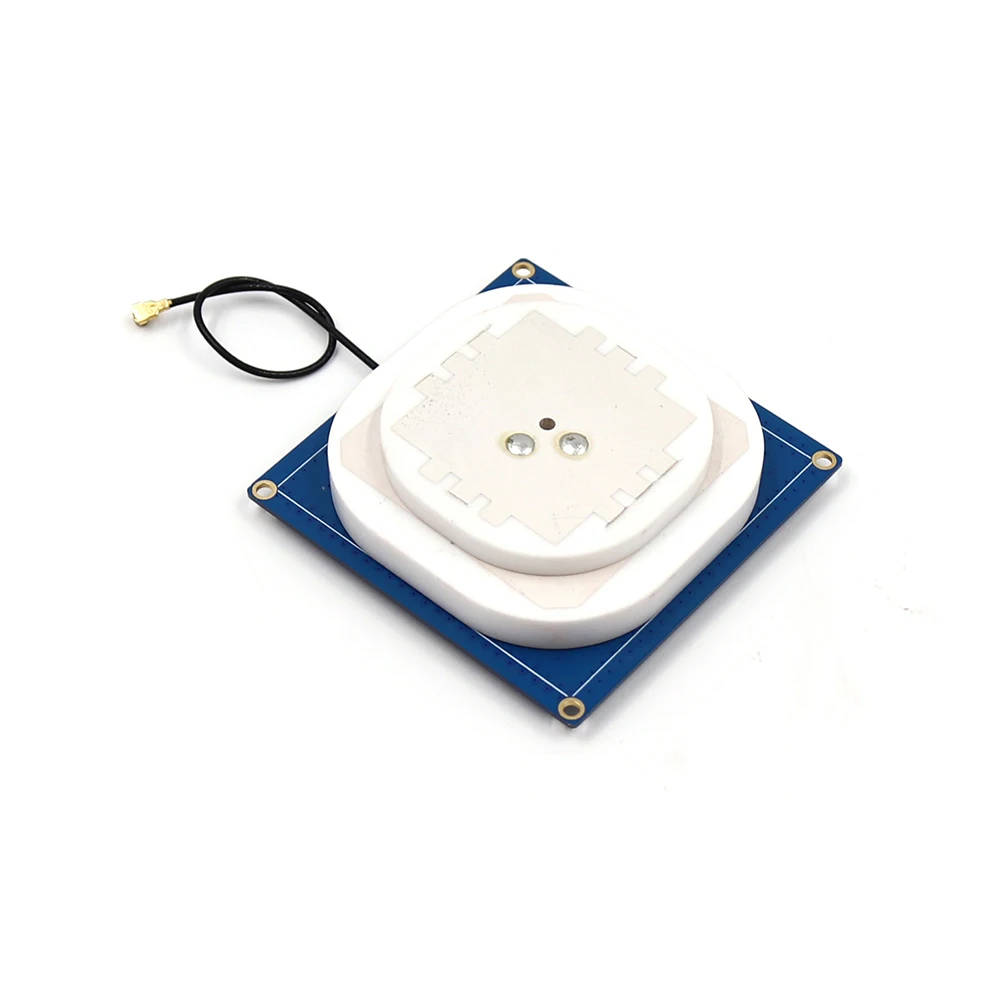

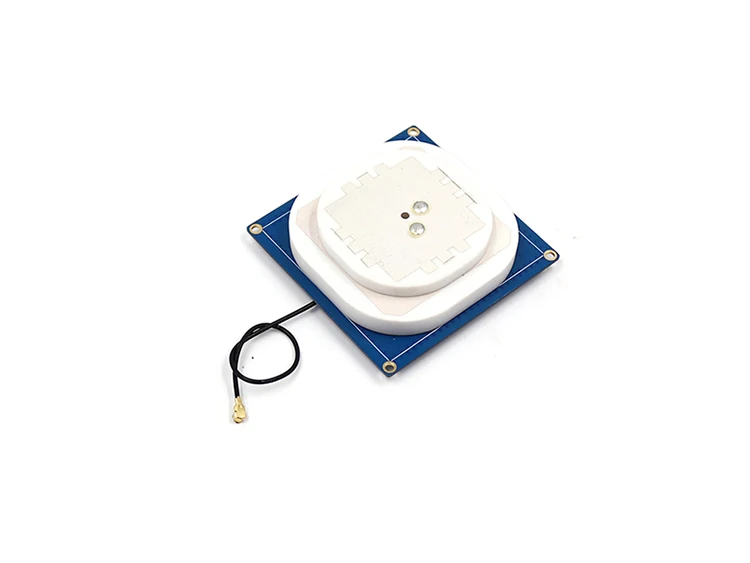

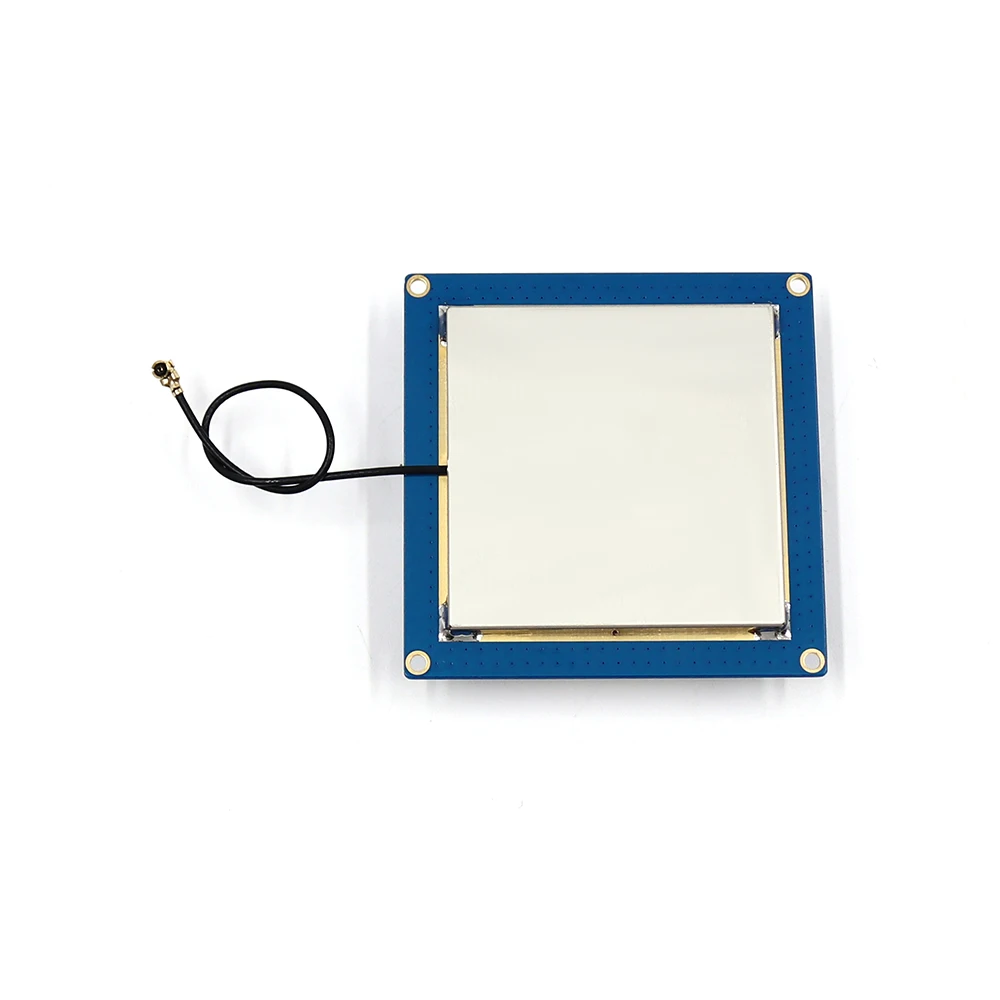

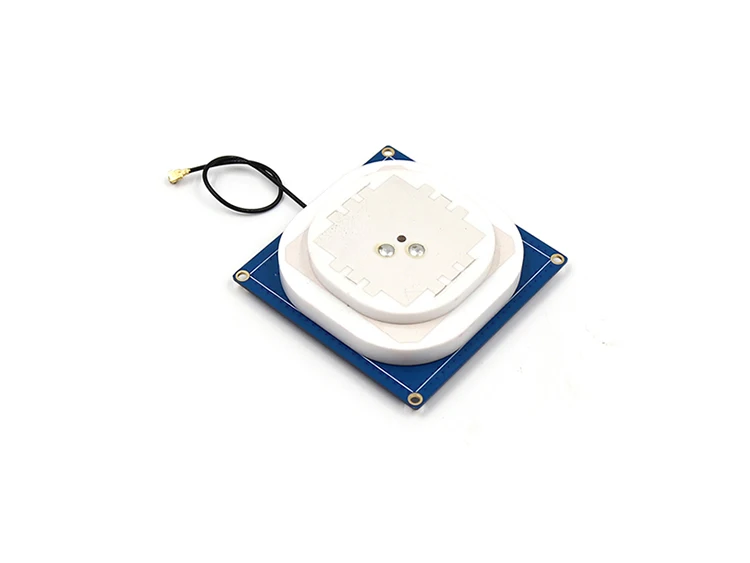

BEITIAN GNSS GPS antenna for ZED F9P module RTK Drone Base UAV UGV GPS GLO GAL BDS GNSS L1,L2 IPEX 1.13 cable 10.0CM BT 5610C

Item

Specification

Range Of Receiving Frequency

BDS B1/B2/B3

GPS L1/L2/L5

GLONASS G1/G2

GALILEO E1/E2/E5a/E5b/E6

Gain

<4.5dBi

Output VSWR

<1.5

Impendance

50Ω

Band Width

±10MHz

Polarization

RHCP

Axis ratio

<3dB

Horizontal coverage angle

360°

Frequency Temperature Coefficient

0±10

Item

Specification

LNA Gain

38dB

Noise figure

<1.8dB(Only LNA)

Output VSWR

<1.5

Output impedence

50Ω

Passband Ripple

±1.0dB(Only LNA)

Supply Voltage

3.0V-18.0V

Supply Current

≤45mA

Item

Specification

Operational Temperature

-40℃ - +85℃

Storage Temperature

-40℃ - +85℃

Wet degree

40% - 95%
