XMC HLC30 03 G3/8' inch pneumatic parts service units FRC midi metal design compressed air filter regulator lubricator
- Category: >>>
- Supplier: Ningbo Huayi Pneumatic Engineering Co. Ltd.
Share on (62407433490):
Product Overview
Description

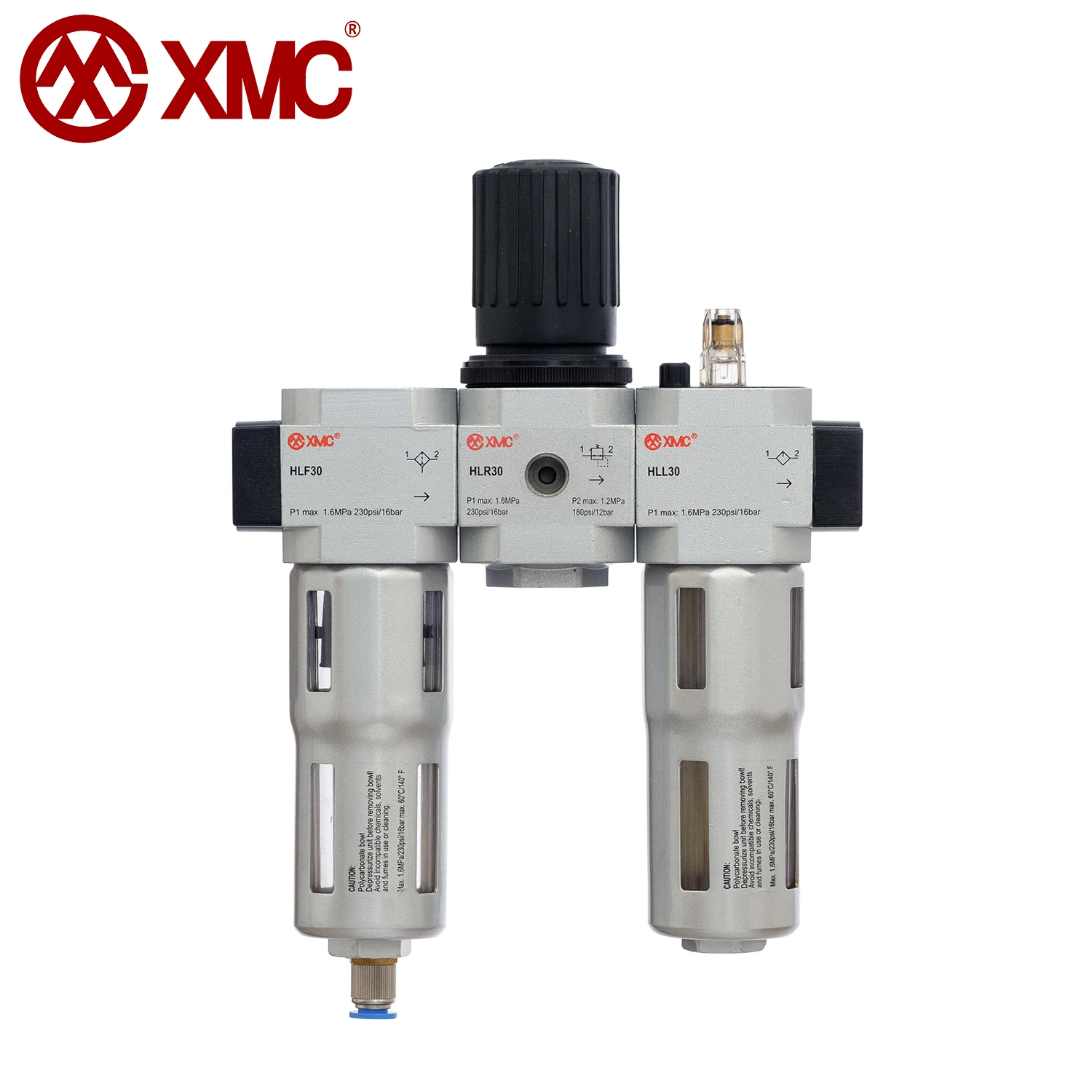

XMC HLC30-03 G3/8'' Inch Pneumatic Parts Service Units FRC Midi Metal Design Compressed Air Filter Regulator Lubricator

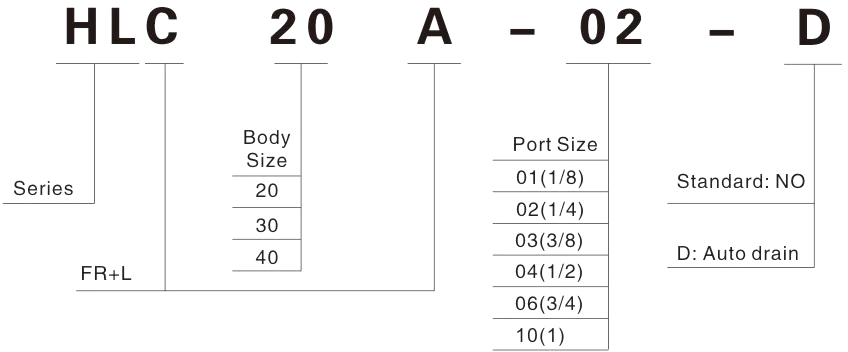

Model code

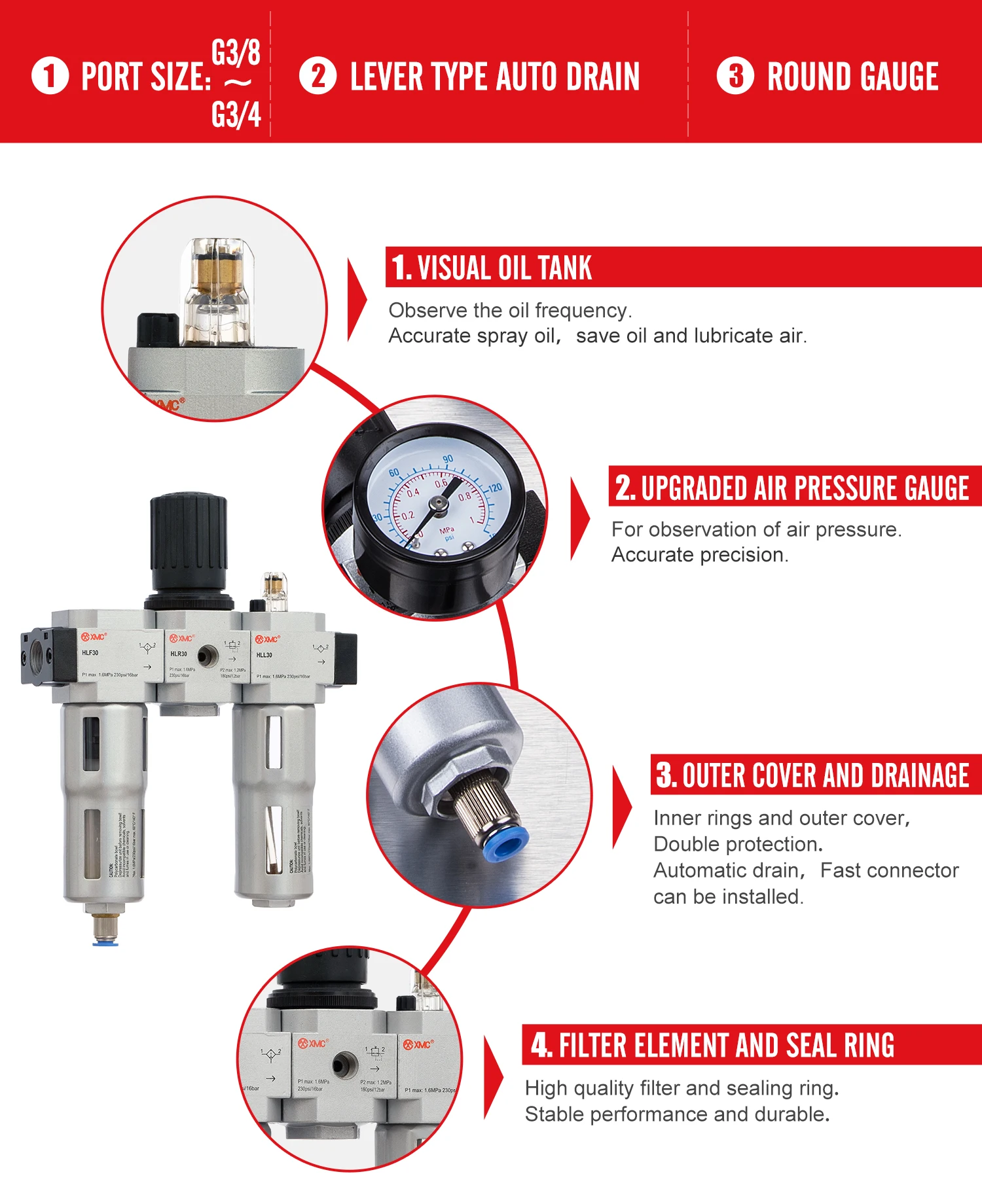

Features
This products can filter upstream dirt , pipe scale, rust and condensate in the air; In special occasions, 40 μm standard filter element can be easily replaced by 5μm filter element. Even the input pressure and the consumption of compressed air caused the system fluctuation, also ensured that the setting work pressure is still very stable.
Specification
Order No. | HLC30-03 | ||
Highest Working Pressure | 1.6MPa | ||
Working Medium | Compressed Air | ||
Structural Features | Oil mist type can be automatically throttles | ||
Ambient and Fluid Temperature | 5~60℃ | ||
Installation Method | Pipe installation or Bracket installation | ||
Installation Position | Vertical ±5° | ||
Working Pressure | 0.05~1.2MPa / 0.05~0.7MPa | ||
Recommended Oil Use | Oil Brand & Type | Aral Vitam GF32, BP Energol HLP32, Esson Nuto H32, Mobil DTE24, Shell Hydrol DO32. | |
Viscosity | 32mm2/S (=cst), TEMP. is 40℃, ISO level is VG32, Satisfy ISO3448 Standard. | ||
*Filter Precision | 40μm (conventional), 5μm | ||
Container Material | Polycarbonate | ||
Protective Cover | Aluminum alloy | ||
Model Table

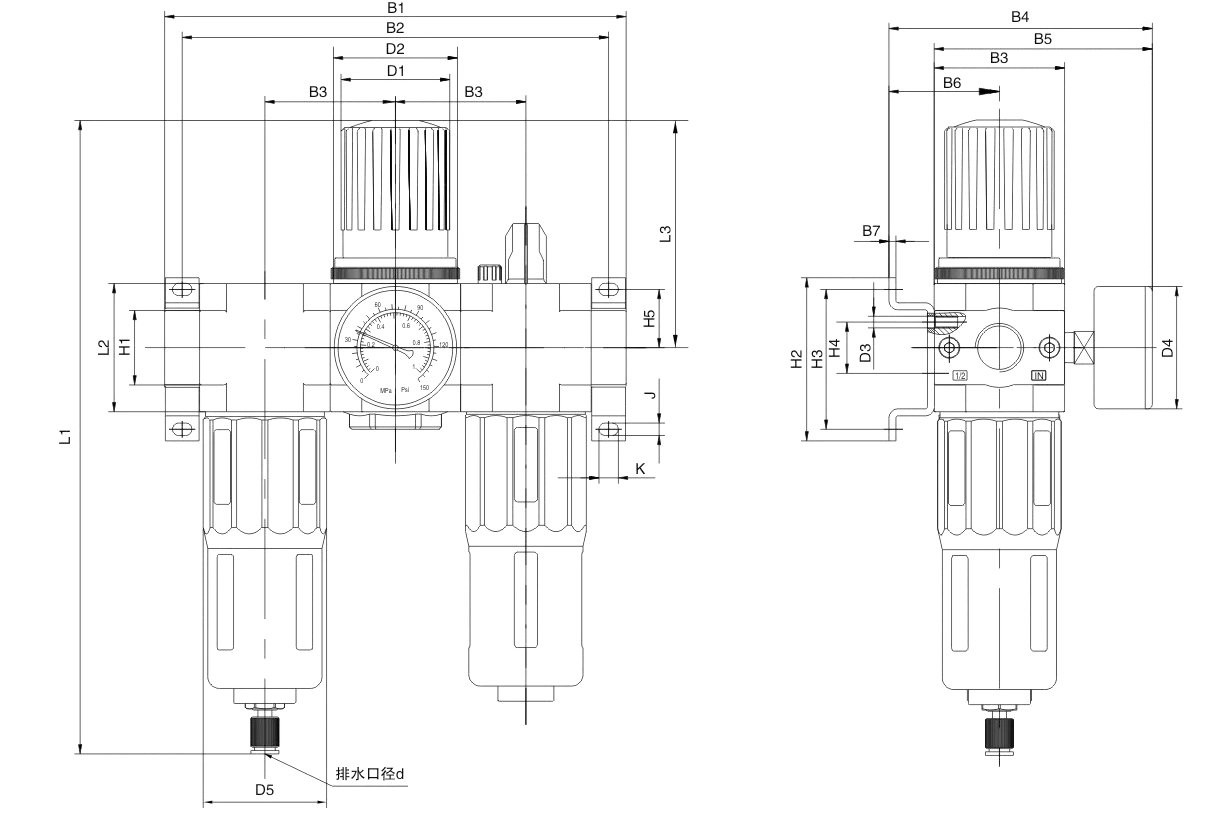

Overall Dimension Drawing (mm)

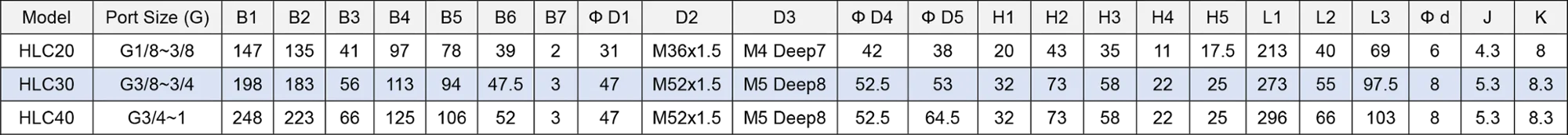

Overall Dimension Sheet (mm)
