38.1x46.99x59.69mm Pure Molybdenum plate/cube/block for industry
- Category: Molybdenum >>>
- Supplier: Luoyang Combat Tungsten & Molybdenum Material Co. Ltd.
Share on (62407622437):
Product Overview
Description
Company Information
Product description

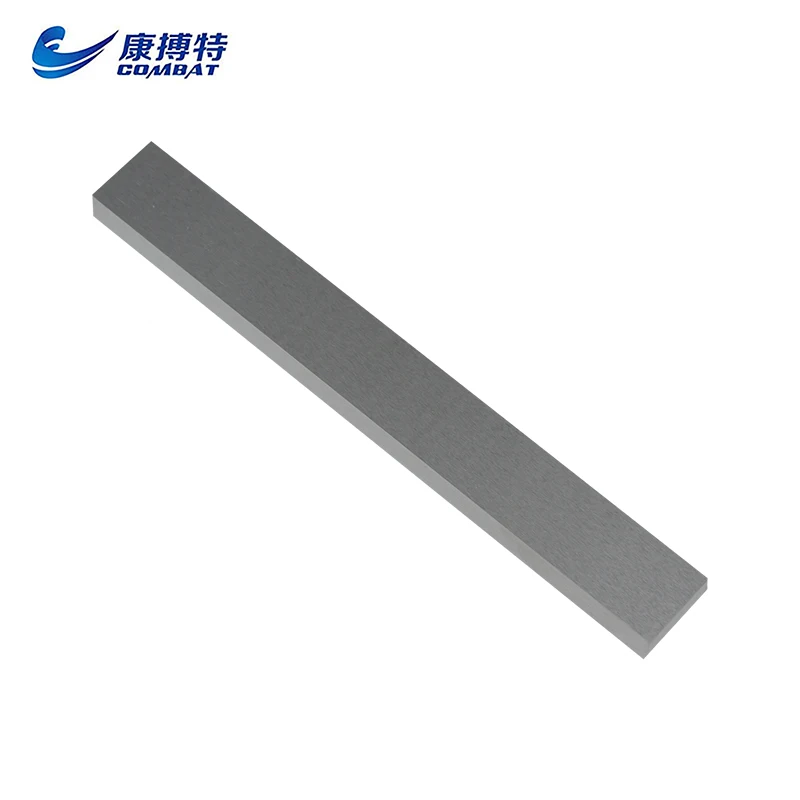

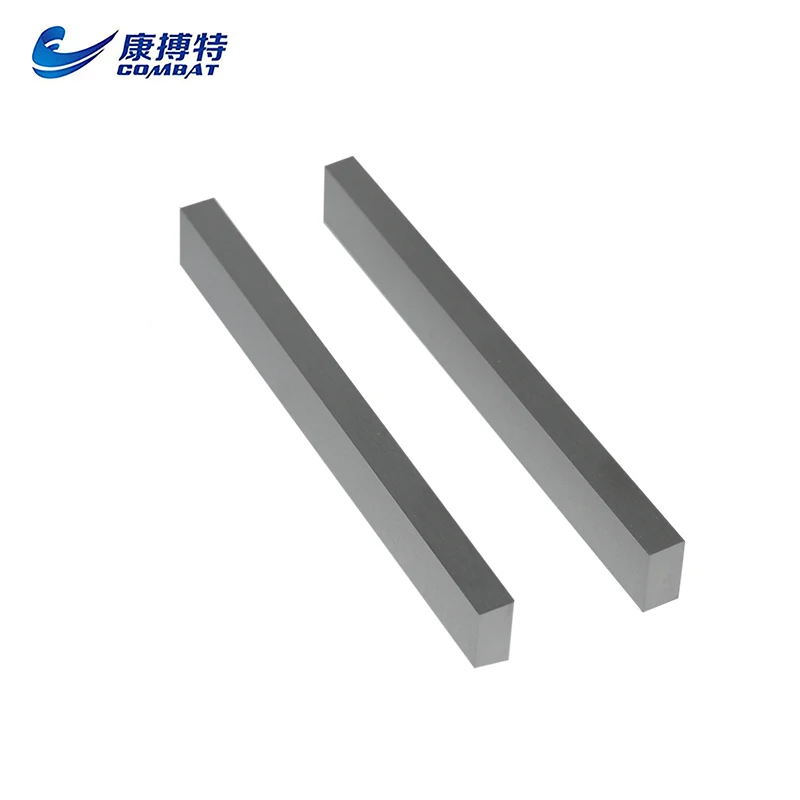

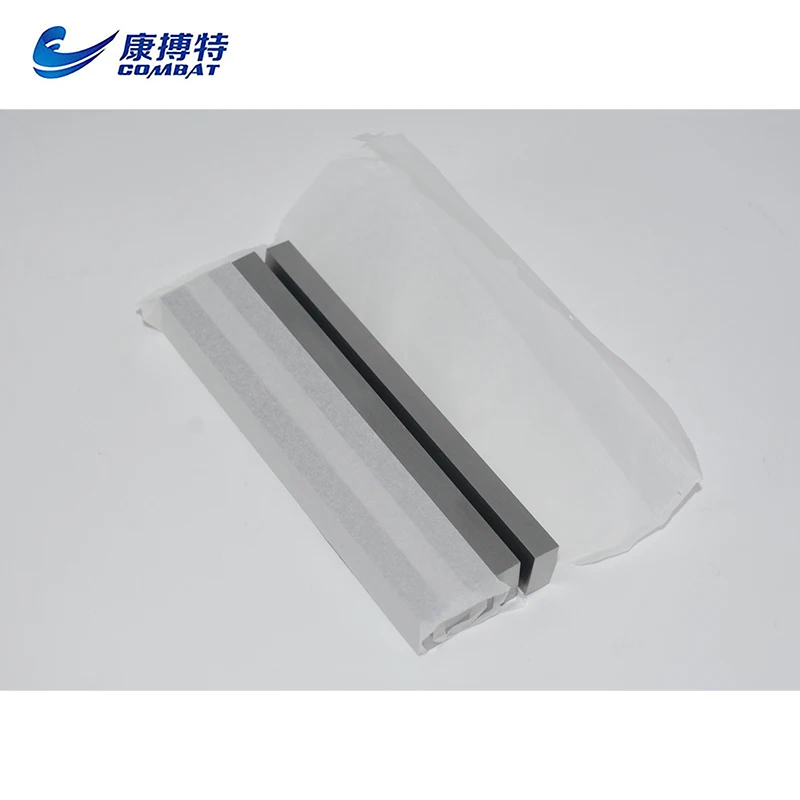

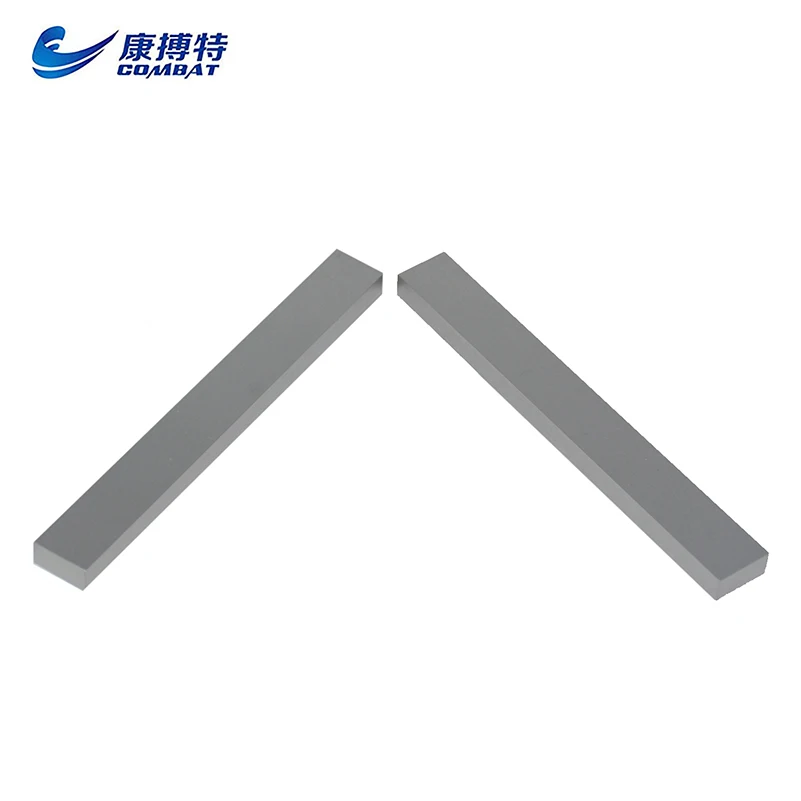

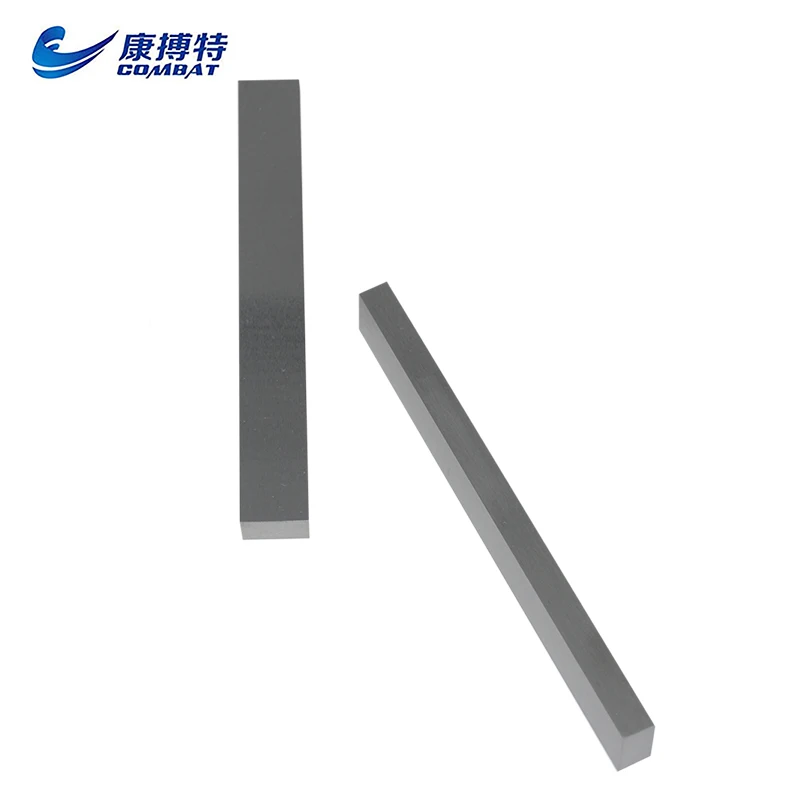

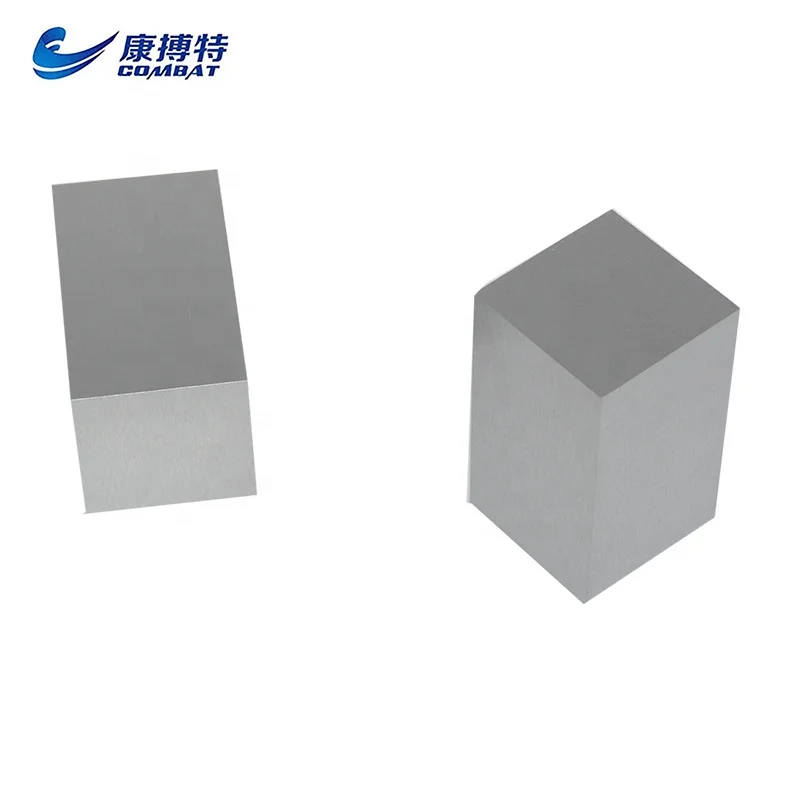

38.1x46.99x59.69mm Pure Molybdenum plate/cube/block for industry
| Product name | 38.1x46.99x59.69mm Pure Molybdenum plate/cube/block for industry |
| Standard | ASTM-B386 2003 |
| Density | 10.2g/cm3 |
| Melting point | 2623 Degrees Celsius |
| Specification | Thick 0.025mm min. x W600mm max. x L3000mm max. |
| Surface roughness | Ra0.8-1.6 |
| Processing | Cold rolled or hot rolled |
| Package | Standard ply-wooden box |
| Chemical composition | 0.03 C,0.015O,0.002N,0.01Fe,0.002Ni,0.01Si. |
| Deliver status | Black or bright |
TensileB Strength, min, ksi(MPa) | 95(655)-115(795) |
| Yield Strength 0.2 % Offset, min,ksi (MPa) | 80(550)-95(655) |
| Application | The mainly application in electric part in light source,electric vacuum components ,electric power semiconductor,Mo-boats,heat shield and heat bodies in high temperature furnace and sputtering target etc. |
Product Description
| (ASTM - B386)Chemical Requirements(%) | |||||||||
| C | O maxA | N maxA | Fe max | Ni max | Si max | Ti | W | Zr | Mo |
| 0.030max | 0.0015 | 0.002 | 0.010 | 0.002 | 0.010 | ...... | ...... | ...... | balance |
Produced in strict accordance with international standards Prevent cracking of molybdenum parts | |||||||||
Detailed image

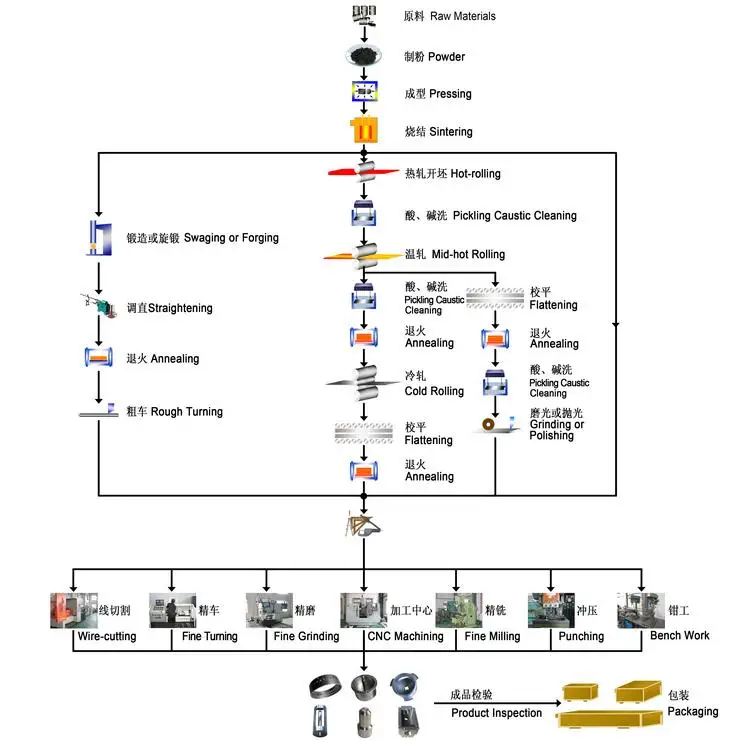

Process flow
Relation product
FAQ
Q:What kind of molybdenum wire can you provide?
A:For pure molybdenum wires, we can supply Mo-1 black and white molybdenum wire(which is processed by electronic-polishing, chemical process or annealed) , specification ranges from 0.015mm-5mm, and the purity and density can reach to 99.95% and 10.2g/cm3.
Q:Can pure molybdenum wire be used as spray molybdenum wire? What specifications can you recommend?
A:Yes, currently the most commonly used spraying molybdenum wires are pure molybdenum wire and molybdenum lanthanum alloy wire, we can provide both of them.
The most common specifications of the spraying molybdenum wire we export are 3.17mm 3.175mm and 3.2mm.
Q:What is the weight of one coil 0.18mm wire and how long it is?
A:The net weight of each roll is about 520g, gross weight is about 610g. Our 0.18mm EDM wire is 2000m per coil. The surface is usually graphite black.
Q:What kind of molybdenum rod can you provide?
A:We can produce 99.95% purity molybdenum rods with a diameter of 0.8-120mm, and the length can be produced according to your needs. In addition, we can provide black , ground, and polished surfaces. The surface roughness can be less than 0.8um.
Q. what’s the surface of Molybdenum rod?
A: Black-surface is “as swaged or”as drawn”; retaining a coating of processing lubricants and oxide.
Cleaned-surface is chemically cleaned to remove all lubrication and oxides.
Ground-surface is centerless ground to remove all coating and to achieve precise diameter control.
Q:Regarding high temperature resistance performance, what is the difference between pure molybdenum, MoLa & TZM?
A:In the vaccum working environment, pure molybdenum can withstand the high temperature of up to 1800degrees. But its normal use temperature is 1100~1700 degrees.
MoLa and TZM both can withstand the hightemperature of 1800~2100 degrees.
Besides, Compared to pure molybdneum and MoLa, TZM has higher strength & excellent wear resistance in the high temperature environment becasue of the addition of titanium and zirconium.
So you can choose the suitable material according to your usage.
