Заводская индивидуальная большая мельница для сахарного тростника, рифленый ролик
- Category: Seasoning Processing Machinery >>>
- Supplier: Luoyang Yujie Industry & Trade Co. Ltd.
Share on (62407689723):
Product Overview
Description
Product Description

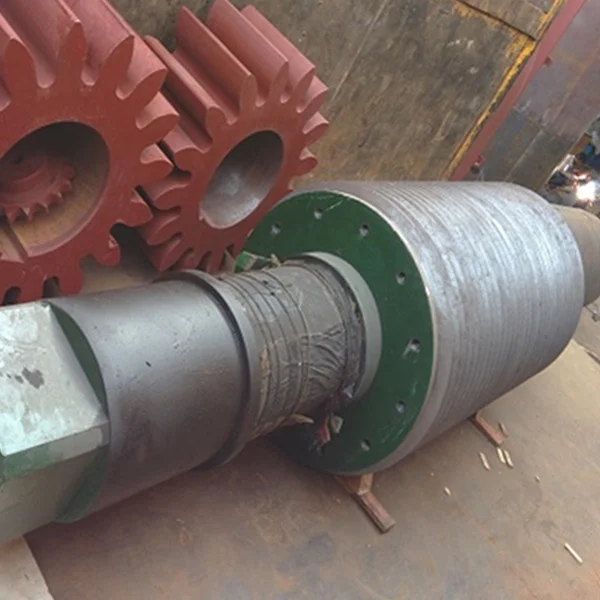

Factory Customized Large Sugar Cane Mill Grooved Roller
The invention is an improved sugar can mill roller. The roller body is generally cylindrical and has peripheral V-grooves formed circumferentially on the roller body. An axial bore is formed through the length of the roller body, through which a roller shaft is mounted. The roller body further has spaced apart channels located below the V-grooves and parallel to the axial bore.
The channels are open at least at one end of the roller body. Circumferentially spaced apart holes are located at the bottom of each of the V-grooves, wherein the holes pass from the bottom of the V-grooves to the nearest channel. The roller body further has circumferentially spaced apart first ports passing from one flank on each of the V-grooves to the nearest channel, and circumferentially spaced apart second ports pssing from the other flank on each of the V-grooves to the nearest channel.
Each of the holes, first ports and second ports are formed with a step and have an insert positioned therein against the respective step, the inserts being provided with an axial orifice. There is also provided a vacuum system connected to the open ends of the channels for aiding in juice extraction during the rolling process.
Name | Sugar Cane Mill Grooved Roller | ||||||
Material | Alloy steel or other material accroding to customer's requirements | ||||||
Lengh | 5000mm | ||||||
diameter | 210mm | ||||||
Heat treatment | Quenching and tempering | ||||||
Inspection | According to customer's requirements | ||||||
Packing | Plywood case | ||||||
precision | 0.02mm | ||||||
Advantage of the roller
1.High precision, long service life
2.heavy load capacity and stable transmission
Adantage of Company
1.We offer One-stop service From raw material organization to processing production and assembly
2.We have professional engineer team and the strict quality control system to guarantee the quality of the products.
3.We have many CNC advanced equipments to ensure the precision of the products
2.We have professional engineer team and the strict quality control system to guarantee the quality of the products.
3.We have many CNC advanced equipments to ensure the precision of the products

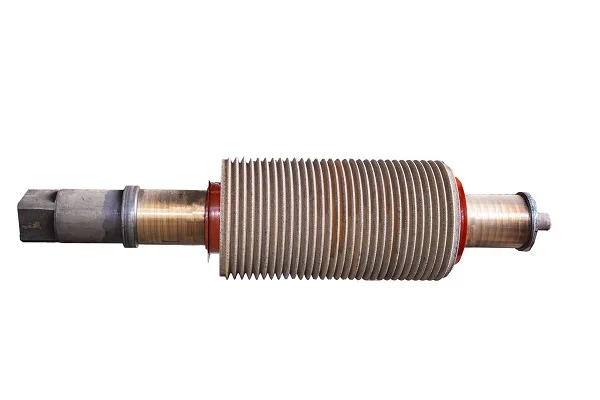

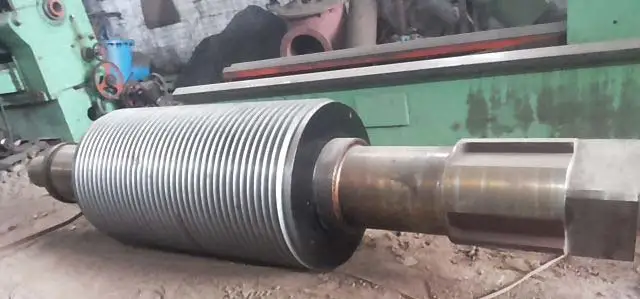

sugar mill groove roller shaft

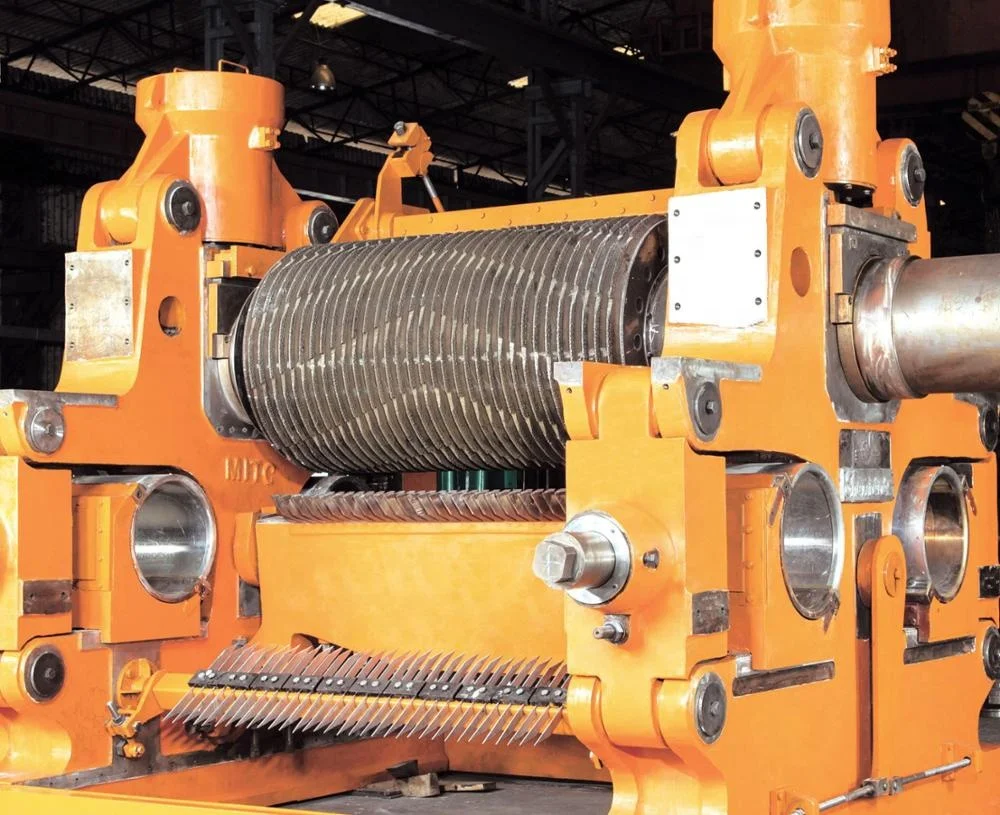

sugar mill drive shaft and shell
Application

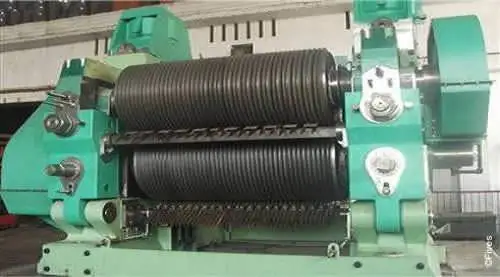

Various type of sugar mill equipments
About us
Luoyang Yujie Idustry Trade Co,Ltd is established in 2004,is mainly engaged in the designing and manufacturing of large machinery components and non-standard machinery parts according to customer's request, including shafts, gears, sprockets, mining machinery parts, weldings, bearings, castings and forgings etc. The products are mainly used in the fields of mining, petroleum, cement, steel mill, power plant, sugar factory etc.
All our equipment adopts the advanced CNC machine tools,especially large CNC gantry milling and boring machine, CNC floor-type boring machine.CNC gantry milling and boring machine,CNC machining center equipped with the fourth axis, CNC floor-type boring machine is equipped with the fourth axis and rotary worktable, it can realize five axis machining. The work piece is not limitted by the size. It is suitable for machining large module and large size gear, boxes,and large non -standard parts.
Professional technical tearm, production team and assembly team, supply professional technical support.
We product the CNC equipment ,so we have professsional assembly technicians and electrical enginess. We can provide customers with one-stop service from raw materials, processing to final assembly.
Our company has a series of advanced equipments: XV6032, HXV4032, HXV3017, HXV2017CNC gantry boring and milling machine, TX130CNC floor-type boring machine, DVT-500, HK1600CNC vertical lath, CK6136CNC horizontal lath etc,to ensure high precision and stable performance of products.
All tests conform to ISO 9001 quality management system certification standards,supporting the third party inspection commissioned by customer.
