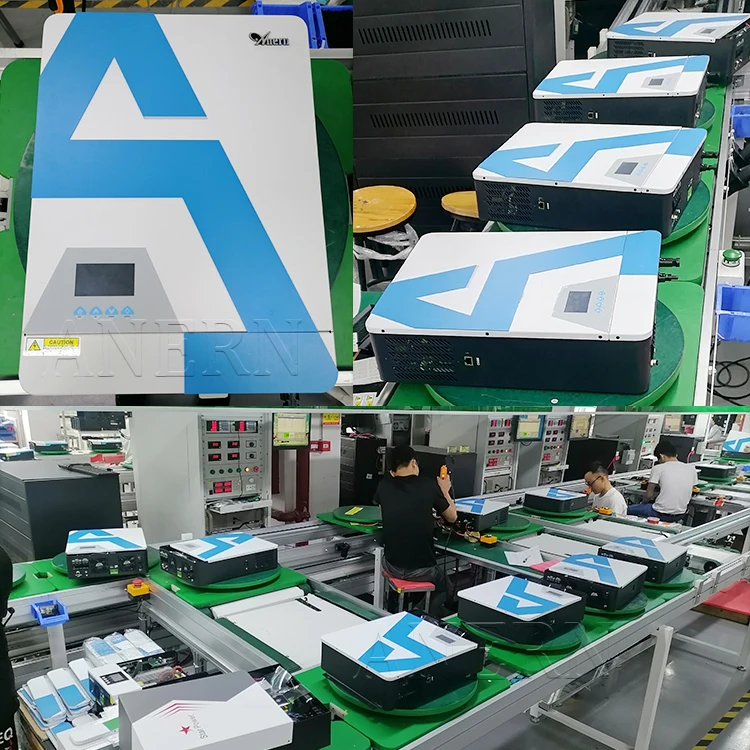

Новый солнечный pv инвертор 3 кВт 5 кВт 10 кВт 20 кВт сетчатый инвертор
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. Ltd.
Share on (62407713731):
Product Overview
Description
Related product
Description of common points
The AN-SCI02 Pro series and the AN-SCI02 Pro series all in one solar system are the perfect go-to solution for off-grid,backup power for homes,small business,and it also delivers a value added,easy to install system that provides efficient power globally for every need.
Key Features:
◆ Pure Sine Wave Inverter
◆ Self-consumption and feed-in to the grid.
◆ Configurable input voltage range for home appliances and personal computers via LCD setting
◆ Configurable AC Solar Charger priority via LCD setting
◆ Compatible to mains voltage or generator power
◆ Auto restart while AC is recovering
◆ Overtload/ Over temperature/ short circuit protection
◆ Smart batterγcharger design for optimized battery performance
◆ Communicate with WIFI
◆ configurable AC/PV Output usage timer and prioritization
◆ System configures quickly into compact, wall-mounted system
◆ Pure Sine Wave Inverter
◆ Self-consumption and feed-in to the grid.
◆ Configurable input voltage range for home appliances and personal computers via LCD setting
◆ Configurable AC Solar Charger priority via LCD setting
◆ Compatible to mains voltage or generator power
◆ Auto restart while AC is recovering
◆ Overtload/ Over temperature/ short circuit protection
◆ Smart batterγcharger design for optimized battery performance
◆ Communicate with WIFI
◆ configurable AC/PV Output usage timer and prioritization
◆ System configures quickly into compact, wall-mounted system

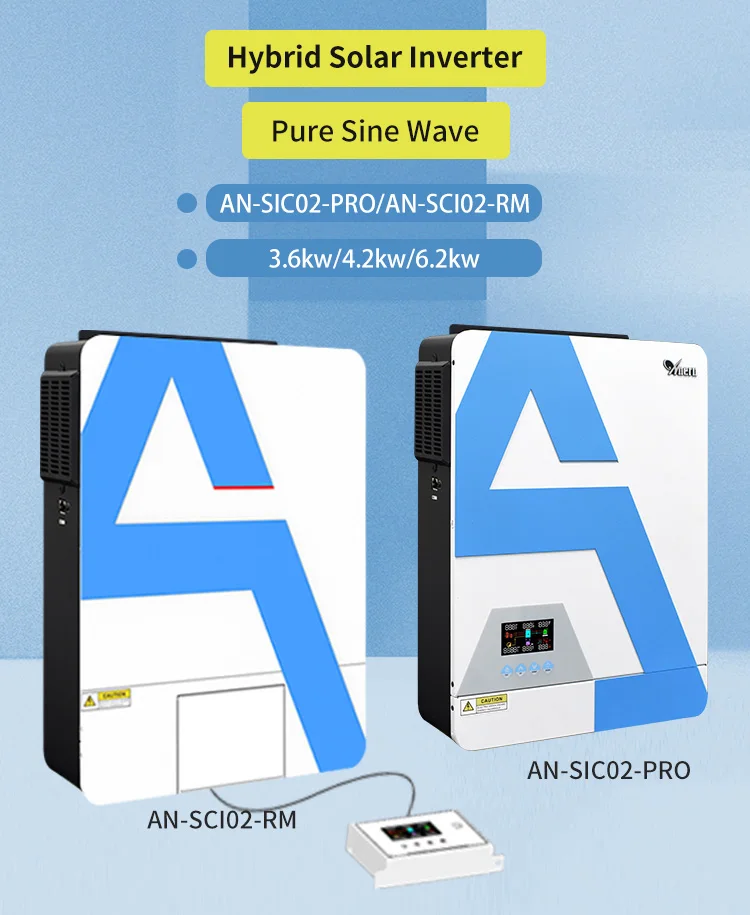

Common points of the two models
RATED POWER | 3600W | 4200W | 6200W | |||
INPUT | ||||||
Voltage | 230 VAC | |||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) | |||||
90-280 VAC (For Home Appliances) | ||||||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||||
OUTPUT | ||||||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |||||
Surge Power | 7200VA | 8400VA | 12400VA | |||
Efficiency (Peak) PV to INV. | 97% | |||||
Efficiency (Peak) Battery to INV. | 94% | |||||
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |||||
Waveform | Pure sine wave | |||||
BATTERY & AC CHARGER | ||||||
Battery Voltage | 24 VDC | 24 VDC | 48 VDC | |||
Floating Charge Voltage | 27 VDC | 27 VDC | 54 VDC | |||
Overcharge Protection | 33 VDC | 33 VDC | 63 VDC | |||
SOLAR CHARGER | ||||||
Maximum PV Array Power | 6200 W | 6200W | 6500 W | |||
MPPT Range @ Operating Voltage | 90 ~ 450 VDC | |||||
Maximum PV Array Open Circuit Voltage | 500 VDC | |||||
Maximum Charging Current | 120A | 140A | 120A | |||
Maximum Efficiency | 98% | |||||
Grid-Tie Operation | ||||||
Inverter Mode | 3600W | 4200W | 6200W | |||
Nominal Output Voltage | 220/230/240VAC | |||||
Feed-in Grid Voltage Range | 195-253VAC | |||||
Feed-in Grid Frequency Range | 49-51±1Hz/59-61±1Hz | |||||
Nominal Output Current | 15.7A | 18.2A | 26.9A | |||
Power Factor Range | >0.99 | |||||

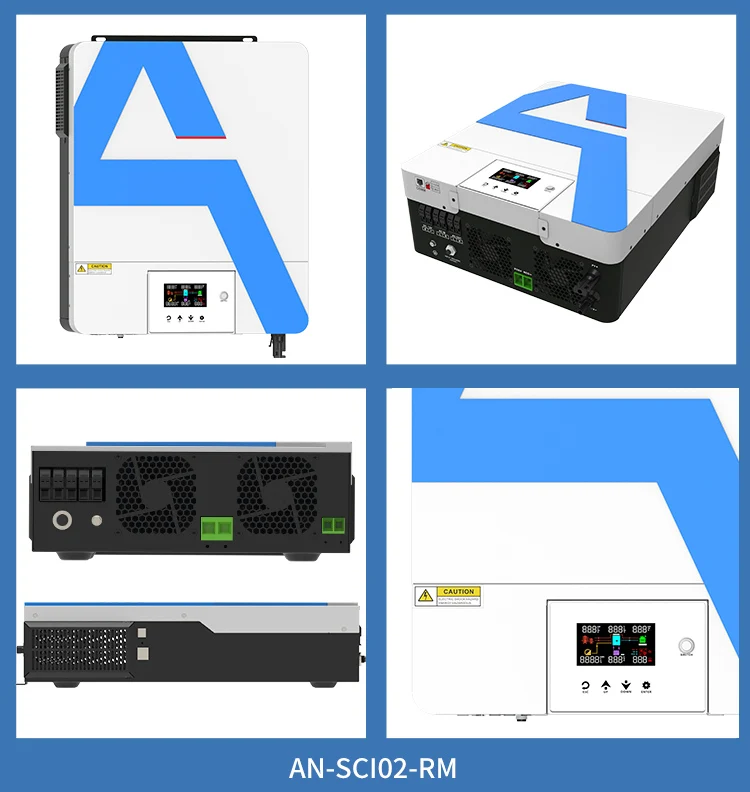

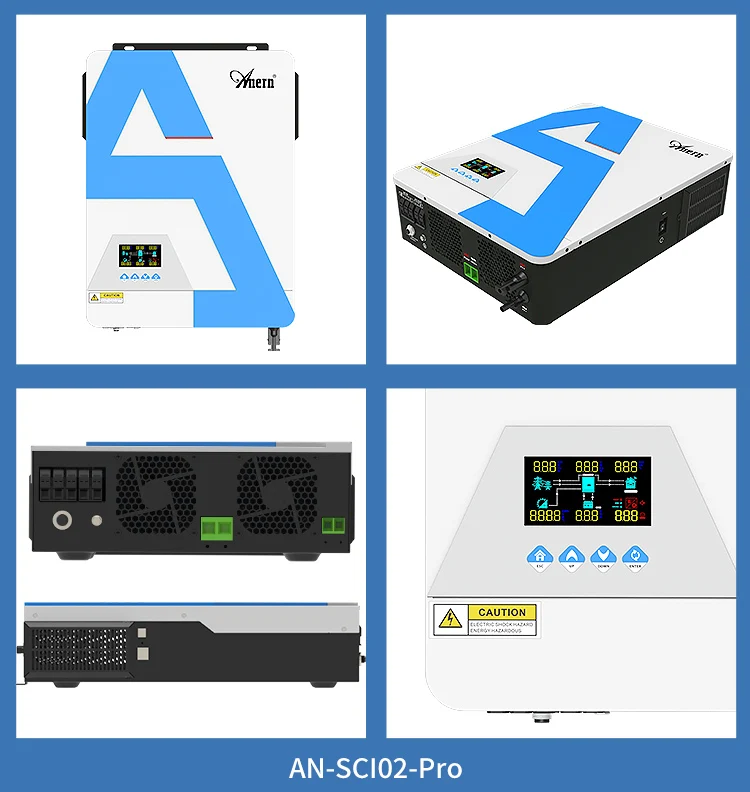

Differences between the two models

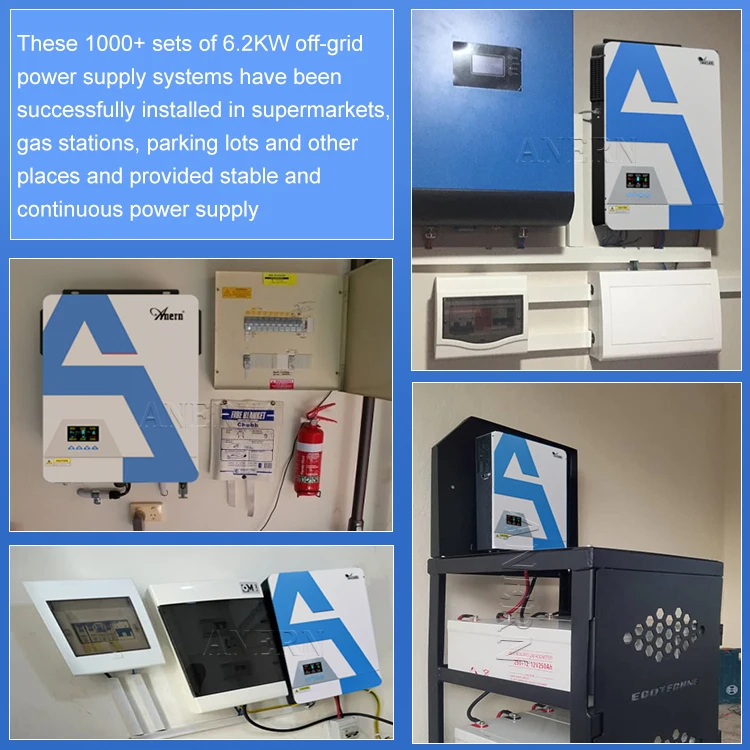

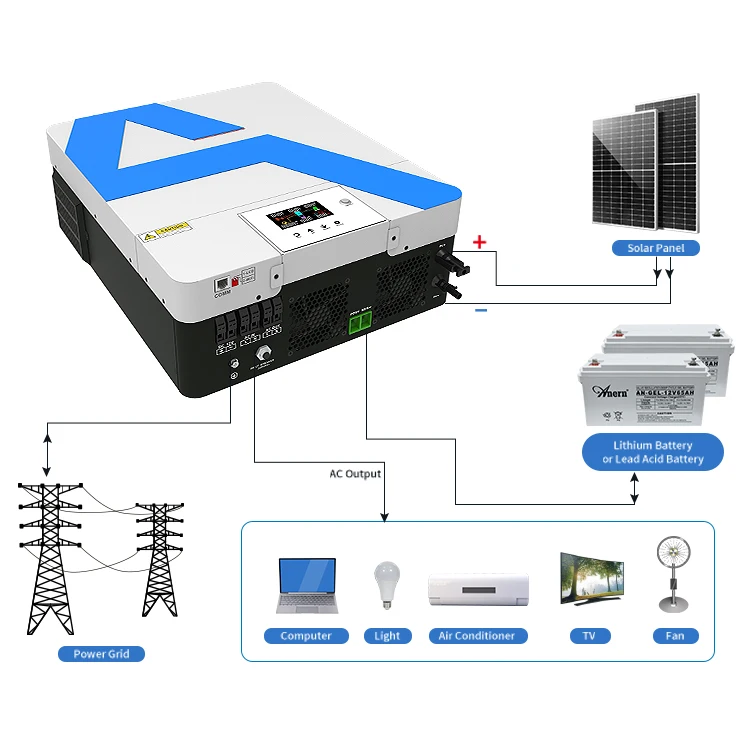

Application
Anern Factory
Anern owns professional factory, introducing advanced production equipment, specialized production line, talented R&D team and adopting worldwide leading technology, through international standard management and strict quality control to ensure the stable-performance and high-quality products. We can offer OEM services as your specific requirements, provide a cost effective, energy efficient, and long term outdoor lighting solution.
Certifications
Company Information
Anern is headquartered in Guangzhou, which is one of most important Chinese Central Cities, with occupying area of 5,000 sqm,among which a modern showroom with area of 7,000 sqm. Each year there are over 1,000 personnel from various countries clients and governemnt institutions come to visit us.
