Indian market price phase control capsule type SCR thyristor

Indian market price phase control capsule type SCR thyristor

Category: Thyristors >>>
Supplier: Luoyang Ding Hong Electric Technology Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

3 (7)

Product description

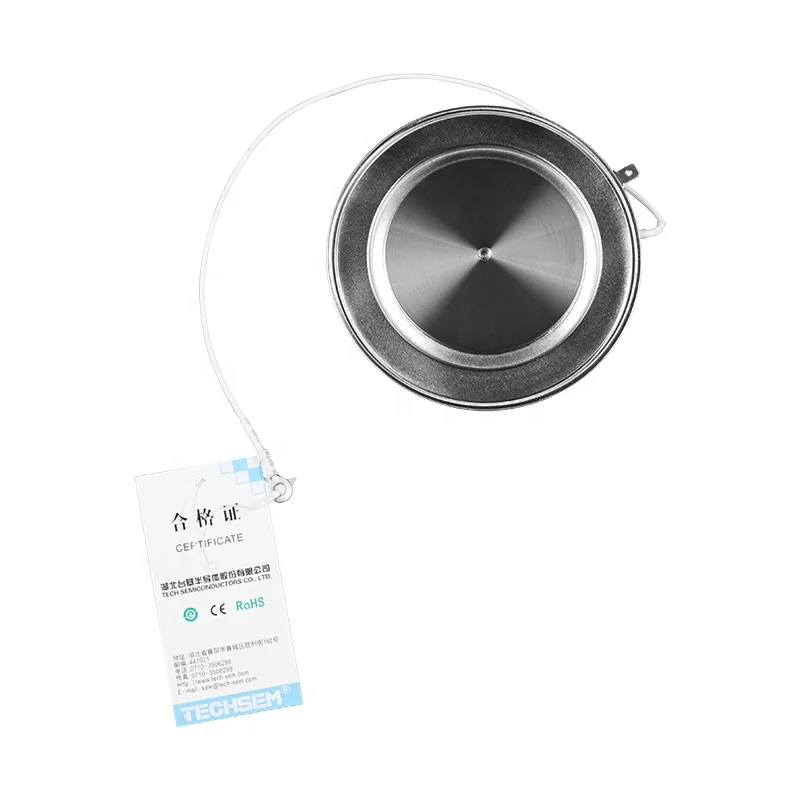

The power capsule devices we could supply include phase-control thyristors (KP series), fast turn-off thyristors (KK series) and rectifier diodes (ZP series), with chip diameters ranging from 0.5 inches to 5 inches. The output current range is 200A to 8500A, and the reverse voltage range of the capsule devices is 400V to 6500V. All our capsules have CE marking and comply with European RoHS directives.

Phase control KP series thyristor features

Amplifying gates

International standard cases

Hermetic metal cases with ceramic insulators

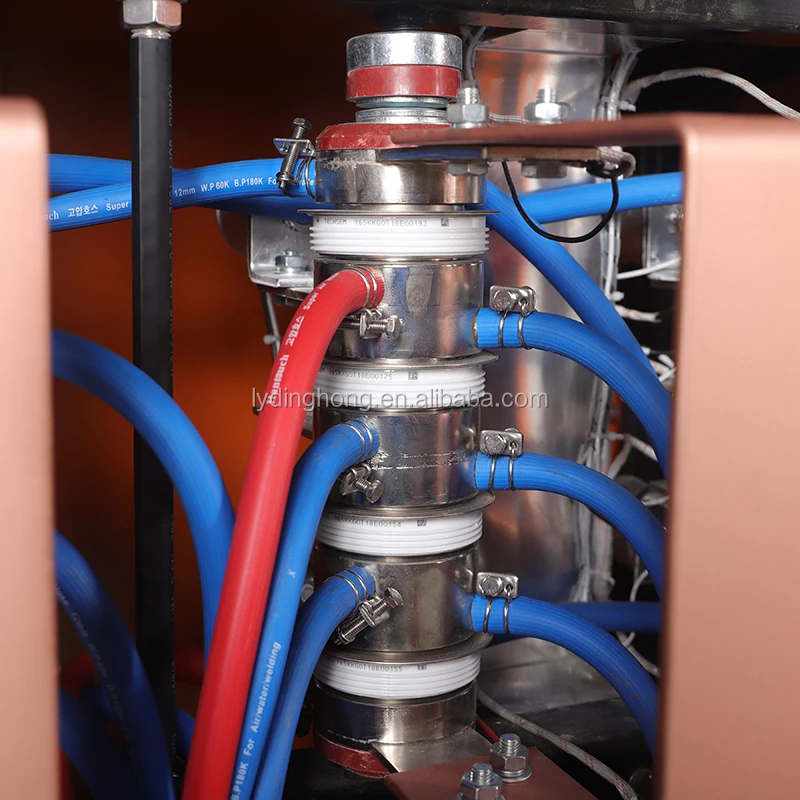

Capsule packages for double sided cooling

Type	VDRM/VRRM	IT(AV)	ITSM	IGT	VGT	VTM/ITM	VTO
		T 70℃	10ms	25℃		125℃
	V	A	kA	mA	V	V/A	V
KP800A 2500V	1900-3000	1060	23	40-300	0.8-3.0	1.87/2550	1.03
KP1500A 1800V	1100-1800	1410	26	40-300	0.8-3.0	1.49/3000	0.95
KP2000A 2500V	1900-3000	2190	33	40-300	0.8-3.0	1.44/3000	0.95

Phase control KK series features thyristor features

Interdigitated amplifying gates

Fast turn-on and high di/dt

Low switching losses

Short turn-off time

Hermetic metal cases with ceramic insulators

Type	VDRM/VRRM	IT(AV)	tq	ITSM	dv/dt	di/dt	VTm/Itm
		T 55℃	125℃	10ms	125℃
	V	A	μs	kA	V/μs	A/μs	V/A
KK1000A 1800V	800-1800	1330	18-50	16	500	1200	2.22/2000
KK1200A 1600V	800-1800	1330	18-50	16	500	1200	2.22/2000
KK1200A 1800V	800-1800	1460	18-50	17	500	1200	2.47/3000
KK1800A 1800V	800-1800	2080	18-50	26.6	500	1200	2.10/3000
KK1800A 2500V	1900-2500	1840	40-80	21	500	1200	2.62/3600
KK2500A 2500V	1900-2500	2560	40-80	31	500	1200	2.48/5000
