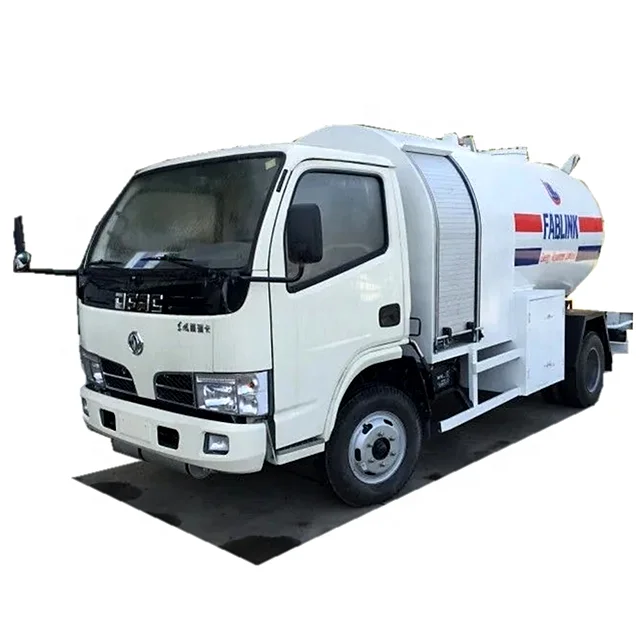

5000liters small lpg gas tank trucks 5000L lpg bobtail tanker truck price

Share on:

Price:$17,885.00 - $18,285.00
Price in USD:Details


Product Overview


5000liters small lpg gas tank trucks 5000L lpg bobtail tanker truck price


Product Description

5000liters small lpg gas tank trucks5000L lpg bobtail tanker trucksmall lpg gas tank truckslpg bobtail tanker truck

We produce the LPG tank , LPG tank trailer, LPG trucks, LPG skid station, which could be used for loading propane gas, methyl ether gas, isobutane gas, and so on, also include the liquid Ammonia.
Currently we produce the LPG tank, LPG gas storage tank from 5000 liter to 200000 liter.
LPG tank trailer, LPG mobile trailer, from 30000 liter to 60000 liter.
LPG truck, LPG mobile dispener truck, from 5000 liter to 35000 liter.
1)lpg bobtail capacity
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l, 200,000l.

2)lpg bobtail material
Q345R Q370R SA516

3)lpg bobtail production flow
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting

4)Main parts of lpg bobtail
pump, motor, flow meter, lpg dispenser

Product specification:

Truck Specification
Chassis modelCL5060GYQD
CabDongfeng single row cab, with power steering.,without a/c
Driving Type4*2 Left hand driving
Max Speed (km/h)99
Overall dimension(mm)5900*2045*2600
GVW( kg)7495
Mass in working order ( kg)5185
F/R track base (mm)1750/1586
F/R overhang (mm)1180/1690
Approach/Departure Angel22/23
Tire7.50-16 (6+1)
ClutchSingle-plate dry diaphragm spring clutch
SteeringHydraulic steering with power assistance
Gear box5-speed
BridgeFront axle2T
Rear axle4T
Fuel TypeDiesel fuel
TypeWater-cooled four-stroke,, direct injection, turbocharged
Max output power/rotate speed (hp /rpm )95/3200
Braking  systemService BrakeCompressed air brake
Park BrakeSpring energy
Auxiliary brakeengine exhaust brake
Eletric system12v
LPG TANK  specification
Design specific gravity0.42 Kg/L
Tank materialQ345R
Tank Designed thicknessEnd cover9.35mm
Tank body9.37mm
Design temperature50 0C
working temperature20~50 0C
Corrosion allowance1.0mm
Designed pressure1.77Mpa
Hydraulic test pressure2.3MPa
Leak test pressure1.77Mpa
Heat treatmentWholly get rid of stress
Use YearsTen years
LPG dispenserFunction  Dispenser LPG to LPG cylinder or other LPG truck
Flow rate10 ~ 60L/min
Max working pressure2.5Mpa
LPG pumpFunctionDelivery and pump LPG
Flow rate30-80L/min
Working pressure1.60Mpa
Liquid level meterTypeRotary
Nominal pressurePN2.5Mpa
Surveying range50-2300mm
Emergencycutting valveTypeGas phaseQCJ43F-2.5-8
Liquid phaseQCJ43F-2.5-7
Nominal pressurePN2.5Mpa
NominaldiameterGas phaseDN25mm
Liquid phaseDN50mm
Operation wayFluid pressure
Closing time≤10 Sec
Melting switch temperature70±5°C
Safe valveTypeA412F-2.5-16
ModelInner full lift
Nominal pressurePN2.5 MPa
Nominal diameterDN50
Opening pressure1.7 MPa
Closing pressure1.86-1.94MPa
Complete opening pressure<2.12 MPa
Loading and unloading deviceValve typeGas phaseYKAG-3.3-6
Liquid phaseYKAG-3.3-7
ModelQuick tie-in
Nominal DiameterGas phaseDN25mm
Liquid phaseDN50mm
Pressure meterYN-100T
Temperature gaugeWTQ-280
Other equipment
1.double tool box
2.double valve box
3.double Emergency Cut-off Valve
4.single pipe liquid out
5.both side loading and unloading

Product Images



Detailed Images

 propane tank


Our Services

 1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.

2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .

3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.

4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.

5. Model: we have sewage suction truck and sewage suction cleaning truck;

6. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;

7.Chassis brand: Dongfeng FOTON JAC FAW I-SUZU IVECO Sinotruk HOWO Shacman JMC.etc;

9. Crane tonnage: 5m3 to 200m3;

10. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
