Product Overview
Description
Product Description
Model | Belt Width | Brush Length | Total Length | Motor Power (KW) | |
SXBMD-EPM | 065 | 650 | 650 | 1300 | 1.1 |
080 | 800 | 800 | 1450 | 1.1 | |
100 | 1000 | 1000 | 1650 | 1.5 | |
120 | 1200 | 1200 | 1850 | 1.5 | |
140 | 1400 | 1400 | 2050 | 2.2 | |
160 | 1600 | 1600 | 2250 | 2.2 | |
180 | 1800 | 1800 | 2450 | 3 | |
200 | 2000 | 2000 | 2650 | 3 | |
Motorized Brush Belt Cleaner SXBMD-EPM

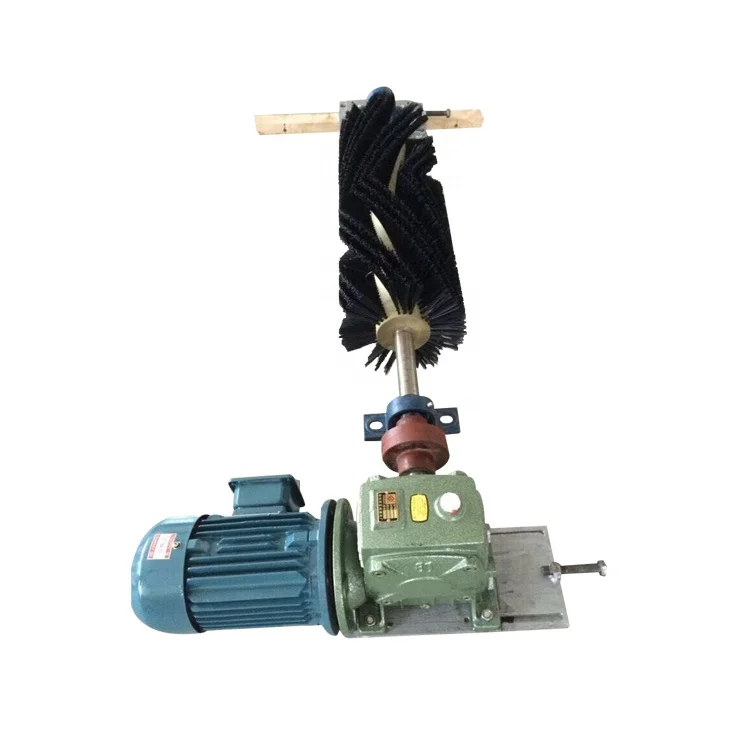

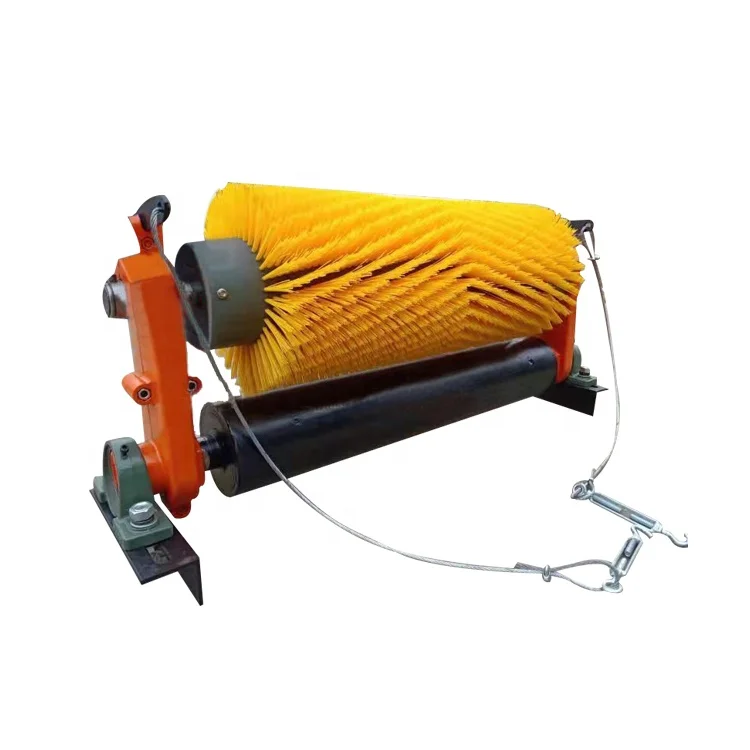

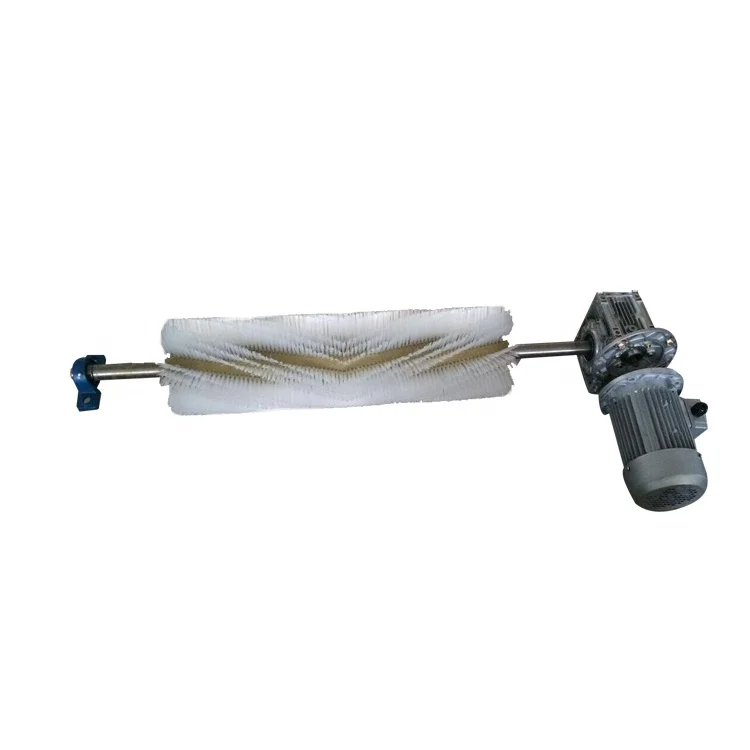

The brush type electric belt cleaner is composed of driving pulley, cleaning pulley, belt wheel, bearing seat, adjusting bracket and triangle belt. It can effectively cleaned the adhesives on the surface of the pulley and the bottom of the conveyor belt. The cylindrical nylon brush is driven by an electric motor, the brush tip is slightly in contact with the belt surface, the rotation direction of the nylon brush is opposite to the running direction of the return conveyor belt, thereby clean off the particulate materials adhered to the belt surface to achieve a thoroughly cleaning. The advantages as follows:
1. Integrated design, easy installation and adjustment, strong applicability.
2. No belt deviation caused during cleaning.
3. Safe and reliable, long service life, low maintenance cost.
4. Continuous contact of the cleaning point when cleaner works makes the cleaning force strong and cleaning effect good.
5. The nylon brush with special processing procedure makes it nonstick and anti-scaling.
6. No wear to belts and can extend the belt service life.
7. Applicable to the conveyor belt with non-vulcanized connectors.
8. . Suitable for the conveyance of all kinds of materials, such as coal, coke, sinter, salt, iron ore and fertilizer, and widely applied in thermal power plants, iron and steel plants, cement plants, fertilizer plants, coking plants, coal cleaning plants, coal mines, petrochemical plants, mining, paper mills, chemical plants, terminal transfer stations and other industries.
