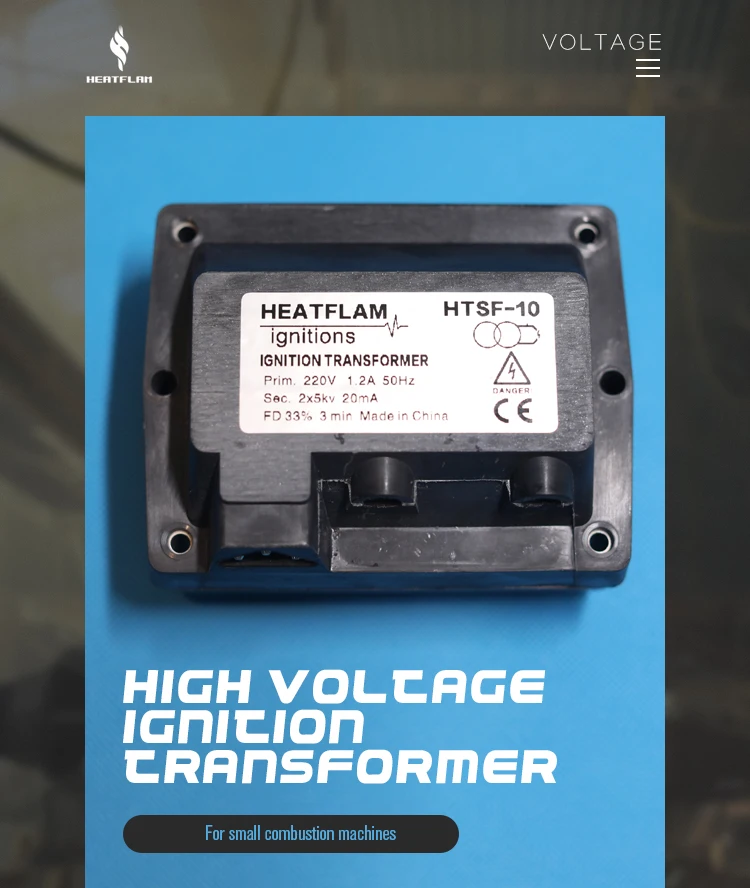

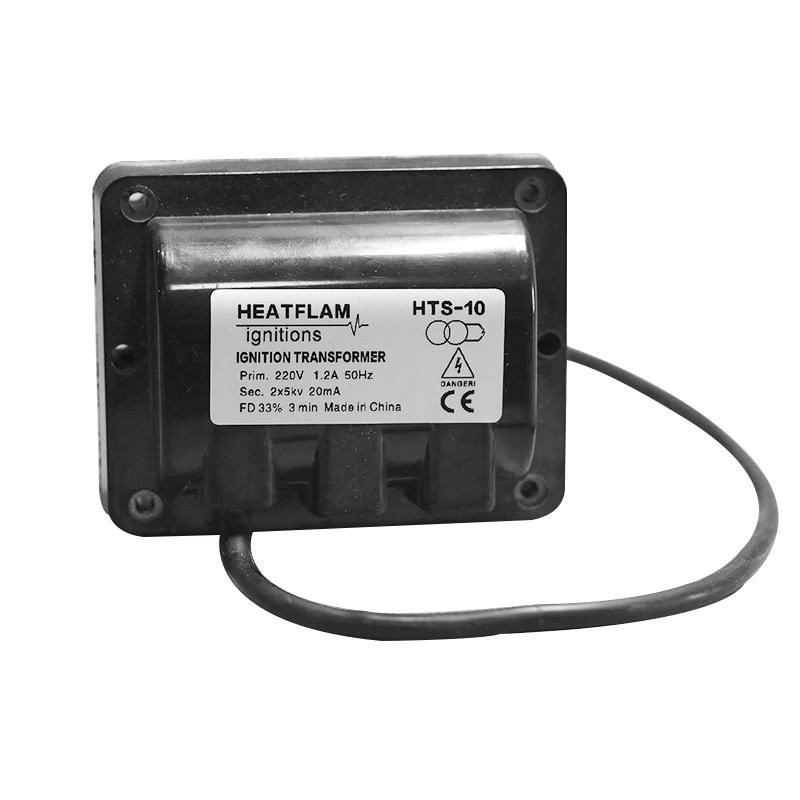

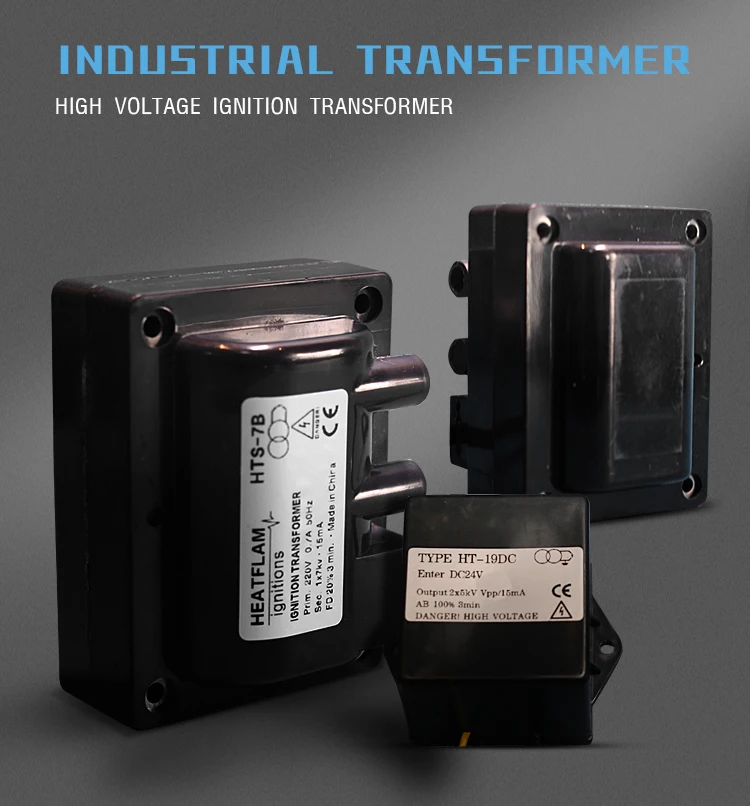

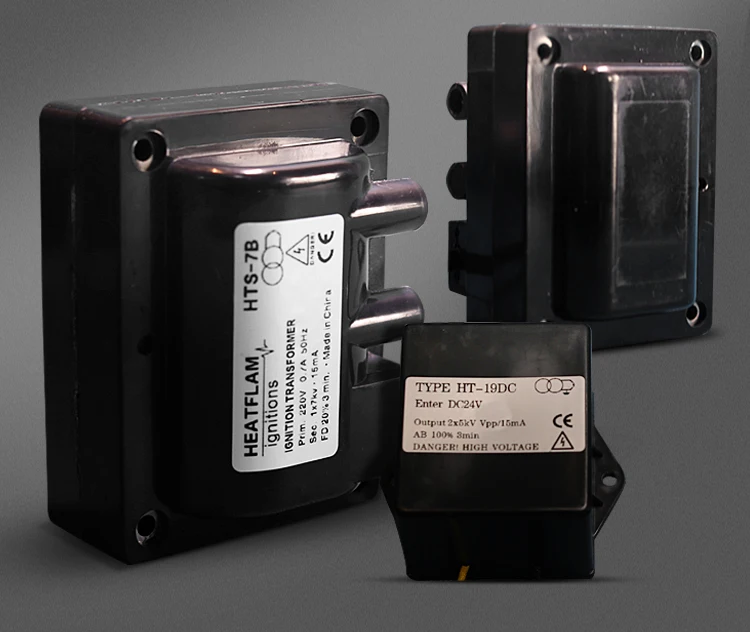

Industrial high voltage ignition transformers for gas and fuel burners oil burners

	HTSF-7B	HTSF-8	HTSF-10	HTSF-7A
Input	voltage:220V/50Hz	voltage:220V/50Hz	voltage:220V/50Hz	voltage:220V/50Hz
	current:≤0.7A	current:≤1.1A	current:≤1.2A	current:≤0.7A
Output	current: ≥15mA	current: ≥20mA	current: ≥20mA	current: ≥15mA
	voltage: 1≥7kV or 2≥4kV	voltage: 1≥8kV	voltage: 2≥5kV	voltage: 2≥5kV
Overall dimensions	92×70×57mm	110×86×68mm	110×86×68mm	92×70×57mm
Ignition distance	3~4mm	3~5mm	3~6mm	3~4mm
3 minutes Ignition efficiency	clearance:20%	clearance:33%	clearance:33%	clearance:20%
	continuous:---	continuous:100%	continuous:100%	continuous:---
Output type	Unipolar, bipolar	Unipolar	bipolar	Unipolar, bipolar
Input form	Leads	Leads, plugins	Leads, plugins	Leads
Use	Use small burner, fuel and gas burner, integrated burner, industrial combustion equipment, etc The ignition of buy

FAQ

Q: Are you trading company or manufacture?

A: Both.

Q: What's your product range?

A: We specialize in product solenoid valves,butterfly valves,pressure push-button valves, ignition transformer,burner controller,electric actuator, and other combustion accessories.

Q: What's your strong product?

A: Solenoid valves,butterfly valves,pressure push-button valves.

Q: Do you provide sample? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.

Q: How long is your delivery time?

A: Generally it is 7 days if the goods are in stock, or it is 30 days if the goods are not in stock, it is according to the quantity.

Q: What is your terms of payments?

A: * Payment ≤ 10000 USD,100% T/T advance .

   * Payment ≥ 10000 USD,30% T/T advance and settle the 70% balance before delivery.
