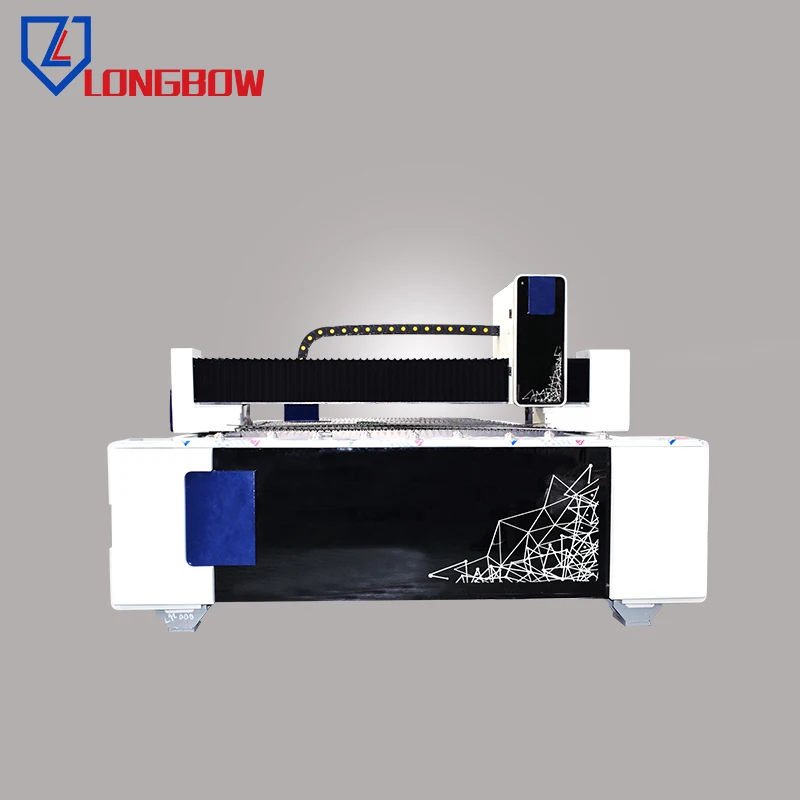

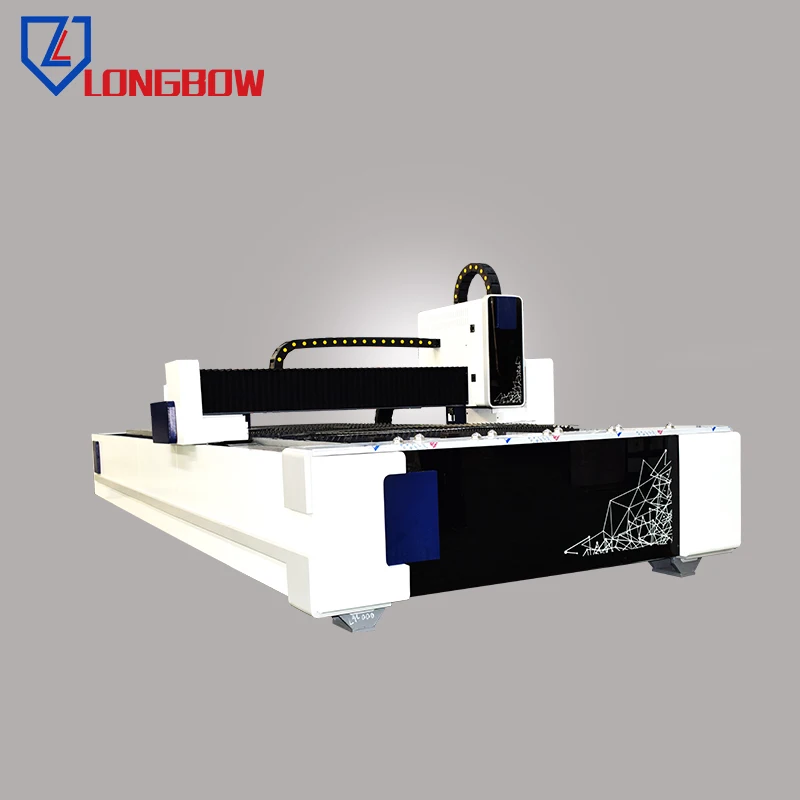

500w 1000w sheet Metal Stainless Fiber Laser Cutting Machine
- Category: >>>
- Supplier: Maanshan Longbow Machinery Manufacturing Co. Ltd.
Share on (62408146346):
Product Overview
Description
Products Description
Performance Features
1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.
2. Configure with Japan THK linear rail for all axis, to ensure durable and high precision for long time processing.
3. X, Y axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured,Z axis are transmitting by high accuracy rolling ball screw.
4. Adopt France Schneider AC servo system for all axis, larger power, close-cycle control, high precision positioning, strongertorque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.
5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development,built-in process, ensure high-quality cutting effect.
6. Adopt professional WSX, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise,higher efficiency and better processing quality can be ensured.
7. Dual air path control, equipped with Japan SMC intelligent gas unit, automatic pressure regulation, air exchange, pressuredetection, more simple to use.
8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.
9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.
2. Configure with Japan THK linear rail for all axis, to ensure durable and high precision for long time processing.
3. X, Y axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured,Z axis are transmitting by high accuracy rolling ball screw.
4. Adopt France Schneider AC servo system for all axis, larger power, close-cycle control, high precision positioning, strongertorque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.
5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development,built-in process, ensure high-quality cutting effect.
6. Adopt professional WSX, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise,higher efficiency and better processing quality can be ensured.
7. Dual air path control, equipped with Japan SMC intelligent gas unit, automatic pressure regulation, air exchange, pressuredetection, more simple to use.
8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.
9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.
Product Model | LB-3015A | LB-6015A | LB-4020A | LB-6020A | |||
X,Y working area | 3000*1500mm | 6000*1500mm | 4000*2000mm | 6000*2000mm | |||
Laser Power | 500W/700W/1000W/1500W/2000W/3000W | 150mm | |||||
Processing Precision | ±0.03mm/m | 0.1mm | |||||
Repeated Processing Precision | ±0.02mm/m | ||||||
Maxmun Moving Speed | 100m/min | Automatic | |||||
Maximun Cutting Speed | 60m/min | Max 40mm carbon steel | |||||
Drive System | High precision gear and rack+High precision linear guide rall | LGK63A | |||||
Voltage | 380V±10%/50Hz(Customizable voltage) | STARfire | |||||
Processing equipment
Overall processing of fuselage,
steel plate bed, twice tempering processing.
Details Images
machine parts
Name: Laser head
Brand：Raytools
Original:Switzerland
The product has a built-in motor drive unit that automatically changes the position within a range of 17mm by a linear mechanism driven focus mirror. The user can continuously adjust the focus through the program to complete the rapid perforation of the thick plate and automatically cut the plates of different thicknesses and materials.
machine parts
Name: linear guide
Brand: YCC
Brand: YCC
Original: TAIWAN
Advanced cutting system, laser power and servo movement suit each other perfectly, imported high precision gear
and rack drive system, exchangeable double work table, to ensure higher processing speed and accuracy.
machine parts
Name: Machine Body
Brand:LONGBOW
Brand:LONGBOW
Original: CHINA
a.the steady gantry framework provides an open worktable
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm,
suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.
b.Synchronous X/Y/Z axes: The Z-axis can run 150mm,
suitable for cutting many varieties of metal sheets.
c.High quality guarantees its durability and easier maintenance.
machine parts
Name: CNC System
Brand: STARfire
Original: China
The system is highly reliable and has the ability of anti plasma interference, anti lightning and surge.Practical flame / plasma cutting process,automatic corner speed control and height regulator control during plasma processing; breakpoint recovery, automatic power-off recovery function, breakpoint automatic memory.
Our Campany
Certifications
Cooperative partner
Packing & Delivery
Packaging | ||
Dimensions (mm) | 4880(L)*2680(W)*1940(H) | |
Weight | 1650kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Dimensions (mm) | 4880(L)*2680(W)*1940(H) | |
Weight | 1650kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Related Products
FAQ
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
3.How about your machine quality?
LONGBOW company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.
4. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
