Grounding Kit for LMR400, CNT400, RG8 Coaxial Cable
- Category: >>>
- Supplier: Xiamen Hdg Telecom Equipment Limited
Share on (62408167973):
Product Overview
Description
Product Description
Grounding kit for LMR400,CNT400 and RG8 (8-9mm)coaxial cable
Here is all we supply about LMR400 grounding kit, CNT400 grounding kit and RG8 grounding kit.
HDG Telecom grounding kit is made of high-purity copper,can fit the outside diameter of grounding wire, and coaxial cable.In order to meet the growing needs of customers, HDG Telecom has designed a grounding solution for the LMR400, CNT400 and RG8 coaxial cable. Including Bolt-on grounding kit, standard grounding kit, small universal grounding kit and framework grounding kit for you to choose.LMR400 (CNT400) and RG8 coaxial cable are are widely used in communications.And their similar structure 【Diameter of outter conducter:8.1mm（0.0267in)】 allows them to apply the same grounding kit, even though these grounding kit have completely different installations.
Item No. | Specification | ||||||
GK-BOL400-1 | Bolt-on grounding kit for LMR400, CNT400 and RG8 coaxial cable | ||||||
GK-242948-1 | Standard universal grounding kit for LMR400, CNT400 and RG8 coaxial cable | ||||||
GKA-SUNV-1 | Small universal grounding kit for LMR400, CNT400 and RG8 coaxial cable | ||||||
GKK-STD-1 | Standard grounding kit for LMR400, CNT400 and RG8 coaxial cable | ||||||
GK-FW-38-1 | Framework grounding kit for LMR400, CNT400 and RG8 coaxial cable | ||||||

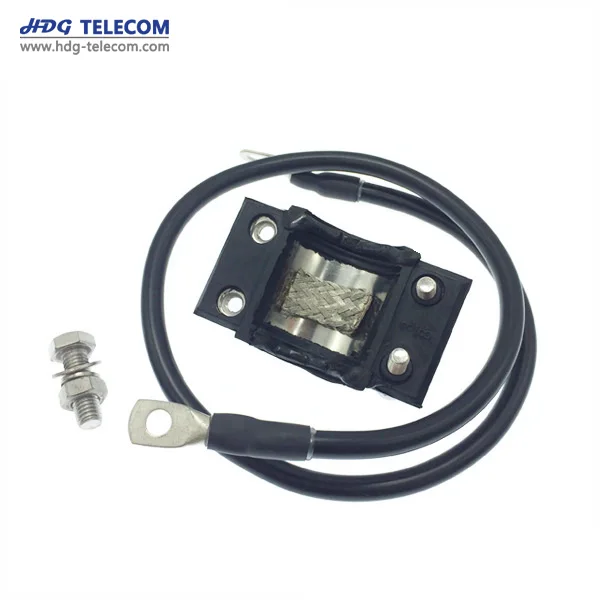

Bolt on Grounding Kit
For : LMR400, CNT400, RG8 Coaxial Cable;
Item No.:GK-BOL400;
Contact Area: Copper;
Earth Wire: 6AWG(13mm²) 1meter(As required);
Bolt: M8×25;
Lug: M6 Double Hole; M8 Single Hole(As required);
Item No.:GK-BOL400;
Contact Area: Copper;
Earth Wire: 6AWG(13mm²) 1meter(As required);
Bolt: M8×25;
Lug: M6 Double Hole; M8 Single Hole(As required);
Butyl Rubber Tape : 2mm*50mm*500mm
PVC Tape: 0.18mm*50mm*6m

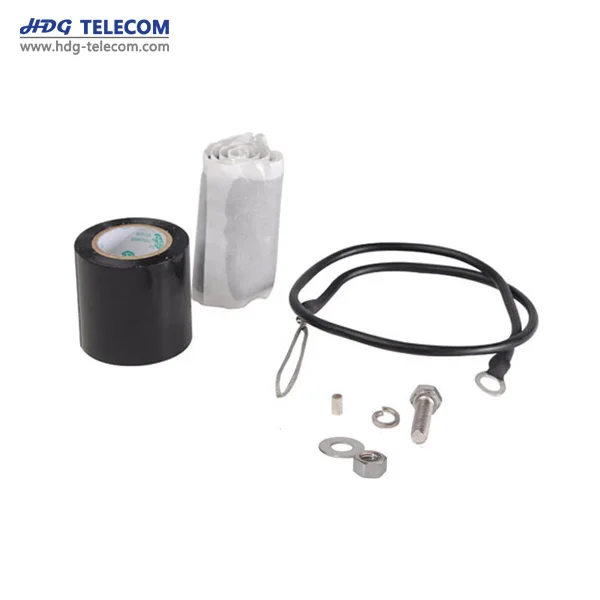

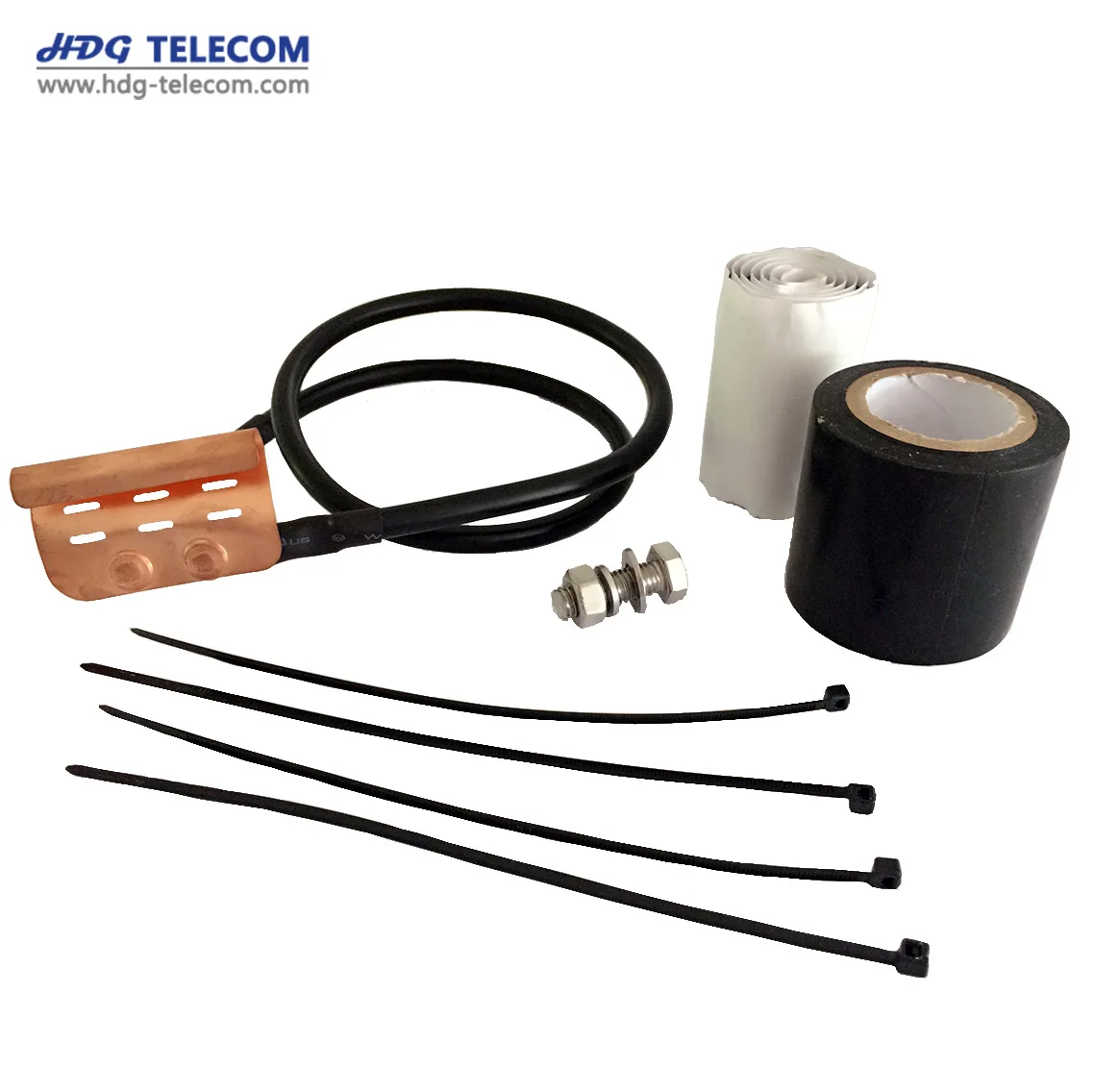

Standard Grounding Kit (Equal Commscope 242948)
For: LMR400, CNT400, RG8 Coaxial Cable;
Item No.: GK-242948;
Contact Area: Copper;
Nylon Tie-wraps: 3×150;
Earth wire: 6AWG(13mm²) BV 1meter(As required);
Bolt: M8×25;
Item No.: GK-242948;
Contact Area: Copper;
Nylon Tie-wraps: 3×150;
Earth wire: 6AWG(13mm²) BV 1meter(As required);
Bolt: M8×25;
Lug: M8 Single Hole(As required);
Butyl Rubber Tape : 2mm*50mm*500mm
PVC Tape: 0.18mm*50mm*6m
PVC Tape: 0.18mm*50mm*6m
Small Universal Grounding Kit
For: LMR400, CNT400, RG8 Coaxial Cable;
Item No.:GKA-SUNV;
Contact Area: Tinned Copper;
Rivet: Φ5×8.1;
Earth Wire: 6mm² 1meter(As required);
Bolt: M8×25(As required);
Item No.:GKA-SUNV;
Contact Area: Tinned Copper;
Rivet: Φ5×8.1;
Earth Wire: 6mm² 1meter(As required);
Bolt: M8×25(As required);
Lug: M8 Single Hole(As requested);
Butyl Rubber Tape : 2mm*50mm*500mm
PVC Tape: 0.18mm*50mm*6m
Butyl Rubber Tape : 2mm*50mm*500mm
PVC Tape: 0.18mm*50mm*6m

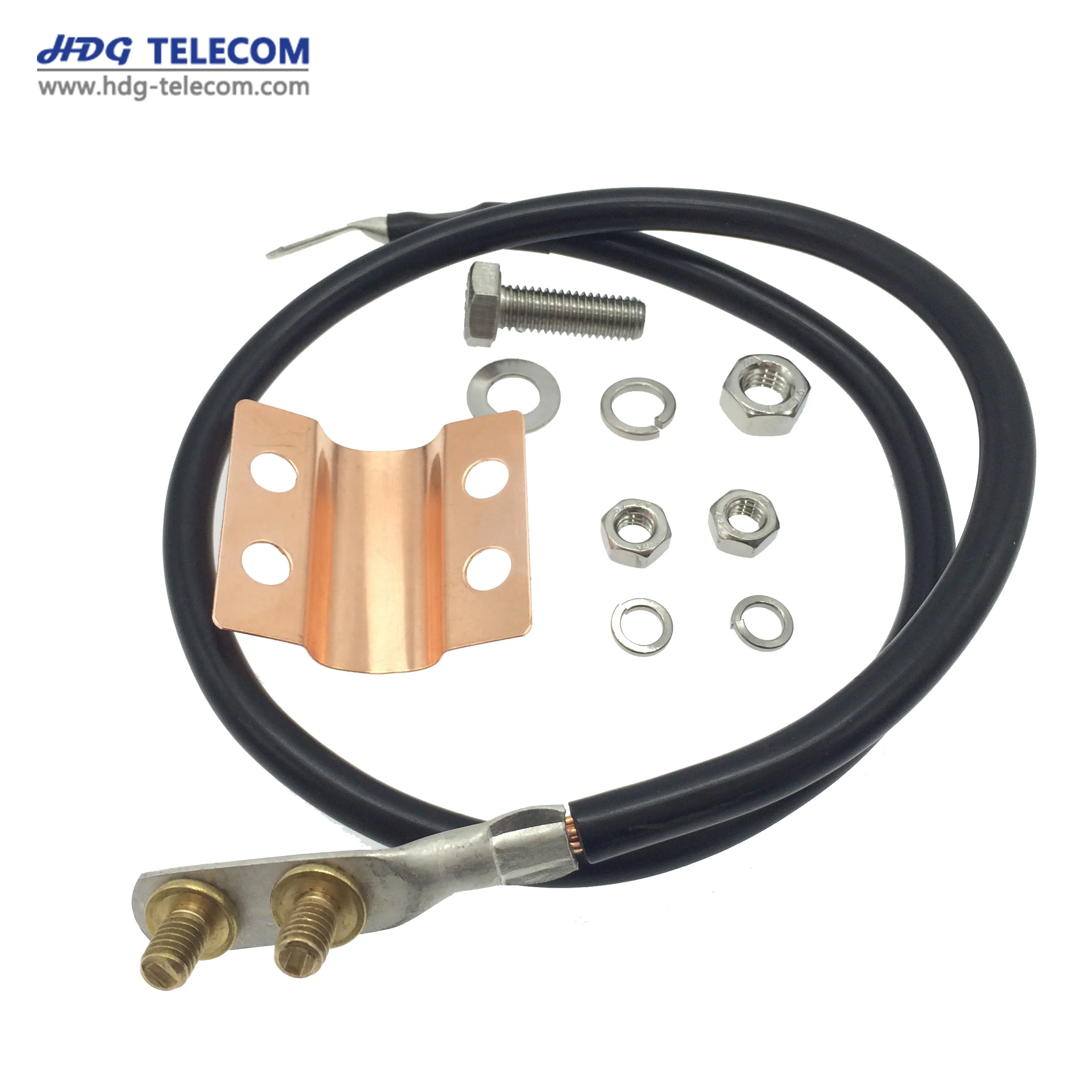

Standard Grounding Kit
For: LMR400, CNT400, RG8 Coaxial Cable;
Item No.:GKK-STD;
Contact Area: Copper;
Cross Screw: M4×8;
Item No.:GKK-STD;
Contact Area: Copper;
Cross Screw: M4×8;
O-ring Washer:φ4
Earth Wire: 6AWG(13mm²) 1meter(As required);
Bolt: M8×25;
Earth Wire: 6AWG(13mm²) 1meter(As required);
Bolt: M8×25;
Lug:M8 one Hole(As required);
Butyl Rubber Tape : 2mm*50mm*500mm
PVC Tape: 0.18mm*50mm*6m
PVC Tape: 0.18mm*50mm*6m

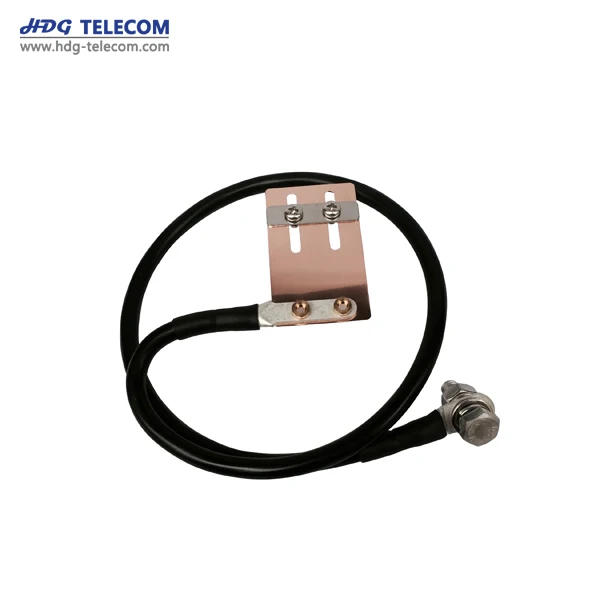

Framework Grounding Kit
For: LMR400, CNT400, RG8 Coaxial Cable;
Item No.:GK-FW-38;
Contact Area: Tinned Copper;
Earth wire: 6AWG(13mm²) BV 1meter(As required);
Bolt: M8×25;
Lug: M8 Single Hole(As required);
Item No.:GK-FW-38;
Contact Area: Tinned Copper;
Earth wire: 6AWG(13mm²) BV 1meter(As required);
Bolt: M8×25;
Lug: M8 Single Hole(As required);
Warranty: 3 years;
Weatherproofing IP67
These grounding(earthing) kits are made of pure copper to ensure a perfect contact area and do not influence the electrical transmission characteristics of the coaxial cable.The contact resistance, insulation resistance, etc. can meet the requirements of communication industry, and it can prevent the damage to relevant devices which due to lighting stroke or large current.
Packing & Delivery
Our usual packing is export carton with tape and packing belt, pallet packing.
Other packing is also available by your requirement.
Samples or small batches delivered by DHL、TNT、FedEx、UPS.
Batch cargo are delivered by air or sea.
Other transports are available by requirement.
