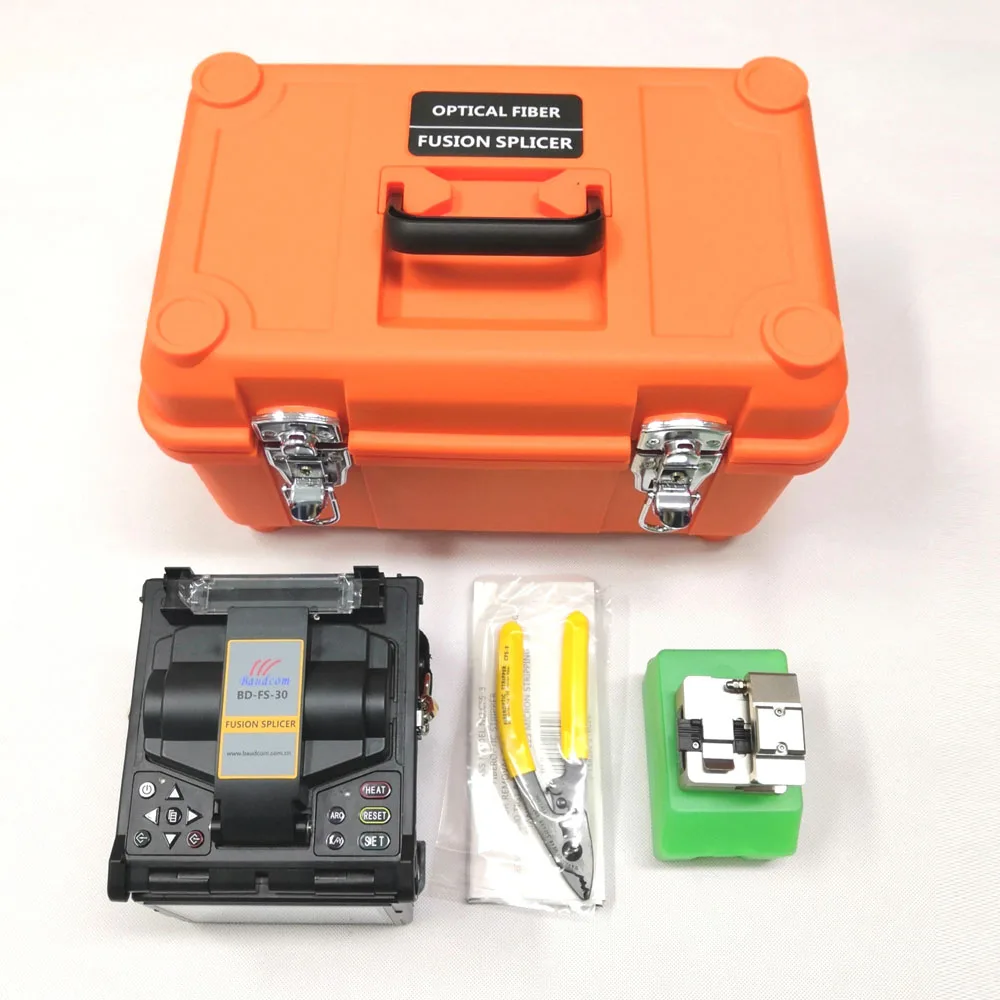

Ftth fusion splicer fiber FTTX Optic welding machine 4 Motos Splicing fiber laser welding machine
- Category: >>>
- Supplier: Shanghai Baudcom Communication Device Co. Ltd.
Share on (62408191606):
Product Overview
Description
Product Description

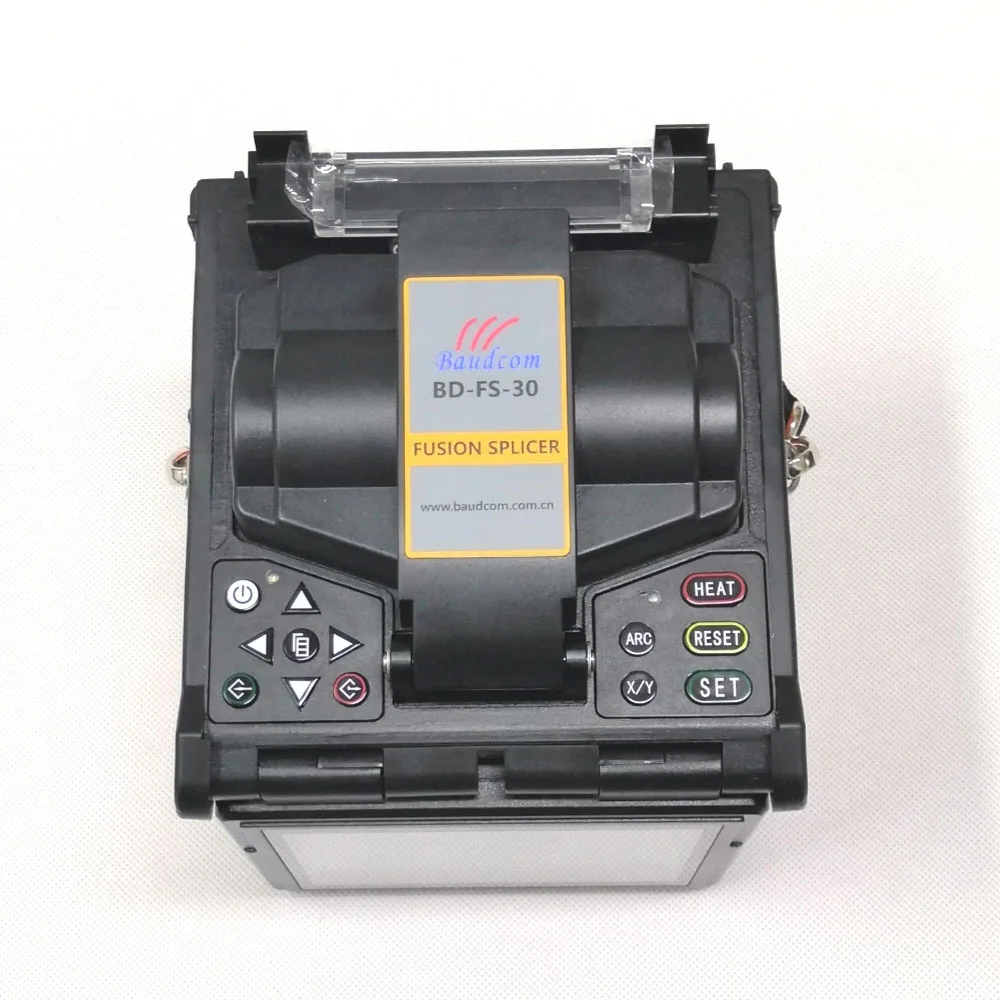

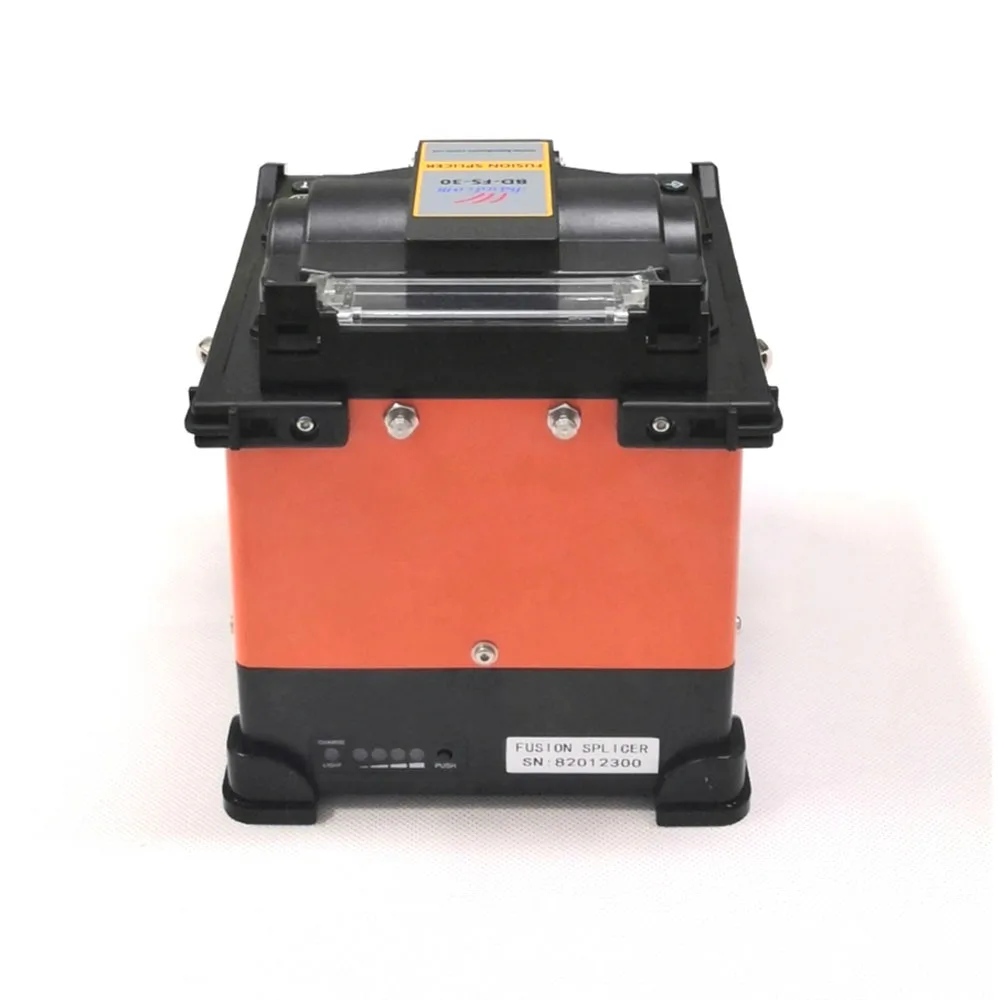

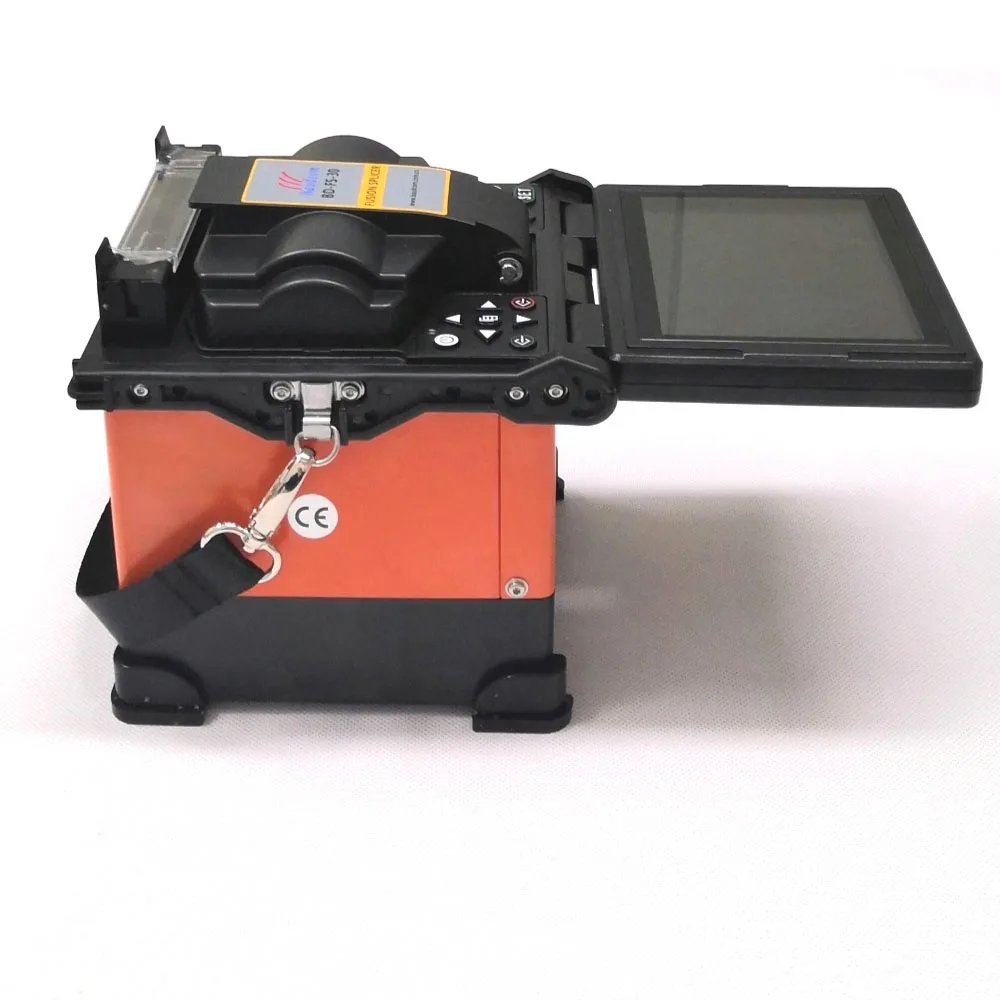

MODEL:BD-FS-30
Specification
Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657) |
Fiber count | Single |
Applicable fiber dimensions | Cladding diameter: 80 -150μm, Coating diameter: 160 – 900μm |
Typical splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
Return loss | >60db |
Fiber cleaved length | 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm ) |
Splicing program | 40 groups |
Operate mode | Manual, Automatic |
Auto-heating | Available |
Typical splicing time | 7 seconds |
Typical heating time | 26 seconds |
Fiber view magnification | 250X(X or Y view), 125X(X and Y view) |
Viewing method and display | 2 CMOS cameras, 4.3 inch color LCD monitor |
Storage of splice result | 4000 results |
Loss evaluation | Available |
Tension test | 1.8-2.2N |
Interface | GUI menu interface, easier operation |
Battery capacity | 5200mAh, typical 250 cycles(splice and tube heat), pluggable inner Li-battery |
Power supply | Adaptor, input: AC100-240V(50/60HZ), output: DC13.5V |
Electrode life | More than 4000 ARC discharges, can be replaced conveniently |
Terminals | USB 2.0 port, for uploading splice results and upgrading software |
Operating condition | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃;Wind speed: max 15m/s |
Dimension | 149mm(L)x120mm(W)x127mm(H) |
Weight | 1.90kg including battery |
Related Products

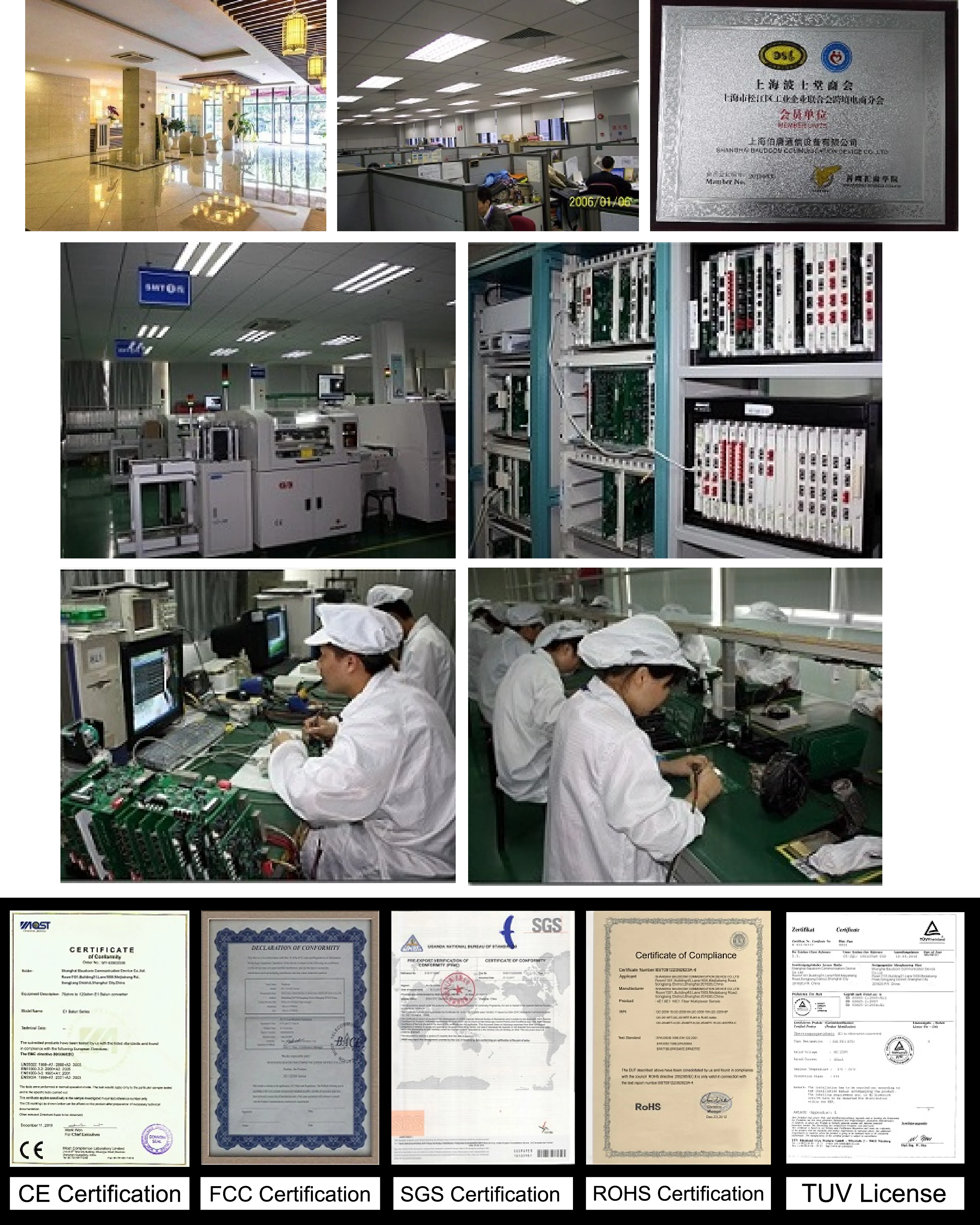

Company Profile
