UR75 Milesight IoT Industrial Cellular Router with DIDO RS232 RS485 for Automatic Meter Reading System
UR75 Milesight IoT Industrial Cellular Router with DIDO RS232 RS485 for Automatic Meter Reading System
UR75 Milesight IoT Industrial Cellular Router with DIDO RS232 RS485 for Automatic Meter Reading System

UR75 Milesight IoT Industrial Cellular Router with DIDO RS232 RS485 for Automatic Meter Reading System

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

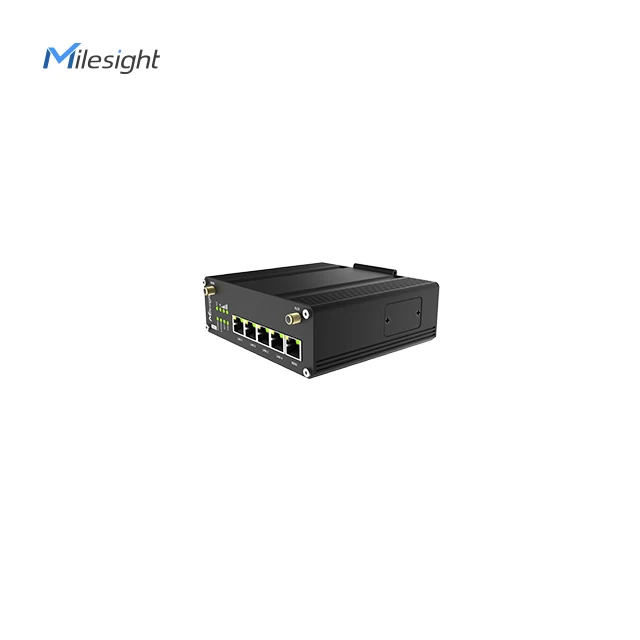

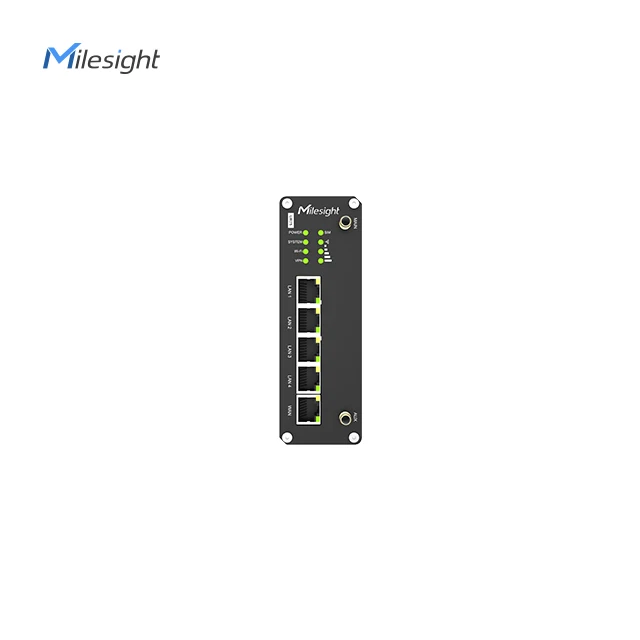

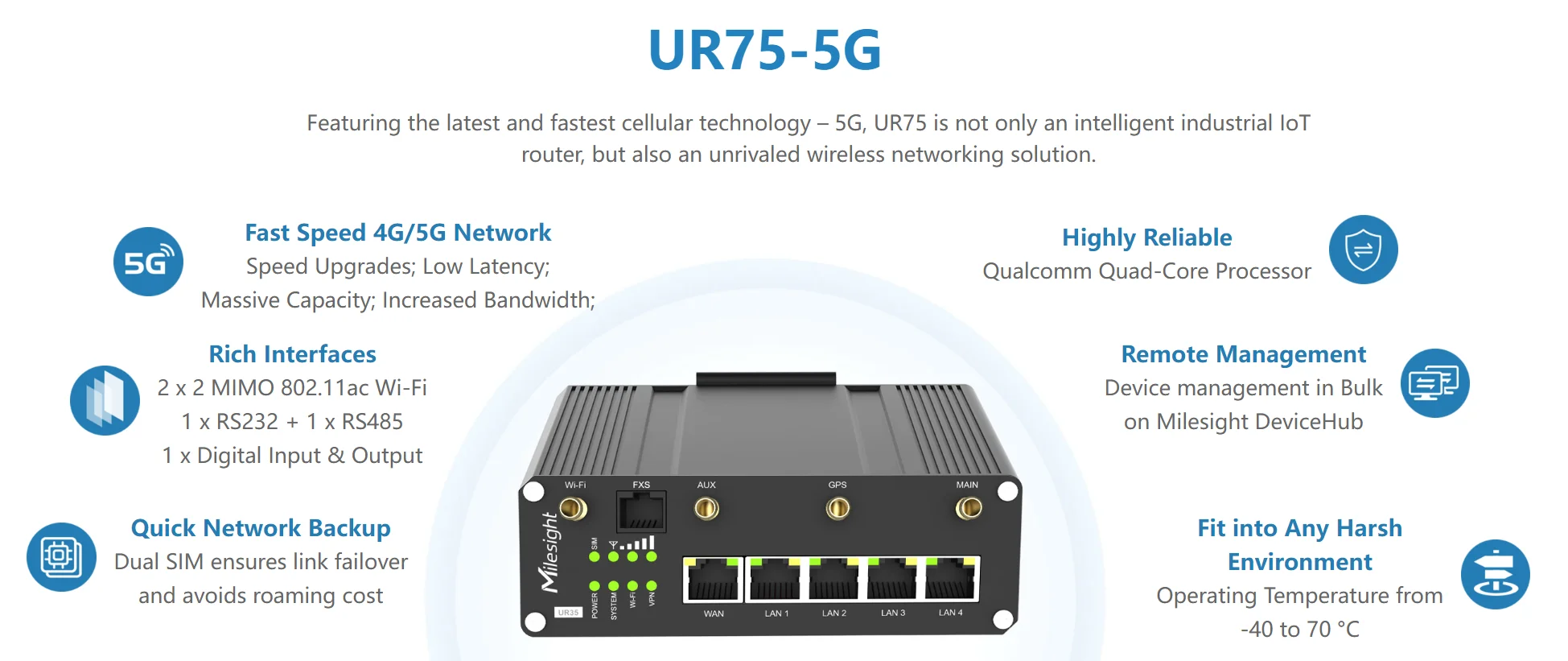

UR75 5G Industrial Cellular Router

Featuring the latest and fastest cellular technology – 5G, UR75 is not only an intelligent industrial IoT router, but also an unrivaled wireless networking solution.







Powerful Design and High Speed 5G Network


The UR75 supplies a broad selection of modules that helps to meet the demanding requirement of network connections. Further to this, it features GPS, PoE, RS232/RS485, for users to build an optimal networking platform for their businesses.

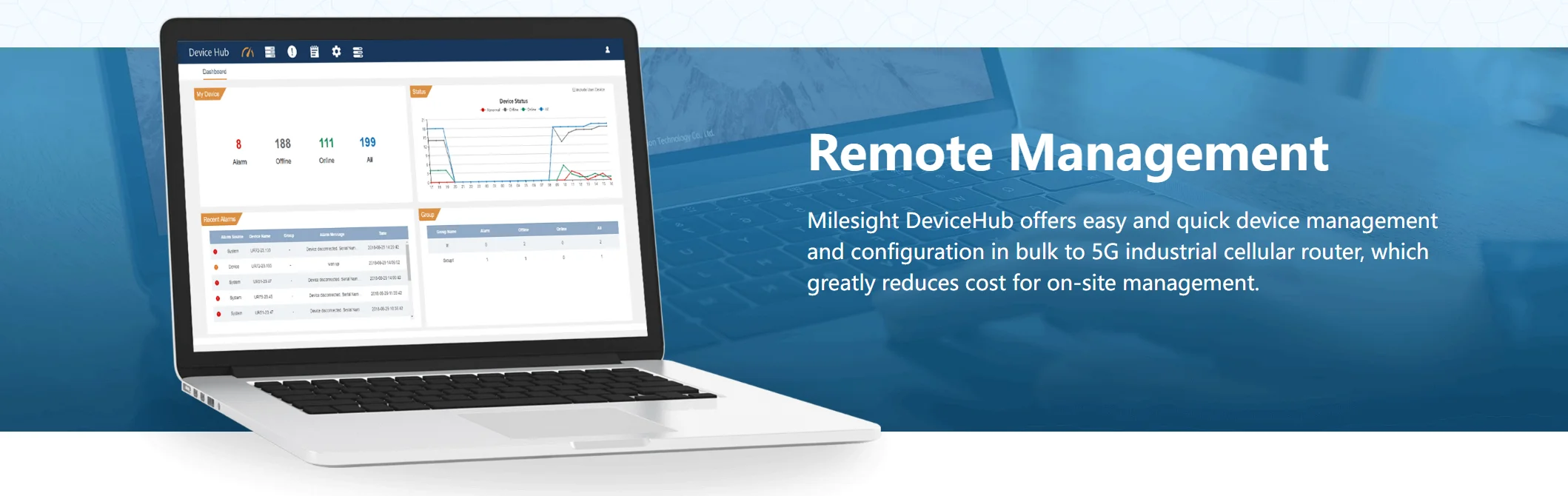

Device Management Platform


Device Management Platform is engineered to extend your network reach of remote equipment and allows you to perform further analysis, spot outages and ensure the highly possible uptime. As an intelligent IoT-based strategy, the Platform comes with exciting promises that release operational efficiency and drive commercial success.






Highlights:

High Processing Speed: embeds 716 MHz, Quad-Core ARM Cortex-A7
Multiple Interface Access:  Serial port, Wi-Fi, GPS, PoE, DI, DO etc
IoT Platform Readiness: connects to AWS, Azure, ThingWorx in minutes
Remote Management: features Ursalink Device Management Platform
Custom-Tailored Service: experienced OEM/ODM solution

Multiple Encryption Tunnels: complies with a wide range of VPN protocols

High-Speed Data Transmission: features fast Ethernet port



Specifications


UR75-4G
(CAT4/6/9/12/20 (Optional)
UR75-5G





Capabilities
CPU
716 MHz, Quad-Core ARM Cortex-A7
Flash
8 GB
Memory
512 MB DDR3
Built-in
Watchdog, RTC
GPS
GPS + GLONASS
Extended Memory
1 × M.2 NVMe SSD Slot





Interfaces
SIM Slots
2
Ethernet Ports (Mbps)
5 x 10/100 /1000 Mbps
(Optional: PoE Output)
2 x 10/100
5 x 10/100
Serial Ports
1 x RS232 + 1 x RS485
1 x RS232 + 1 x RS485
or 2 x RS232 or 2 x RS485
Digital (I/O)
1 × DI + 1 × DO
2 x DI + 2 x DO
Antenna Connectors
3 x Cellular Connectors
1 x Cellular/GPS Connector
2 x Wi-Fi Connectors
2 x Cellular Connectors
2 x Wi-Fi Connectors, 1 x GPS Connector
(Center Pin: SMA Female)







Network
Network Protocols
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF,
DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
AAA
RADIUS, TACACS+, LDAP, Local Authentication
Firewall
URL Filtering/ACL/DMZ/Port Mapping/MAC Binding/SPI/DoS Protection
Wi-Fi
IEEE 802.11 a/b/g/n/ac
IEEE 802.11 a/b/g/n/ac
Serial Port
Transparent (TCP Client/Server, UDP),
Modbus Gateway (Modbus RTU to Modbus TCP), Modbus Master
VPN
OpenVPN, IPsec, PPTP, L2TP, DMVPN, GRE
Reliability
VRRP, WAN Fail-over, Dual SIM Backup
Maintenance
Management
Web, CLI, SMS, Watchdog, On-demand Dial Up
Multilevel Authority
Multiple Levels of User Authority







Hardware
Power Input
9-48 VDC
9-48 VDC
Power Output (Optional)
4 × 802.3af/at PoE PSE
Ingress Protection
IP30
Housing & Weight
(Metal)
Metal, 525 g (1.16 lb)
Dimensions
135 × 118 × 45 mm (5.31 × 4.65 × 1.77 in)
Mounting
Desktop, Wall or DIN Rail Mounting






Others
Operating Temperature
-40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance above 60°C
Storage Temperature
-40°C to +85°C (-40℉ to +185℉)
Relative Humidity
0% to 95% (Non-Condensing) at 25°C/77℉
Certifications
RoHS, CE, FCC
Frequency Band
E: LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41
AF: LTE: B2/B4/B5/B12/B13/B14/B66/B71
AU: LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40
RG*: 5G NR: N41/N77/N78/N79 Mounting


Certification




Partners




Application


Idea for Connecting...





meet us worldwide




Company Information


About Milesight IoT

Milesight IoT – We Connect Things to Cloud

We are passionate about the connectivity of “things” to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion. We believe that the complexity of data collection, storage and retrieval can be simplified into the Cloud-intelligence. Our development and distribution of these appliances and services demonstrates our commitment to the digital transformation and continues to deliver compelling connectivity for IoT world.





Factory

We spare no efforts in quality control and product innovation. The strong R&D capability empowers Milesight IoT to provide remarkable reliability and usability for the global marketplace. With future in mind, Milesight IoT designs, deploys and delivers custom-tailored services with an emphasis on the most minor details that enhance our products longevity.
