Product Overview
Description
Product Description

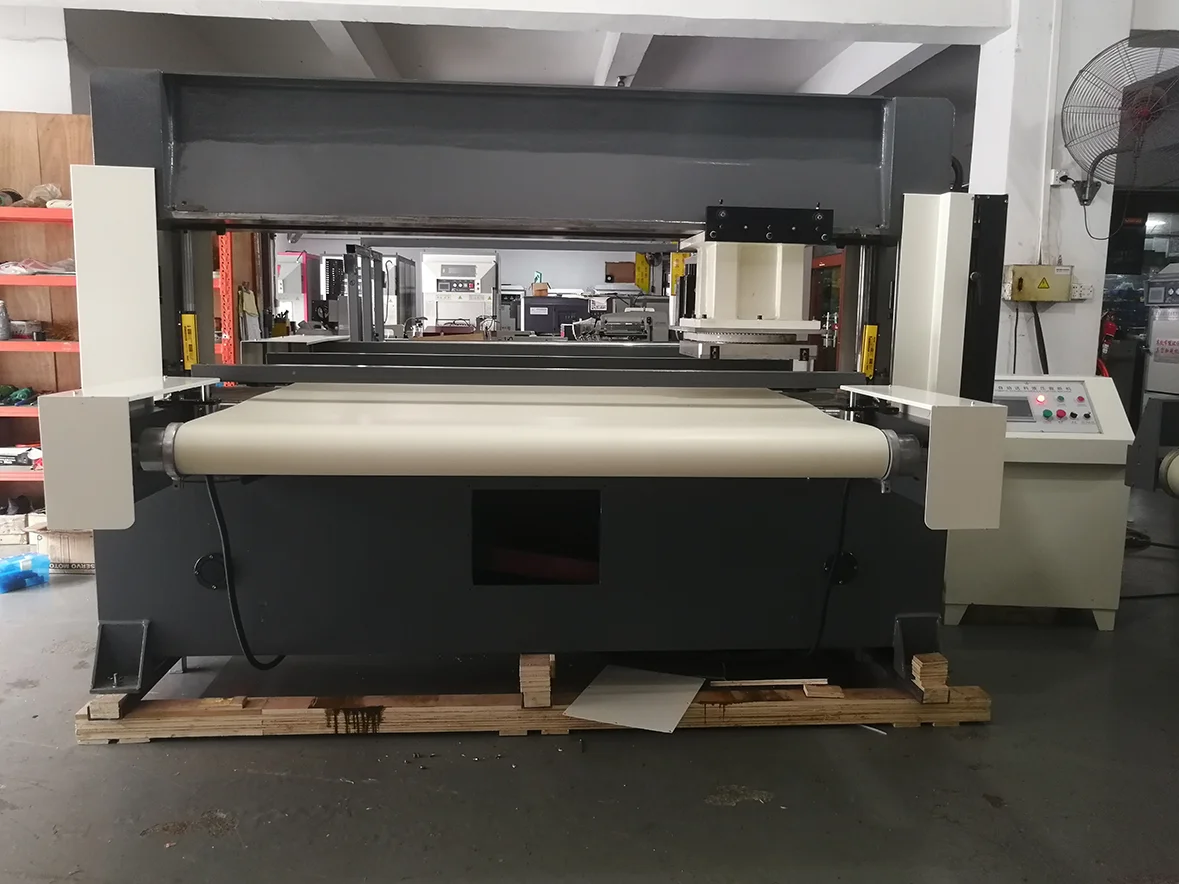

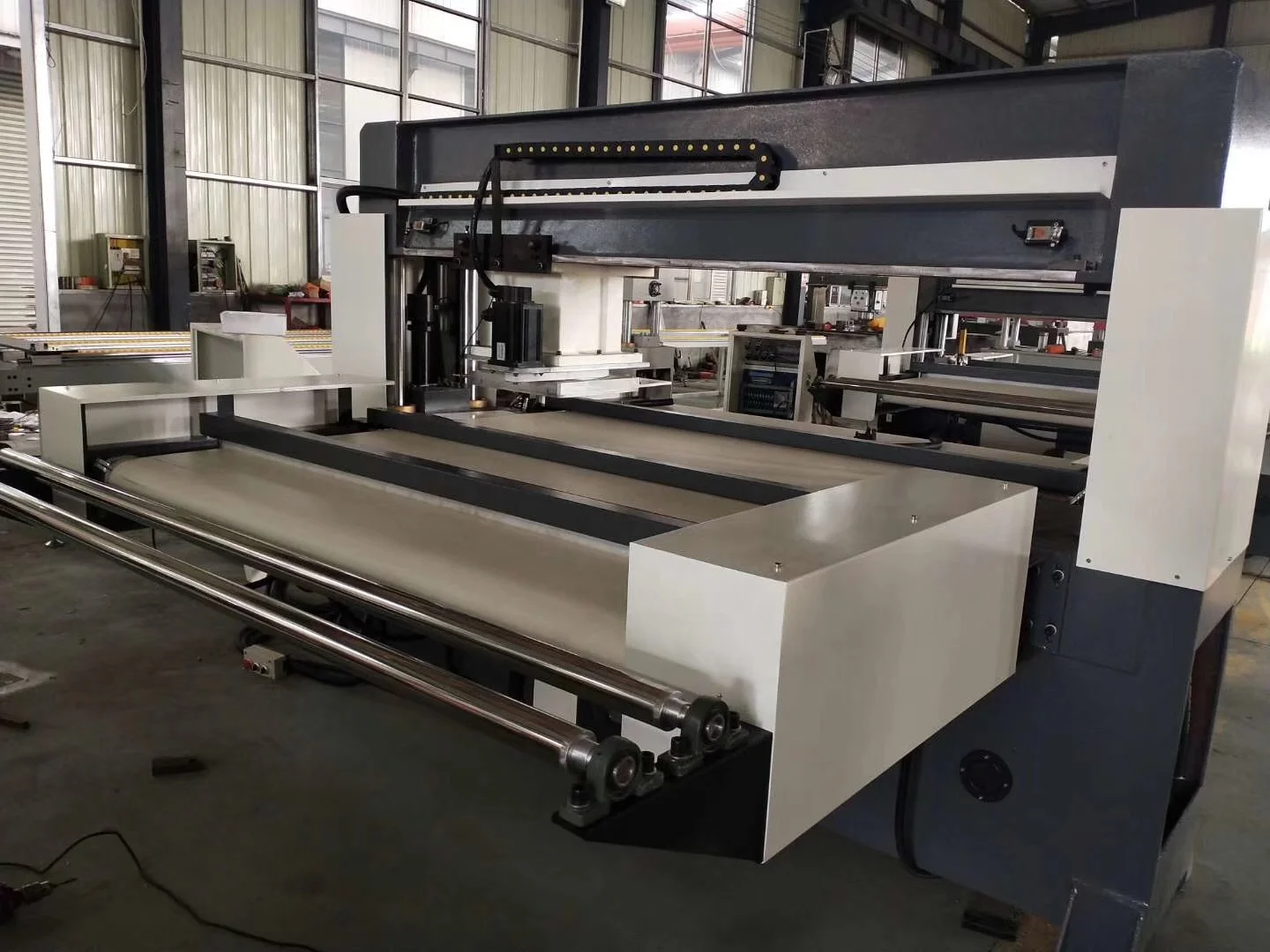

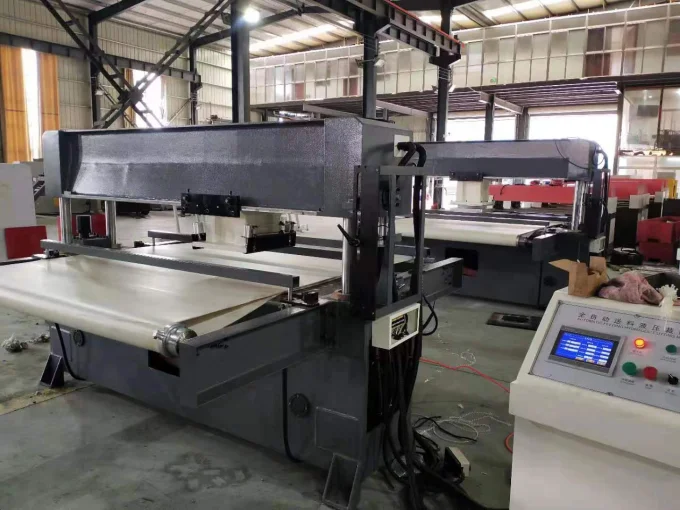

Fully Automatic Belt Feeding Die Cutting Machine
Digtal setting
Adapt computer system,digital setting so make the cutting more accurate.
Intelligent control Fault warning Parameter memory
This function is convenience for the opperater to save the last parameter.So when you want to use last parameter ,you just find from the memory so can quickly oppeate.

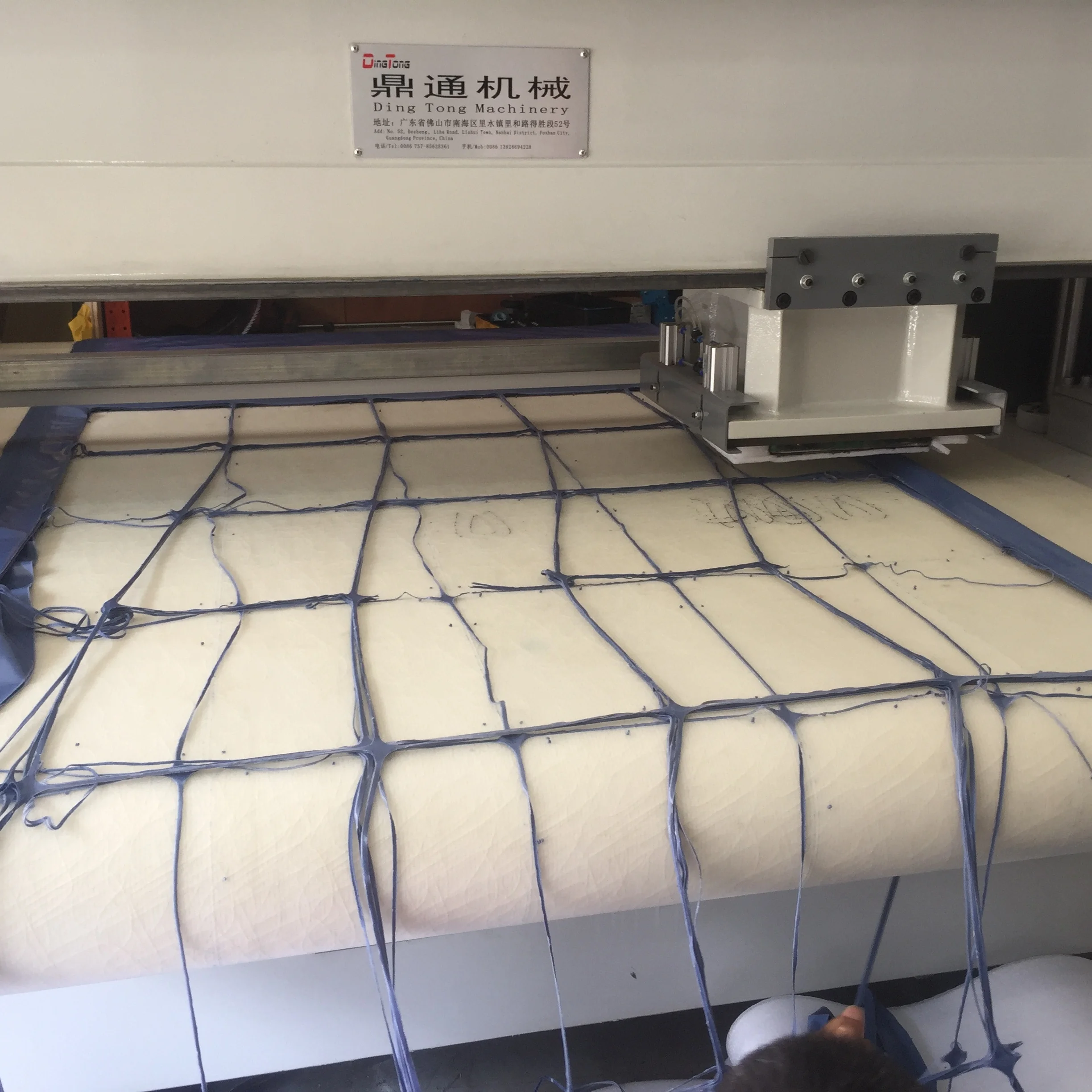

Adjustable punching head
The punching head we have rotary head and without rotary head type.
Rorary head:360 degree rotation,saving the materials cost.
Can put steel die or wooden die.
The die cutter is fasten by pneumatic clamp device so as to make the replacement of the die cutter convenient and prompt.Easy to change cutting dieServo motor control
1. Accuracy:The servo motor can control the speed and position very accurately, and can convert the voltage signal into torque and speed to drive the control object. high precision
2Speed: high-speed performance, the general rated speed can reach 2000 ~ 3000 rpm;
3. Adaptability:Strong anti-overload capability and can withstand three times the rated torque. Especially suitable for occasions with transient load fluctuations and quick start.
4, stable: stable operation at low speed. 5, comfort: heat and noise are significantly reduced
2Speed: high-speed performance, the general rated speed can reach 2000 ~ 3000 rpm;
3. Adaptability:Strong anti-overload capability and can withstand three times the rated torque. Especially suitable for occasions with transient load fluctuations and quick start.
4, stable: stable operation at low speed. 5, comfort: heat and noise are significantly reduced
Main Features
1.Controlled by CNC system.The materials are driven by the servo motor and input from one side of machine.after die cutting,output from the other side,which can guarantee accurate feeding and stable operation,set the position for each cutting,set the cutting speed and deep,and the feeding length can be adjusted conveniently through touch screen.
2.The outlet of the machine cutting area is equipped with safety light curtain,which ensures the personal safety of the operator.
3.Die cutter is fasten by pneumatic clamp device so as to make the replacement of the die cutter convenient and prompt.
4.Adopted four columns guiding,double crank balance and hydraulic drive to guarantee the cutting die speed and precision of the machine, all the sliding connection parts adopt the central oil supply automatic lubricating device, wear to a minimum.
5.The input and output of material is conveyed on the conveying belt, and the die cutting operation of materials is also done automatically on the conveying belt.
6.Reduce labor costs,raw materials costs and other costs.Improve work efficiency.
7.Installation and replacement of belt,easy to adjust and operate
The Main Parameters:
Model | DT768-30T | DT768-40T | DT768-50T |
Working Area | 1600*510MM | 1600*610MM | 1700*710MM |
Cutting Head Area | 400*400MM | 500*500MM | 500*500MM |
Max Cutting Force | 30T | 40T | 50T |
Stroke | 25-165MM | 25-165MM | 25-165MM |
Motor Power | 5.2KW | 6KW | 6KW |
Voltage | 380V | 380V | 380V |
Pneumatic Pressure | 0.4-0.7MPa | 0.4-0.7MPa | 0.4-0.7MPa |
Machine Dimensions | 2500*2500*1800MM | 2500*2600* 1800MM | 2500*2700*1800MM |
Package Dimensions | 2600*2600*2200MM | 2600*2700*2200MM | 2600*2800*2200MM |
Machine Weight | 2500KG | 2800KG | 3000KG |
Package Weight | 2800KG | 3150KG | 3450KG |
Application
Recommend Products
From Peru Client

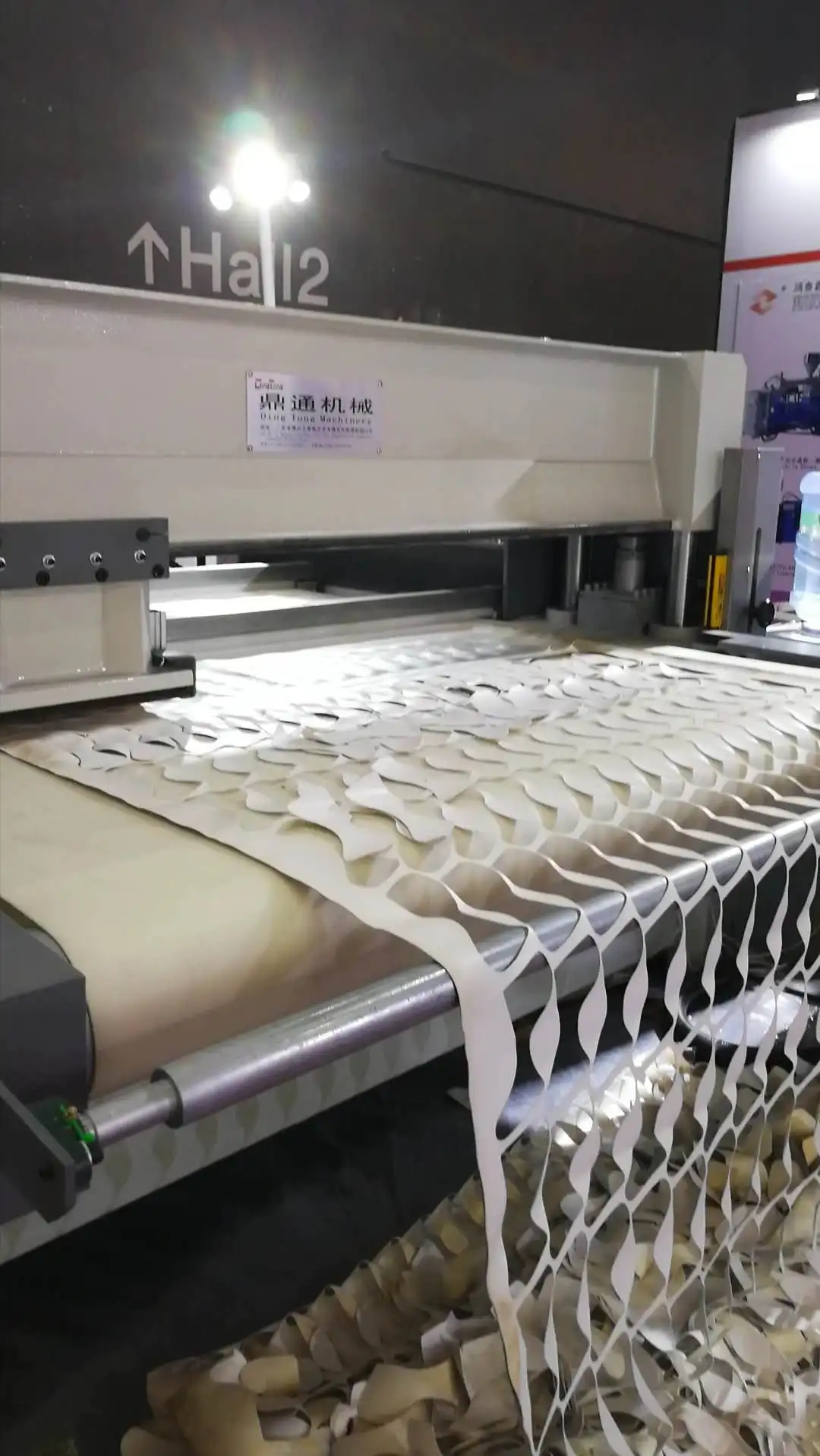

In The Exhibition
Our Company
Packing & Delivery
FAQ
1.Q:How long has your company been operating?
A: With over over 20 years experiences in mechanical design,production,and maintain,we are the specialist of cutting machines.
2.Q:Where is your factory located?
A: Our factory is located in DeSheng Industrial Zone.It's easy to access Baiyun Airport(Canton)by 40 minutes to drive to our office as well as 30 minutes from Railway Station and 60 minutes from Guangzhou Port.We are warmly welcome you to visit us!
3.Q:What is your products advantages?
A: Safe and efficient;Power ,raw materials;Labor cost-saving;Very easy to operate and adjust.
4.Q: What is your MOQ ?
A: 1 set per style
5.Q: What is the after-sale service?
A: We support video technical support,online support field maintain,and engineer avaliable to service oversea.
6.Q: Can we make our brand name?
A: Yes,welcome to OEM&ODM.
