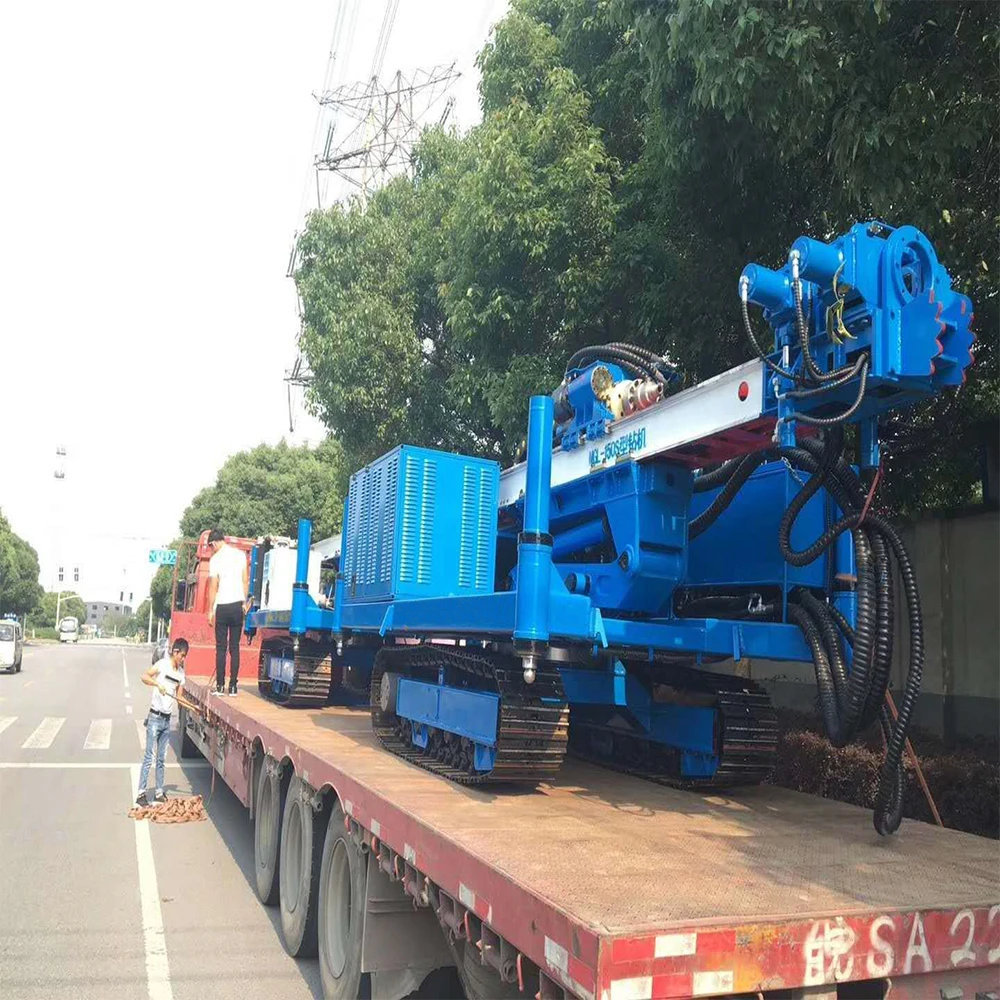

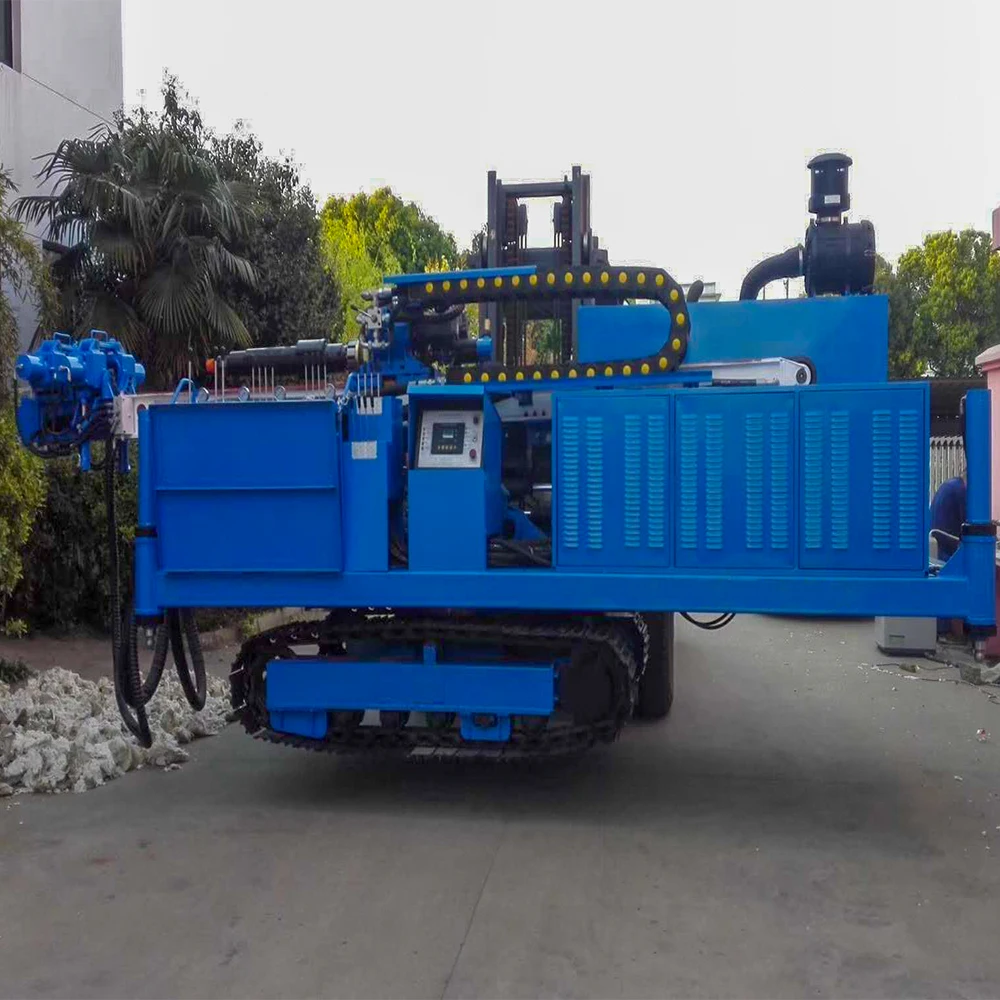

Walker MDL180 full hydraulic rock and earth ground hole drilling machine
Walker MDL180 full hydraulic rock and earth ground hole drilling machine
Walker MDL180 full hydraulic rock and earth ground hole drilling machine
Walker MDL180 full hydraulic rock and earth ground hole drilling machine
Walker MDL180 full hydraulic rock and earth ground hole drilling machine
Walker MDL180 full hydraulic rock and earth ground hole drilling machine
Walker MDL180 full hydraulic rock and earth ground hole drilling machine

Walker MDL180 full hydraulic rock and earth ground hole drilling machine

Share on (62408469663):


Price:

Quantity:


Product Overview

Description

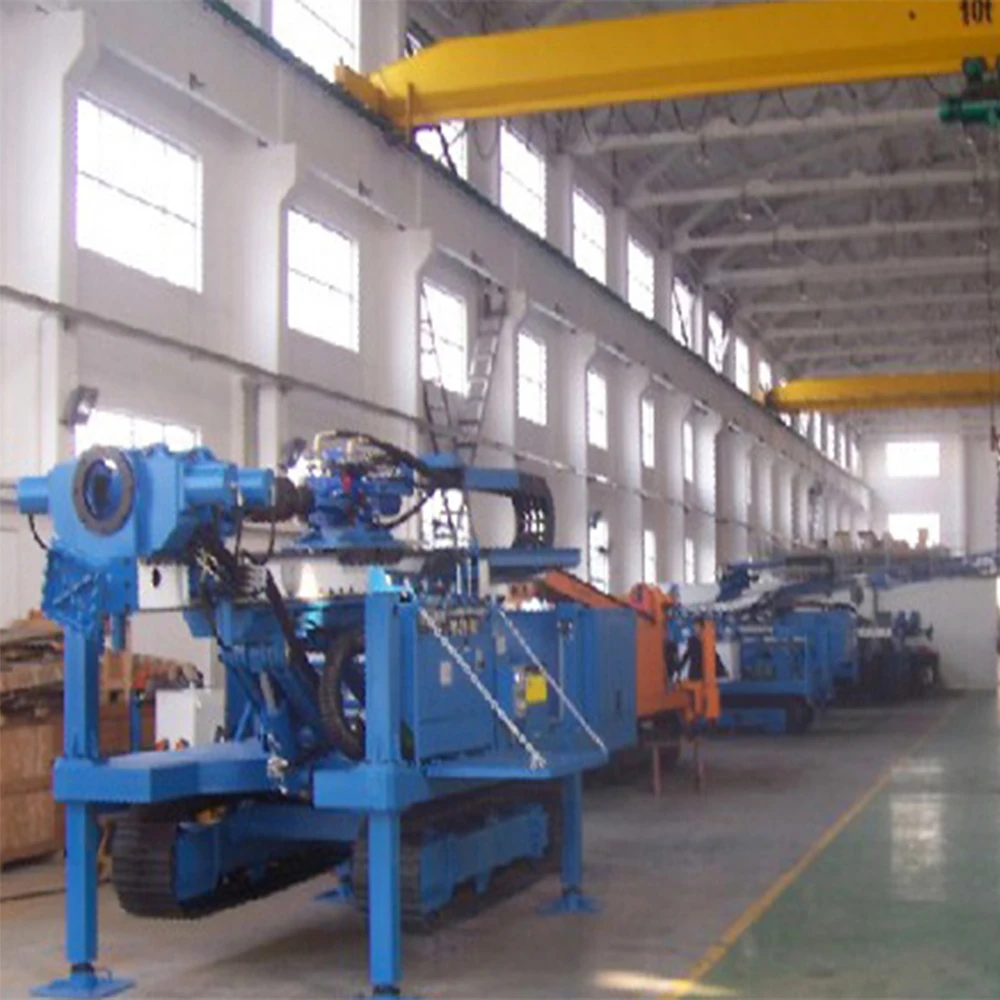

Full Hydraulic Rotary Anchor Drilling Rig

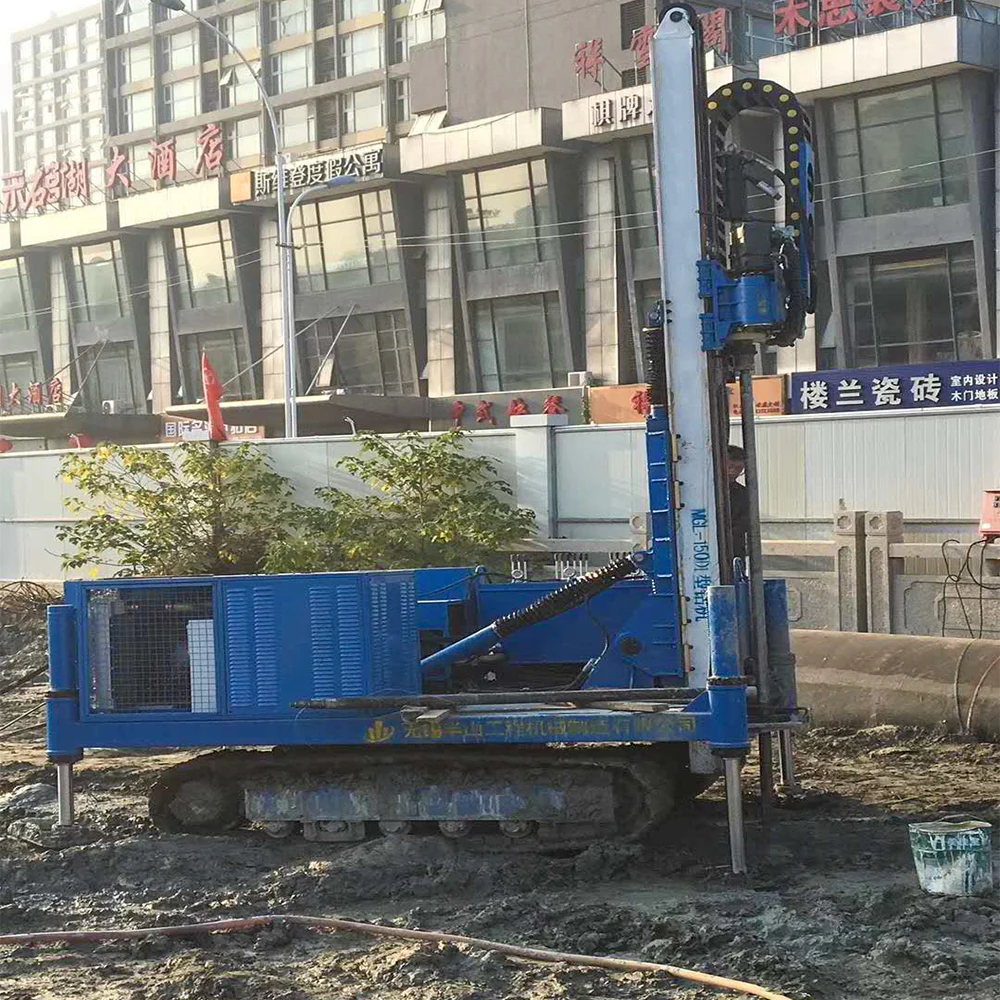

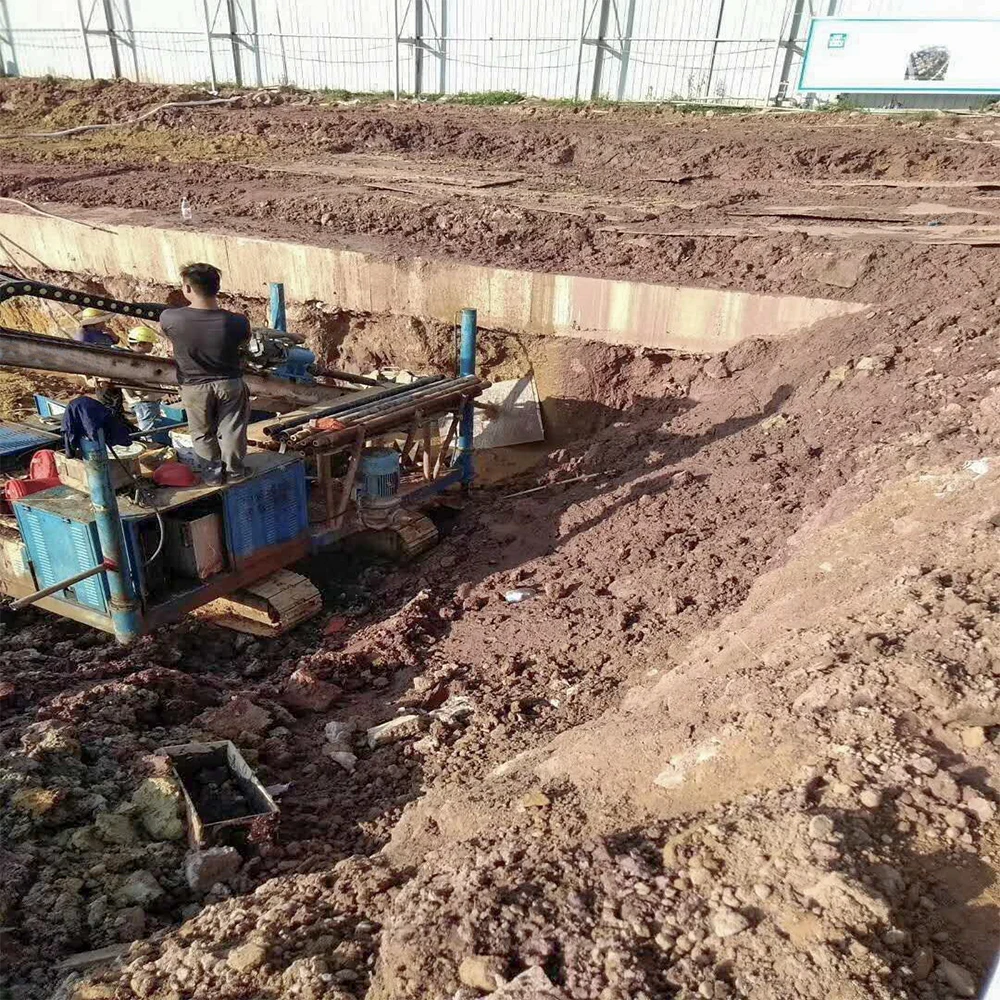

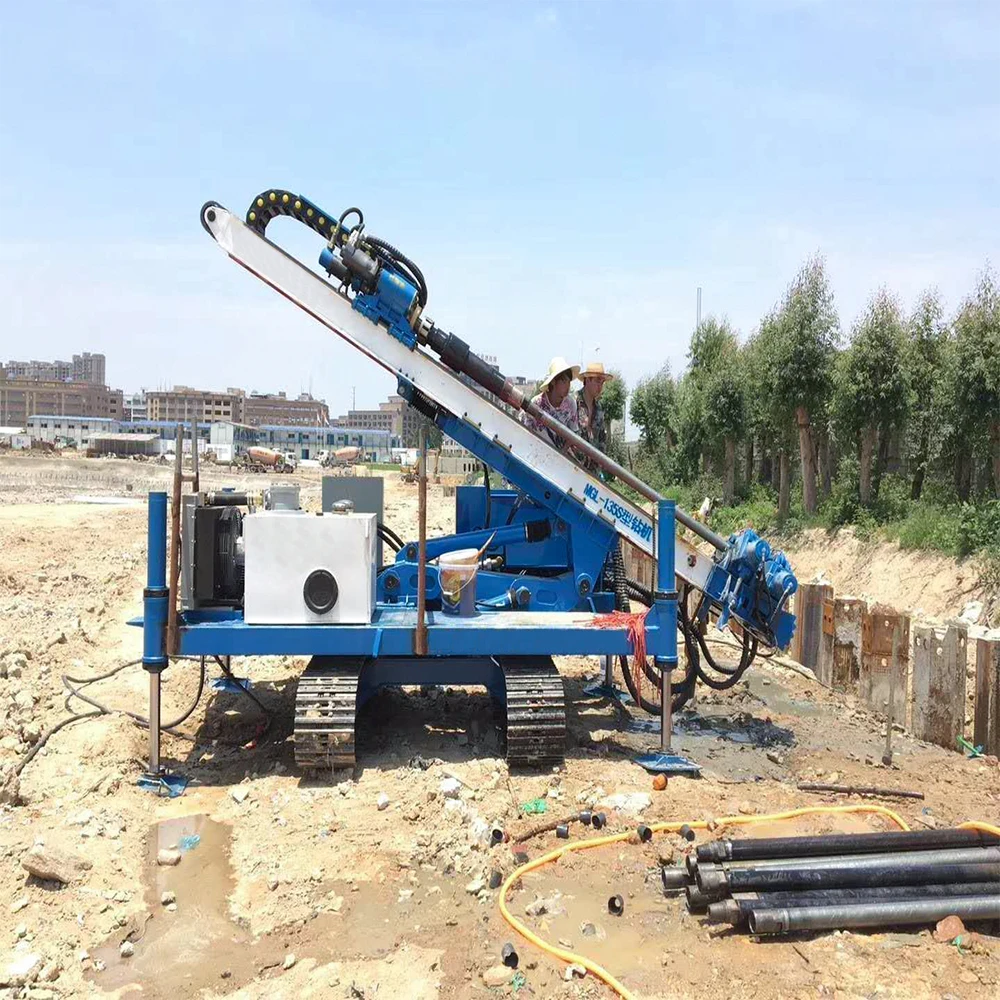

WK-180D model is full hydraulic rotary anchor type drilling rig, Mainly suitablefor urban foundation pit support and construction control of displacement geological disasters and other construction projects, The drill structure adopts integral type with working crawler and holder shackle device. Caterpillar chassis moves quickly, the holes are convenient for centering . The holder shackle device can disassemble drill pipe and casing automatically , reducing the intensity of workers and improving the disassembly efficiency .
Technical Parameters
Technical Parameters
Model
MDL-180
Drill diameter
150-250mm
Drill depth
180-220m
Pipe diameter
73/89/102/114mm
Drillling angle
0-90°
Cyrator output speed
40-170r/min
Cyrator output torque
11000N.m
Cyrator pressure
40kN
Driving mode
Crawler
Travel speed
22km/h
Diesel input power
117KW
Motor input power
55+30+2.2
Dimension (L*W*H)
6200*2100*2000mm
Weight
9200KG
