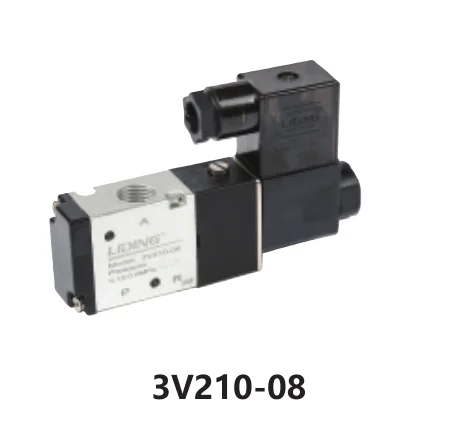

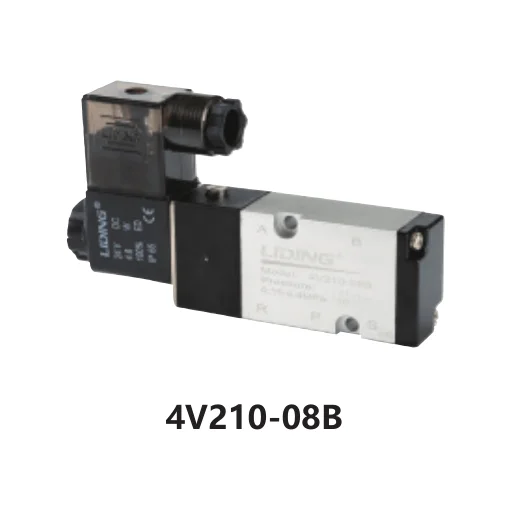

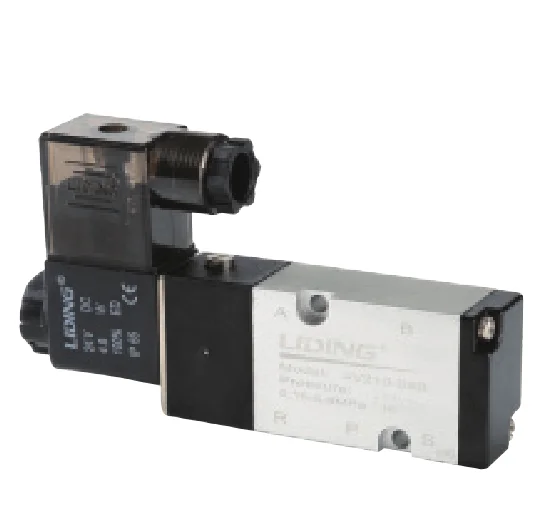

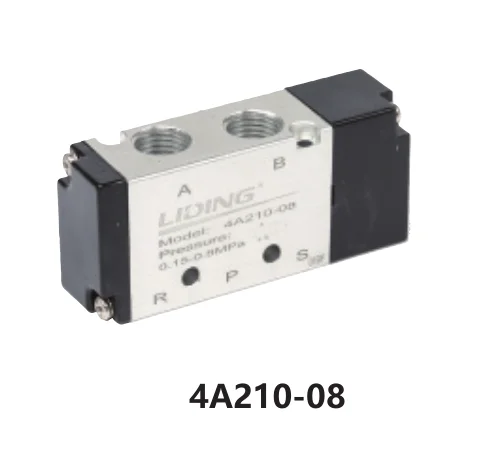

It is the most common and popular solenoid valve. We have the standard design and whole sizes. Our 3V 4V solenoid and air valve have good quality.
We manufacture by CNC machine. The valve shaft was manufactured specially by an advanced machine. We control every step of the producing, to insure the good quality.
They can work at least 10,000,000 times without any problem.

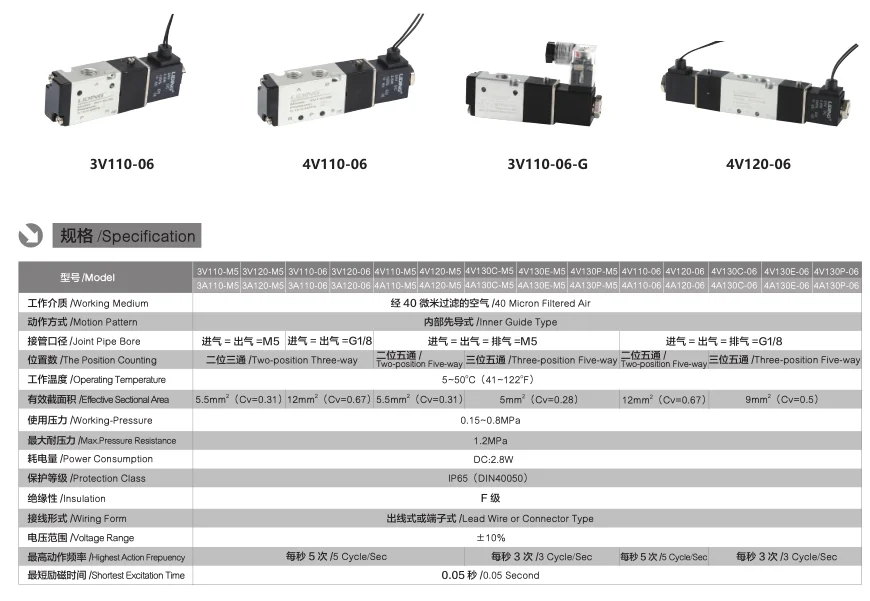

Model
4V110-06
4V210-08
4V310-10
4V410-15
Fluid
Air(to be filter by 40 μm filter element)
Acting
Internal pilot or external pilot
Port size
1/8"
1/4"
1/4"
1/2"
orifice size( square meter)
12
16
30
50
valve type
3 port 2 position
operating pressure
0.15~0.8Mpa(21~114psi)
proof pressure
1.5Mpa
temperture ℃
(-20~70)
material of body
Alumlnum alloy
lubrication
Not required
max.frequency
3 cycle/sec
Weight
200g
360g
450g
770g
Company Information

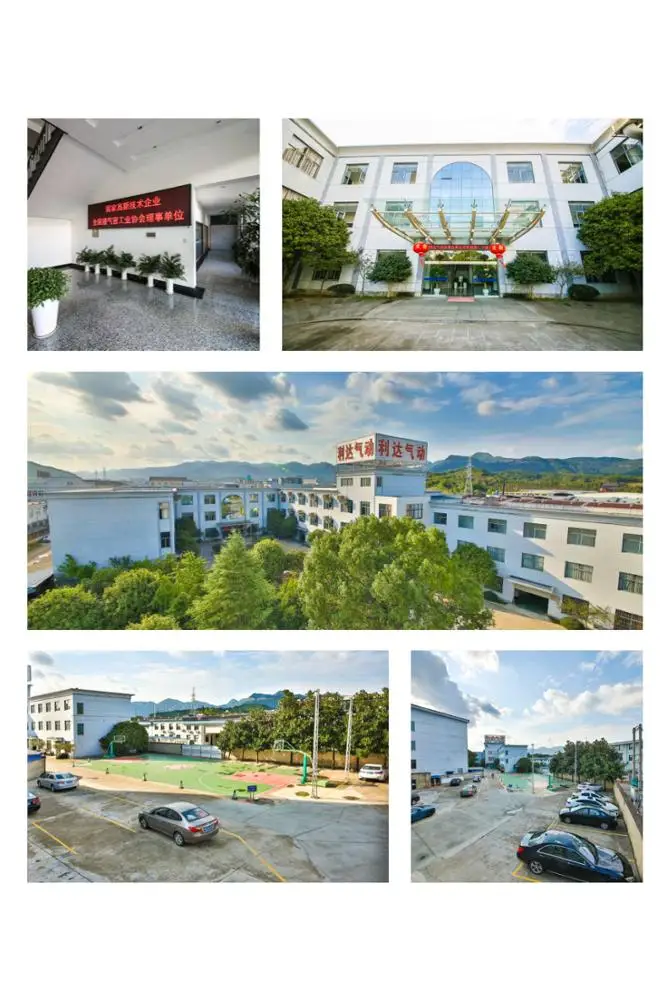

Ningbo lida pneumatic complete sets co., LTD is founded in 1994, is professional to provide customers the pneumatic execution, direction control, air source treatment and all kinds of auxiliary services and personalized solutions. We has been listed as national high-tech enterprises, the national sme technology innovation fund, the national liquid air industry association governing units.
LIDING Brand pneumatic components won Ningbo Famous Brand, Ningbo well-known trademark, and repeatedly been rated as quality trustworthy by product quality supervision department. We are not only sell well all over the country, but also exported to Europe, America, Middle East and southeast Asian countries.
Our Services
Packaging & Shipping
FAQ
Q: What is your main market? A: Our main market is Middle East, southeast Asia, Africa and other developing countries
Q: Are you products standard? A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items? A: Absolutely! We have big interest. Q: How to make the order? A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
