CAMA AFM60 mini biometric fingerprint reader module capacitive sensor

Product Overview

Description

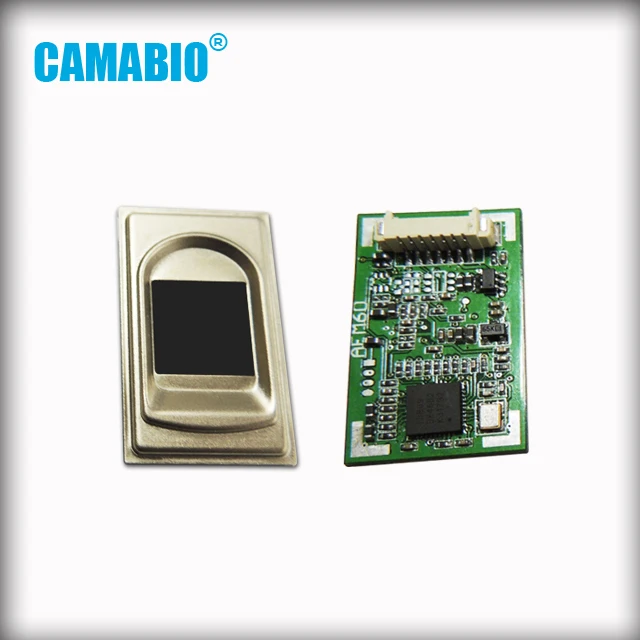

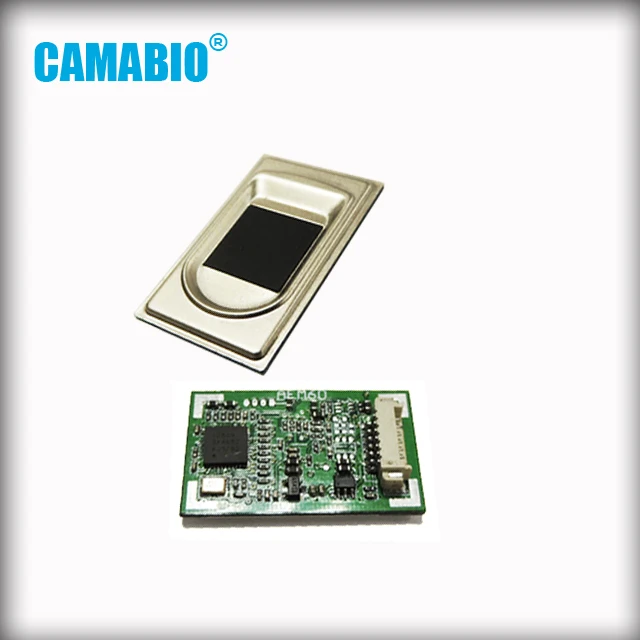

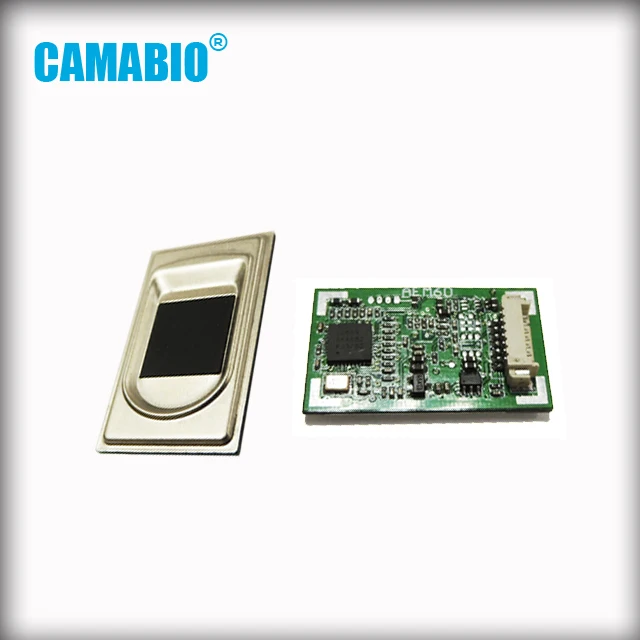

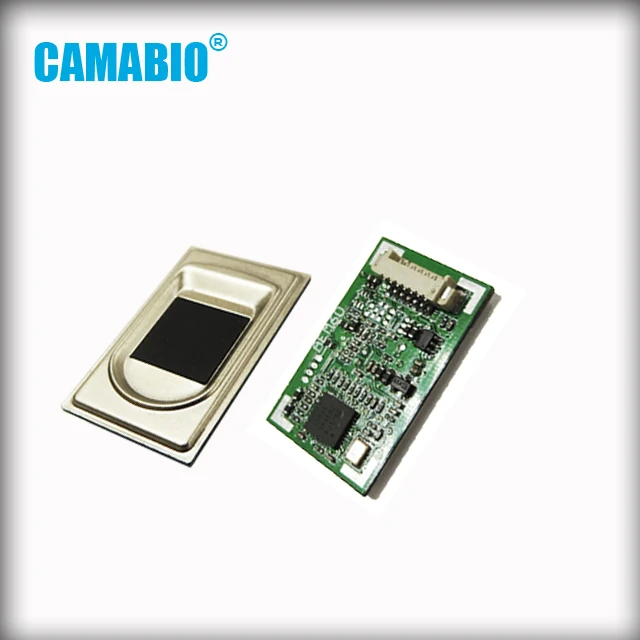

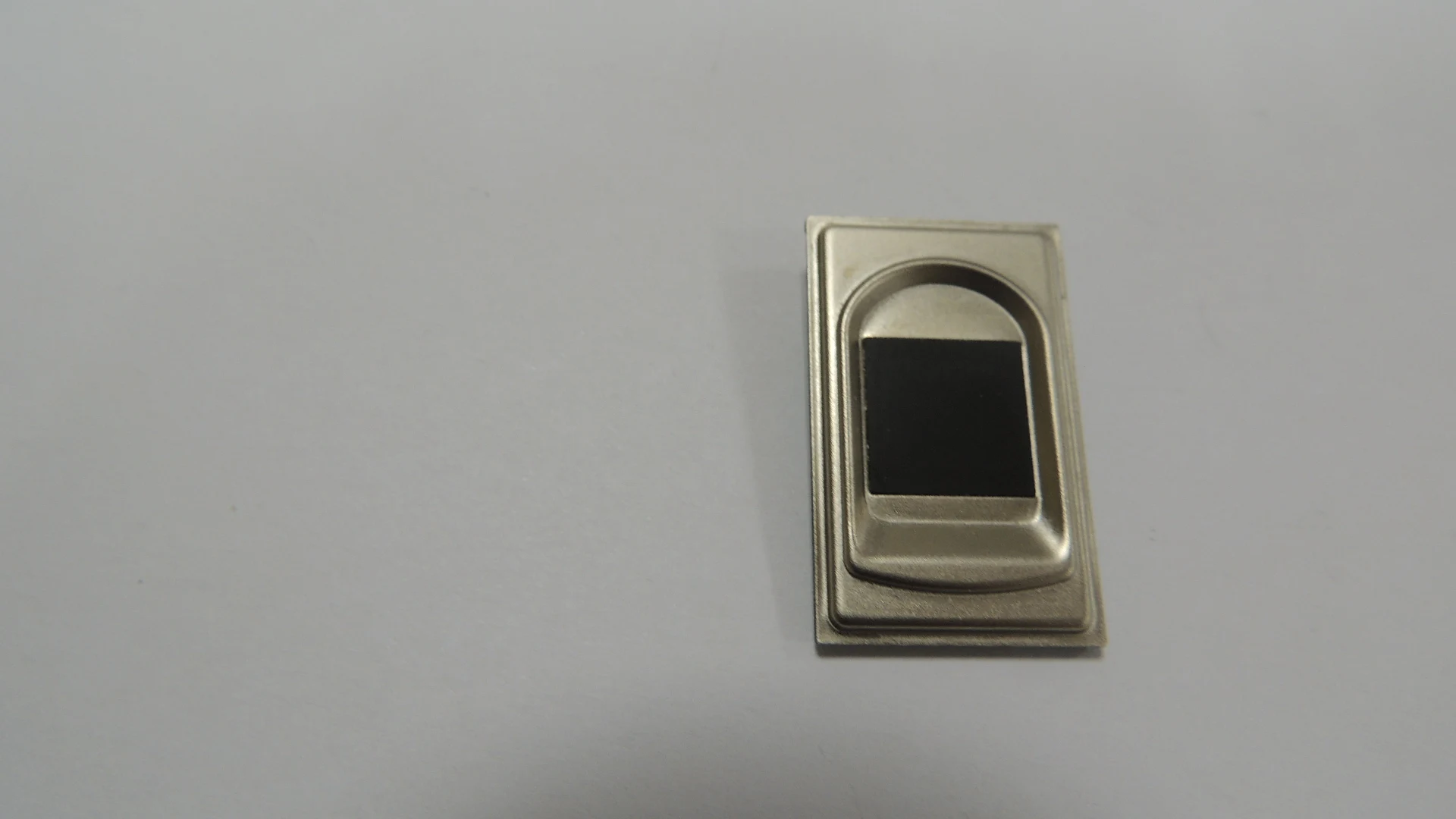

CAMA-AFM60 mini biometric fingerprint reader module capacitive sensor





1. Module integrated with sensor as smallest appearance

2. Advanced Technology of self study function

3. Support 360 degree identifying

4. Automatic Touch Sense Function

5. Fingerprint Template Data Read from / Write to Flash Memory

6. Able to set Baud Rate, Device ID and Device Password

7. Security Level  Setting

8. Better performance with dirty fingers, dry fingers, wet fingers

9. Excellant performance & fast identifying speed







CAMA-AFM60 is capacitive fingerprint moule (sensor + algorithm + processor chip) for secondary development. It features small size, low power consumption, simple ports, high reliability, small fingerprint template (496 bytes), large fingerprint capacity, etc. It is convenient to be embedded to user system for realizing clients required fingerprint verification products.



CAMA-AFM60 outstandingly features self-learning function. During the fingerprint verification process, the latest captured fingerprint features would be integrated into the fingerprint database automatically so that the users would obtain better and better fingerprint verification result.



AFM60 module is using the most advanced body touch activation system technology, which means the module will be activated to capture and verify the fingerprints when the finger touch capture area.







Item	Description

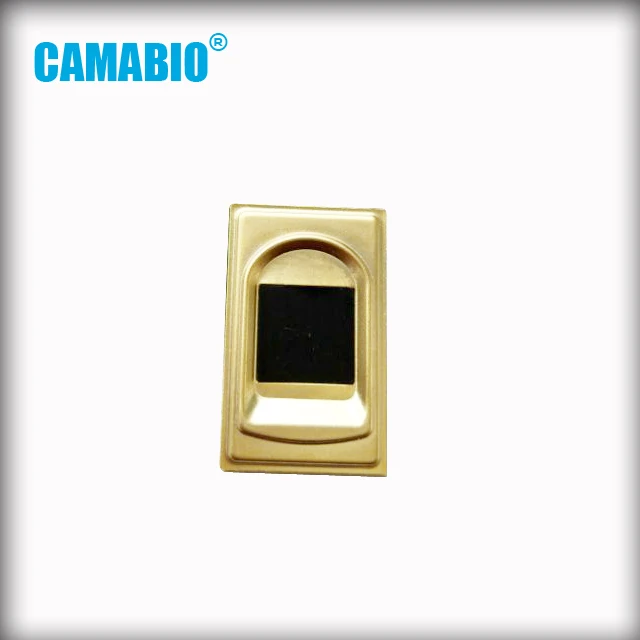

Sensor	FPC1021 capacitive fingerprint sensor with high image quality
Fingerprint capacity	500 fingerprints
FAR	<0.001% (Security Level 3)
FRR	<0.1% (Security Level 3)
Matching Method	1:N Identification and 1:1 Verification
Speed	Fingerprint pretreatment< 0.45s 1:N (500 fingerprints)<1.5s
Communication Port	UART 3.3v TTL
Baudrate	115200bps
Fingerprint image	160 * 160pixel
Resolution	500dpi
Power supply	DC3.3V±10%
Work current	<50mA
Security Level	Level 1- Level 5 can be set, Default setting: Level 3
Working Temperature	-10 to 60℃
Working Humidity	20% to 80%
Operating System	Windows











Model	Type	Capacity	Resolution	Communication support	System support
CAMA-SM27	ISO Optical fingerprint sensor module	/	500dpi	USB2.0	Windows/Android
CAMA-SM15	Optical fingerprint sensor module	3000	500dpi	UART	Windows
CAMA-SM25	Optical fingerprint sensor module	3000	500dpi	UART	Windows
CAMA-SM12	Optical fingerprint sensor module	3000	500dpi	UART	Windows
CAMA-SM20	Optical fingerprint sensor module	3000	500dpi	UART	Windows
CAMA-SM30	Capacitive fingerprint module	3000	500dpi	UART	Windows
CAMA-AFM31	Capacitive fingerprint module	2000	500dpi	UART/USB	Windows/Android
CAMA-AFM32	Capacitive fingerprint module	2000	500dpi	UART/USB	Windows/Android
CAMA-S25	Optical fingerprint sensor	/	500dpi	I2C	/
CAMA-2000	Optical fingerprint scanner	100000	500dpi	USB	Windows
CAMA-A010	Fingerprint door lock	150	500dpi	/	/







Payment terms:

1. Paypal

2. T/T (HSBC)

3. Trade assurance

4. Western Union

Sample order or small order (total amount<700USD) by Paypal,

big order (total amount>700USD) by T/T



After-sales:

1. Warrenty: the warrenty time is one year. within warrenty period, any damage by none man-made factors,

we will provide the repair service for free or replace for free.

Besides the warrenty period, we continue to provide life-long maintenance service.



2. Technical questions: your any questions will be highly attached importance and sent to our engineers for solution timely.



Shipping:

FedEx, UPS, DHL, TNT, Aramex or other kind of convenient express line are supported.

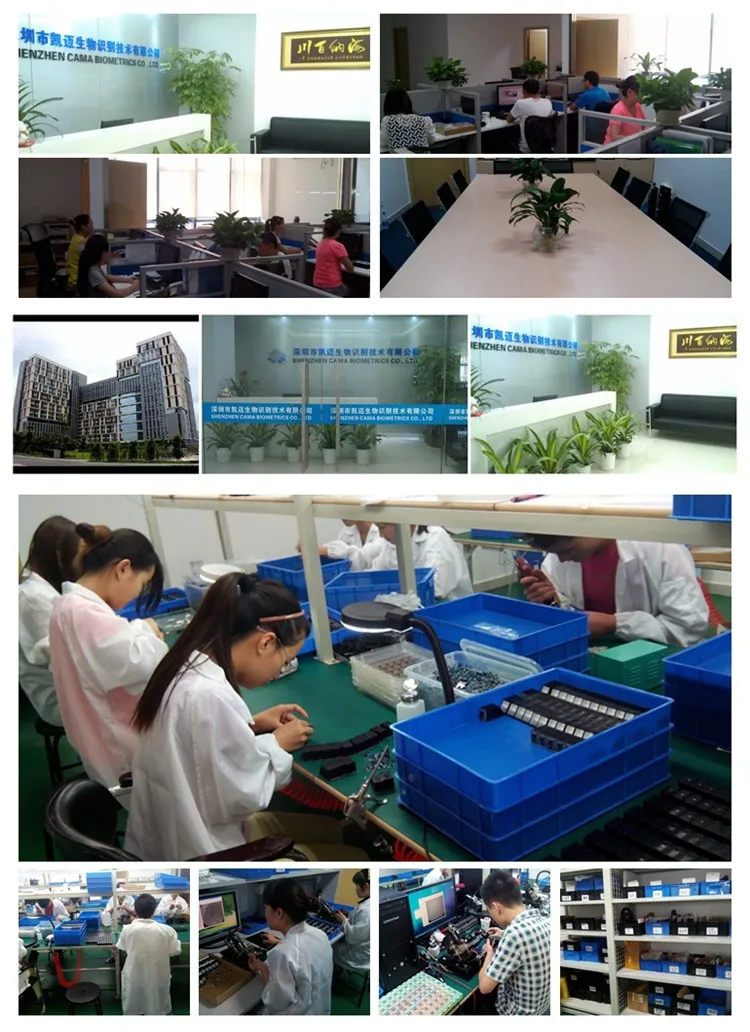

CAMA Profile
