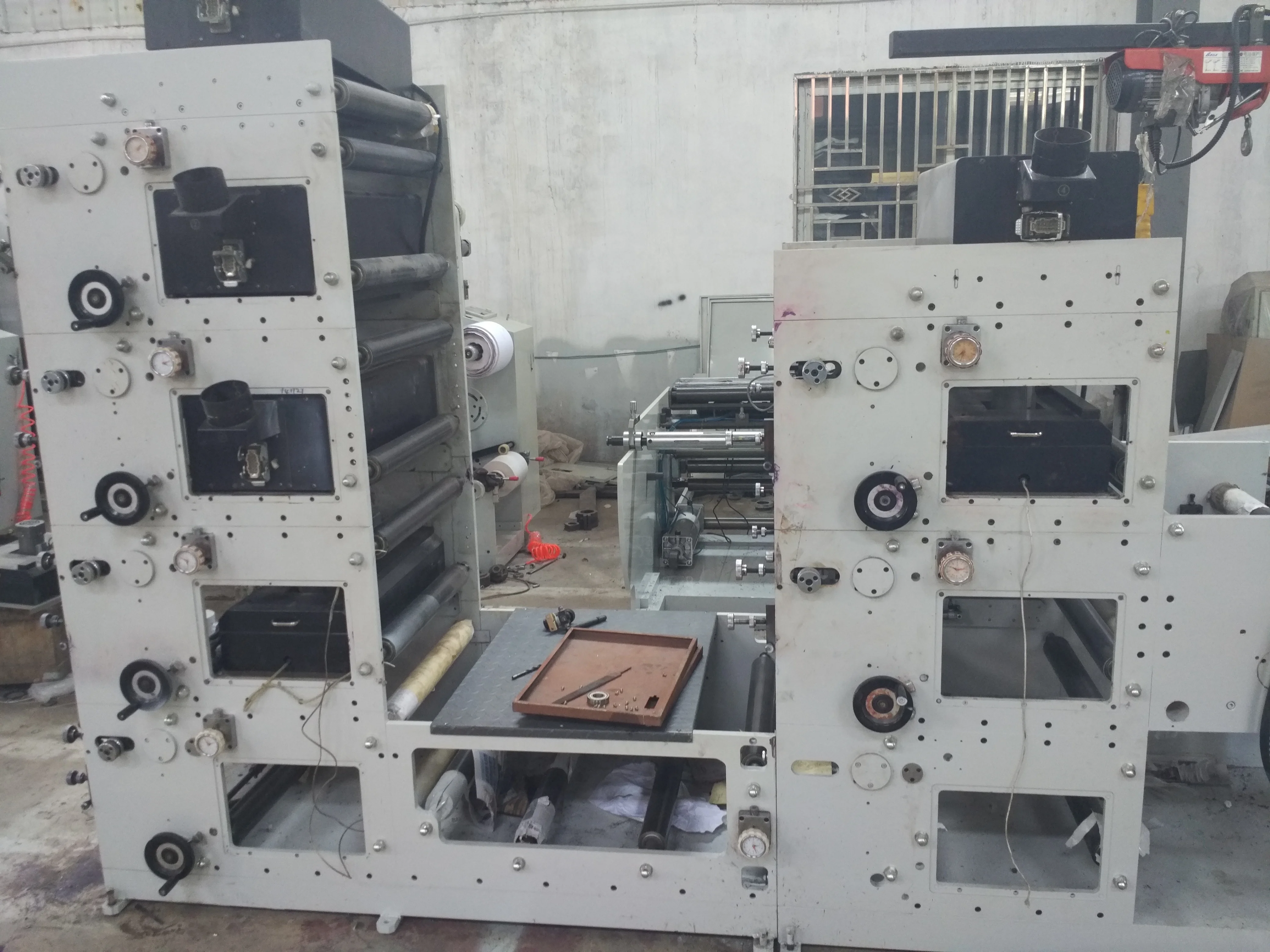

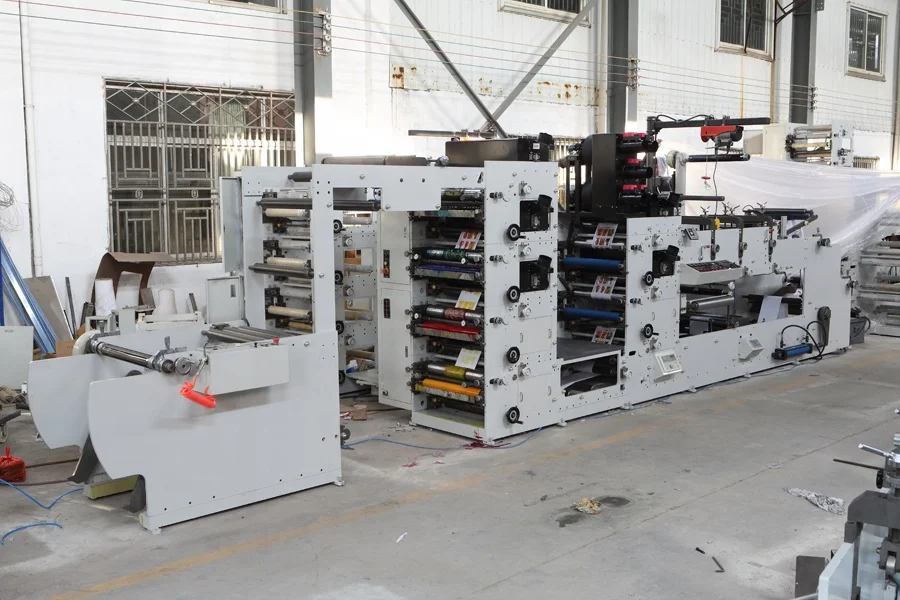

HSS-570 6 colors   Flexo  logistic label Printing Machine
1. Adopts ceramic cylinder to convey ink.
2. Each printing unit adopts 360-degree registering adjuster 。
3. Random equipped with three sets of cutting station, the first station, second sets of cutting die cutting roller and the bottom roller can be interchangeable, can be positive or negative, and is equipped with a set of cutting waste reel unit.。
5. rewinding magnetic clutch adopt as  water cooling device, at the same time, both rewinding and unwinding  are equipped with cylinder lifting device
6. The computer correcting device is arranged in front of the printing group, so that the design can keep the roll paper in the right or left position in the whole production process
7.  Unwinding and rewinding are controlled by automatic tenstion。
8.  The static picture monitor system can be selected according to the user's demand, and the quality of the map surface can be monitored at high speed printing
9. When parking roller can be automatically disengaged, and running at a low speed, in order to avoid ink being dry
10. The main motor adopts import frequency conversion stepless speed regulation。
11. From unwinding, gluing, printing, laminating, glazing, automatic IR drying (optional UV), laminating, die cutting, rewinding finished once, is the printing of various types of printing business bills, the most ideal model of high-grade stickers
marks.







Model
HSS-570
Max. Web Width(mm)
570
Max. Printing Width(mm)
560
Max. Unwind Diameter(mm)
Φ1200
Max. Rewind Diameter(mm)
Φ1200
Mechanical speed(m/min)
≤80
Precision of printing(mm)
±0.15
Main Motor Power(kw)
4
oven power
8
Weight(kg)
5250
