Professional factory made ultrasonic fabric lace machine JP 100 S

Product Overview

Description

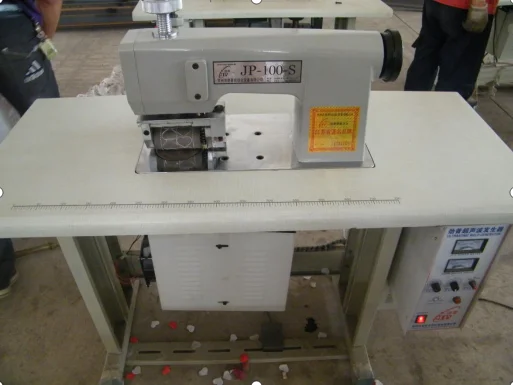

Professional factory made ultrasonic fabric lace machine JP-100-S





Product information

Model Number:JP-100-S

Brand Name:Jinpu

Weight:150kg

Condition:New

Automatic Grade:Semi-Automatic

Dimension(L*W*H): 1300*600*1200mm

Place of Origin:Changzhou, China

Max Sewing Speed:0-20 Meter/min

Voltage:220V

Certification:CE Certificate

color:silver

Warranty:12 Months

After-sales Service Provided:Engineers available to service machinery overseas



Supply Ability

 500 Set/Sets one month





Packaging & Delivery

Packaging Details: wooden case

Port:Shanghai







Basic components

1. New type PC intellectual ultrasonic generator;
2. 20KHz ultrasonic transducer unit;
3. Bottom mould fixed suspension structure;
4. Single-motor speed adjustment system;
5. Manual roller lifting system;


Characteristics
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;
2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets the welding requirements of different materials andthicknesses;
3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;

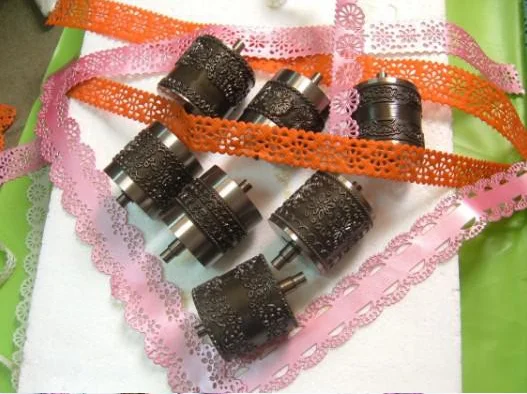

4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.



Functions



scraping and trimming

The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.



 Make holes

The holes with different patterns can be cut and the treatment of side melting can be carried out too.



Transfer printing

Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.



Cutting Material

This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side.



 Forming

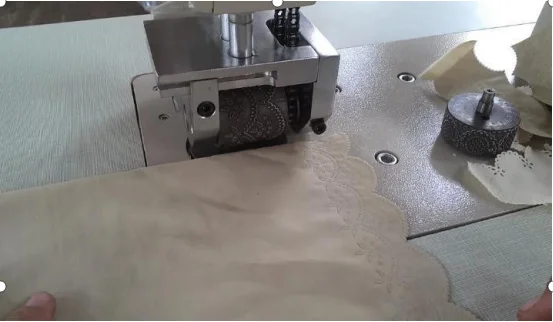

Press the pattern wheel.At one time the process of cutting, hole breaking and patter printing can be carried out.







Suitable material

composite material, thermoplastic film and plastics slice, such as chemical fibrous cloth,

nylon cloth, knitting cloth, non spin cloth, gush glue cotton, PE paper, PE + aluminium, PE + cloth, and so on.



Application

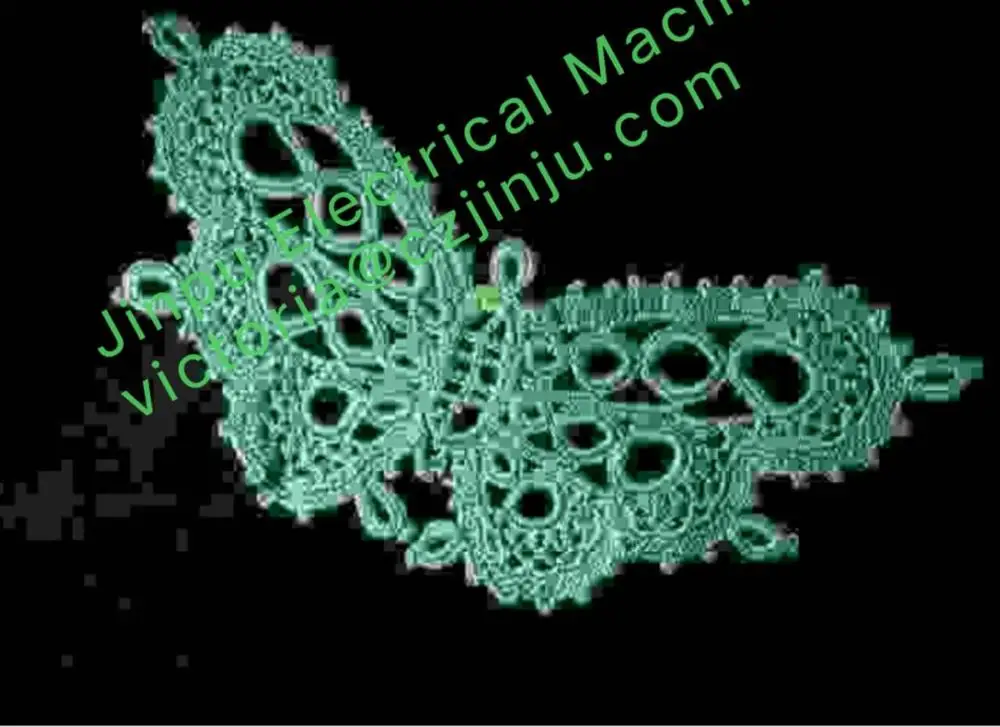

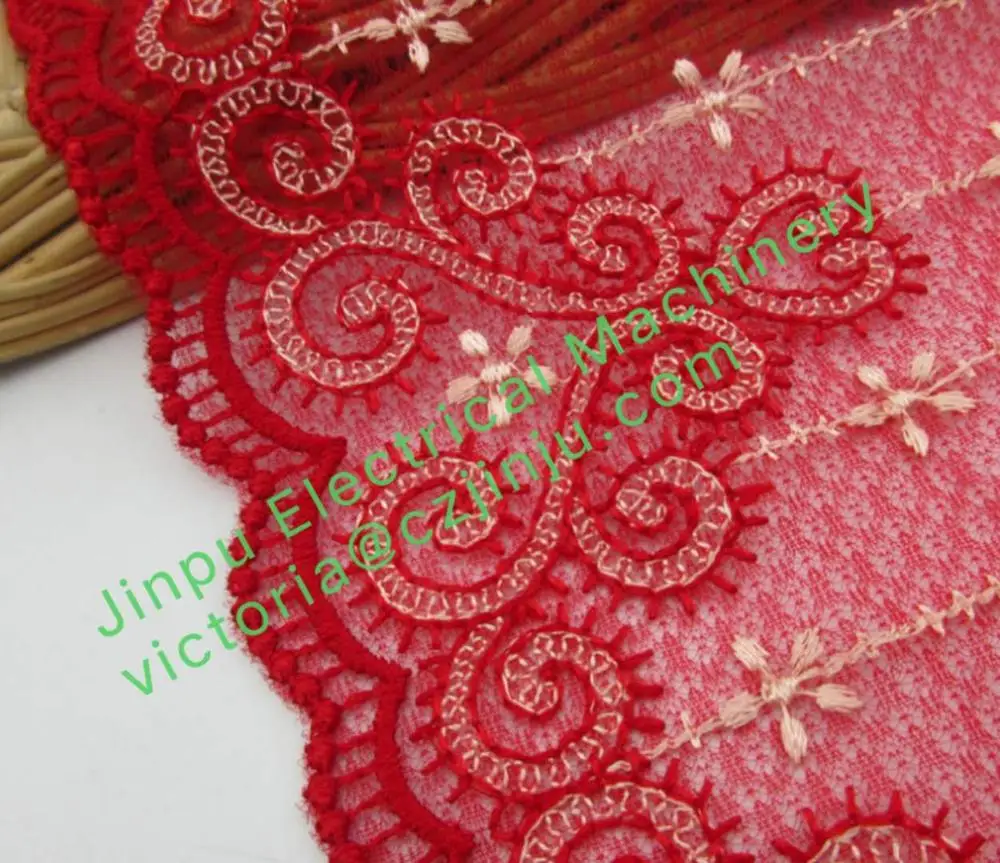

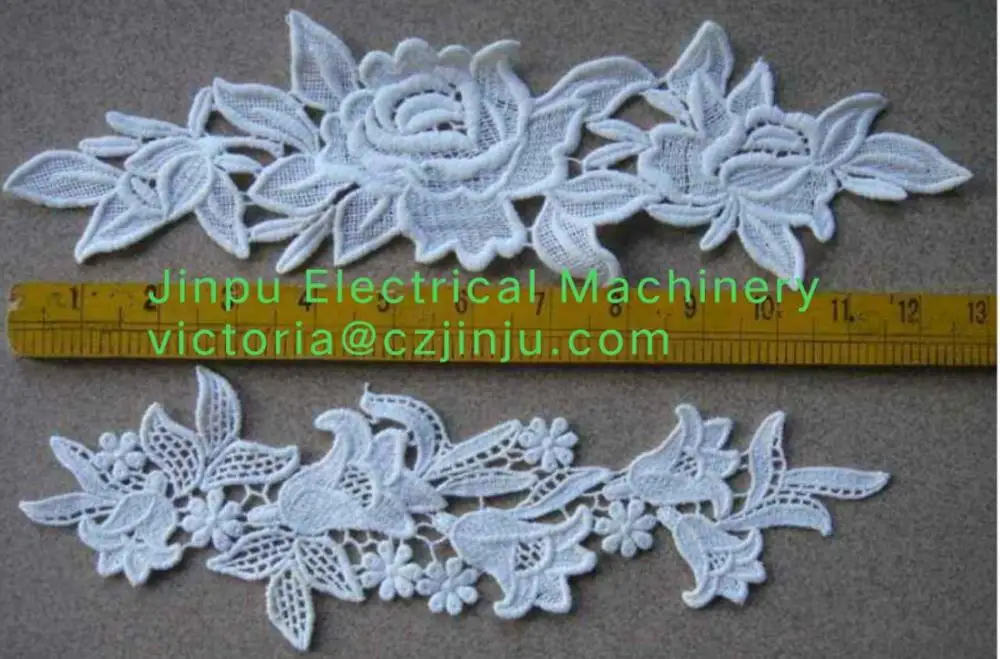

The machine is suitable for lace clothing, ribbon, decoration products ,handkerchief ,table-cloth curtain,bedspread , pillowcase ,quilt cover ,tent,raincoat ,disposable operating coat and hat ,non-woven mask,non-woven fabric cloth and so on.





Technical specification

Commodity Ultrasonic lace machine Specification  JP-100-S Output(W) 1800~2500W Frequency(KHz) 20KHz Voltage(V) 220V Mould size Width:0-60mm; Diameter:50-60mm Working speed 0-20m/min Welding area (mm) Ø60mm Dimension(L×W×H)   1300*600*1200mm N.W (kg) 90kg



Product photos



















FACTORY TOUR







WHY TRUST US





OUR PATENT

MEET US

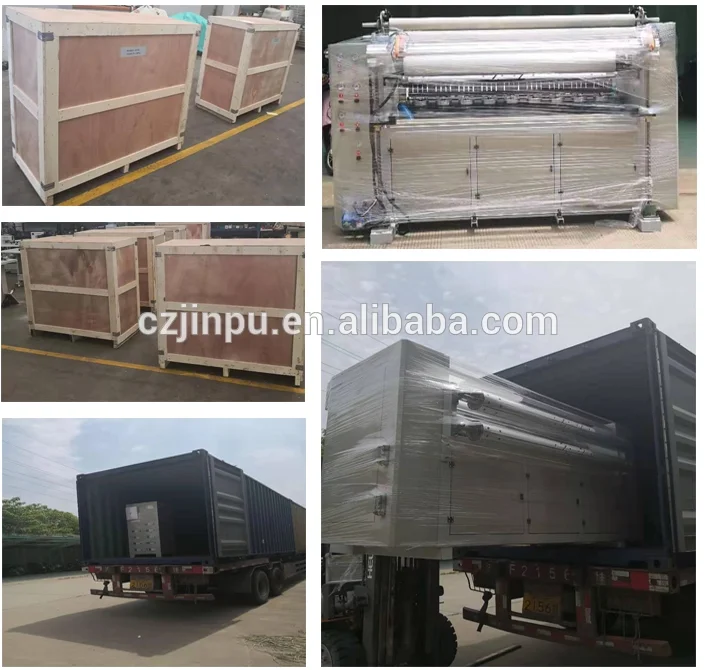

PACKAGING AND DELIVERY
