Стандартный пневматический привод EMC SDA и пневматические цилиндры

Product Overview

Description

Features

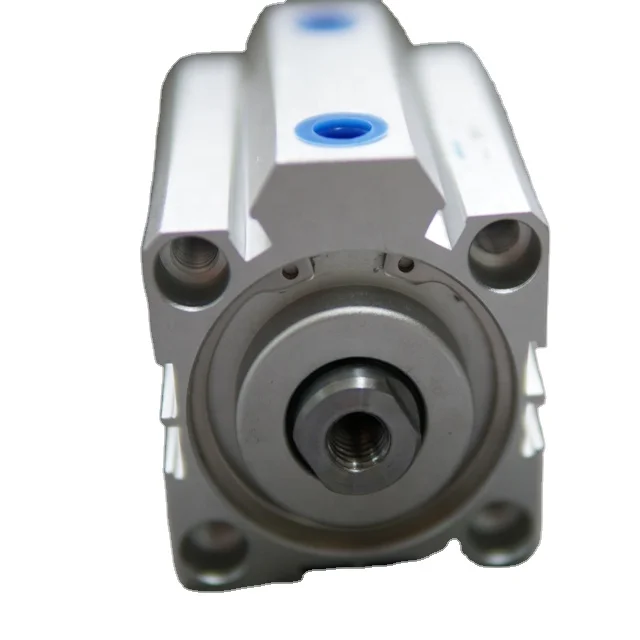

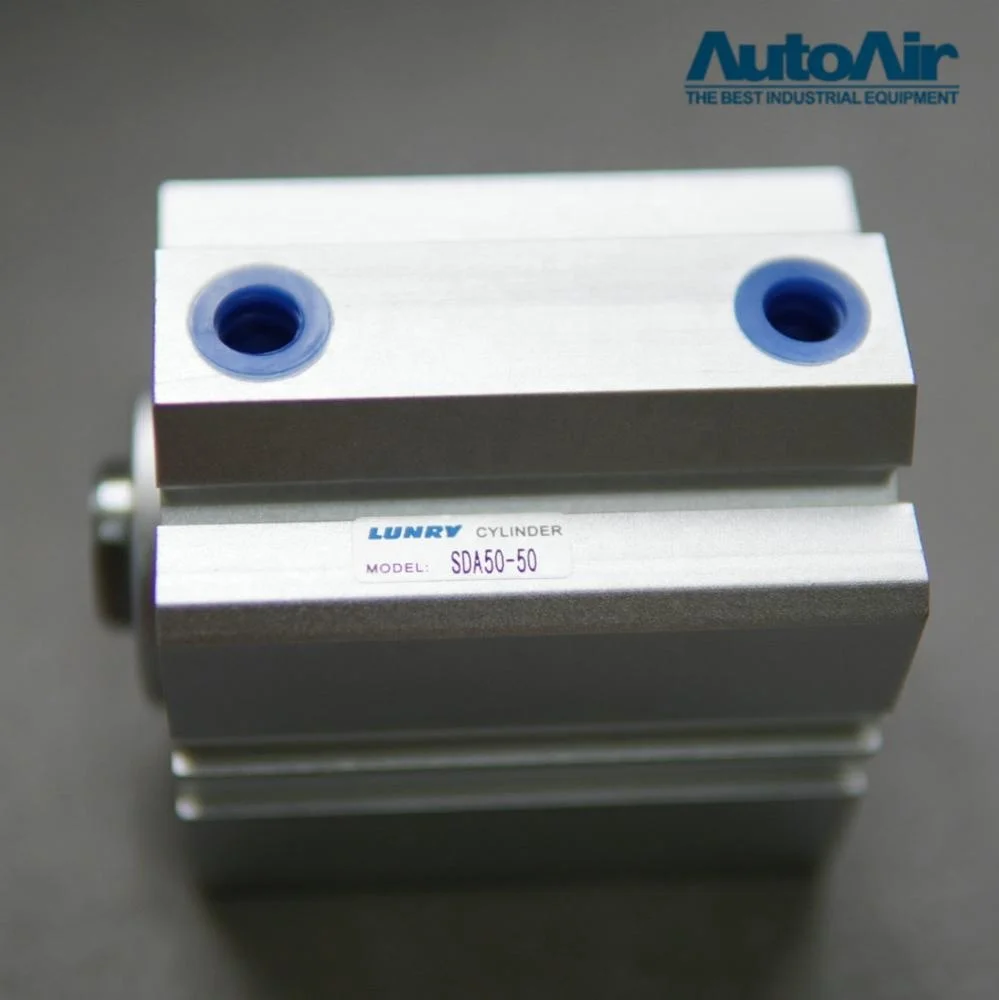

EMC SD Air Pneumatic Actuator

1.SDA series compact pneumatic cylinder are very wide used in automation line, compact desigh save much more sapce.
2.Normally bore size: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm.
3.Available built-in magnet.
4.With self-lub bearing, the piston rod is lubrication free. Use rubber cushion for standard type to keep the cylinder operating soomthly, safely and quietly.
5.Easier and various mounting via female threads or mounting accessories.

If you are interested in our products, PLS contact us.

Specifications

Specifications:SDA Series
Bore size(mm)		12	16	20	25	32	40	50	63	80	100
Action		Double acting,single/double rod
Fluid		Filtered compressed air
Proof pressure		1.5Mpa
Operating pressure range		0.1~0.9Mpa
Ambient and fluid temperature		-10~70ºC(No freezing)
Port size		M5×0.8				Rc1/8		Rc1/4		Rc3/8
Piston rod thread	Female thread	M3X0.5		M4X0.7	M5X0.8	M6X1.0	M8X1.25	M10X1.5		M14X1.5	M18X1.5
	Male thread	M5X0.8		M6X1.0	M8X1.25	M10X1.25	M14X1.5	M18X1.5		M22X1.5	M26X1.5
Cushion		Rubber bumper

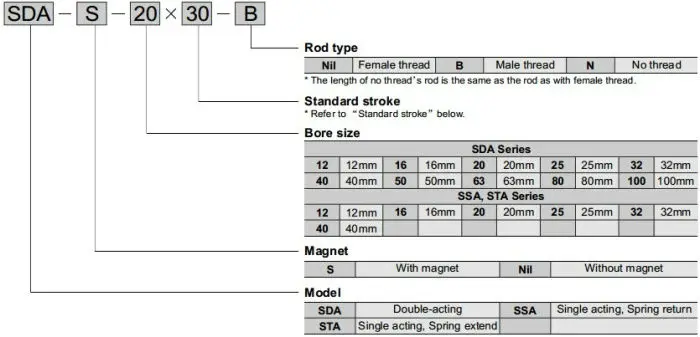

Ordering Code

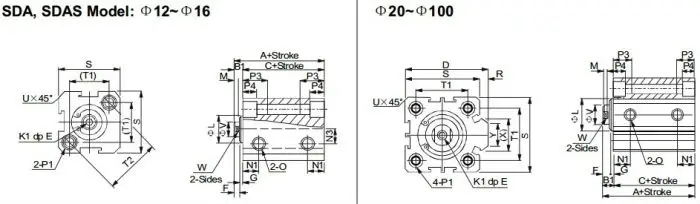

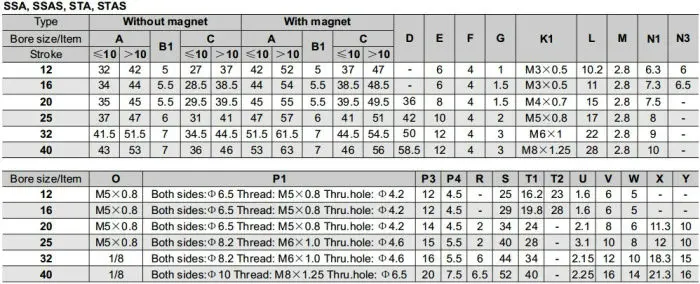

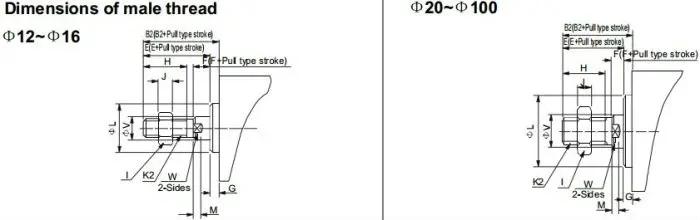

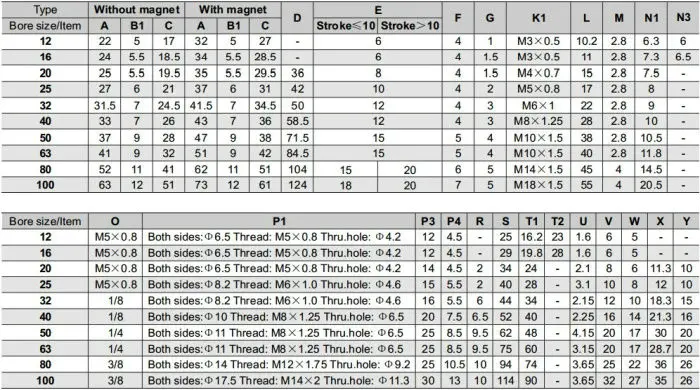

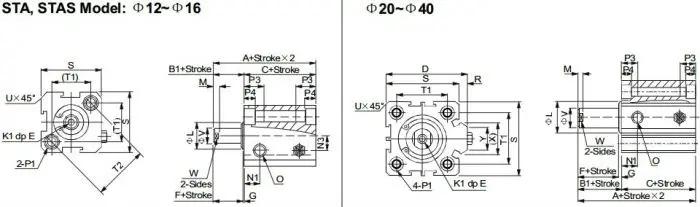

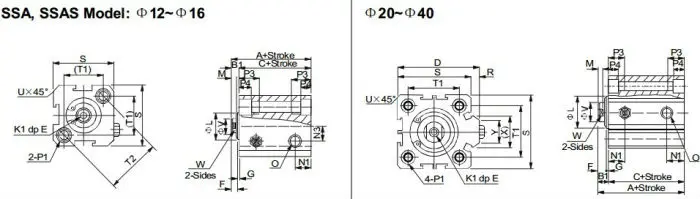

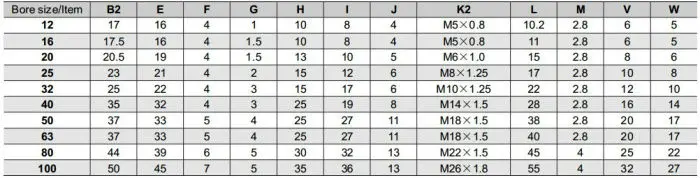

Dimensions

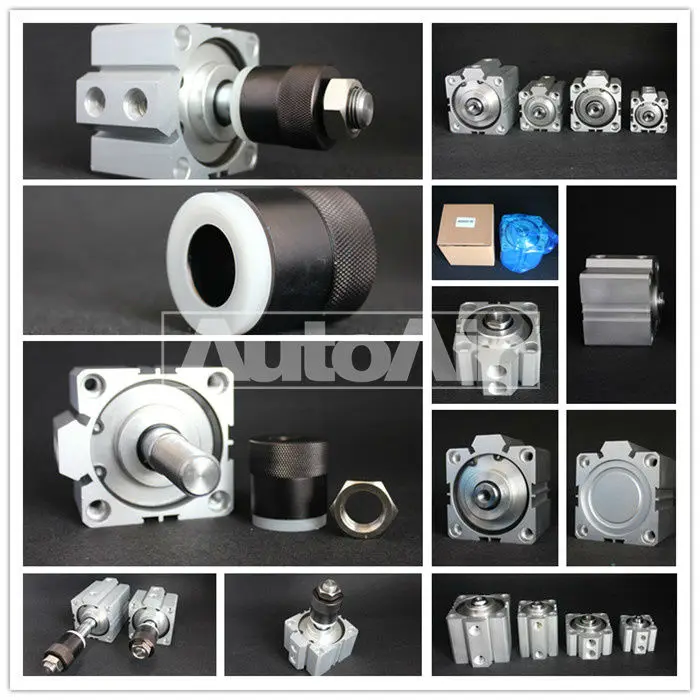

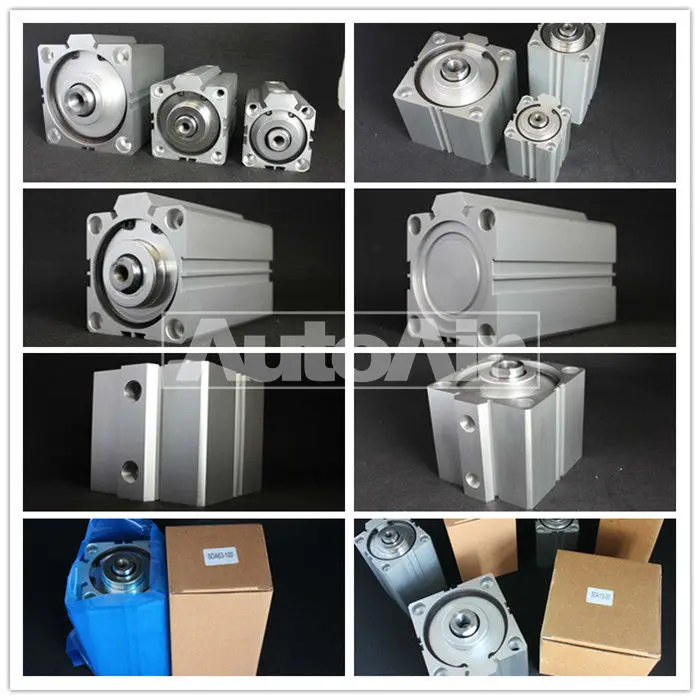

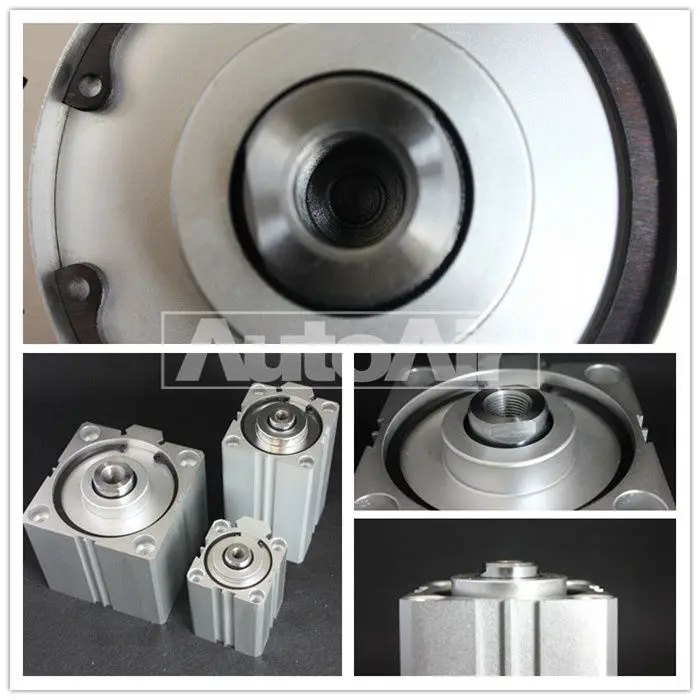

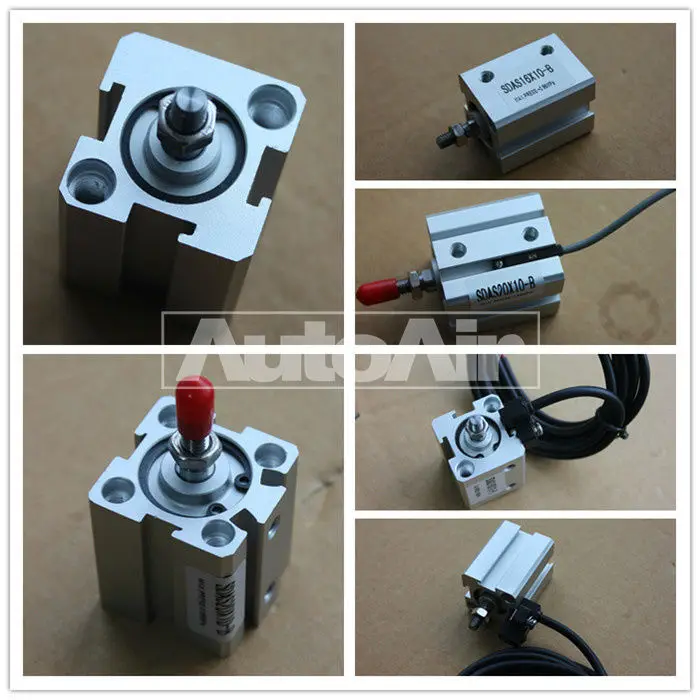

Detail Show



Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service

Payment and Shipment

Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
                    After we shipped your goods, we will send you the tracking number by E-mail.
                    If you do not receive it within 7 business days after shipping, please contact us.
 Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
Standard Model

SDA12X5 SDA12X10 SDA12X15 SDA12X20 SDA12X25 SDA12X30 SDA12X35

SDA16X5 SDA16X10S DA16X15 SDA16X20 SDA16X25 SDA16X30 SDA16X35

SDA20X5 SDA20X10 SDA20X15 SDA20X20 SDA20X25 SDA20X30 SDA20X35

SDA25X5 SDA25X10 SDA25X15 SDA25X20 SDA25X25 SDA25X30 SDA25X35

SDA32X5 SDA32X10 SDA32X15 SDA32X20 SDA32X25 SDA32X30 SDA32X35

SDA40X5 SDA40X10 SDA40X15 SDA40X20 SDA40X25 SDA40X30 SDA40X35

SDA50X5 SDA50X10 SDA50X15 SDA50X20 SDA50X25 SDA50X30 SDA50X35

SDA63X5 SDA63X10 SDA63X15 SDA63X20 SDA63X25 SDA63X30 SDA63X35

SDA80X5 SDA80X10 SDA80X15 SDA80X20 SDA80X25 SDA80X30 SDA80X35

SDA100X5 SDA100X10 SDA100X15 SDA100X20 SDA100X25 SDA100X30 SDA100X35 SDA125X5 SDA125X10 SDA125X15 SDA125X20 SDA125X25 SDA125X30 SDA125X35
