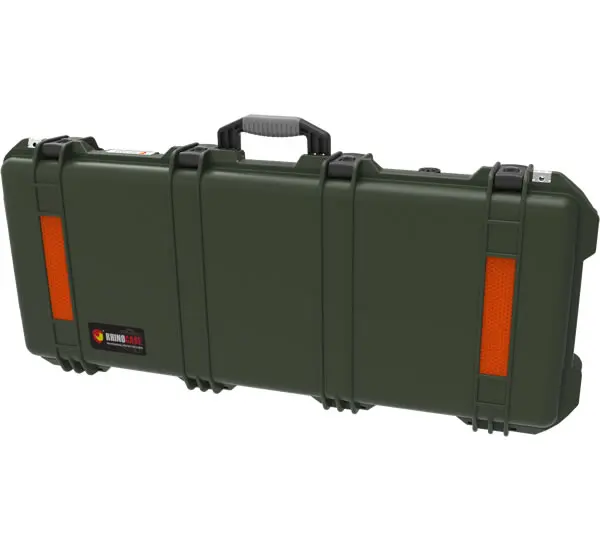

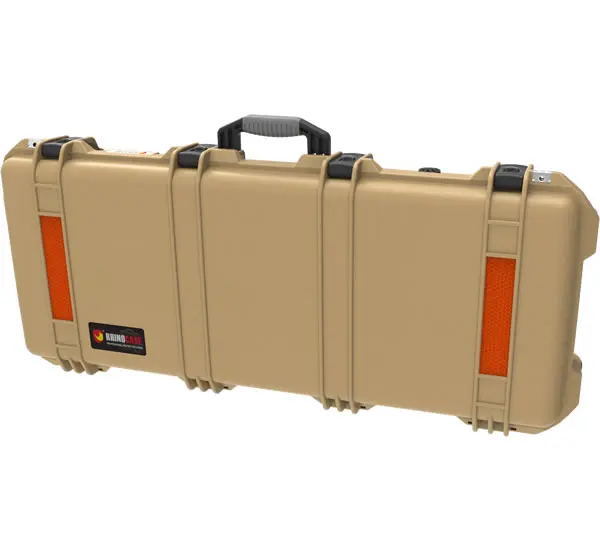

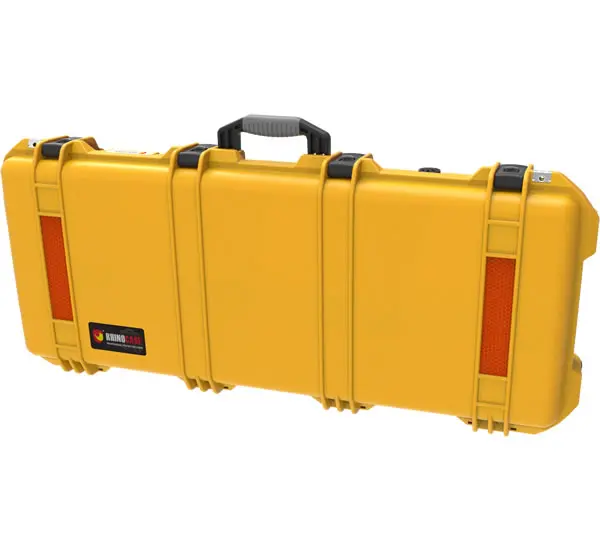

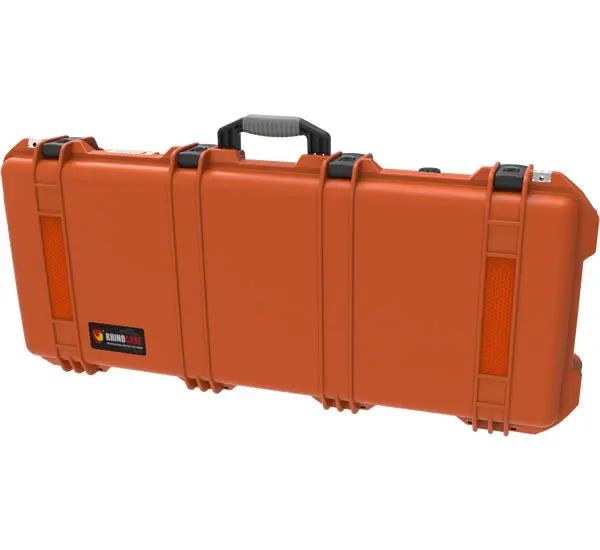

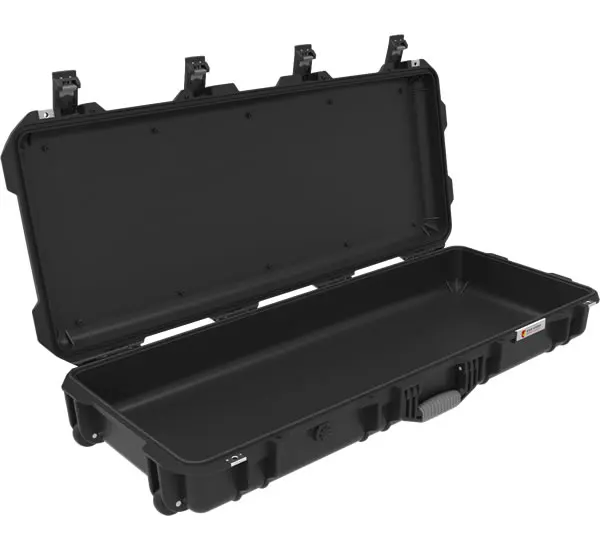

Protective Safety case Outdoor Shockproof Waterproof Boxes Plastic Tool Case Suitcase Toolbox RPC3816

1. High impact performance and stamping resistance resin with patent formula which make our cases shockproof and rugged.

2.Protection level can be up to IP68 because of adopting anti-aging sealing O ring.

3.Automatic value with patents help to adjust the pressure inside and outside to prevent your equipment or instrument from affected by outside environment.

4.The human engineering handle design, maximize the grabbing comfort.

5.The secondary lock with lever principle, easy to open or close.

6.Pick and plunk: foam made by a patented formula ,can be cut or customized according to your request, protect your equipment flawlessly.

The foam insert can be customized to protect your equipments

Item	NEW RPC hard plastic case hard case tool box Military gun case RPC3816
External Size	975 * 146 * 156 mm
Internal Size	908 * 343 * (44+89)mm
Material	PP
Feature	Portable, waterproof, rugged
Waterproof IP	IP67, can up to IP68
Function	Protect deivices and tools
Color	Black/yellow/army green/orange/desert
Empty case weight	6.4kg
Case with foam weight:	7.21kg
Buoyancy of empty box	42kg/ Max
OEM	Provide
Logo	Provide

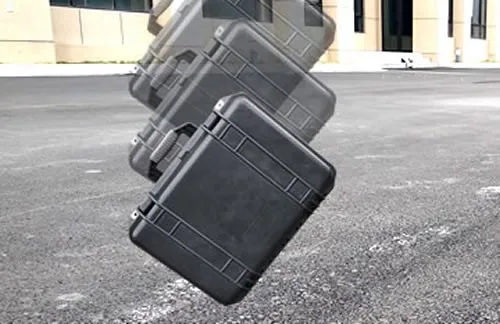

The product passed the drop test of national military standard

Test standard: GJB150.18 a-2009 environmental test methods for military equipment laboratories - part 18: impact test

Drop height: 1.22m

Test method: each surface, edge and angular flat cement floor was subjected to a free-fall test for 26 times.

Test results: there is no damage to the box

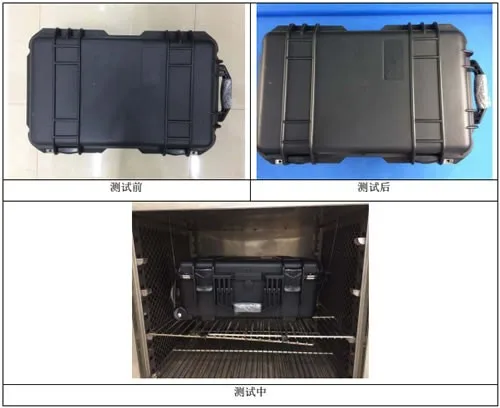

The product passed the IEC temperature shock test

Test standard: IEC 60068-2-14:209

Test method: - 40 ℃ ~ + 98 ℃ to 10 ℃ / min rate, cycle of 30 times.

Test results: no deformation or crack in appearance.

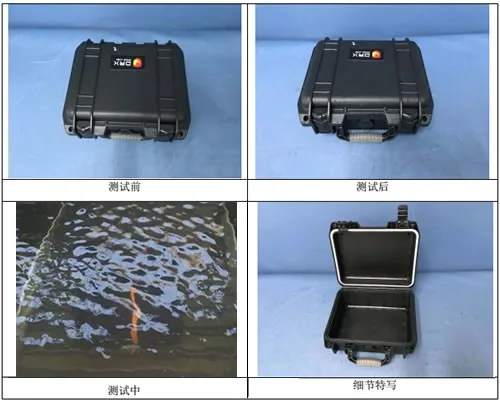

IPX7 waterproof test

Test standard: IEC 605299:1989 + a1:1999 + a2:2013

Test depth: 1m

Test time: 30 minutes

Test results: no water inside

The product passed the national military standard salt spray test

Test standard: gjb150.11a-2009 environmental test methods for military equipment laboratories - part 11: salt spray test

Temperature 35 ℃ + 2 ℃

PH value: 6.5 ~ 7.2

Salt solution concentration: 5% plus or minus 1%

Sedimentation rate of salt spray :(1~3) mL/ (80cm2h)

Test time: 24h salt spray +24h drying is a cycle. There are two cycles in the test, totaling 96h

Test results: no obvious change in appearance

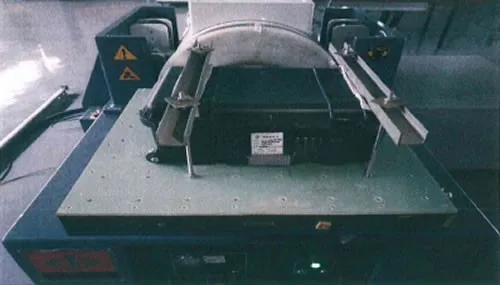

The product passed the vibration test of military standard

Test standard: GJB150.16 a-2009 environmental test methods for military equipment laboratories - part 16: vibration test

Test direction: Z direction

Vibration frequency: 15Hz~2000Hz

Acceleration: 2.11g

Test time: 10h

Test results: no obvious change in appearance, no damage to the box

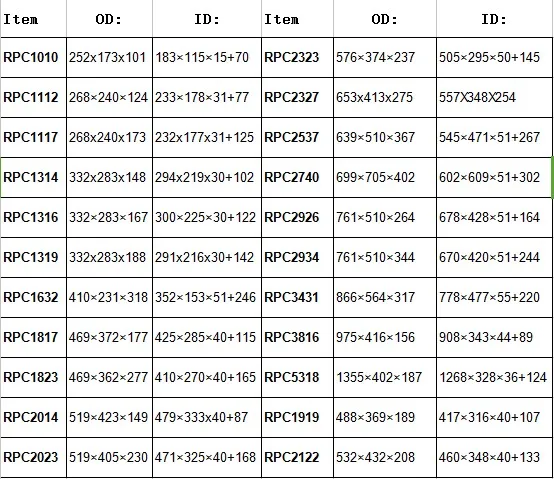

Product size list

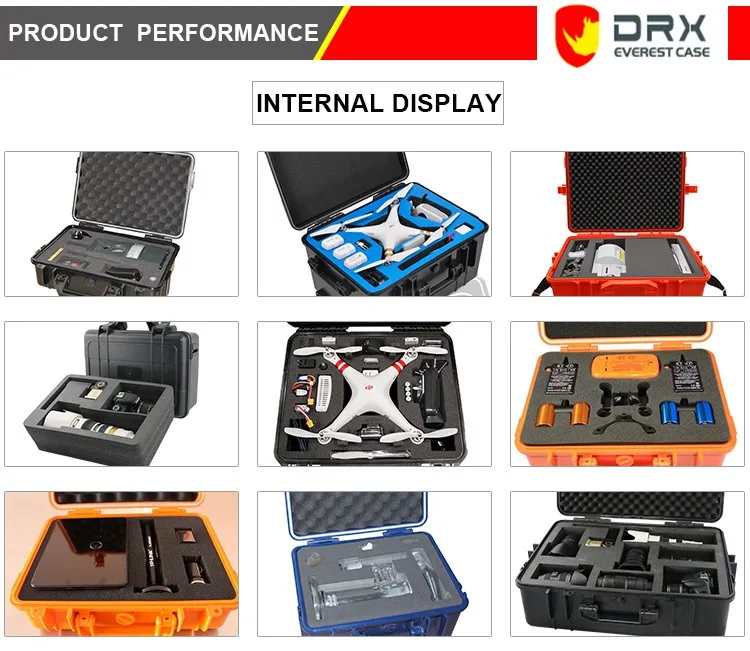

Product performance
