Solar rotation tracking system solar tracker sensor pv sun tracker
The control unit adopts tilt Angle sensor feedback + closed-loop control system, which has higher tracking accuracy and higher reliability. Power generation can be increased by about 35-50% compared with the fixed type; The bracket is compatible with all the market panel specifications, better design versatility; With wireless group control function, cost is more economical; With strong wind protection and automatic snow removal function, the system is more safe and stable; Rain water cleaning mode, intelligent control, independent use of rain water cleaning components, reduce the operation and maintenance costs; With no shadow tracking function, greatly extend the light time, improve the system power generation; The operating power of the system is small, and the system's daily self-consumption is less than 1.5kwh. Strong terrain adaptability, slope, hill, mountain can be installed; Software and hardware support lifelong upgrade service, so that your products always apply the latest generation of technology;
Dual axis solar tracker system solar panel tracking system

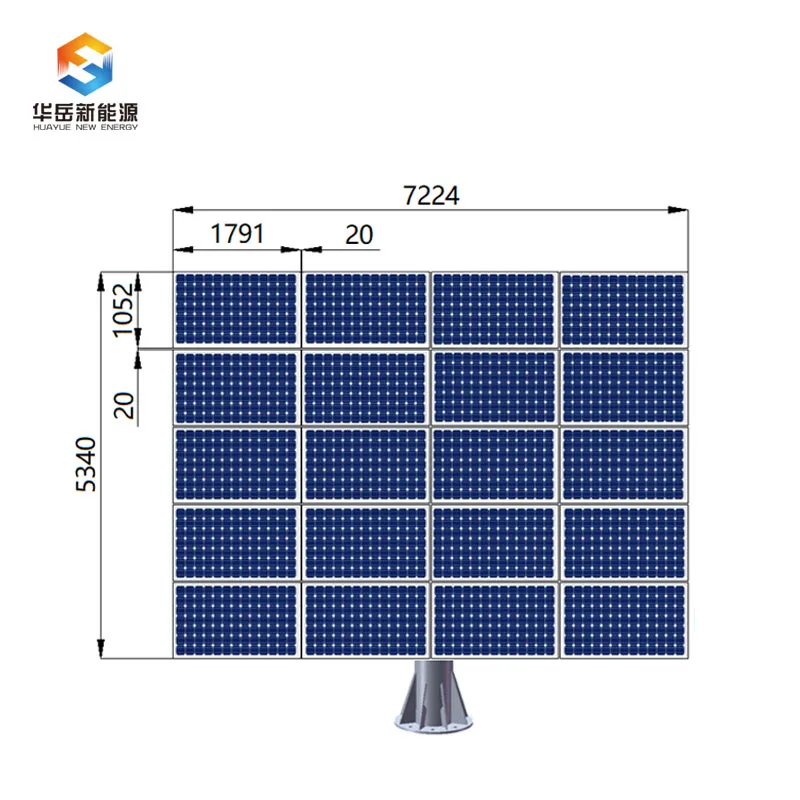

Module Size:
≤1791*1052mm

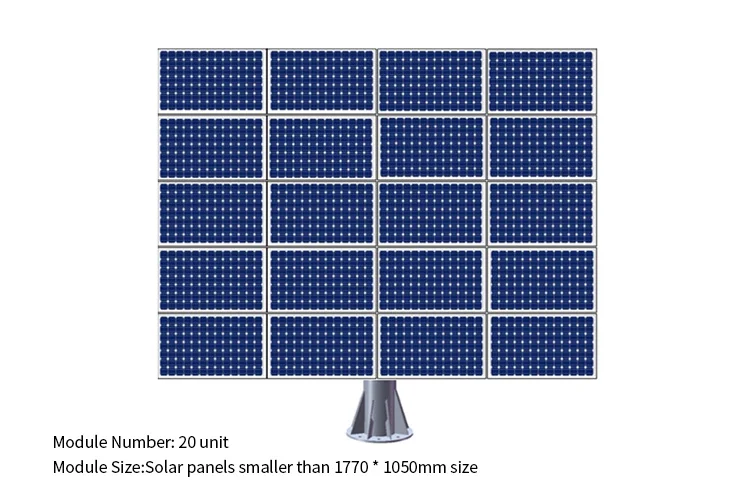

Module number
20 unit
Scope of rack
35㎡
Control Mode
Closed loop time control
Weight
≈800KG
Communication Methods
RS485（customizable LoRa wireless communication, CAN communication）
Tracking Accuracy
≤1°
Power Supply
DC:24V AC:110V / 220V
Driving Power
300W
Power supply Mode
Self-Powered or External Power Source

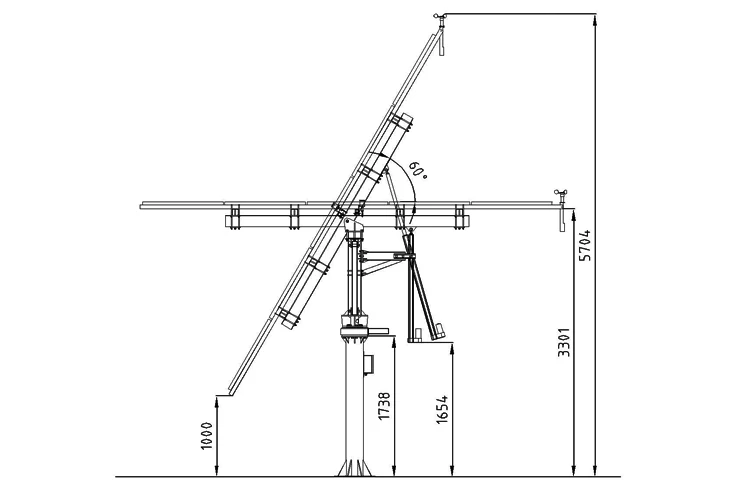

High angular Tranking
0°～60°
Power consumption Every
≤0.85kWh
Bracket Material:
Hot Galvanizing
Azimuth tranking Range
-120°~ +120°
Limit of Wind
27~37m/s
Normal working Wind
17 m/s
Tracker type
singlechip
Night to return model
Yes
backtracking algorithm
yes
IP Grade
IP66
Wind speed sensor
yes
Main material
Q235B / Q355B
Galvanized thickness
65um
Foundation type
Concrete foundation/spiral ground pile/steel pile ramming type
Mechanical design Life
＞25 years
Working Temperature
Normal-30℃～+70℃ Customizable -50℃～+85℃
Authentication
CE ISO9001
Actuating Device
Rotary drive/Linear drive

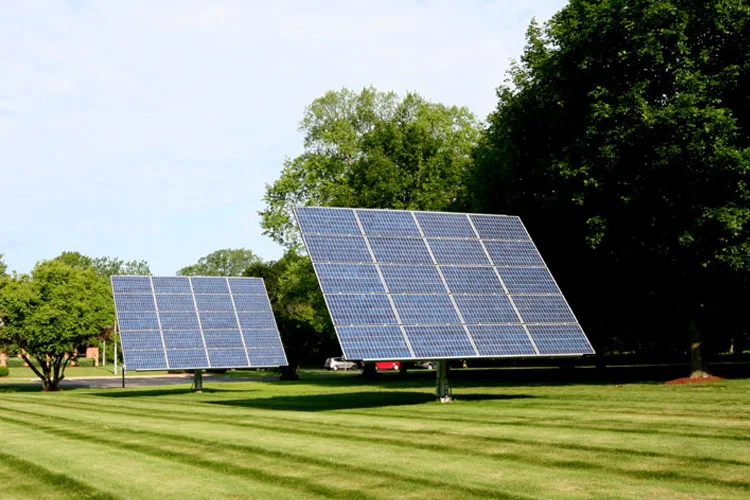

Examples of Project
GanSu Project
NingXia Project
XinYu Project
LinYi Project
Certifications
About Us
Shandong Huayue New Energy Co., Ltd.
Shandong Huayue New Energy Co., Ltd. is located in Tai'an City, Shandong Province, China. It is a supplier specializing in the design, development and production of solar tracking brackets. We are user-centered, adhering to the concept of continuous innovation in design and operation, committed to providing innovative technology and cost-effective solutions to create value for customers, providing economic and safe solutions and quality products for global solar photovoltaic power plants.
Factory Photos
Packaging&Delivery
FAQ
Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally solar tracker is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram? A: Our payments vary according to different countries and regions.
Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below ...
