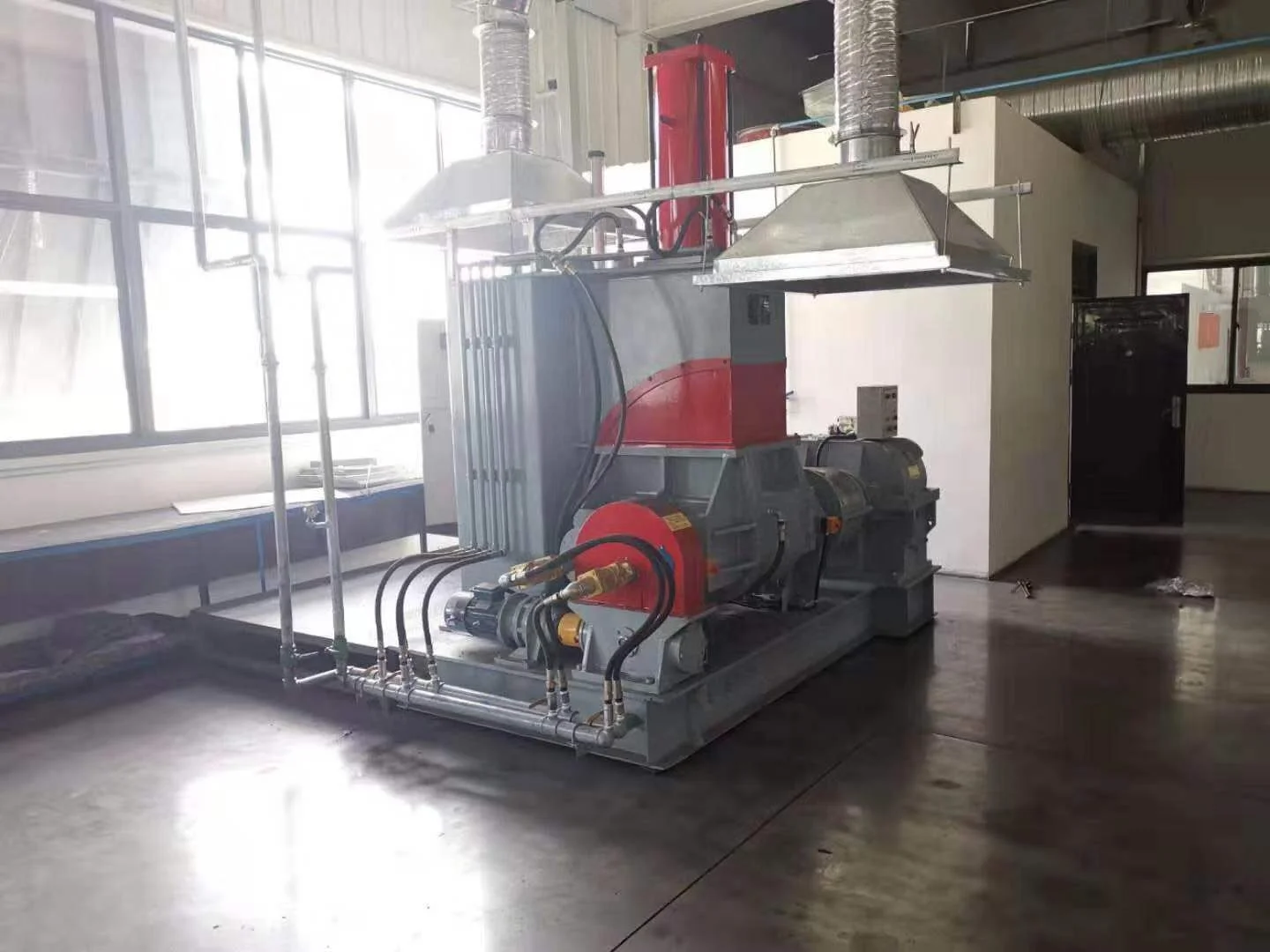

Banbury rubber kneader mixer machine with CE ISO certification
- Category: >>>
- Supplier: Anhui Sincere Machinery Co. Ltd.
Share on (62408969193):
Product Overview
Description
Product Description
Rubber kneader machine's Applications :
(A) Rubber Compounds & End Products
Natural Rubber, Synthetic Rubber, Mastication of NR, SBR, CR, EPDM, Fluorine Rubber,
Silicone Rubber, Rubber Tires, Packing, Gaskets, Hose, Belts, Shoe Sole, Sponge,
Electric Wire Covering, Casters, Golf Balls, Oil Seals, Weather Strips, Waterproof Sheet,
EVA, Tread Compound, Battery Containers etc.
(B) Plastic Compounds & End Products
HDPE, LDPE, PP, PVC, ABS, PS, EVA, Thermo set Plastic Compounds & Profiles, Wire Covering,
BMC etc.
Salient Features:
1)Maximum Dispersion & High Production
Double blades, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its
production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2)No Foundation Require
The Kneader has a common bed plate for all parts and require no foundation.
3)Easy Cleaning & Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this,
different coloured compounds can be made without trouble.
4)Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
5)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.
Construction
Mixing Chamber & Rotors: The mixing chamber is fabricated from alloy steel & is W-shaped.
The chamber is fitted with two rotary blades.
The surface is hard-chromed and has a provision for jacketing the inlet of water for cooling & steam for heating.
The rotors are also made of special steel. The rotors are hard chromed, after the tips of the rotary blades are welded with
stelite.
These blades are coupled with rotary joints thus enabling to take steam or water.
(A) Rubber Compounds & End Products
Natural Rubber, Synthetic Rubber, Mastication of NR, SBR, CR, EPDM, Fluorine Rubber,
Silicone Rubber, Rubber Tires, Packing, Gaskets, Hose, Belts, Shoe Sole, Sponge,
Electric Wire Covering, Casters, Golf Balls, Oil Seals, Weather Strips, Waterproof Sheet,
EVA, Tread Compound, Battery Containers etc.
(B) Plastic Compounds & End Products
HDPE, LDPE, PP, PVC, ABS, PS, EVA, Thermo set Plastic Compounds & Profiles, Wire Covering,
BMC etc.
Salient Features:
1)Maximum Dispersion & High Production
Double blades, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its
production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2)No Foundation Require
The Kneader has a common bed plate for all parts and require no foundation.
3)Easy Cleaning & Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this,
different coloured compounds can be made without trouble.
4)Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
5)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.
Construction
Mixing Chamber & Rotors: The mixing chamber is fabricated from alloy steel & is W-shaped.
The chamber is fitted with two rotary blades.
The surface is hard-chromed and has a provision for jacketing the inlet of water for cooling & steam for heating.
The rotors are also made of special steel. The rotors are hard chromed, after the tips of the rotary blades are welded with
stelite.
These blades are coupled with rotary joints thus enabling to take steam or water.
Size Information
Model | Mixing capacity | motor | feed way | unload way | weight | dimension |
X(S)N-150L | 150L | 200kw | back or front | mechanical or hydraulic reverse | 21000 | 4400*3500*4200 |
X(S)N-110L | 110L | 160kw | back or front | mechanical or hydraulic reverse | 14000 | 4200*3200*3500 |
X(S)N-95L | 95L | 132kw | back or front | mechanical or hydraulic reverse | 13000 | 4000*2724*3400 |
X(S)N-75L | 75L | 110kw | back or front | mechanical or hydraulic reverse | 11500 | 3673*2700*3400 |
X(S)N-55L | 55L | 75kw | back or front | mechanical or hydraulic reverse | 8000 | 3650*2700*3200 |
X(S)N-35L | 35L | 55kw | back or front | mechanical or hydraulic reverse | 6500 | 3100*2700*3200 |
X(S)N-20L | 20L | 37kw | front | mechanical reverse | 2000 | 2850*1950*2550 |
X(S)N-5L | 5L | 7.5kw | front | mechanical reverse | 1200 | 1500*800*200 |
X(S)N-3L | 3L | 5.5kw | front | mechanical reverse | 1000 | 1500*900*200 |
Related Products
Packing&Shipping
Packaging : The normal package is bare packing. We can package it according to customers special requirment.
Port: Shanghai
Port: Shanghai
Company Introduction
Anhui Sincere Machinery Co.,Ltd is a professional manufacturer of Rubber products making machinery with advanced equipment and technical engineers. We manufactures good & high quality drum vulcanizer, rubber calender, kneader, rubber slitter , rubber joint machine and open mixing mill starting from 2009. We provide the customized products and OEM service with proficient skill and updated machine.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 45 workdays.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What's your terms of payment?
A: FOB
If you have another question, pls do not hesitate to contact me, we will reply you asap.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 45 workdays.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What's your terms of payment?
A: FOB
If you have another question, pls do not hesitate to contact me, we will reply you asap.
