High Quality Original Intel Xeon E5 2640 V4 DELL R630 Server PowerEdge

Processor

Intel® Xeon® E5-2640 v4 2.4GHz,25M Cache,8.0GT/s QPI,Turbo,HT,10C/20T (90W) Max Mem 2133MHz

Memory

4GB RDIMM, 2400MT/s, Single Rank, x8 Data Width

8GB RDIMM, 2400MT/s, Single Rank, x8 Data Width

16GB RDIMM, 2400MT/s, Dual Rank, x8 Data Width

32GB RDIMM, 2400MT/s, Dual Rank, x4 Data Width

Hard Drive

1TB 7.2K RPM SATA 6Gbps 3.5in Hot-plug Hard Drive

Warranty

3Yr Basic HW Warranty Repair, 5x10 NBD Onsite

Drive Bays

Internal hard drive bay and hot-plug backplane:
Up to 16 x 2.5” HDD: SAS, SATA,

Near-line SAS SSD: SAS, SATA
Up to 8 x 3.5” HDD: SAS, SATA,

Near-line SAS SSD: SAS, SATA

Dimensions

Dimensions:

H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)

Chassis

Dimensions:

H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)

Power

1100W AC, 86 mm (Platinum)

1100W DC, 86 mm (Gold)

750W AC, 86 mm (Platinum)

750W AC, 86 mm (Diamond)

495W AC, 86 mm (Platinum)

RAID Controllers

Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830

Chipset

Intel C610 series chipset

Storage

HDD: SAS, SATA, nearline SAS;

SSD: SAS, SATA

16 x 2.5” – up to 29TB via 1.8TB hot-plug SAS hard drives

8 x 3.5” – up to 64TB via 8TB hot-plug nearline SAS hard drives

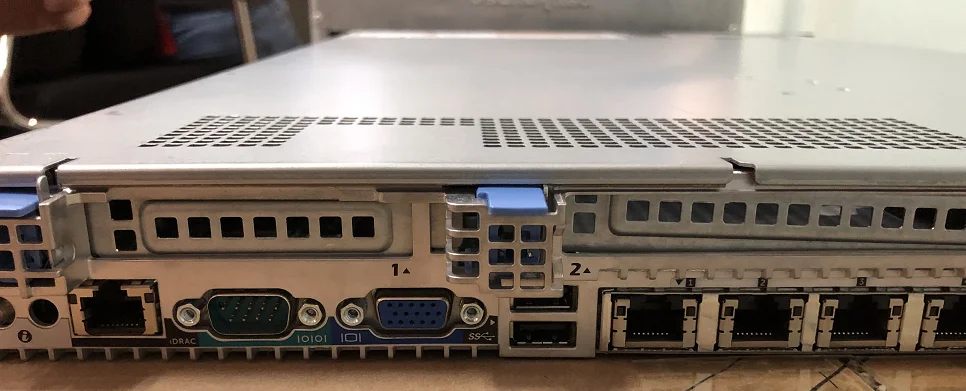

Slots

Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett

Full Length, Full Height, PCIe Gen3 x16 (x16 connector)

Full Length, Full Height, PCIe Gen3 x8 (x16 connector)

Dedicated RAID card slot

Network Controller

4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
