HD Good quality HDMI digital signals HDMI extend 60m

Share on (62409177627):


Price:$115.00 - $120.00

Quantity:


Product Overview

Description


HD Good quality HDMI digital signals HDMI extend 60m



Specifications:

Length of CAT-6/CAT-5E cable between Rx and TX…………….............…..Up to 60 meters

HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Max bandwidth……………………………………………………………………………148.5MHz

Max baud rate……………….…….………………….………….………………………1.5Gbps

Input video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)

Input HDMI cable distance………….…………............…..≤10m AWG26 HDMI standard cable

Output HDMI cable distance............................................ ≤15m AWG26 HDMI standard cable

TX Max working current………………………………………...………….………………...510mA

RX Max working current…………………………………………...………………………...100mA

Power adapter format………...………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….…………………………81x43x22 (mm)

TX Weight…..……………………………………………..………………………........………100g

RX Weight........................................................................................................................120g

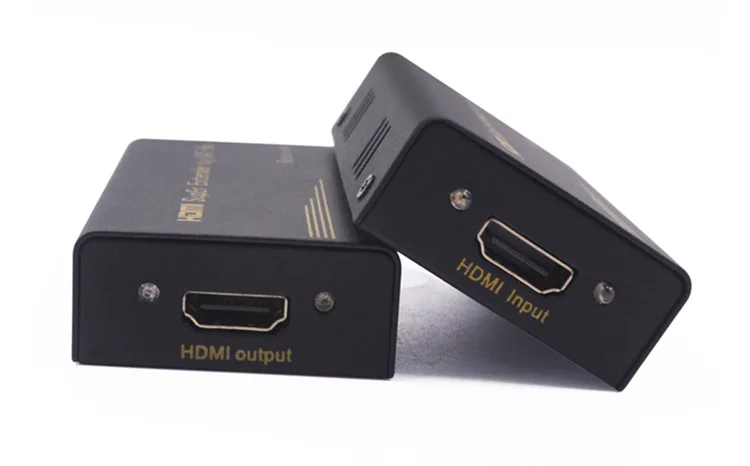

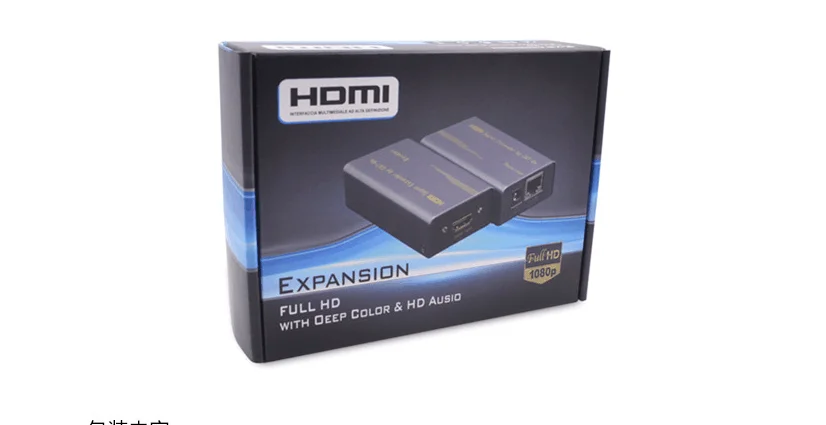

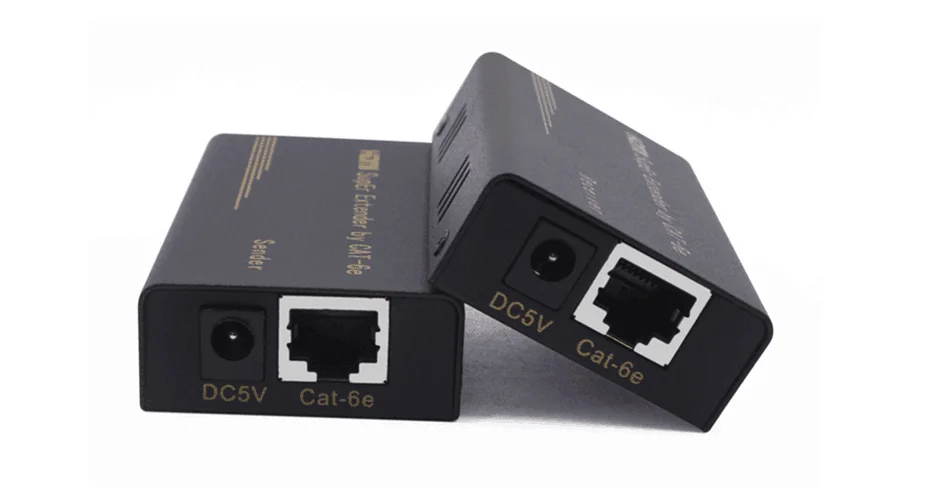

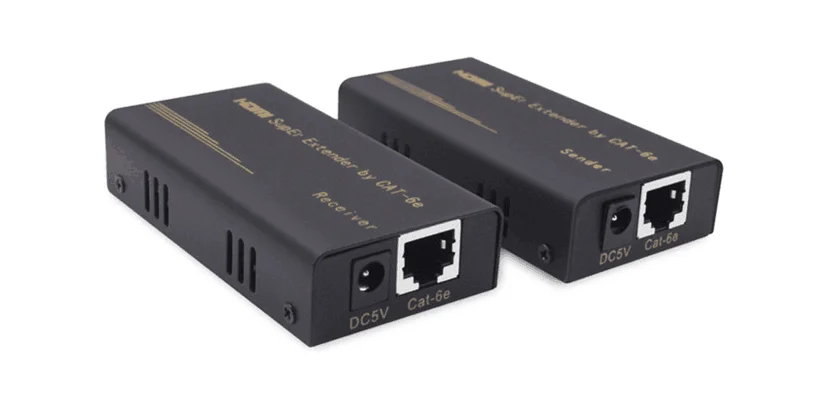

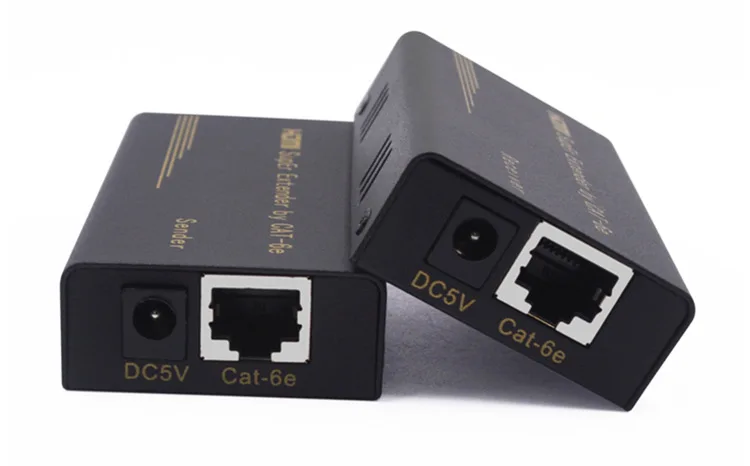

60m (1)60m (3)60m (2)60m (2)60m (4)

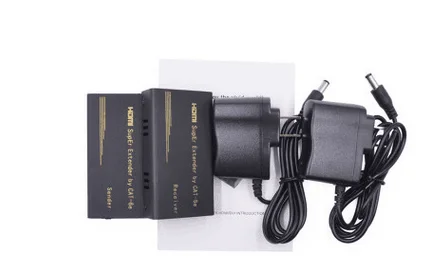

The Package includes:

1. TX Extender :1pc   RX Extender:1 pc

2. 5V DC Power adapter x 2pcs

3. User Manual
