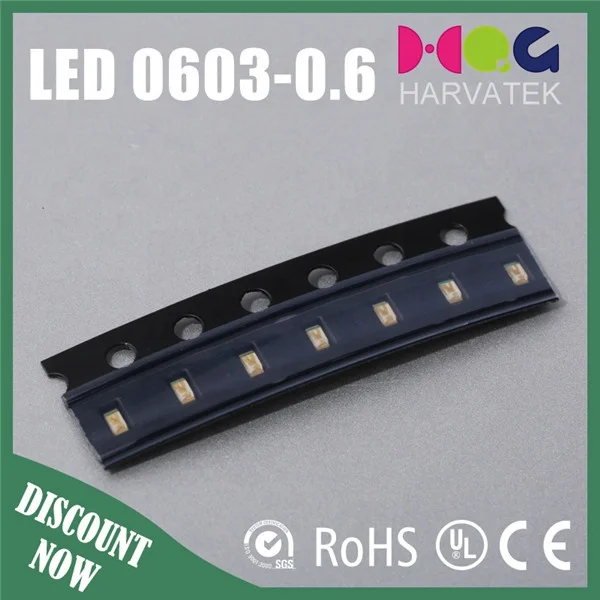

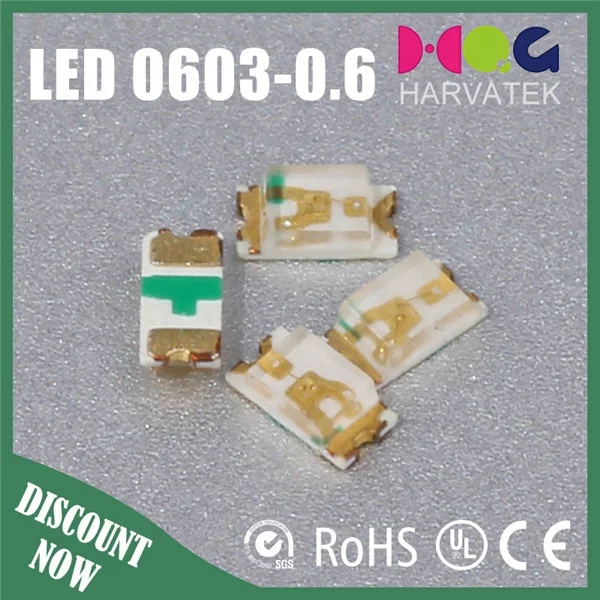

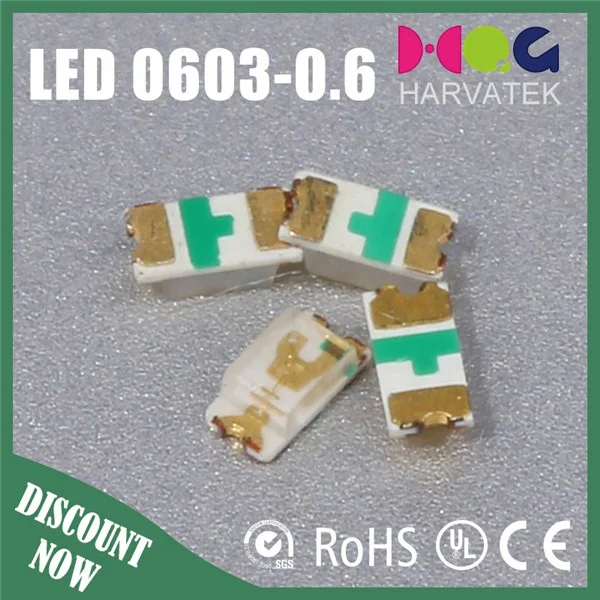

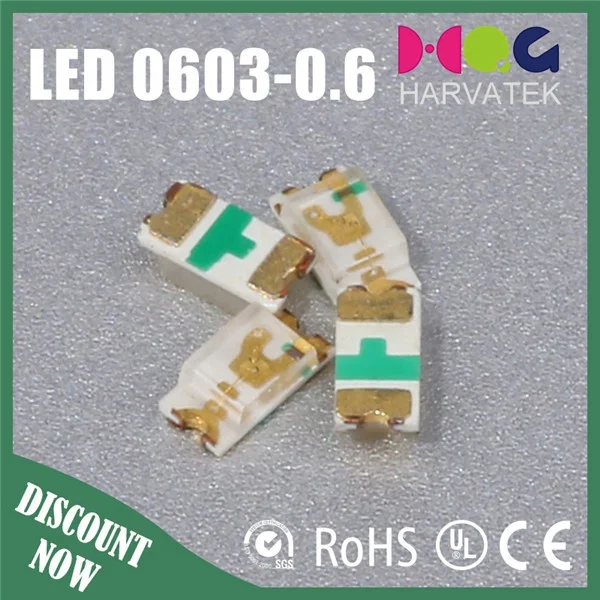

Зеленый светодиодный индикатор SMD 0603, светодиодный Диод smd 0603

Зеленый светодиодный индикатор SMD 0603, светодиодный Диод smd 0603

Category: Active Components >>>
Supplier: Harvatek Optoelectronics (Shenzhen) Co. Ltd.

Price:0,02 $ - 0,04 $

Quantity:

Product Overview

Description

Product Description

Package ( L/W/H ) : 1.6×0.8×0.55 mm
Color : Ultra Bright Green
Lens: Water Clear Flat Mold
EIA STD Package
Meet ROHS, Green Product
Compatible With SMT Automatic Equipment
Compatible With Infrared Reflow Solder Process

Electrical Optical Characteristics At Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	IV	---	560	---	mcd	IF = 20mA
Viewing Angle	2θ1/2	---	120	---	deg	IF = 20mA
Dominant Wavelength	λd	---	530	---	nm	IF = 20mA
Peak Wavelength	λp	--518-		-530-	nm	IF = 20mA
Spectral Line Half-Width	Δλ	---	35	---	nm	IF = 20mA
Forward Voltage	VF	2.8	---	3.6	V	IF = 20mA
Reverse Current	IR	---	---	5	uA	VR=5V
