All Automatic Iron Forming Terrazzo Machine Factory

Product Overview

Description

All automatic iron forming terrazzo machine factory

Color tile making machine

Brief introduction:

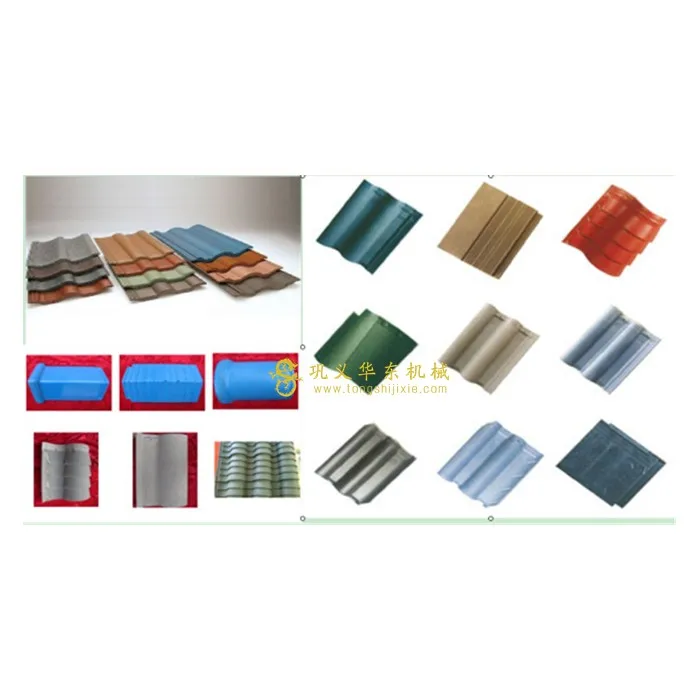

With different grinding tool, colored tile making machine can produce various slate, flat tile, corrugated tile, s-shaped, big wave tile, Cezanne tile, boutique tile, Spain S tile, western-style S tiles, floor tile, flat tile, block ditch tile, three curved tile, round tile, floor tile, drop of floor tile, roof tile, ridge tile ridge, French type tile.



Summary:
1: mold pressing & forming type; outer precious dimension (length 424 mm * 337 mm wide; 9.1 piece/ m2).
2: high strength, low cost = 1 RMB/piece (including human salary, raw materials cost, taxes, depreciation, wear and tear, etc.), high profit (about 0.6 to 0.8 RMB/piece, different according to the regions), simple raw materials (cement, sand).
3: fully automatic CNC die colored tile making machine; raw material is composed of cement, yellow sand, ; under high pressure molding, final product with high strength; color is rich.

Advantages:
1.If change the mold, can produce various cement tile, Antique Khan tiles;

2.If change the mold, can produce various terrazzo floor tile
3.If change the mold, can produce various road brick, square brick, flower tile
4.Adopts moulding cement, use special processing precision grinding machine, professional large WEDM;

5.cement tile plate is made by high impact deep cement pressed

Technical parameters:

Model	QT-20 full automatic tile making machine	QT-18 automatic tile making machine
Capacity	3000-3500 pieces/8h	2600-3000 pieces/8h
Molding cycle	5-6 s/time	6-8 s/time
Molding pressure	130t	128t
Power	7.5kw	5.5kw
Weight	6.5t	5.5t
Dimension	3120*1750*2650mm	3070*1600*2500mm

Features:

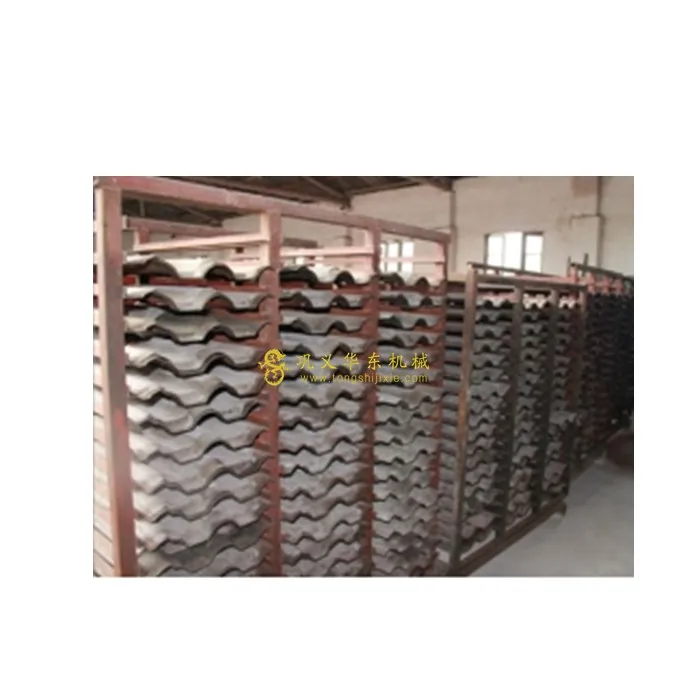

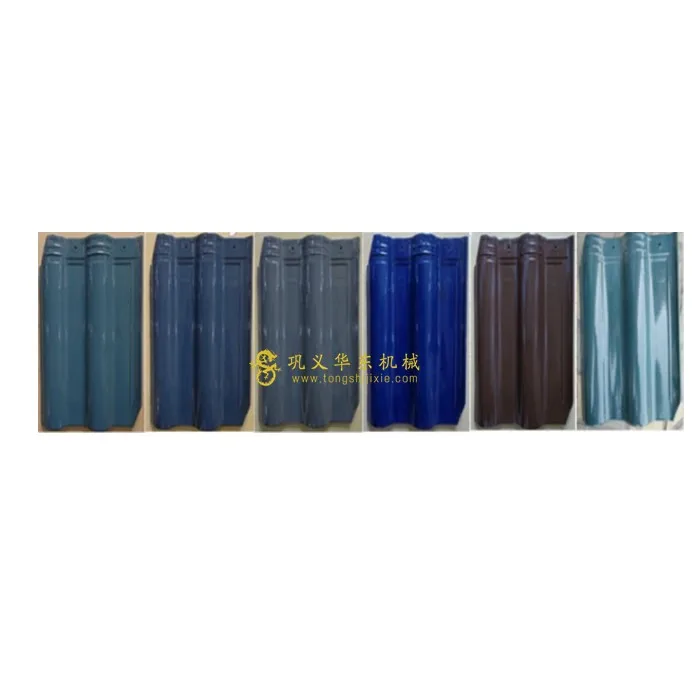

It is mainly used for production of various kinds of roofing tile. Adapting cement rapid molding, finished tiles after natural drying can sell. Also can spray a variety of gorgeous pigments to made into various color tile. The all aspects performance of finished product are higher than that of tile, glazed tile, asphalt tile several times.

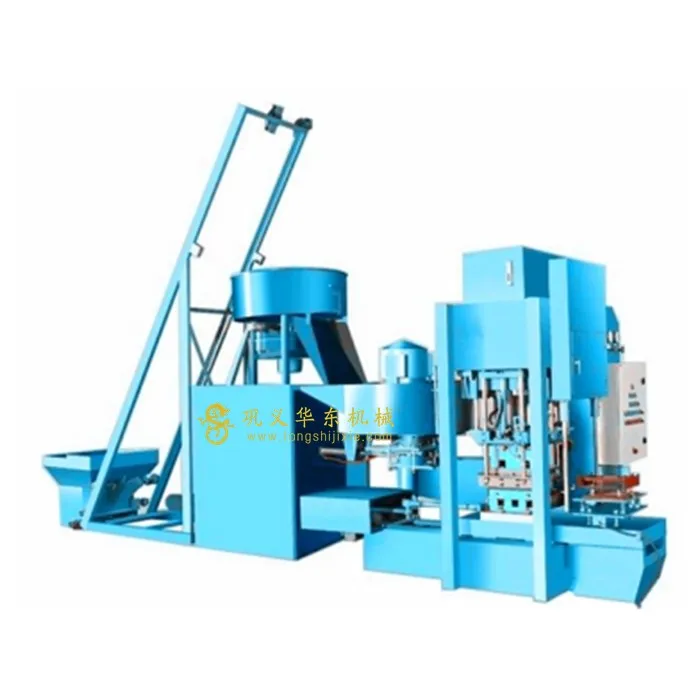

The whole production line configuration system:

All kinds of index comparison of tile, glazed tile, cement tile:

Name	tile	glazed tile	cement tile
Bearing quality	<100kg	<100kg	>200kg
Waterproof	bad	ordinary	excellent
Thermal insulation	ordinary	ordinary	good
Frost resistance	ordinary	ordinary	good
Anti permeability	porous	porous	permeation resistance
Production type	firing	firing	natural drying
Coverage rate	15 pieces/m	15 pieces/m	9 pieces/m
Weight for each piece	3.3 kg	3.3 kg	4.25 kg
Production method	High temperature roasting/easy to deformation		Natural drying/without deformation
Color	single	many	many
Raw material	farmland resource	farmland resource	cement/sand/stone powder

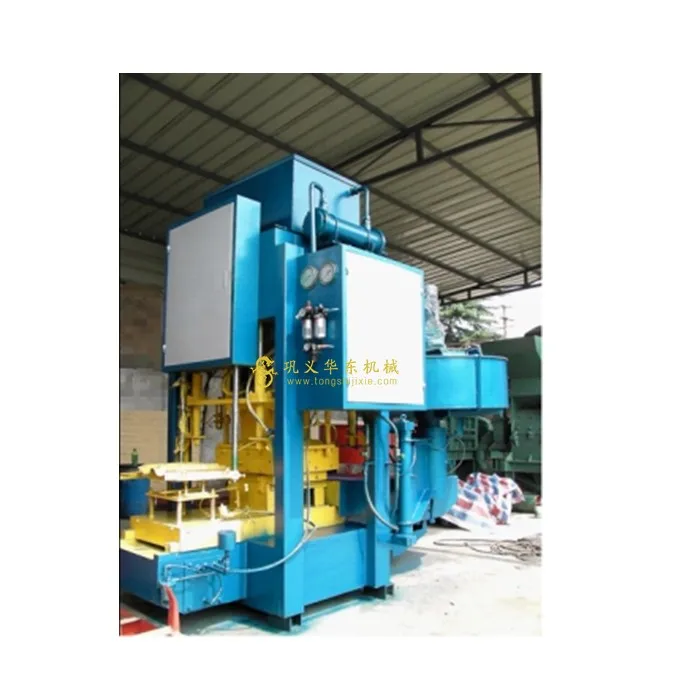

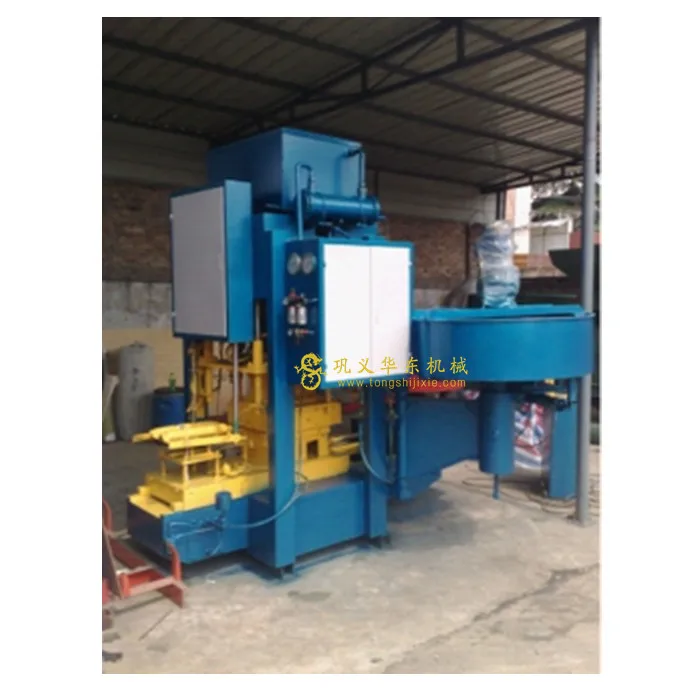

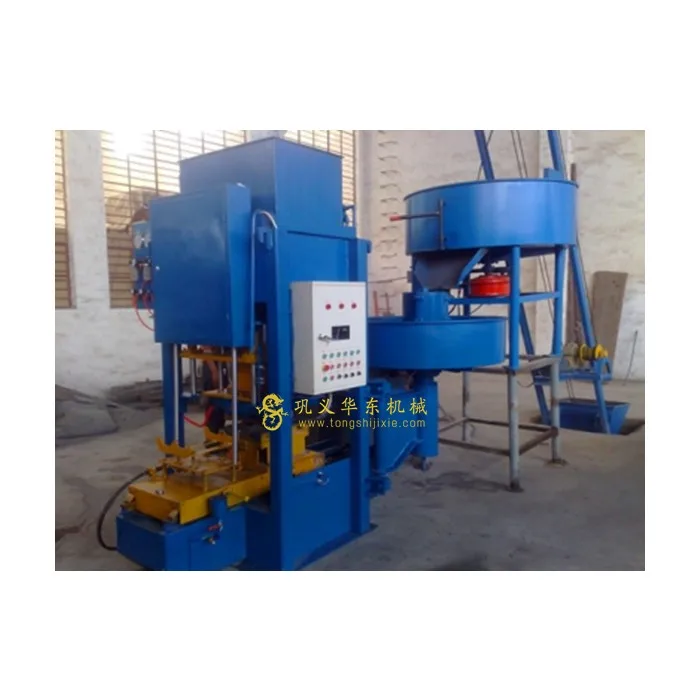

Full-automatic cement color roof tile making machine

1. Quick molding speed, high output, reliable performance. Adopting PLC automatic control. man-machine interface makes performance more reliable and more convenient. The molding speed can reach 8 pcs/min, with full hydraulic and pneumatic production.

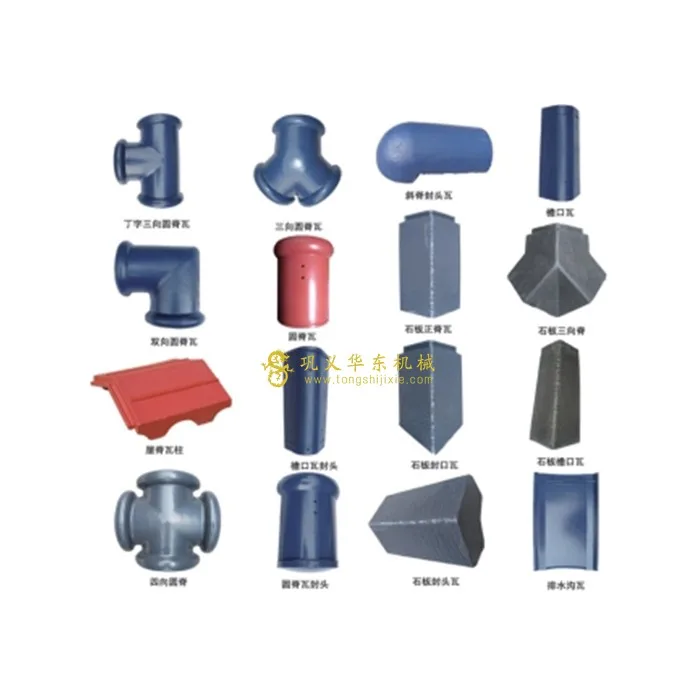

2. Slurry concrete is pressed by pressure filtration type mould. Final product is perfect in structure and various in designs, big in density, and high in strength, precise in size, which can meet any building need.                      3. Multi-usage. It can make kinds of color tiles, such as roof tiles, ridge tiles, edge tiles, drainage tile and gutter tiles and so on.

Production Process:

1. Raw material→ 2.Bucket type feeding machine →3. Wheel type mixer→ 4. Quantitative feeding mixer→ 5. Roof tile maintenance pallet→6. Hand fork lifter →7. Spray coating line →8.Final Product
