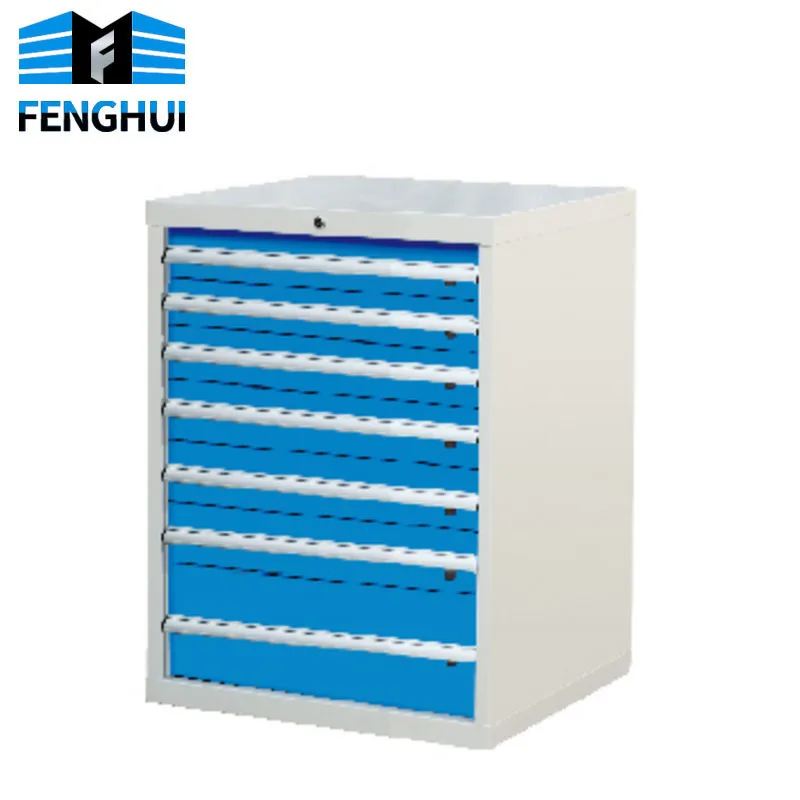

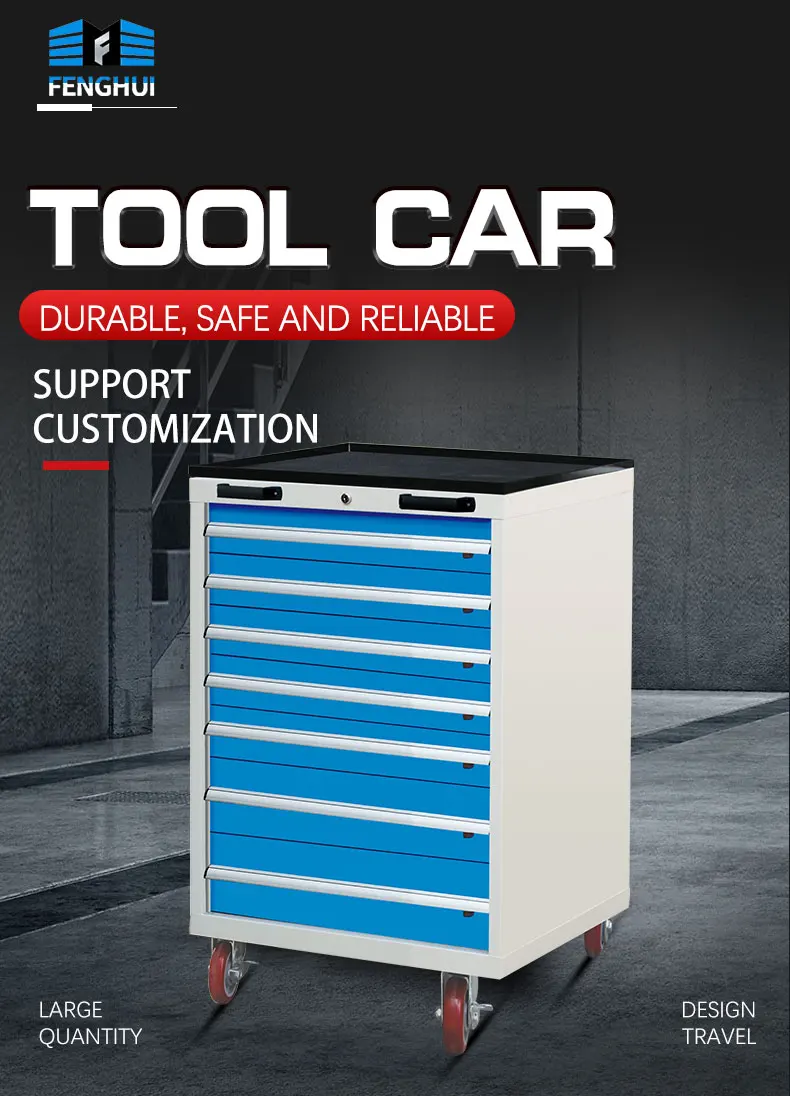

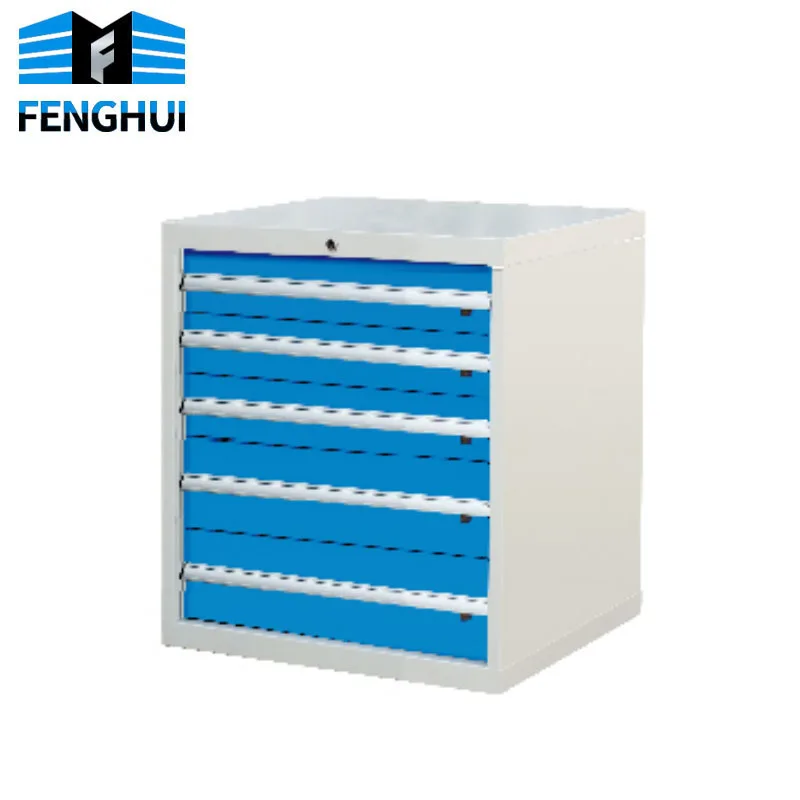

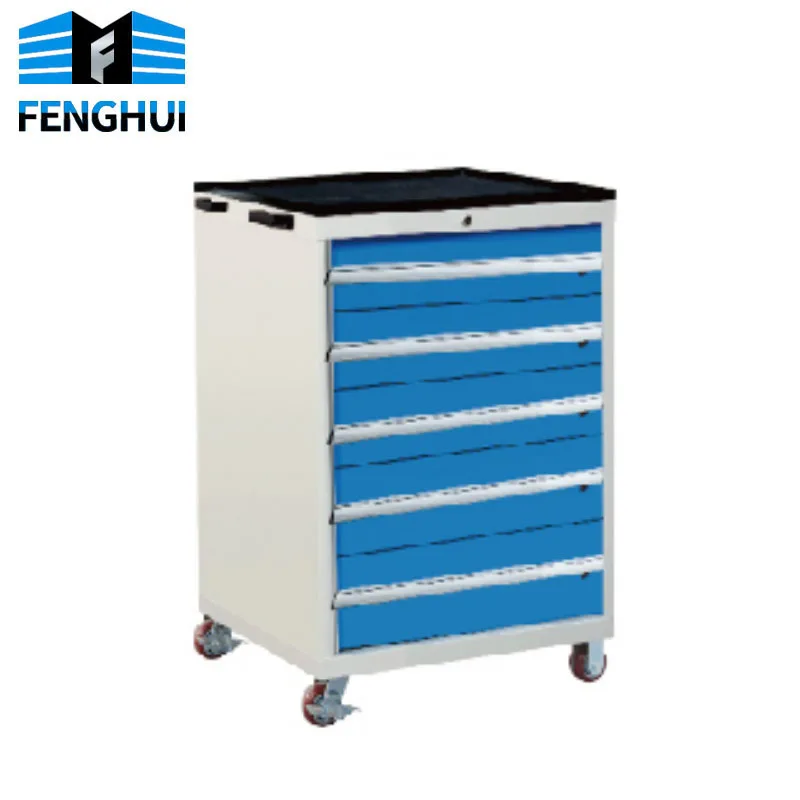

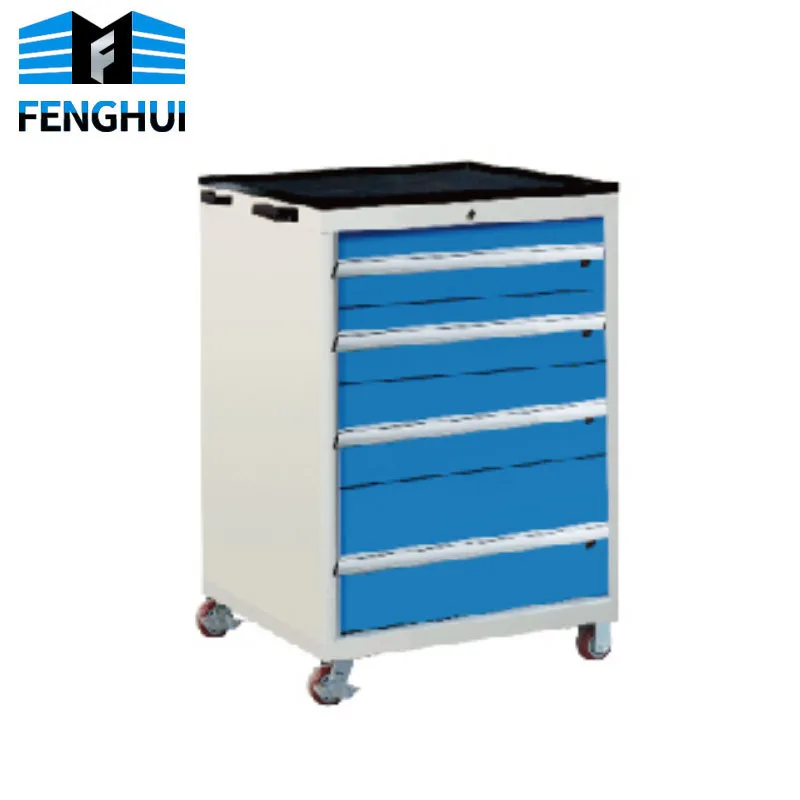

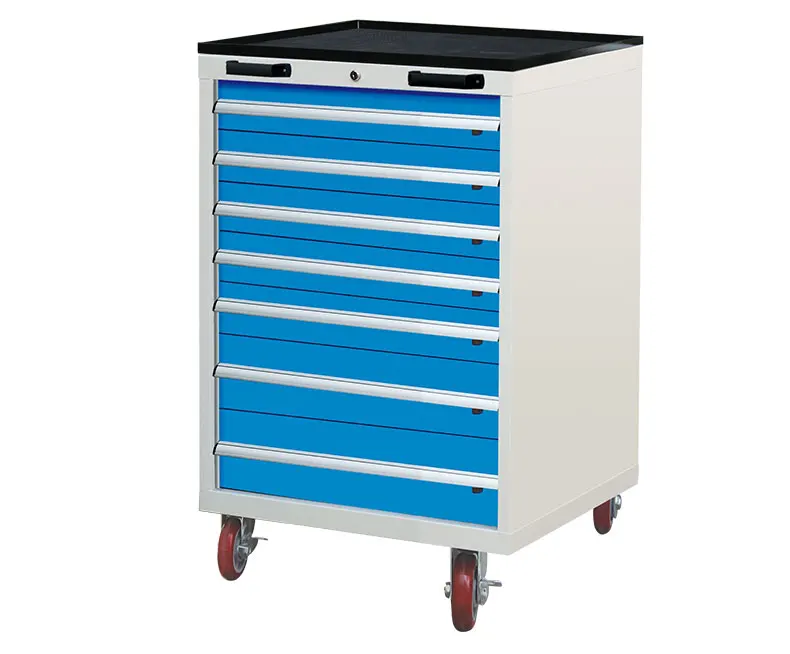

717*572 Fenghui heavy load tool trolley cabinet tool cart with drawers
- Category: >>>
- Supplier: Fenghui Metalwork (shanghai) Co. Ltd.Fenghui Ltd.
Share on (62409470482):
Product Overview
Description
We can see our strength
Product parameters
Size is measured by hand, there is a little error, please refer to the real object!
Model | Cabinet size(MM) | Cabinet height(MM) | ||
SLC | 411x572 | 800/850/1000 | ||
SDC | 411x725 | 800/850/1000 | ||
FLC | 564x572 | 800/850/1000/1050/1100/1150 | ||
FDC | 564x725 | 800/850/1000/1050/1100/1150 | ||
MLC | 564x725 | 800/850/1000/1050/1100/1150 | ||
MDC | 564x725 | 800/850/1000/1050/1100/1150 | ||

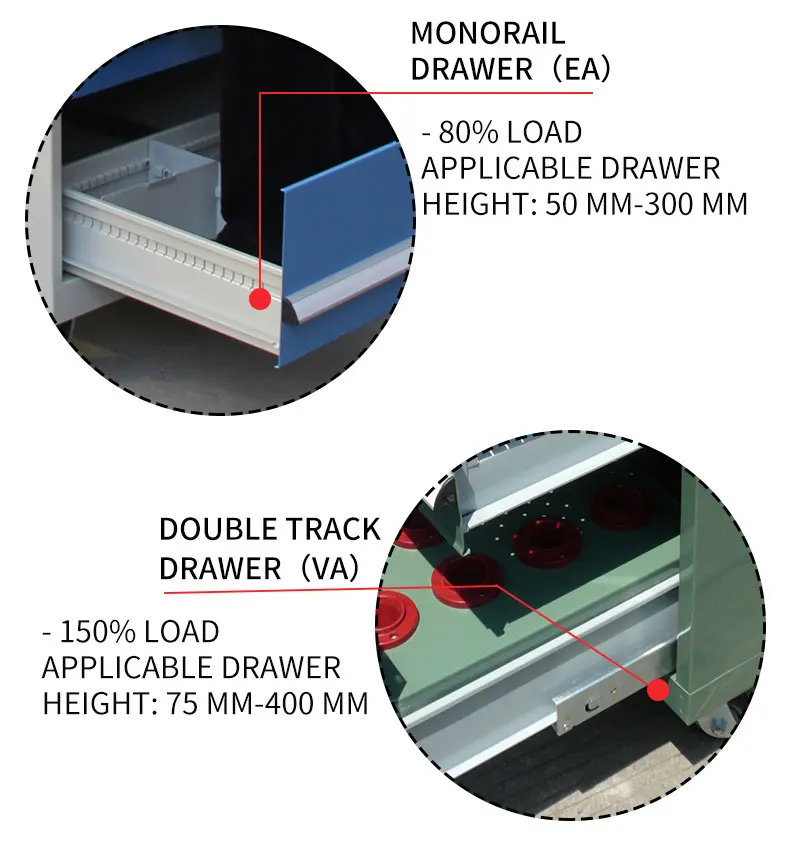

Tool car height = tool cabinet height + top frame 20 mm + bottom caster; The monorail drawer is equipped with 4x1.25 "caster height of 130mm as standard; Double track drawer is equipped with 4x2 "caster as standard, with a height of 150 mm; The number of drawers can be customized according to customer needs; | ||||
Multiple options
Optional Accessories
Top shelf
It has anti-skid rubber pad inside,Oil proof and easy to place tools
Base
Suitable for use in humid environment,The base height is 50mm,Color black
Vertical hanging board
The square hole hanging plate can be used with various hooks, and the storage of tools is convenient
Drawer partition assembly
Partition board
Drawer partition assembly
Sorting box
Drawer partition assembly
Sorting tank

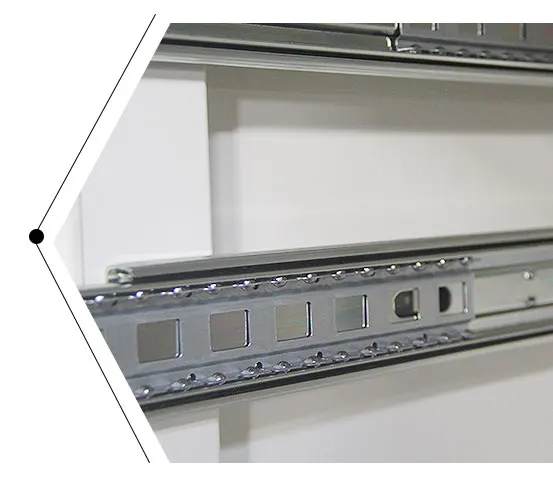

SPECIAL GUIDE RAIL DESIGN
—Light and smooth access after loading—
*The drawer configuration of tool cabinet adopts the internationally popular 25 mm multiple configuration, and the minimum height is 50 mm To the maximum height of 400mm, the distribution of drawer height is more detailed; *The number of drawers in the tool cabinet can be configured randomly under the height of the tool cabinet, that is, the total number of drawers Height = cabinet height - 100 mm; *All drawers are equipped with safety buckle device to prevent the drawer from slipping out accidentally; *The drawer can be divided at will, and can cooperate with many drawer partition accessories to change the material Effective management; | ||||||||
Detail display

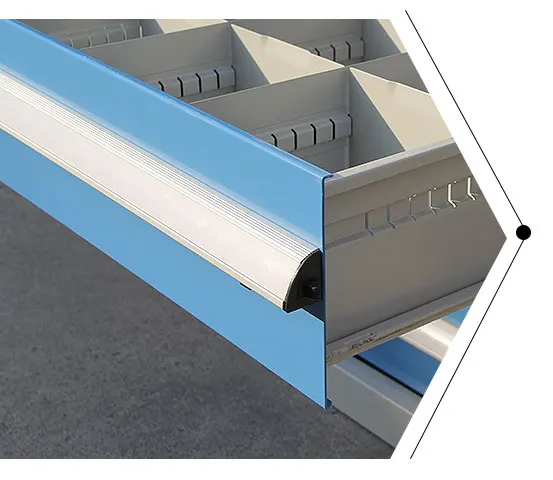

Retractable handle
To prevent accidental injury, use Full width aluminum alloy structure,Beautiful and comfortable;

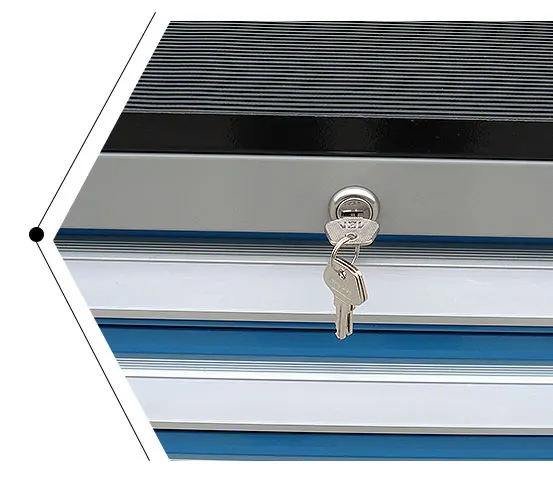

High quality locks
The safety lock mechanism can lock all drawers at the same time, which is safe and reliable;

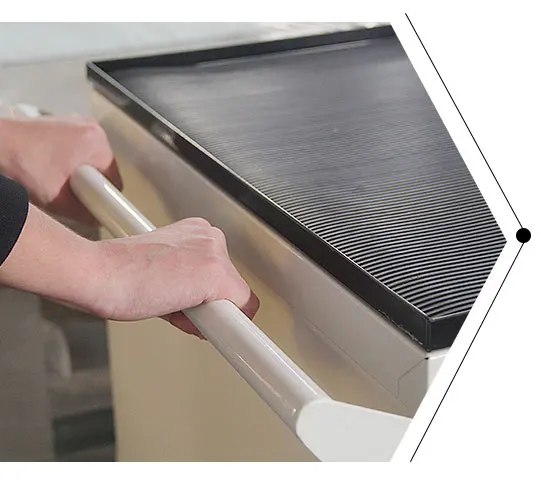

Hand pushing Bing
Comfortable handle, thick reinforcement design, not easy to damage, moving car body more easily;
Roller skating
The storage is more smooth without jamming;

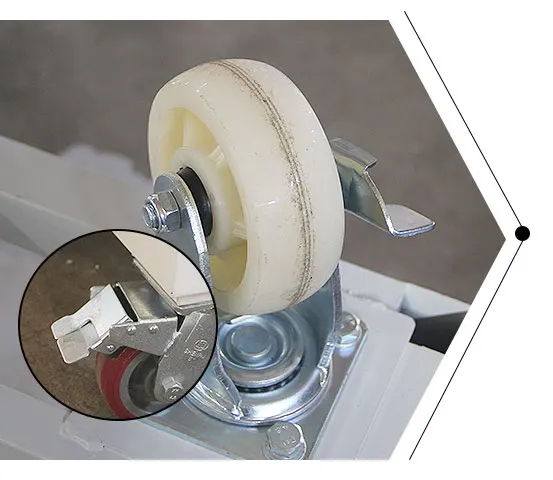

Universal brake wheel
High quality rubber roller, 360 degree rotation without dead angle, strong load-bearing, multi scene use;

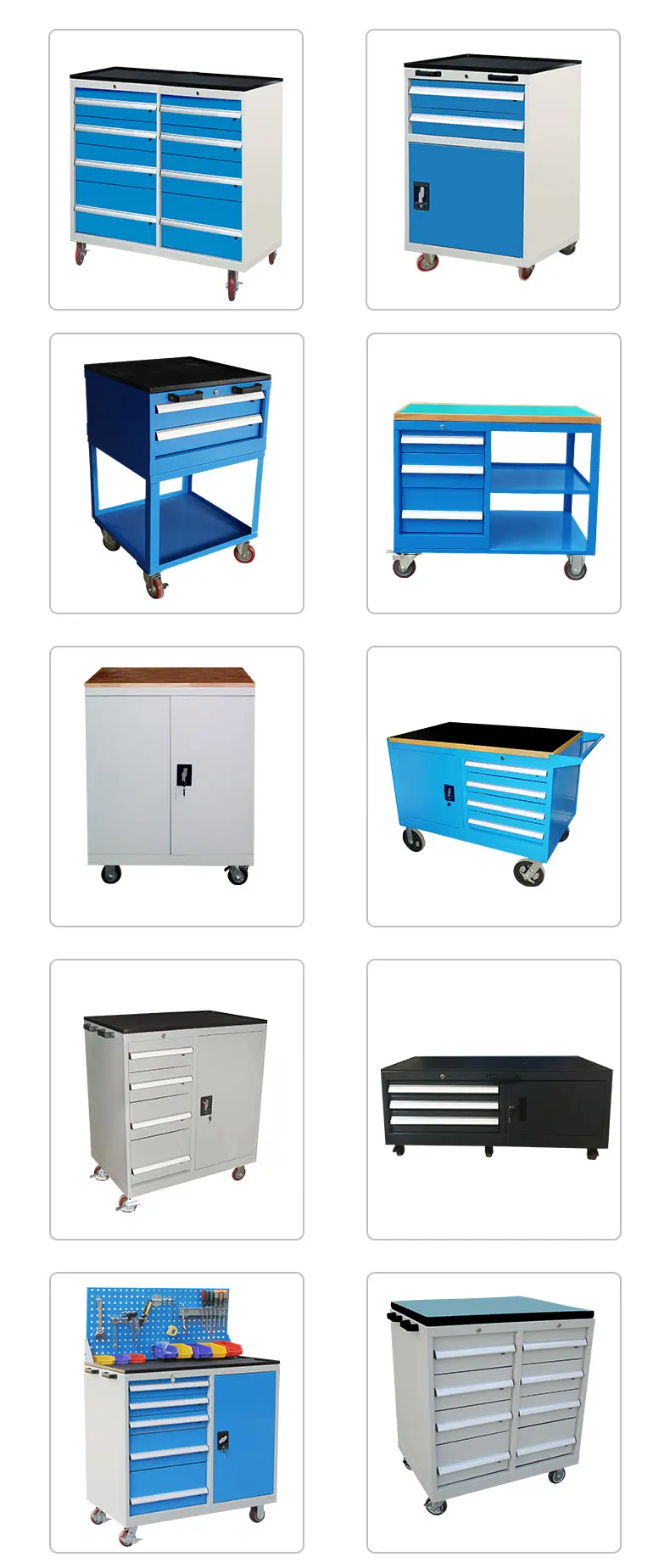

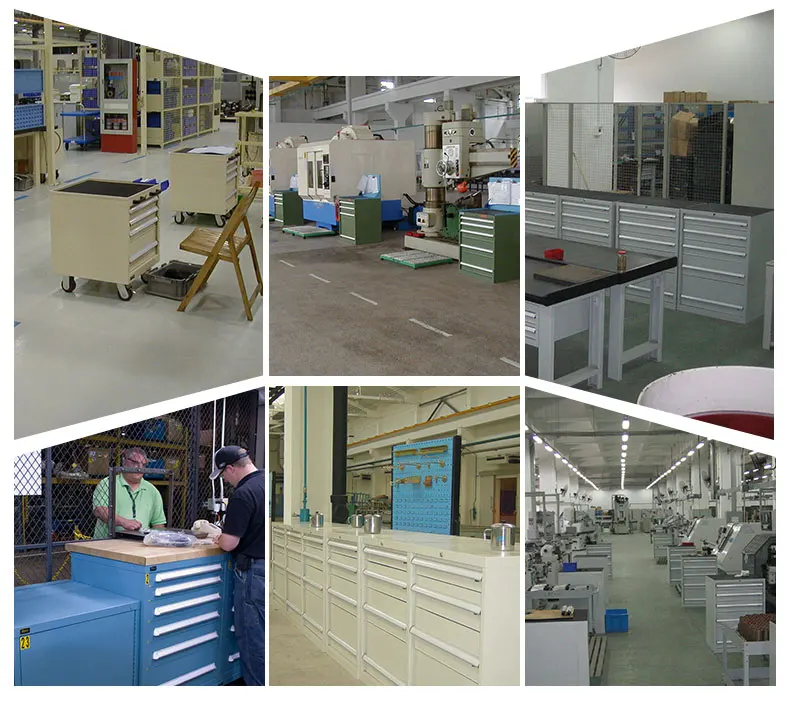

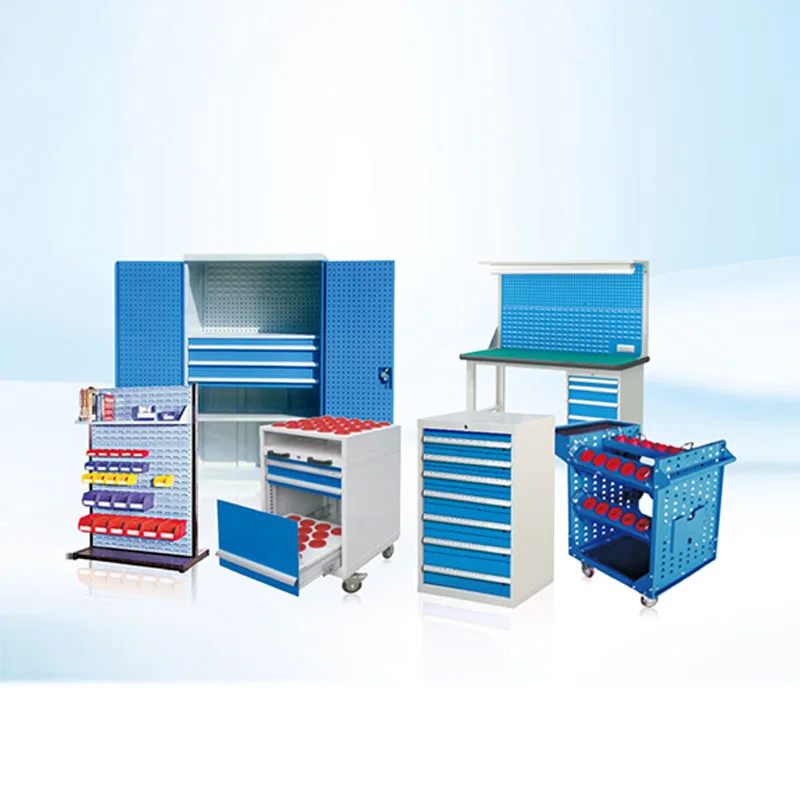

Case presentation
