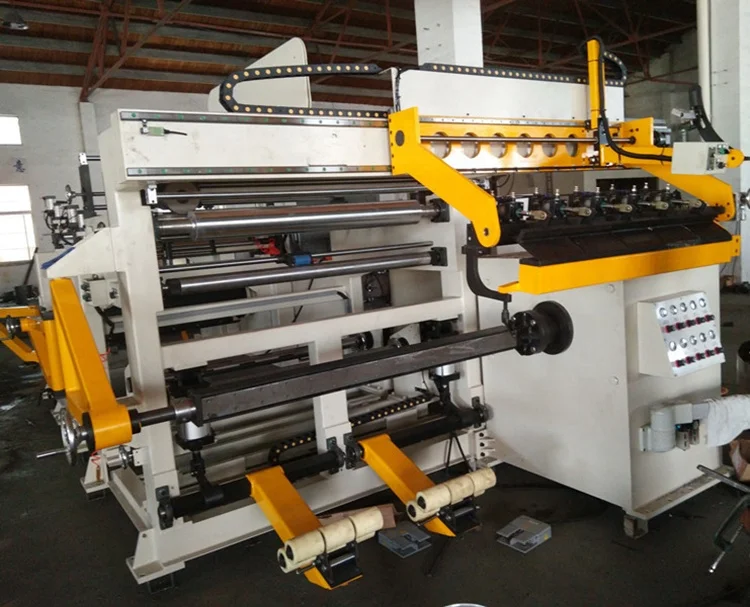

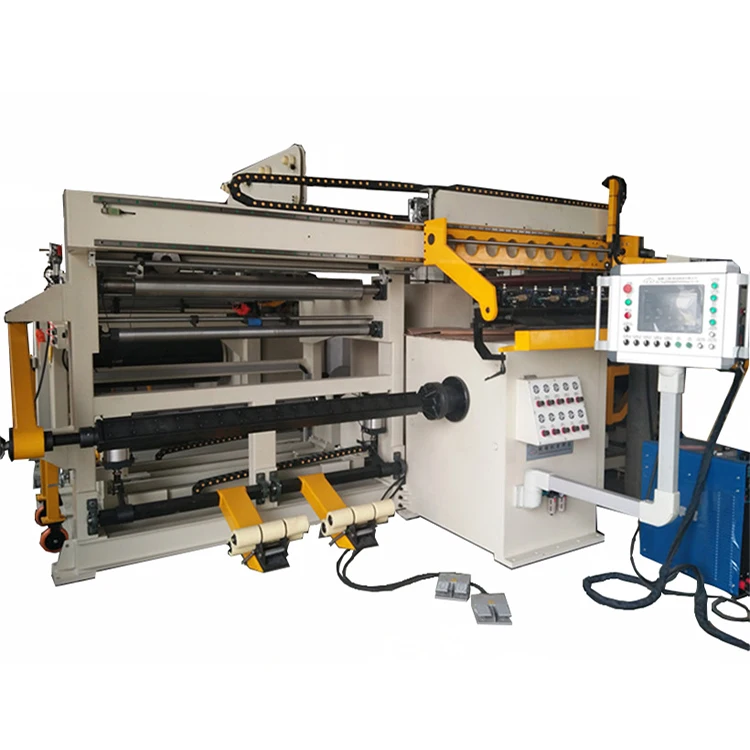

Heavy Duty Copper Or Aluminium Distribution Transformer Foil Winding Machine
This kind of foil winding machine is suitable for producing dry type transformer's coil .
This kind of foil winding machine is suitable for producing dry type transformer's coil .
Foil Width: | 350-1,600mm |
Finished Coil OD.: | ≤1,000mm |
AL Foil Thickness: | 0.3 - 3.0 mm |
Cu Foil Thickness: | 0.2 - 2.0 mm |
Conductor Material OD.: | ≤1,000mm |
Conductor Material ID.: | 500mm |
Winding Power: | 30kw |

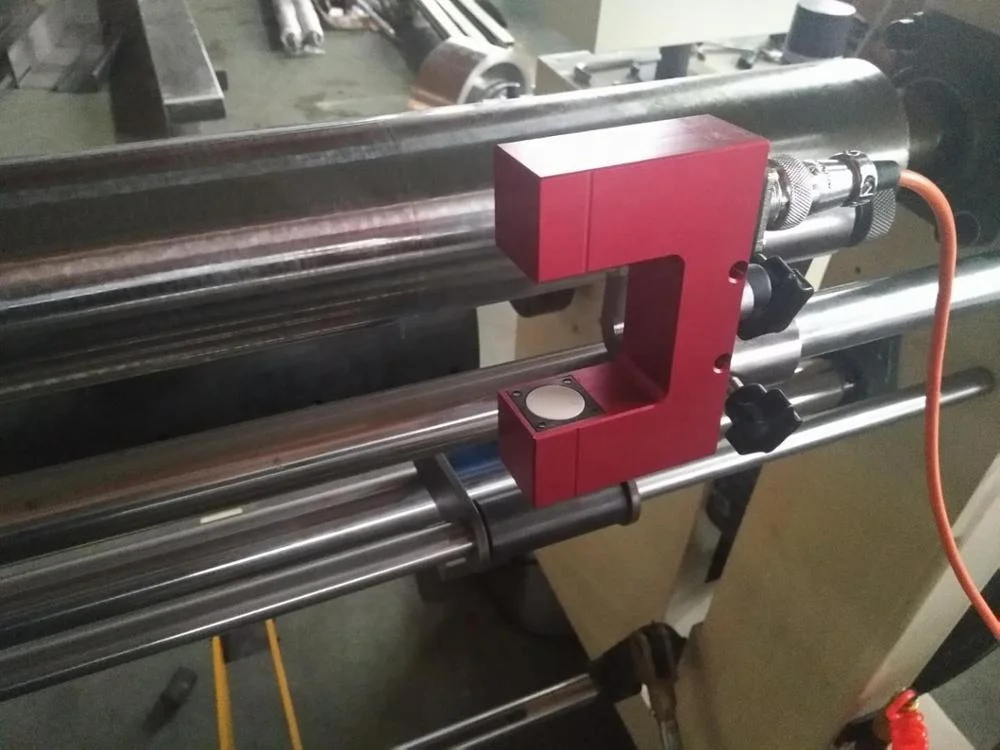

Edge Alignment System: | Photoelectric sensing |
Counting Turns Range: | 0 - 9999.9 |
Direction for use
This kind of foil winding machine can wind coil automatically. Placing the foil on the decoilers, making the foil go through the feeder, cleaning unit and so on. Putting the foil between the jag plate, then welding the foil with bar together. then putting the welded foil to the mold and fixed it on the shaft. Inputting the relevant parameters, pressing the foot pedal, then the machine will wind automatically.
Description of application effect
The foil winding machine can be used to wind different shapes of foil coil. The rectifying unit guarantees the foil edge alignment. High tension guarantees every layers of foil to be wound tightly. Two layers of foil are wound together, which increase the product efficiency substantially. Touch screen and the user-friendly interface makes the operating the machine very easy.
Detailed Images

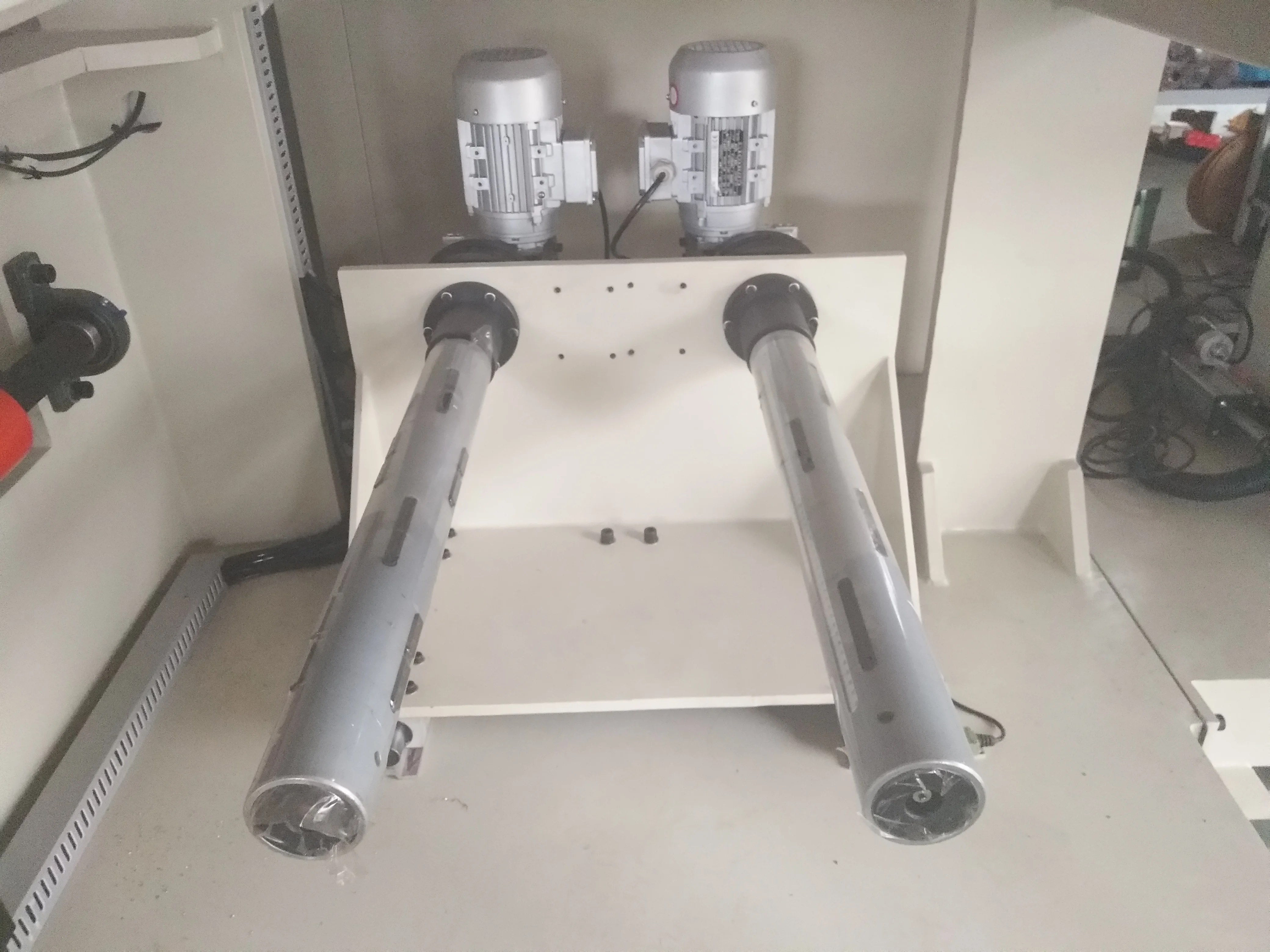

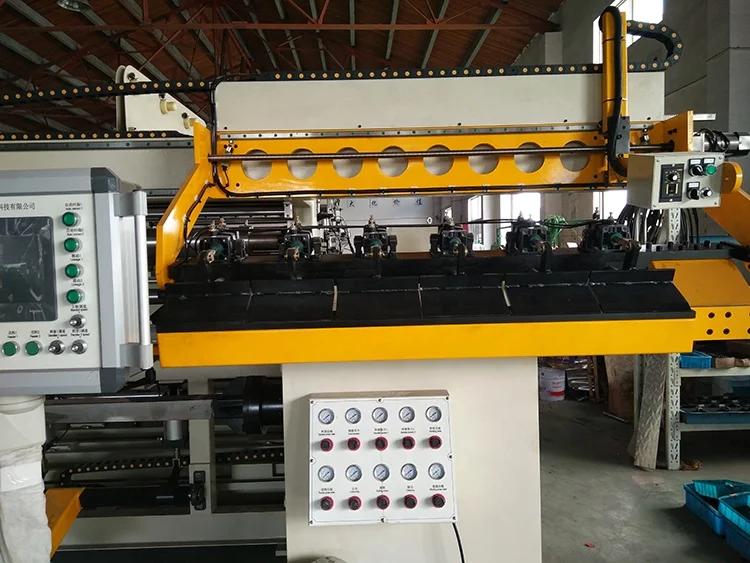

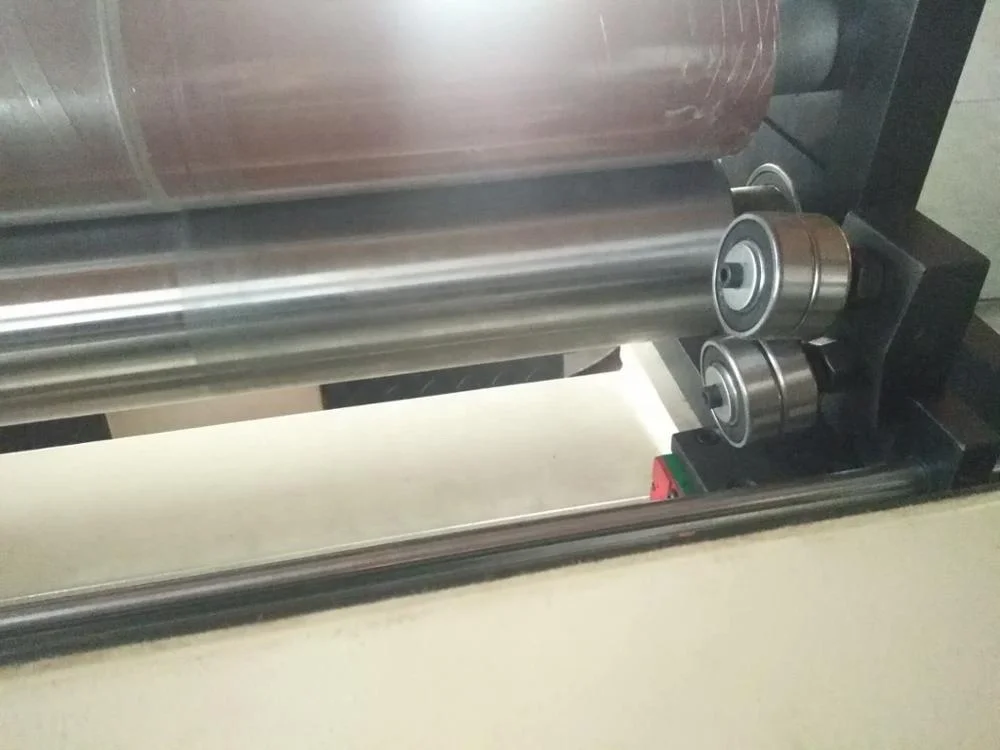

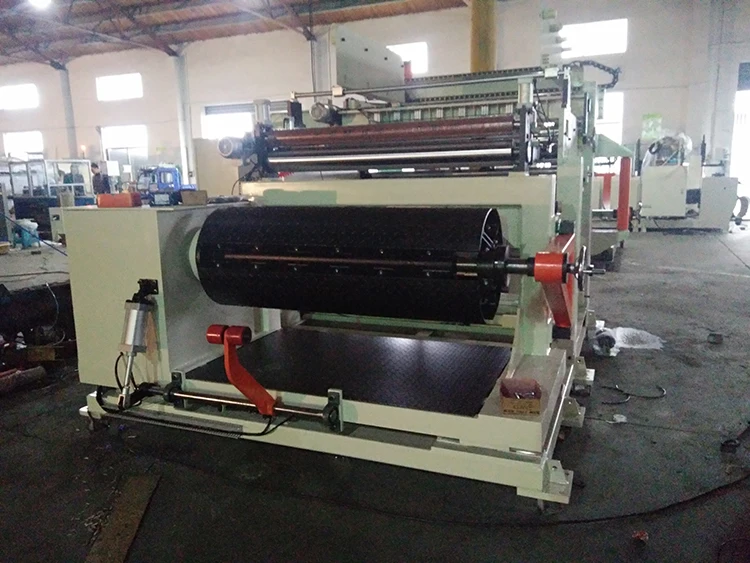

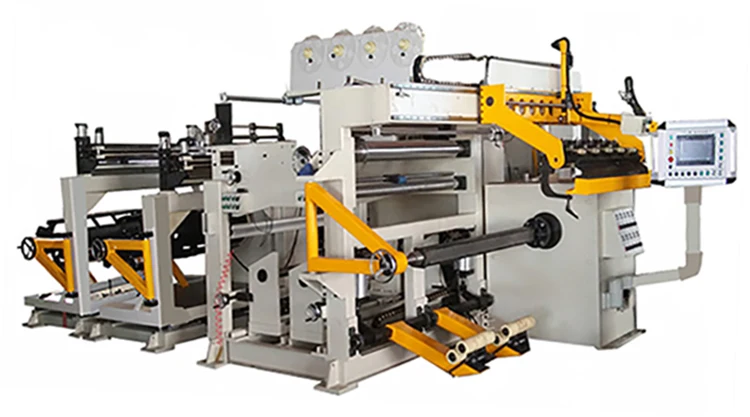

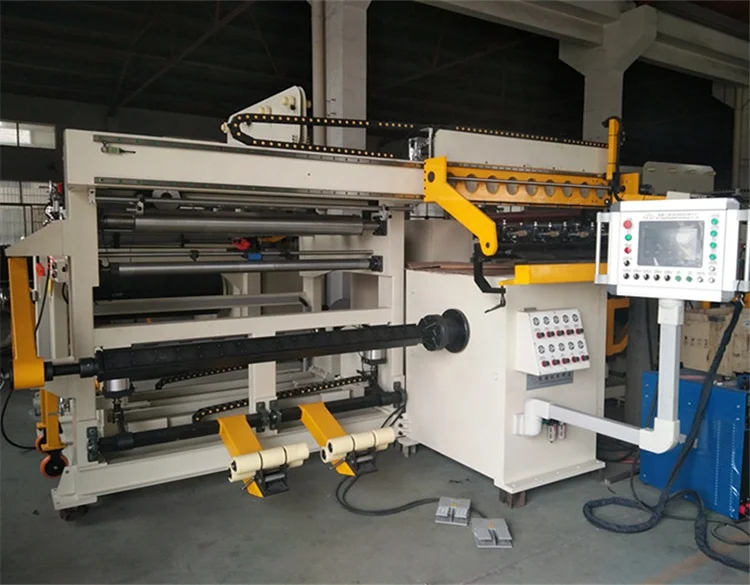

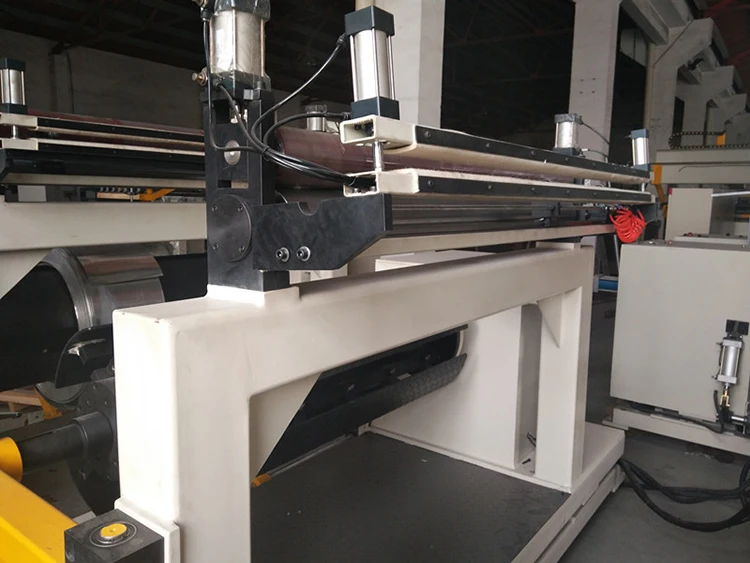

The foil winding machine is composed of two decoilers, insulation decoilers, rolling shear for cutting foil, welding unit for welding the foil and the bar together.
Size Information
Machine size
Model | Length | Width | Hight |
BRJ1600-2 | 4800mm | 3100mm | 2700mm |
Related Products
Packing&Shipping

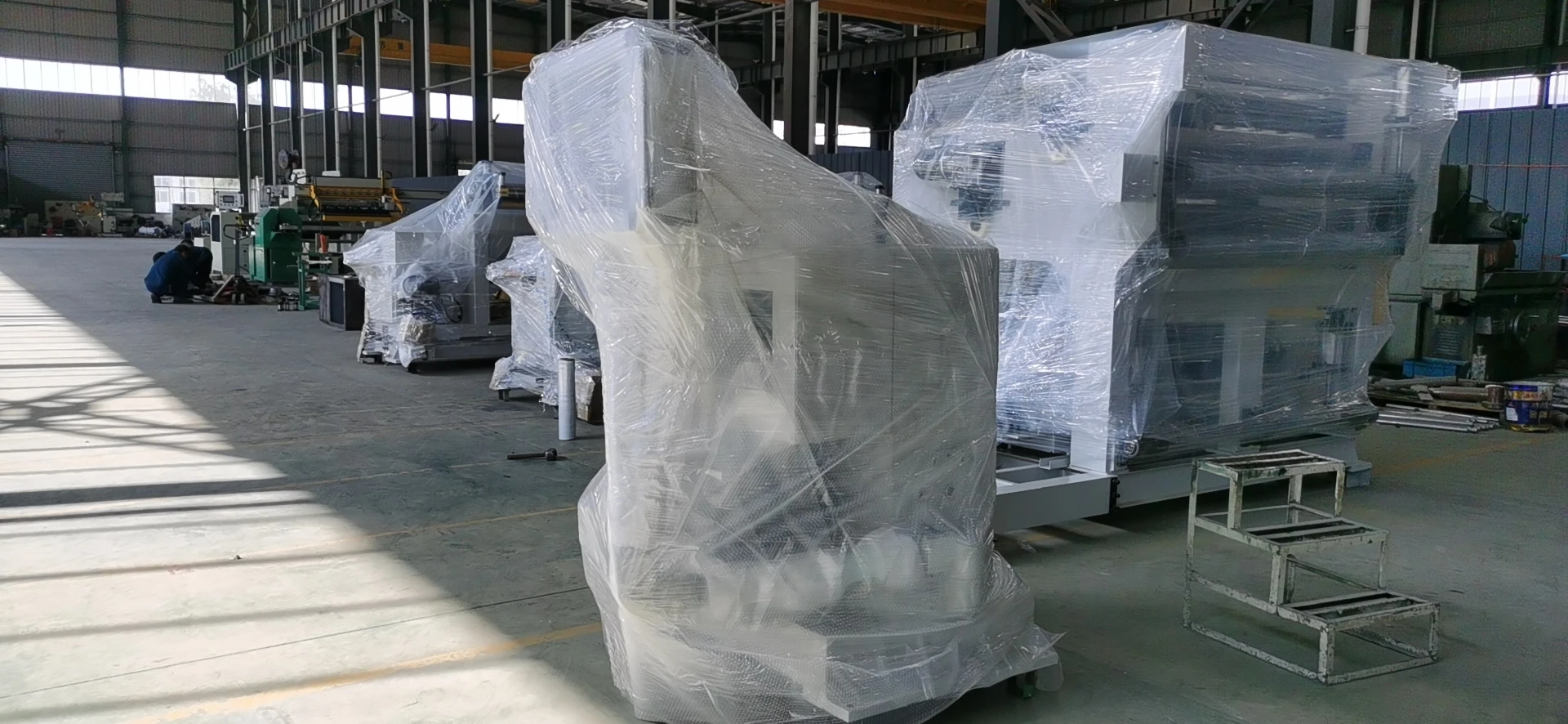

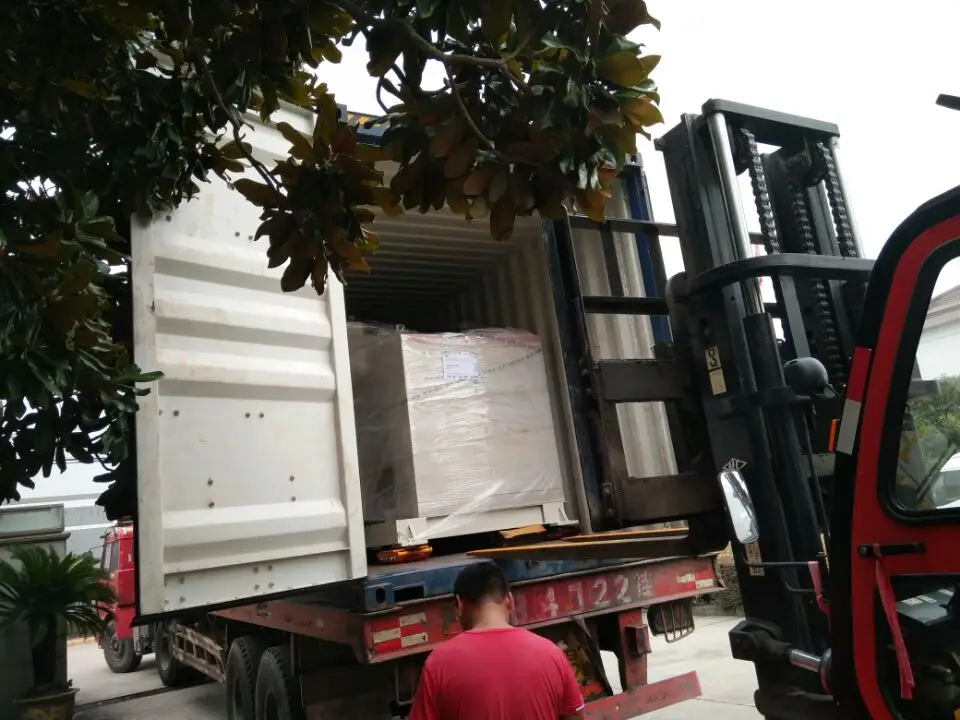

The foil winding machine can be shipped with one 40 feet container. Before loading, the machine is wound by film.
After Sales Service
Installation and Commissioning
When the machine arrives your factory, we will send our engineer to your factor to install and commissioning the machine immediately if you need.
Company Introduction
Zhu Tang (Suzhou) Technology Co., Ltd., established in 2011, is located in Taicang City, Suzhou City, Jiangsu Province, China, and is adjacent to Shanghai City. The company specializes in developing, manufacturing and selling transformer-manufacturing machines, such as foil winding machines, coil winding machines, iron core stacking & tilting platform and silicon iron cut to length line etc. These machines can be used to manufacture transformers, reactors and other similar products. Moreover, we also can design and manufacture these machines as requested.
Our Services & Strength
Our company has R&D, designer, and after sales person etc. We have our own product line and QC persons, which guarantees our products quality.
FAQ
Q: What is MOQ?
A: 1 set.
Q: What is the delivery time?
A: 45 days.
Q: Does it need down payment?
A:Yes, 30% contract value as down payment.
