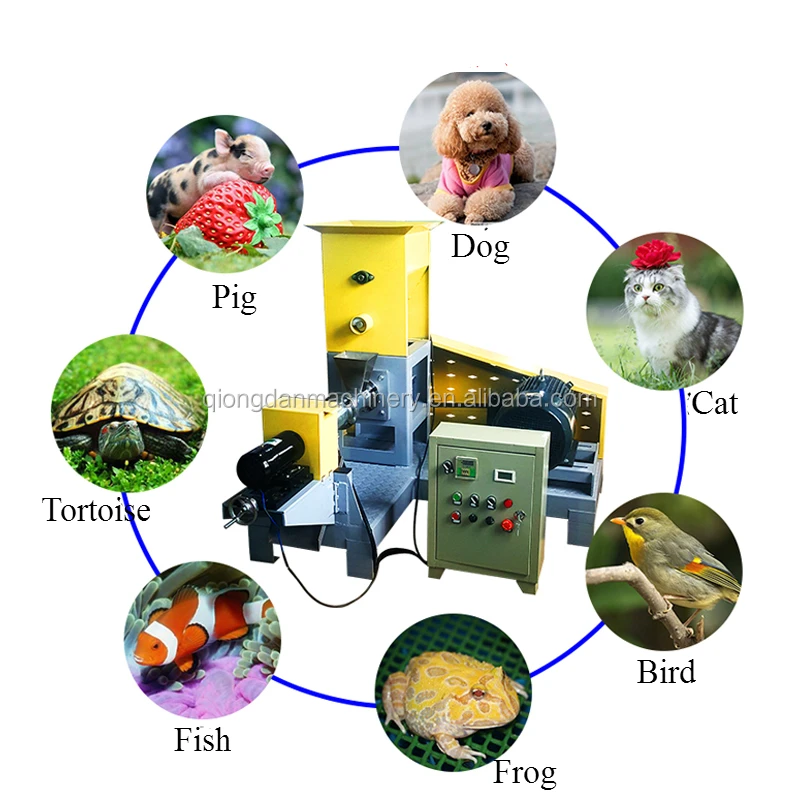

Floating fish feed pellet extruder for sale alfalfa pelletizer

Product Overview

Description

Floating fish feed pellet extruder for sale alfalfa pelletizer

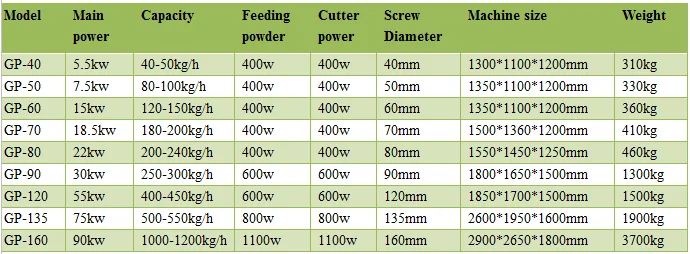

Parameter of Floating fish feed pellet machine:

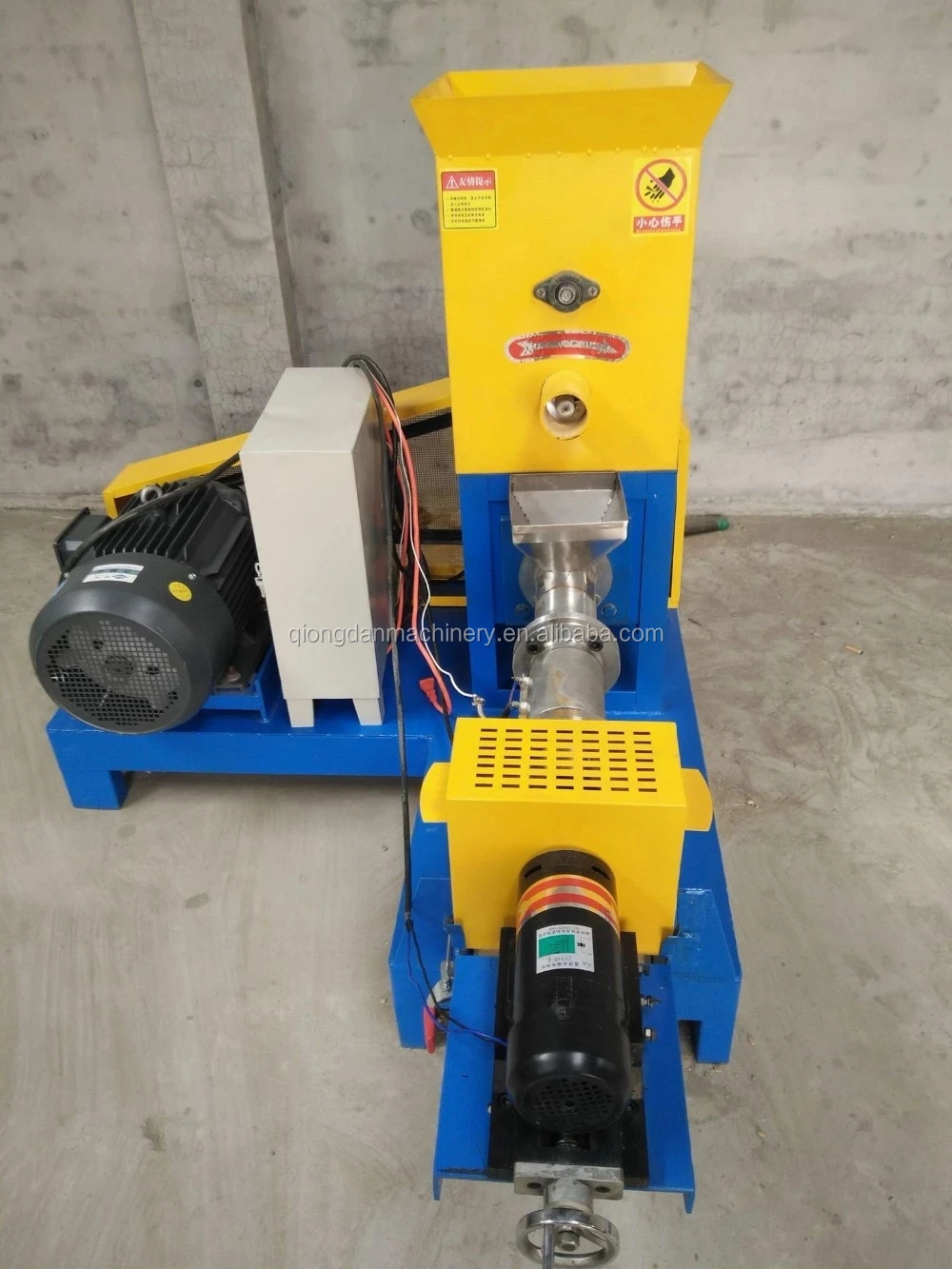

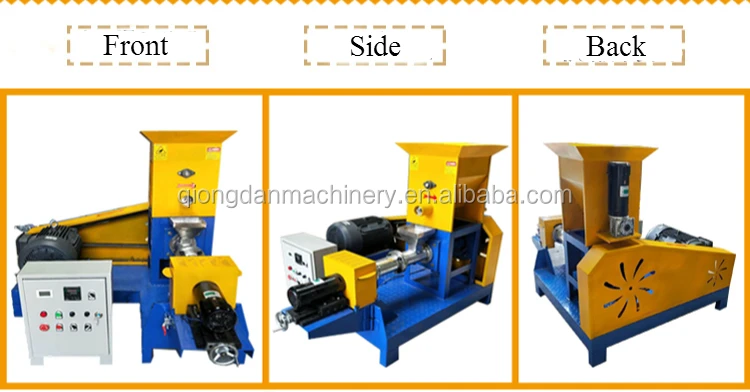

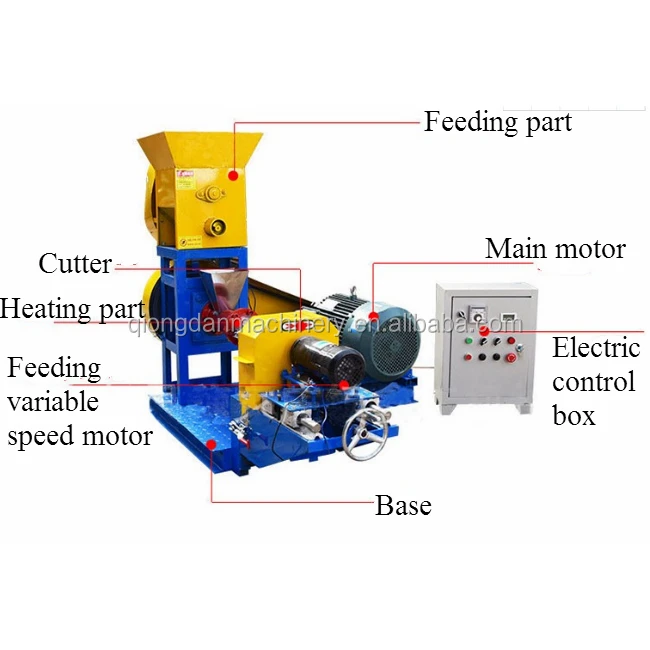

Structure of Floating fish feed pellet machine:

· Three motors: Main motor + feeding motor + cutting motor

· Working principle: Put the material into feeding device. The material will be extruded and expanded by the screw shaft with high pressure and temperature to make the material fully cooked and sterilized. Then the expanded material will be formed into different shapes through different molds.

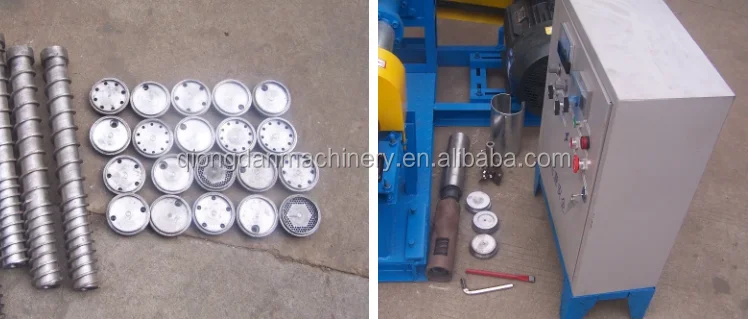

·  We will send sets of molds, spare parts( sleeve, extruding part, cutter, etc,) and tools for free.



Different size and shape of the final pellet

Usage and maintenance of Floating fish feed pellet machine:

Turn on Floating fish feed pellet machine:

1 Turn on the main motor and check if the machine is running and the steering is normal;

2 Turn on the cutter motor and adjust the distance between the cutter and the mold (there is a continuous slight friction sound);

3 Pour a small amount of water into the feed port to lubricate, and put a small amount of the evenly mixed material into the feed port;

4 The discharge port of the standby device squeezes out the material to increase the discharge speed;

5 Turn on the feeder, and the temperature of the randomizer will gradually increase the discharge speed;

6 Check whether the material puffed out by the machine is evenly cut, if the unevenness is cut, the distance between the cutter and the mold is slightly adjusted;

Turn off Floating fish feed pellet machine:

1 Stop the feeding and close the automatic feeder;

2 After the materials in the puffing gun are all extruded, the cutter power is turned off, and the cutter table is shaken out of the cutting range;

3 turn off the main power of the machine;

4 Take off the cutter guard, pull out the worktable shaft and swing it to one side;

5 quickly remove the machine head, when the disassembly, no one is allowed in front of the machine head to avoid being burnt by steam;

6 Turn on the machine for about one minute, and squeeze all the materials in the extruder to close the main power of the machine.

Cleaning Floating fish feed pellet machine:

1 Pull out the screw to clean the residual material in the screw, the machine head and the mold;

2 Reinstall for future use.

Feature of Floating fish feed pellet machine:

1.It is a new kind of inflating processing line researched and developed on our rich experience and the requirment from food market.

2.This line adopts low-tempreture soybean powder as main material to produce new foods which look like muscle and has the sense of mastication.

3.The important spare parts ( screw stem and screw cover ) are made of 38aluminummolybdenum material. After the quality adjustment and heat treatment, the spare parts show the advantage of friction resistance , heat resistance and corrosion resistance.

4.Adopting international advanced technology, the pellets are very even, and we can adjust the cutter to get the different diameterand the length.And the Electric heating device improve the feed expansion rate,Puffing rely on the high temperature which produced by the machine Self-friction and the electric heating, it will reduce much cost ,high quality and reasonable price, the service life of spare parts can reach 2000hours, and the service life of the main machine canreach 3 year.

5.The raw materials is experienced by the high temperature and high pressure, so it can kill the salmonellosis and bacterial infectionsthis machine can get the higherprotein animal feed, and the feed can floating in water about 12 hours is very catering for fish. The pellets no pollution and easyfor working members to observe.

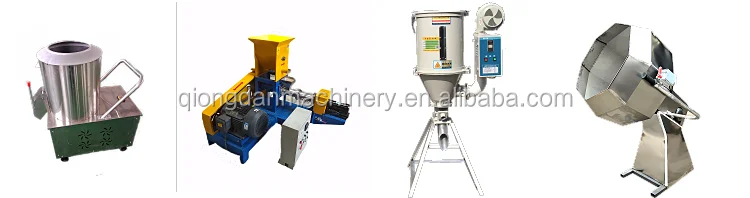

Details of Floating fish feed pellet machine:

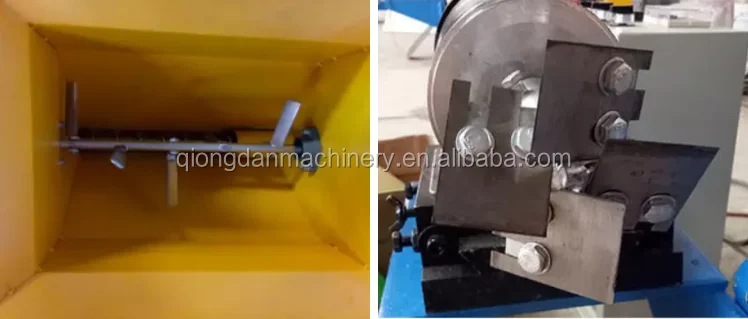

                               Mixer                                       Cutter
