low pass filter signal conditioner used rtd input potentiometer rtd / tc sensor signal conditioner was5 pro rtd
- Category: >>>
- Supplier: Hangzhou Sinomeasure Automation Technology Co. Ltd.
Share on (62409552074):
Product Overview
Description
Our Aim :
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Committed to Quality&Quality control (QC) system&ISO9001
Satisfaction Guaranteed.
Fast Response time Guaranteed.
A Wide Spectrum Of Skills & Experience.
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Committed to Quality&Quality control (QC) system&ISO9001
Satisfaction Guaranteed.
Fast Response time Guaranteed.
A Wide Spectrum Of Skills & Experience.

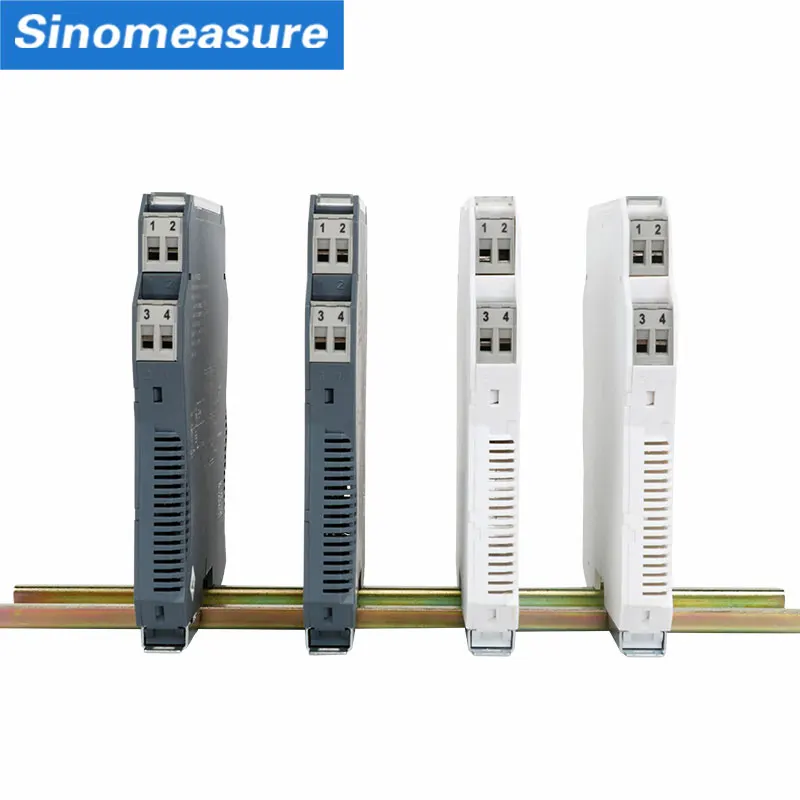

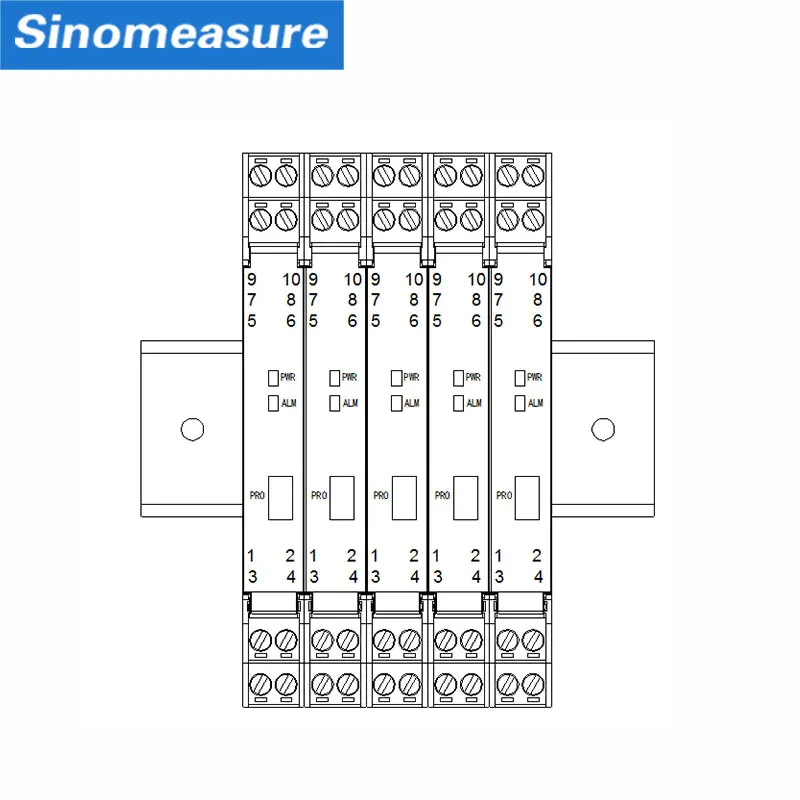

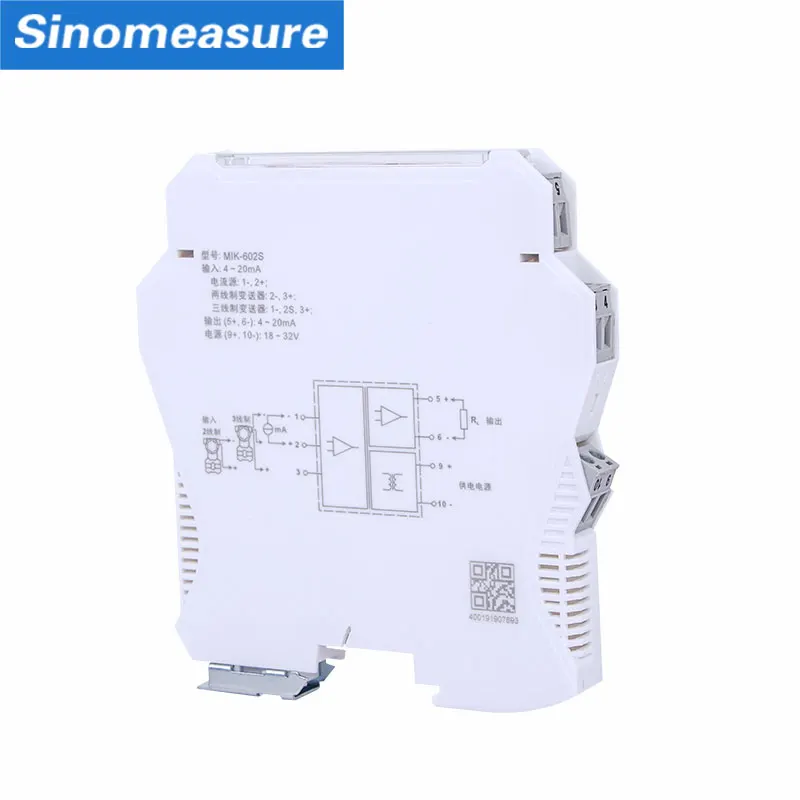

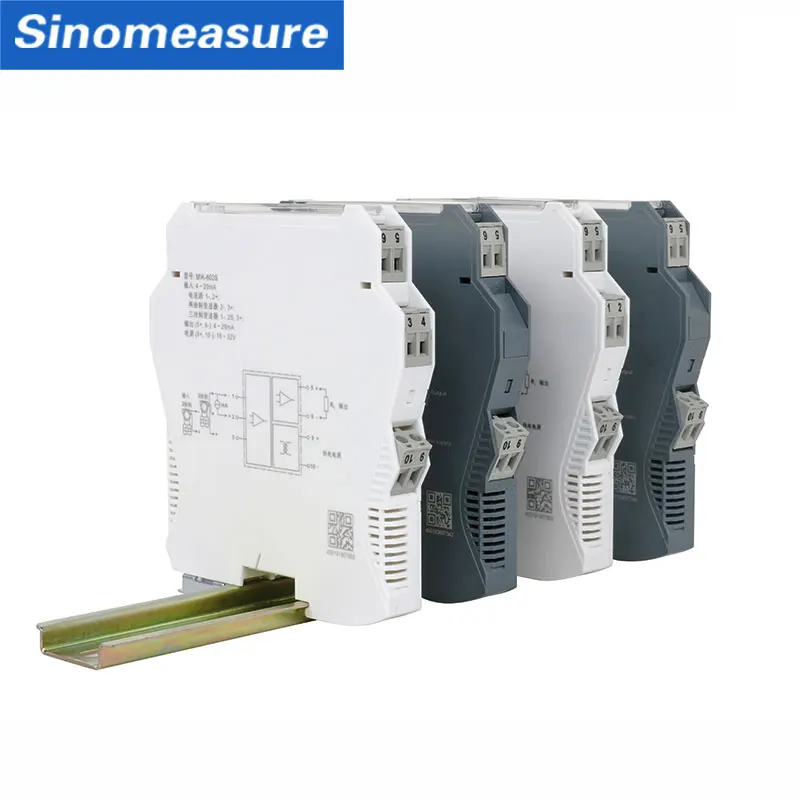

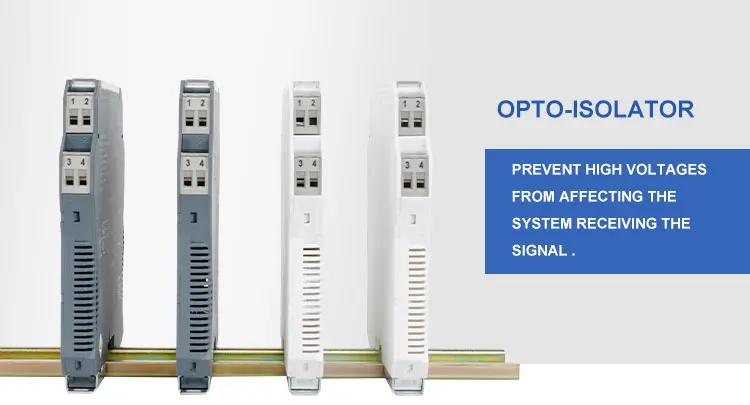

SIN-602S Signal isolators（signal splitters） are DIN-rail mountable and feature removable terminal blocks. make installation, maintenance, and long term service easy. Signal isolators provide electrical (galvanic) isolation between the input and output circuits. They couple the signal to the output through a transformer or optical isolator. Signal isolators also break the direct electrical galvanic path between two or more loop points. They protect against dangerous measured-variable voltages and increase protection from surges and spikes.

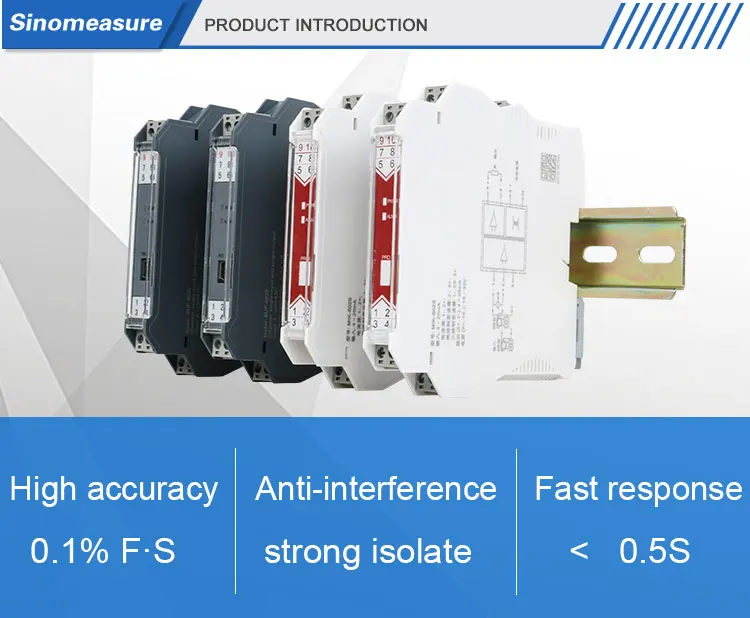

High accuracy, linearity, stability, and reliability
With pluggable terminals for easier wiring
Shock (25g) and vibration (4g) resistant
Wide ambient operation (-40 to 80°C)
Distribution output voltage | No-load voltage≤26V, full-load voltage≥23V | |
Accuracy | ±0.1%F∙S（25℃±2℃） | |
Temperature drift | 40ppm/℃ | |
Operating temperature | -10 ~ 50 °C (no condensation, no freezing) | |
Storage temperature | -10 ~ 60 °C (no condensation, no freezing) | |
Response time | ≤0.5s | |
Insulation resistance | ≥100MΩ (among input/output/power supply) | |
EMC | EMC conforms to IEC61326-3 | |
Power supply | DC 18～32V (typical value 24V DC) | |
Weight | Approximately 130 g | |

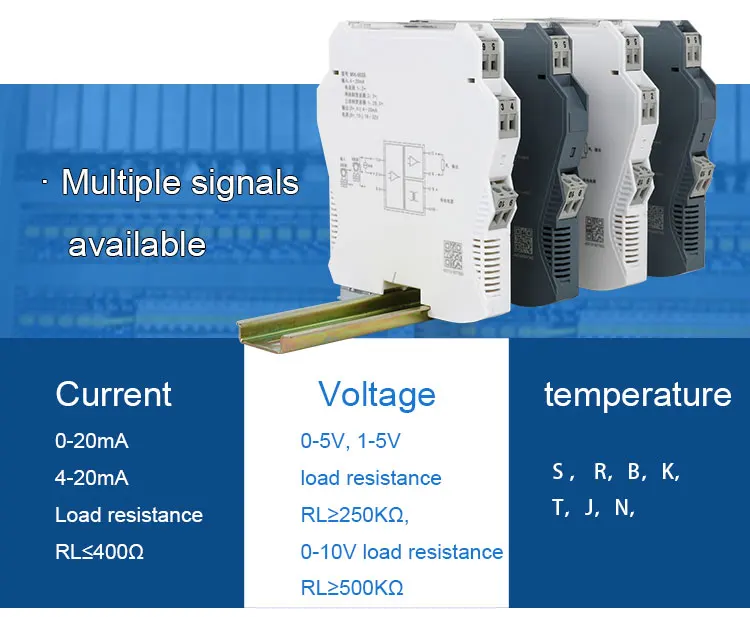

Input signal | ||
DC | 0(4)mA～20mA | |
0mA~10mA | ||
Thermocouple | K, E, S, B, J, T, R, N and WRe3-WRe25, WRe5-WRe26 | |
Thermal resistance | Pt100, Cu50, Cu100, BA1, BA2 | |
Output signal | ||
Current | 0(4)mA～20mA：≤550Ω | |
0mA~10mA：≤1.1kΩ | ||
Voltage | 0(1)V～5V：≥1MΩ | |
0V～10V：≥2MΩ | ||
Q: Is there any stock?
A: Yes,we have materials in stock to help you to get the samples as soon as we can
Q: How to track my Order?
A: After shipped, we will email you the tracking number.You can check the shipping status of your order on the website.
Q: How about warranty ?
A: Warranty: 12 months, Lifetime maintenance
Q: How about after-sales service?
A : We are 24 hours online, if you have any problem,pls contact us directly.
Q: Any discount?
A : For bulk purchase or distribution agents, we will apply the best price for you,If we have any promotions, we will post in store and send you an email to inform you.
A: Yes,we have materials in stock to help you to get the samples as soon as we can
Q: How to track my Order?
A: After shipped, we will email you the tracking number.You can check the shipping status of your order on the website.
Q: How about warranty ?
A: Warranty: 12 months, Lifetime maintenance
Q: How about after-sales service?
A : We are 24 hours online, if you have any problem,pls contact us directly.
Q: Any discount?
A : For bulk purchase or distribution agents, we will apply the best price for you,If we have any promotions, we will post in store and send you an email to inform you.
