2021 new design heat pump dryer Cod dryer Seafood drying equipment
- Category: Tray Dryer >>>
- Supplier: Guangzhou Yike Heat Pump Drying Equipment Technology Co. ltd.
Share on (62409554769):
Product Overview
Description
Product Description
Cod drying process
The process of using the cod dryer to make salted cod fillets: raw fish acceptance → raw material storage → raw material thawing →washing → splitting → peeling, trimming → prickly, water control → salting → drying → inner packaging → metal Detection → outer packaging → storage refrigeration → shipment.
Cleaning and sectioning: Rinse with clean water. Put a knife on the ribs from the abdomen or back of the fish body. There are no ribs, pelvic fins and dorsal fins left on the fish fillets; remove the skin and remove the black membrane of the abdomen. Touch to check for remaining spines. If found, remove them immediately.
Peeling and thorn removal: Peel the skin of the cut fillet. After sectioning, remove the cheekbones, side fins, abdominal strips, and abdominal spines. No hard spines are allowed on the fish fillets for touch and water control, and 1 to 2 soft spines are allowed at the back of the spines.
Fish fillets salting: Cover the surface of the fish fillets with salt, arrange the fish fillets neatly,then wrap the fish fillets with plastic film and pull them into the salting room for salting.

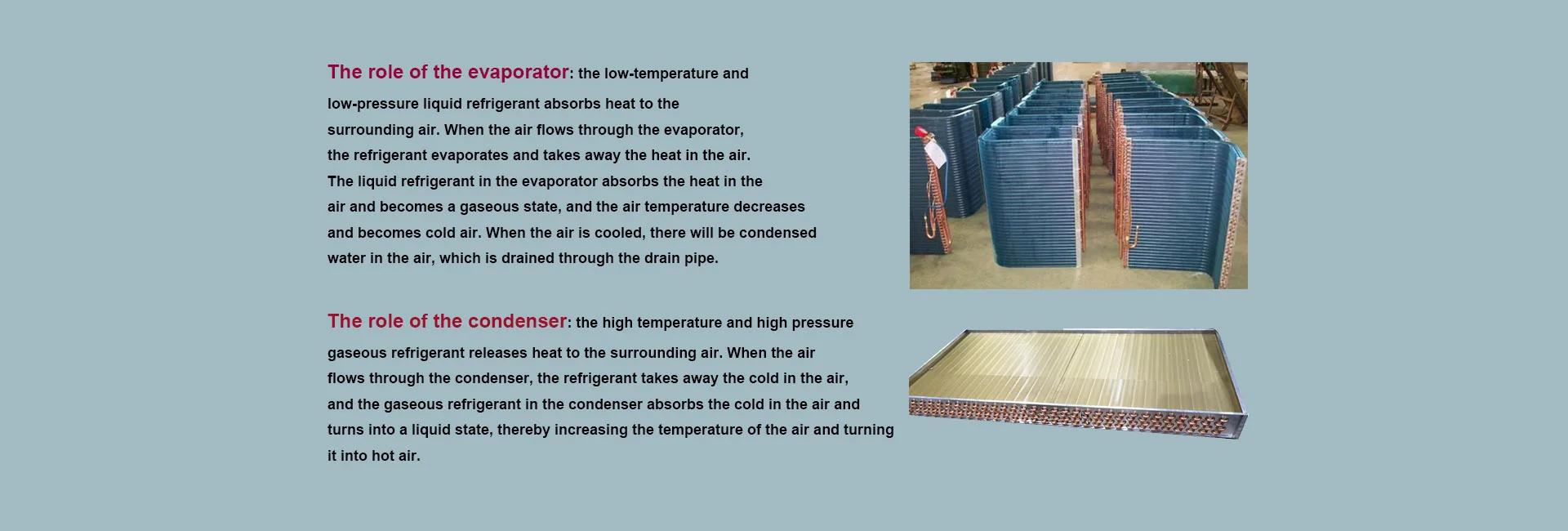

Salt drying: using a cod dryer with constant temperature dehumidification technology, the temperature in the drying room is controlled at about 20-30°C, and the humidity is controlled at about 30°C,too high temperature will cause oil on the surface of the fish and affect the drying effect.The time for drying the fish fillets is set according to the difference in the size and thickness of the fish fillets. Appropriate duration. In the process of storage and transportation, because it is a salted product,the temperature difference of the drying temperature is required to be small and controlled at 2 to 4 ℃. The essence of the cod dryer is a kind of low-temperature cold-air drying. Cold-air drying is to dry the cod at low temperature and high wind speed in the heat preservation warehouse. The cod is quickly dehydrated and dried at low temperature. It is isolated from the outside air and has good hygienic conditions. Affected by rainy weather, the operating cost is lower than that of electric heating dryers,boiler dryers, coal dryers, and steam dryers. The excess heat is recycled through the evaporator, which can achieve a temperature
difference of 2℃ in the drying room. Constant temperature drying. For seafood such as cod, achieving constant temperature drying is the priority of drying.
difference of 2℃ in the drying room. Constant temperature drying. For seafood such as cod, achieving constant temperature drying is the priority of drying.
Model | Capacity | Drying room size | Trolley qty |
One unit YK-120RD | 250KG/batch | 4000*2400*2400mm | 4 |
Two units YK-120D | 600KG/batch | 8000x2400x2400mm | 8 |
One unit YK-145RD | 500KG/batch | 5000x3000x2400mm | 8 |
Two units YK-145RD | 1200KG/batch | 8000x3000x2400mm | 12 |
One unit YK-290RD | 1000KG/batch | 8000x3000x2400mm | 12 |
Two units YK-290RD | 2500KG/batch | 12000x3000x2400mm | 20 |
One unit YK-360RD | 1500KG/batch | 8000x3000x2400mm | 12 |
Two units YK-360RD | 3200KG/batch | 12000x3000x2400mm | 20 |

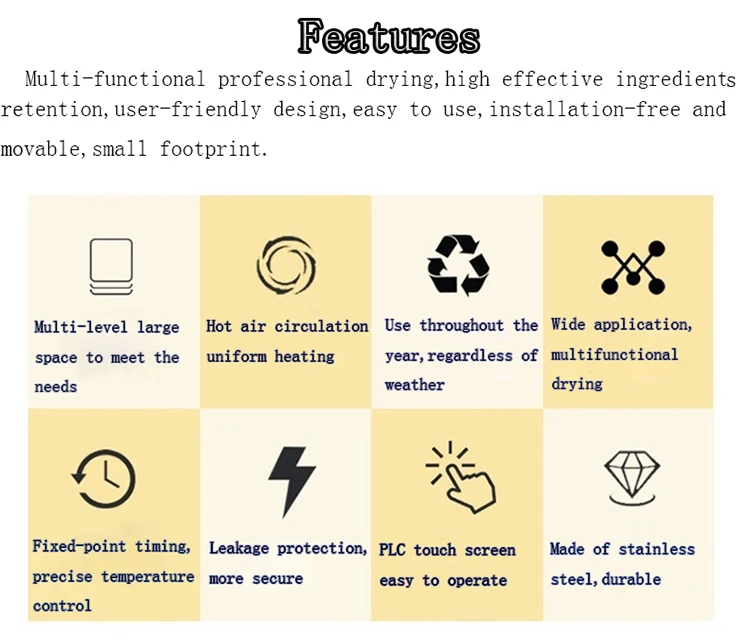

Main Features

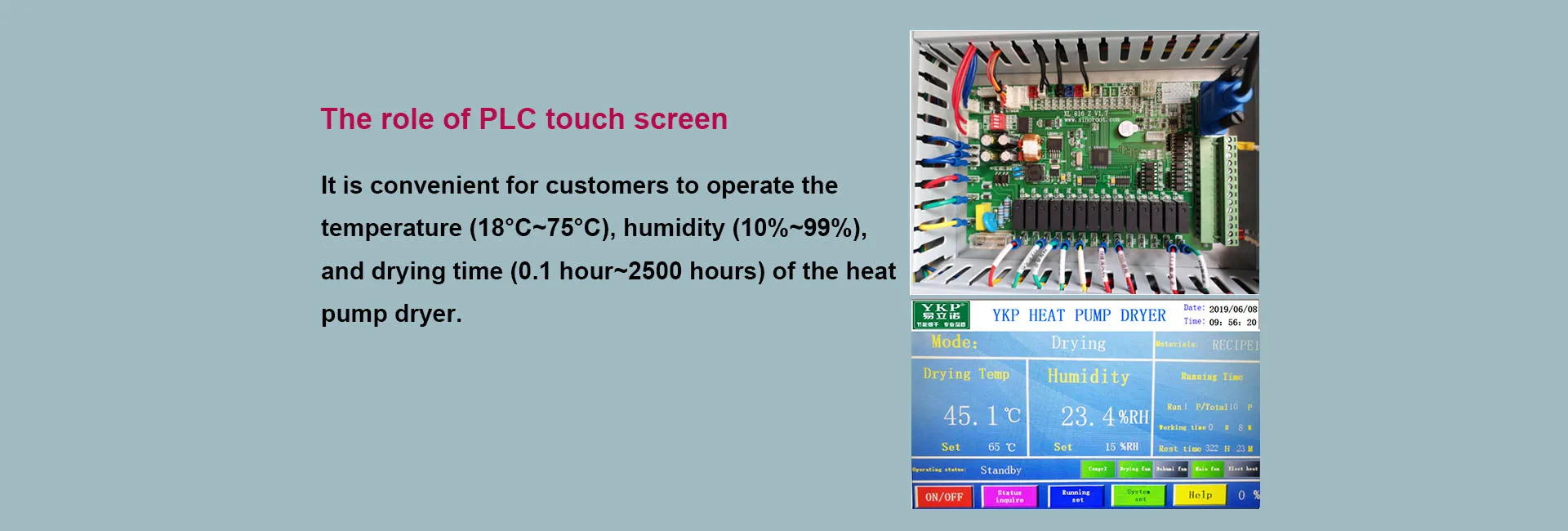

1. Intelligent touch screen controller
2. Drying
3. Dewatering
4. Dehumidification
5. Cold drying
6. Programming
Detailed Images
Drying Purpose
Name: Heat pump dryer
Brand: YKP
Original: China
So as to facilitate packaging and transportation. For example, food, medicine, chemical raw materials and products in the form of suspension and filter cake are easy to package and transport after being dried into solid.
For the purpose of storage. Some food, drugs, chemical raw materials and products, when
the moisture content is large, will be conducive to the reproduction of microorganisms, easy mildew, moth or deterioration, such
materials generally need to go through the drying process before storage. Especially for biochemical products, antibiotics and
food, if the water content exceeds the specified standard, it will easily deteriorate and affect the service life, and the storage
time after drying will be longer.
Second parts
Name: Trolleys and trays
Brand: YKP
Original: China
For the purpose of convenient use. Such as salt, urea, ammonium sulfate, etc., when dried
to a moisture content of 0.2%-0.5%, the material is not easy to agglomerate and is more convenient to use; After the milk is dried
into milk powder, it can be stored for a long time and can be drunk at any time. Only when it is dry can it be worn more comfortably.
So as to facilitate processing. Some agricultural and sideline products, medicinal
materials and chemical raw materials need to be crushed (or granulated) to a certain particle size range and moisture content to facilitate reprocessing and utilization.
For example, wheat, corn, etc. must be dried before processing. Phosphate rock powder can improve chemical reaction speed after drying. The drying of the semi-finished catalyst can keep a certain moisture content and
particle size range, which is conducive to tabletting and forming.
YKP Dryer, nothing can not dry!
Best choice for you!
Third Parts

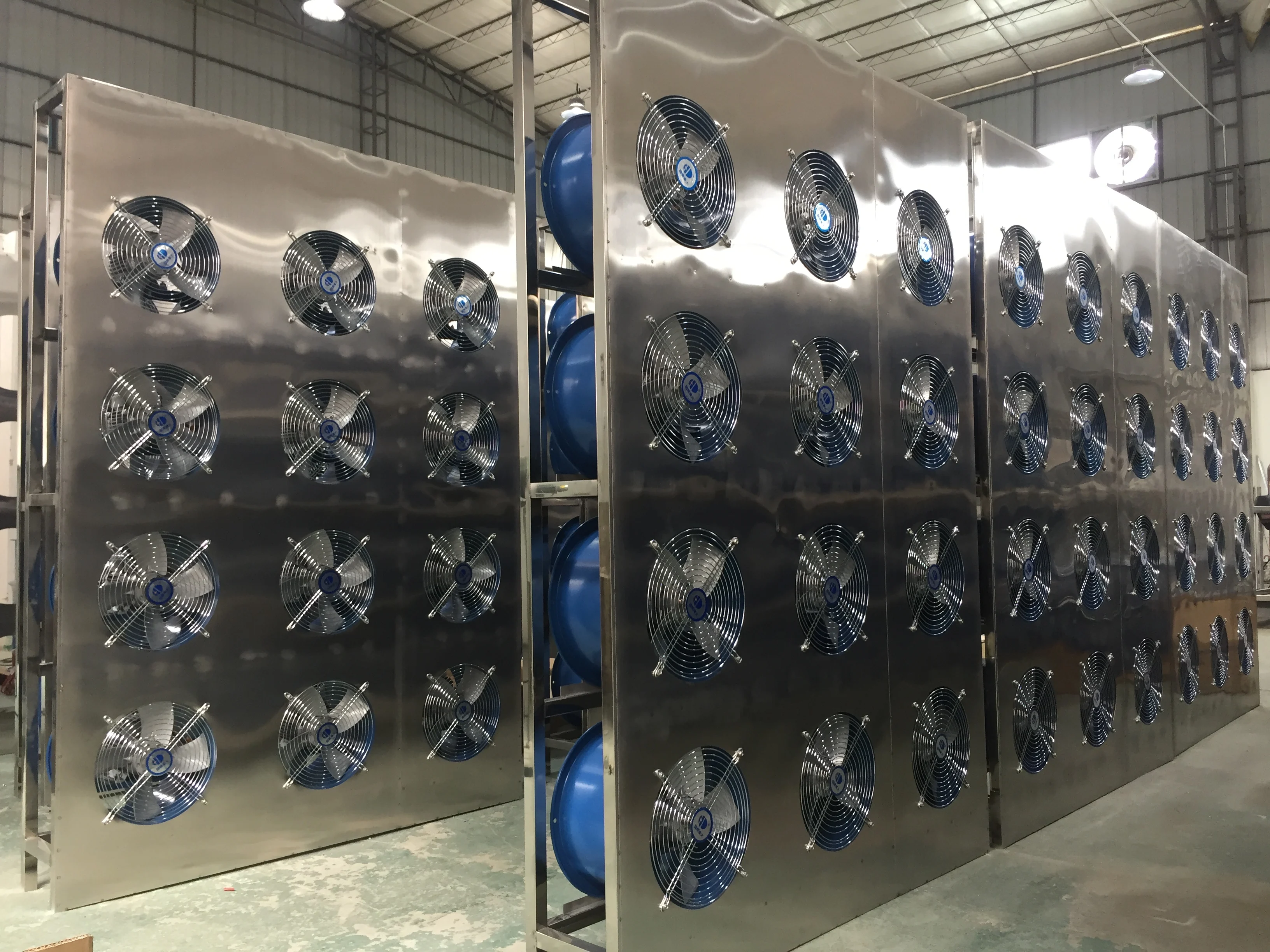

Name: Fan motor
Brand: YKP
Original: China
In order to improve the quality of products. The quality of some products is related to
the water content. After the materials are dried, their effective components will increase correspondingly, thus improving the product quality. For example, the water content of coal should be controlled before combustion to improve the efficiency of the combustion process; When the moisture content of polyester chips is below 0.2% before spinning, air bubbles can be prevented from
being generated during spinning and the quality of the yarn can be improved.
Main Features
Name: Drying machine
Brand: YKP
Original: China
Energy Saving: YKP High Temperature Dryer Uses Electric Energy to Work. The drying operation cost is only 40% of that of the fuel dryer, 60% of that of the coal dryer and 30% of that of the electric heating equipment, which is more than 60% energy-saving than the common drying equipment. Investment cost recovery is fast.
With various structures and flexible air supply methods, there is always one suitable for you!
Horizontal blowing type
Top blowing type
Down blowing type
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 5.89m (L) * 2.33m (W) * 2.38m (D) | |
Weight | 3T | |
Packaging Details | The normal package is plywood box(Size: L*W*H). If export to european countries,the plywood box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 12.045m (L) * 2.340m (W) * 2.379m (D) | |
Weight | 5 T | |
Packaging Details | The normal package is plywood box(Size: L*W*H). If export to european countries,the plywood box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
