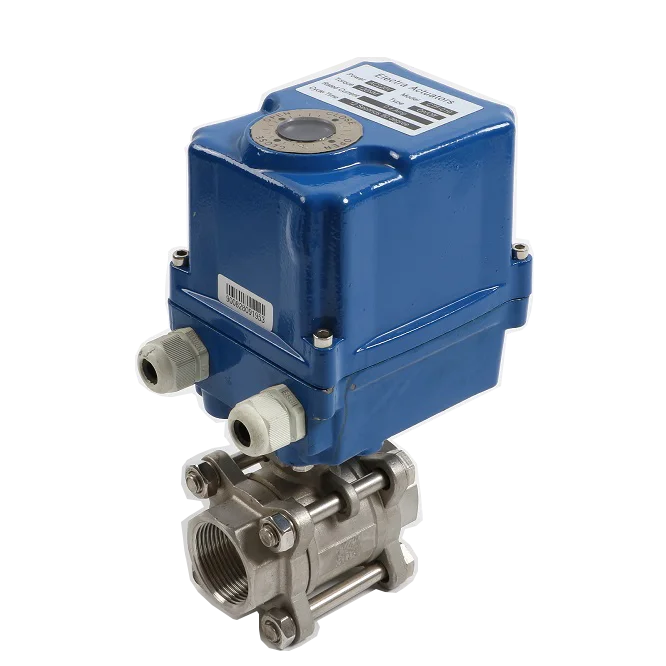

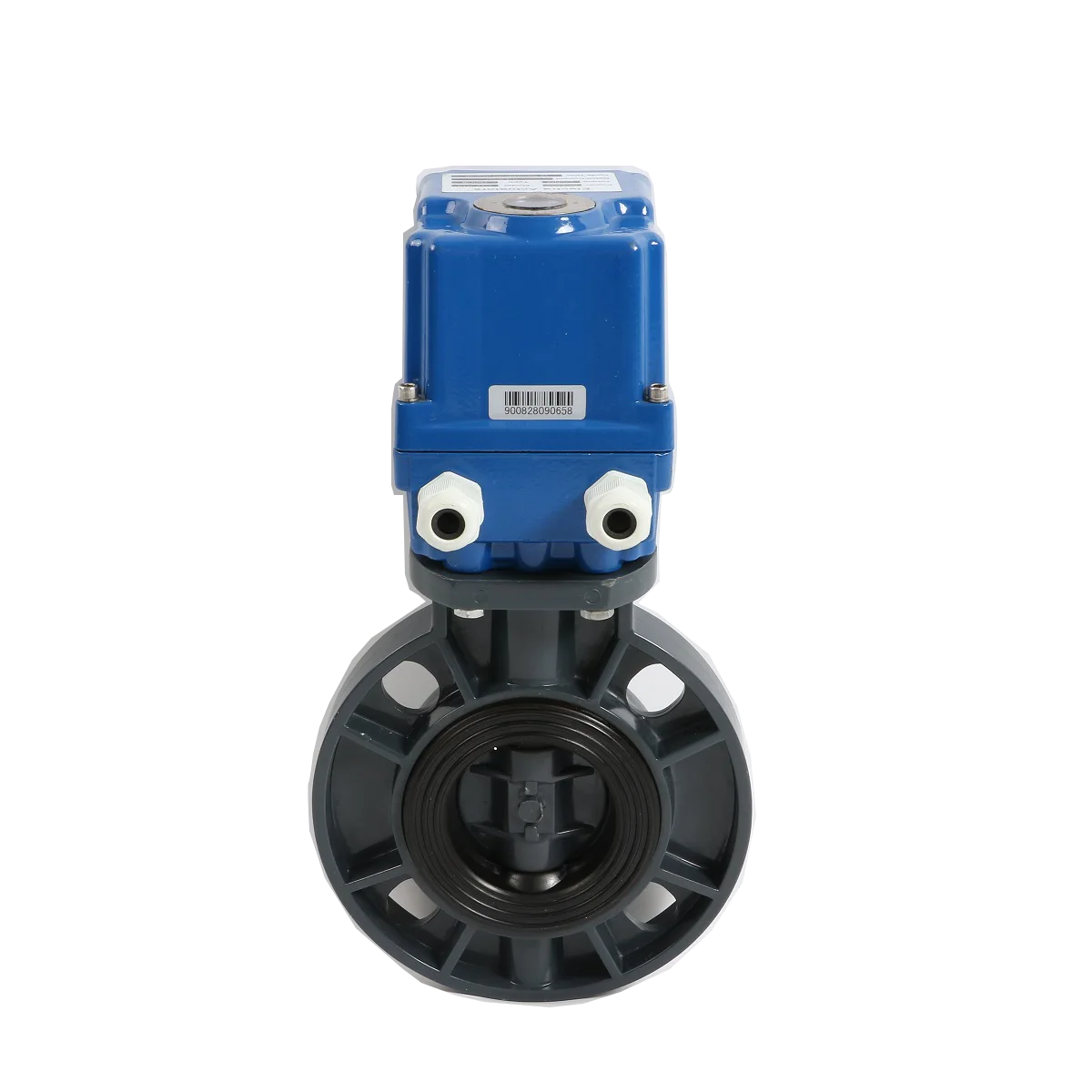

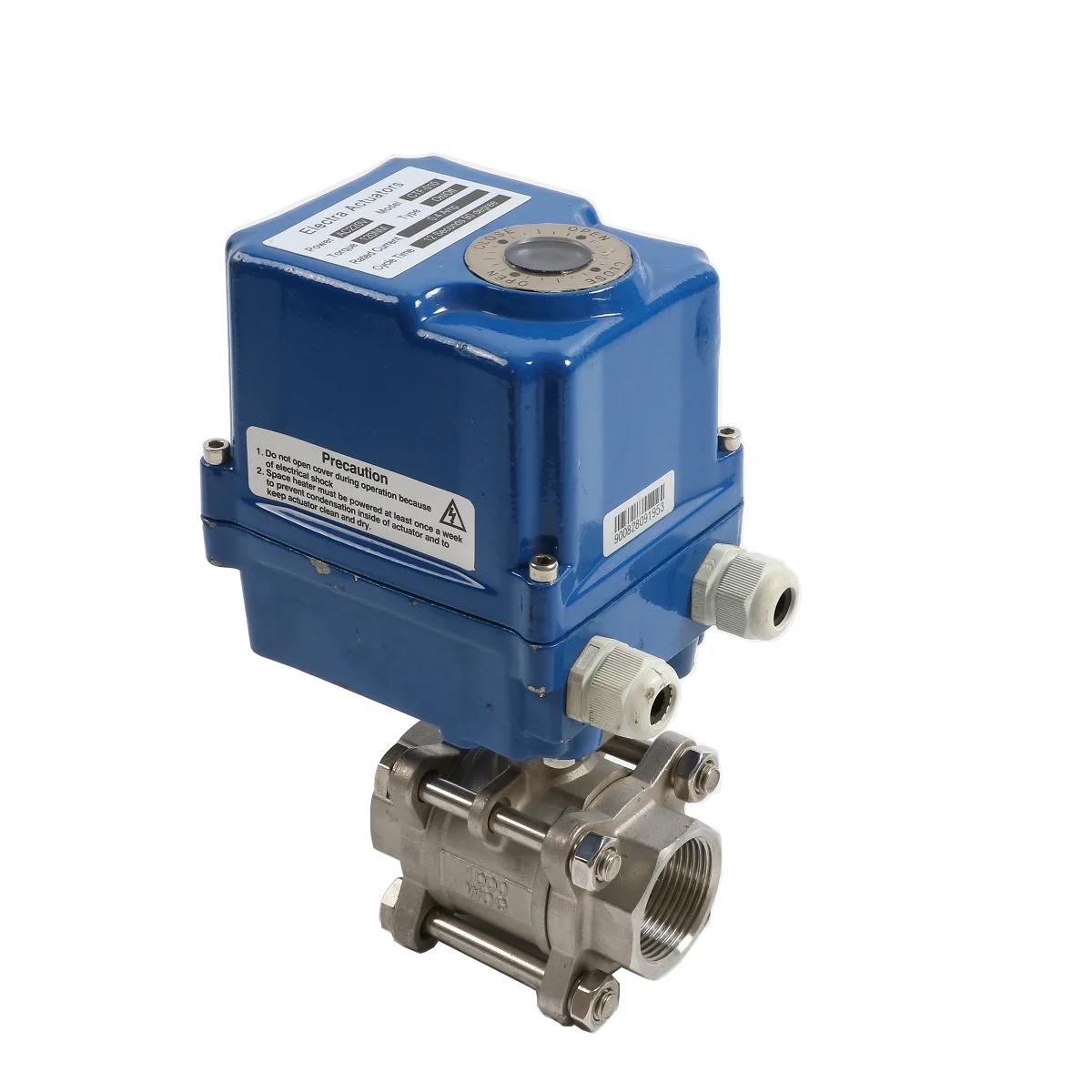

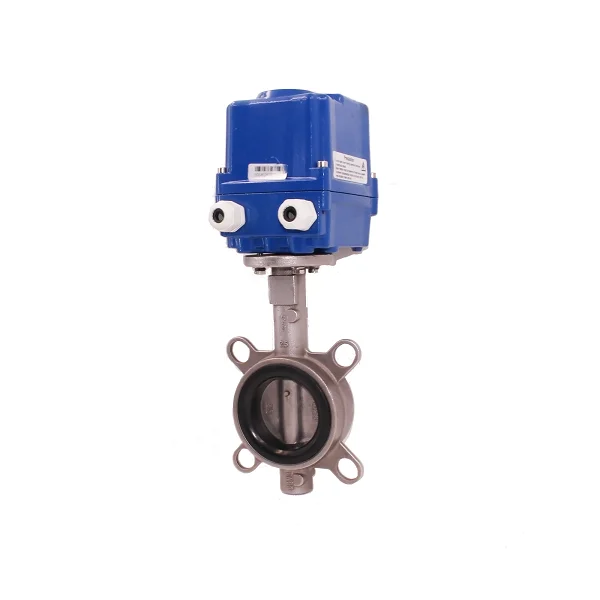

Electric butterfly valve motorized actuator water control
- Category: >>>
- Supplier: Tianjin Tianfei High-Tech Valve Co. Ltd.
Share on (62409662915):
Product Overview
Description
Company Information
Product Description

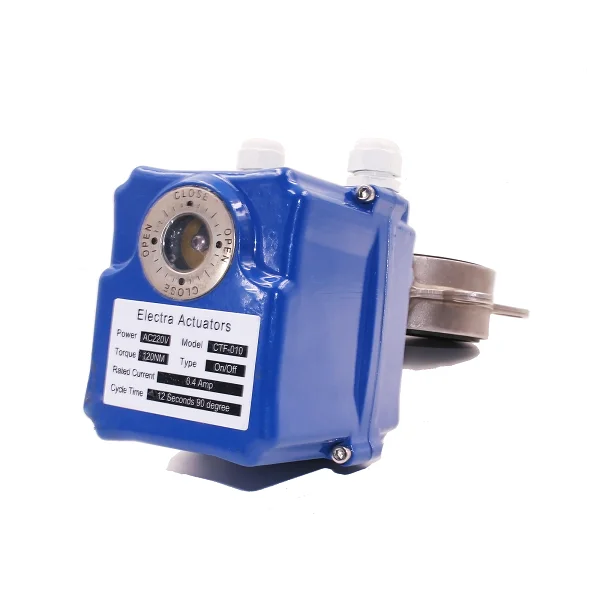

1.The housing be made of die-cast aluminum, with metal texture, compact structure, beautiful appearance, light and small size. shockproof and dropprppf
2.Adopts the machined gear drive mechanism, large output torque, stable operation low noise.

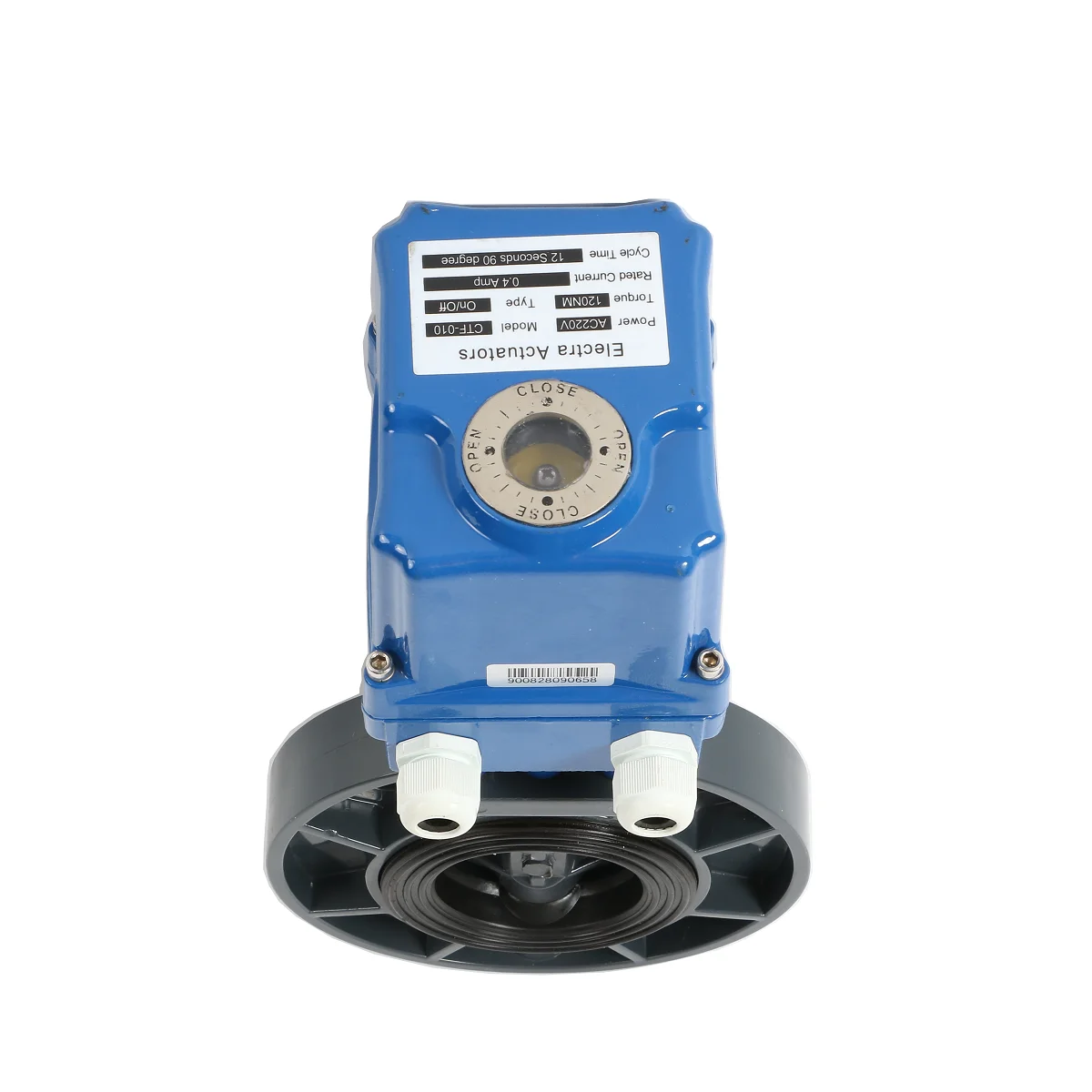

3.Electric and manual override design, with a transparent window, can know the valve open/close situation at a glace.

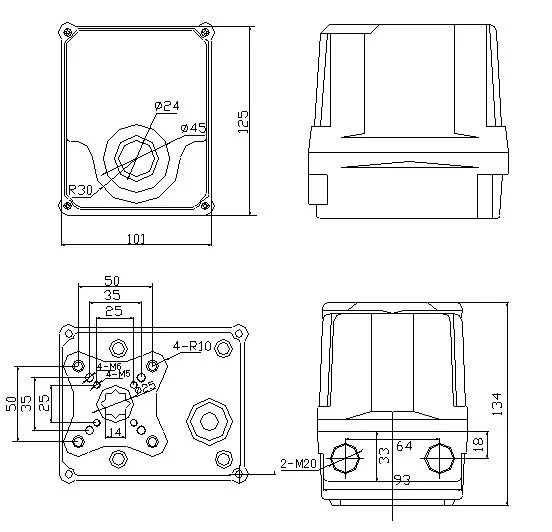

4.Actuator with ISO5211 connection with the different type value directly connected, high transmission efficiency, the first choice for smart meter.
5.Double sealing structure, IP65 protection class.

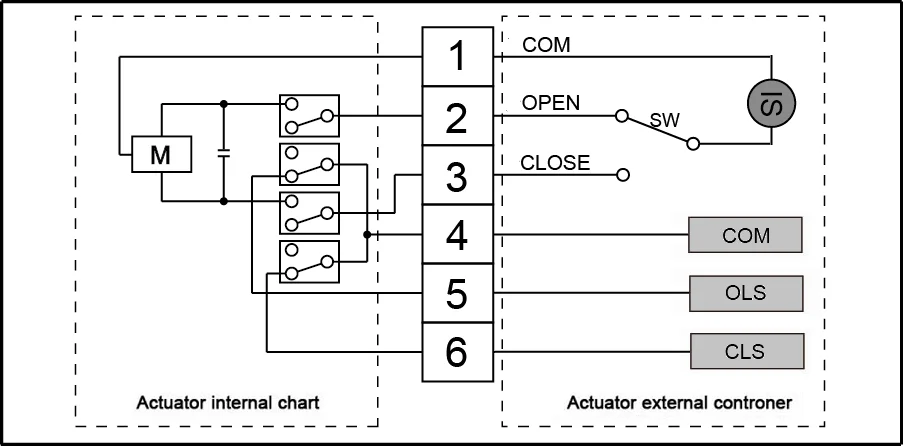

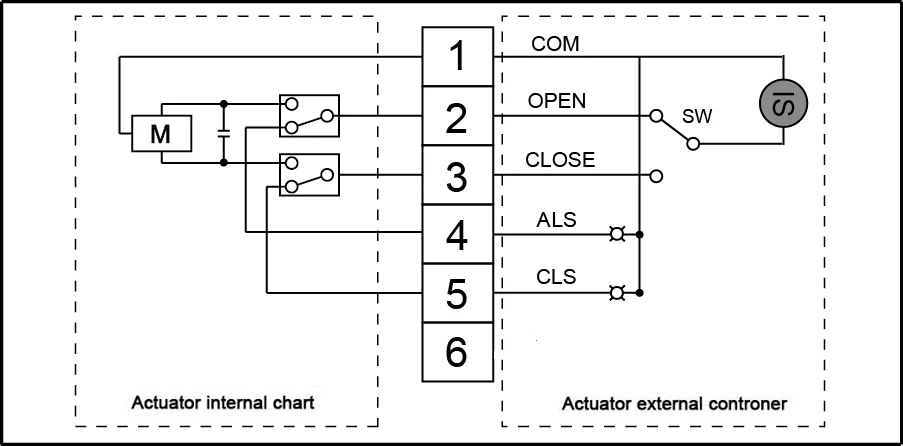

6.Can use active and passive signal output.
For specification details, please consult the sales representative.
Pure water and raw drinking water piping systems
Drainage and sewer systems
Salt water and sea water piping systems
Acid and chemical solution systems and so on.
| Product Model | Rated Voltage | Current | Output torque | Valve material |
| CTF010 |
DC12V/24V AC220V | 1000mA | 100NM | Stainless steel UPVC,CPVC Cast steel,Cast iron |
| Working pressure | Open/close time | Power | Ambient temp | Size |
| Max1.6Mpa | 18-25s | 25W | 0-60℃ | Ball valve (DN15-DN65) Butterfly valve (DN50-DN125)
|
Packaging & Shipping
FAQ
1. Are you manufacturer or trading company?
We are manufacturer, we have been in electric valve industry for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample orders need about 3 working days, for larger order, it denpends on the quantity.
5.Would you offer a discount if l have a large order?
A; Yes, we could offer different discounts according to the order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
