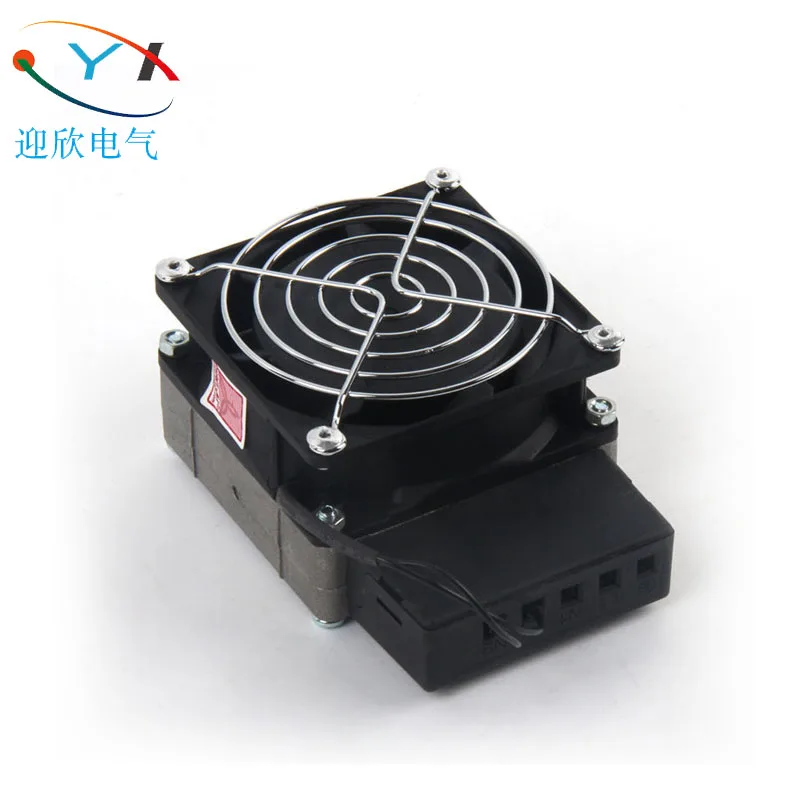

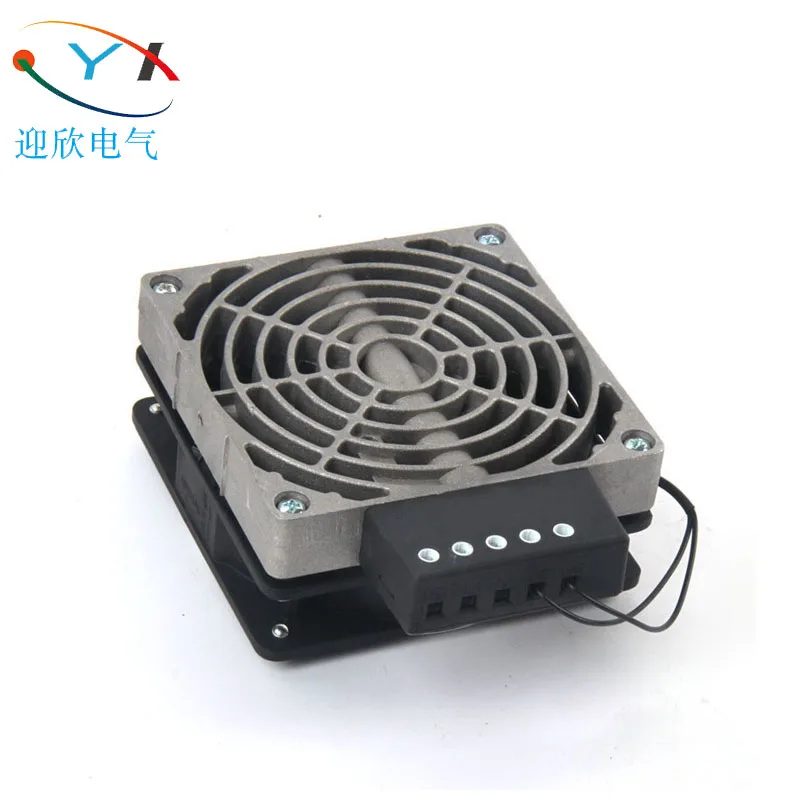

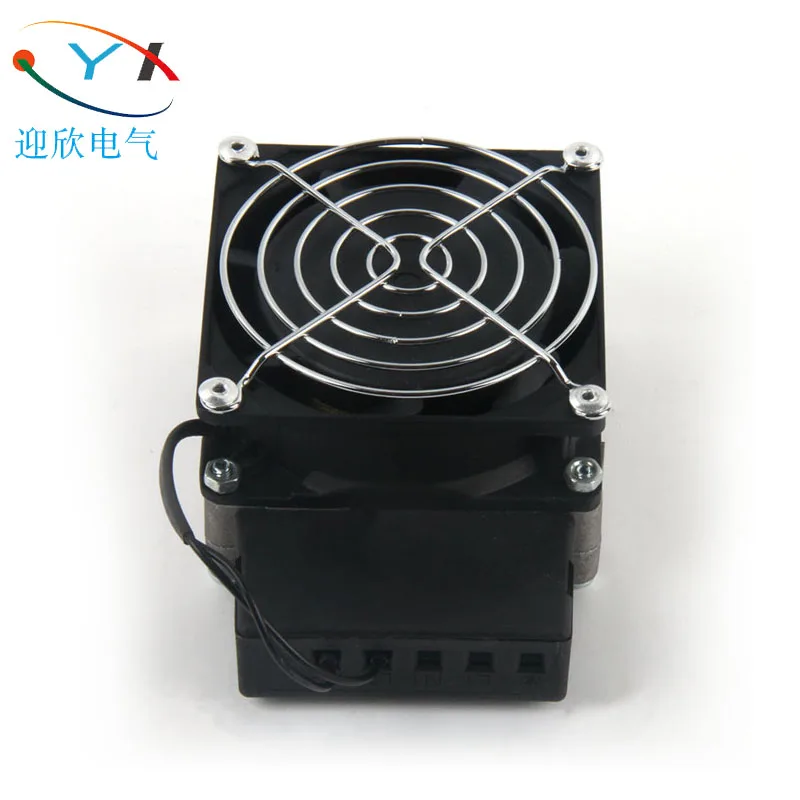

HVL031 200W Electronic Fan Enclosure Element Mini Fan Heating for Industrial Fan Heaters Air Heater Electric High Productivity

HVL031

Heater with fan

HV031

Heater without fan

Heating element

high performance cartridge

Temperature safety cut-out

to protect against overheating in case of fanfailure

Heater body

die-cast aluminium (glass bead blasted)

Connection

3 pole screw connector 2.5mm² , clamping torque 0.8Nmmax

Connection casing

plastic according to UL94 V-0, black

Mounting

clip for 35mm DIN rail, EN 50022

Fitting position

horizontal

Operating/Storage temperature

-45 to +70 ° C (-49 to +158 ° F)

Protection type/Protection class

IP20 / I (earthed)

Axial fan, ball bearing

airflow see table

service life

5.000h at 25° C (77° F)

Connection (axial fan)

2-pole screw connector 2.5mm² (L2/N2)
