XSG series rotary flash dryer is a new type of drying equipment developed by our company on the basis of introducing advanced foreign technology. The machine is advanced in technology, reasonable in design, compact in structure, wide in application range, large in production capacity, good in product quality, high in efficiency and energy saving. It is dried, pulverized and sieved once in one equipment to eliminate environmental pollution. Advanced level. The flash dryer has the original bearing induction cooling (water cooling). It is designed with oil pump to connect oil lubrication and cooling bearings. The sealing device has excellent performance. The semi-ring type is adopted in the spindle design. The motor uses the speed regulating motor to transmit smooth and noise small, the service life is 10 times that of the same type.
Model/Item
Inner diameter (mm)
Air volume (mm)
Water evaporation (kg/h)
Install power(kw)
Max height(m)
Occupied area(m²)
XSG-4
400
2100
60
25
4.6
19
XSG-6
600
4500
130
37
5.5
26
XSG-8
800
7500
240
48
6.0
34
XSG-10
1000
12000
400
75
6.5
45
XSG-12
1200
18000
610
85
7.0
58
XSG-14
1400
24000
800
98
7.8
76
XSG-16
1600
30000
1000
135
8.5
110
XSG-20
1800
40000
1300
215
9.2
150
Remark: 1. The evaporation of water is based on the inlet air temperature of 20 ° C; 2. The installed power is the basic data, which can be changed according to the physical and chemical properties of the material.
Main Features
1. A variety of feeding devices can be selected, the feeding is continuous and stable, and there is no bridging phenomenon.
2. There is a special cooling device at the bottom of the dryer to avoid deterioration of the material in the high temperature zone at the bottom.
3. The bearing uses a special airtight device and cooling device, which can effectively extend the service life of the transmission components.
4. There is a dedicated air distribution device, which can reduce the resistance of the equipment, so that the wind speed of the drying tower tends to balance.
5. The drying chamber is equipped with a grading ring and a swirling sheet. The fineness and final moisture of the product can be adjusted and controlled.
6. The airflow speed in the drying tower is fast, and the material residence time is short, which effectively prevents the material from sticking to the wall and the heat sensitive material from deteriorating.
Principles
The hot air enters the stirring and pulverizing drying chamber from the bottom of the dryer at a certain speed from the air inlet, and the material is strongly sheared, blown and rotated, so that the material is atomized by centrifugation, shearing, collision and friction, and is strengthened. Mass transfer heat transfer. At the bottom of the dryer, the larger wet pellets are mechanically broken by the agitator, the moisture content is lower, and the particles with smaller particle size are entrained by the swirling gas stream, and further dried during the ascending process due to the gas-solid phase. For the rotary flow, the solid phase inertia is greater than the gas phase, and the relative velocity between the solid and gas phases is large, and the heat transfer effect between the two phases is enhanced, so the machine has high drying strength.
Product Application

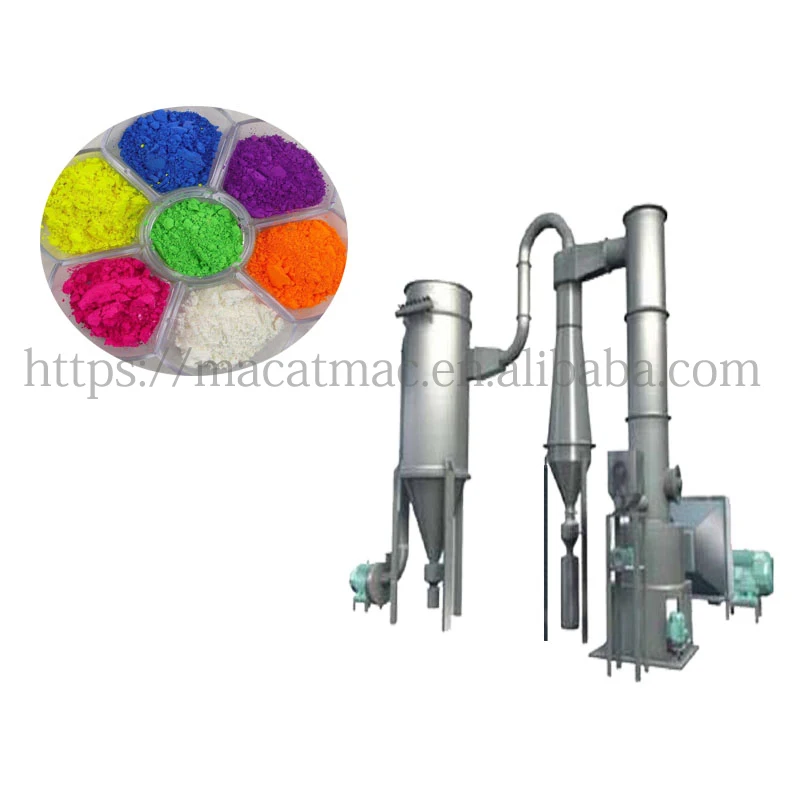

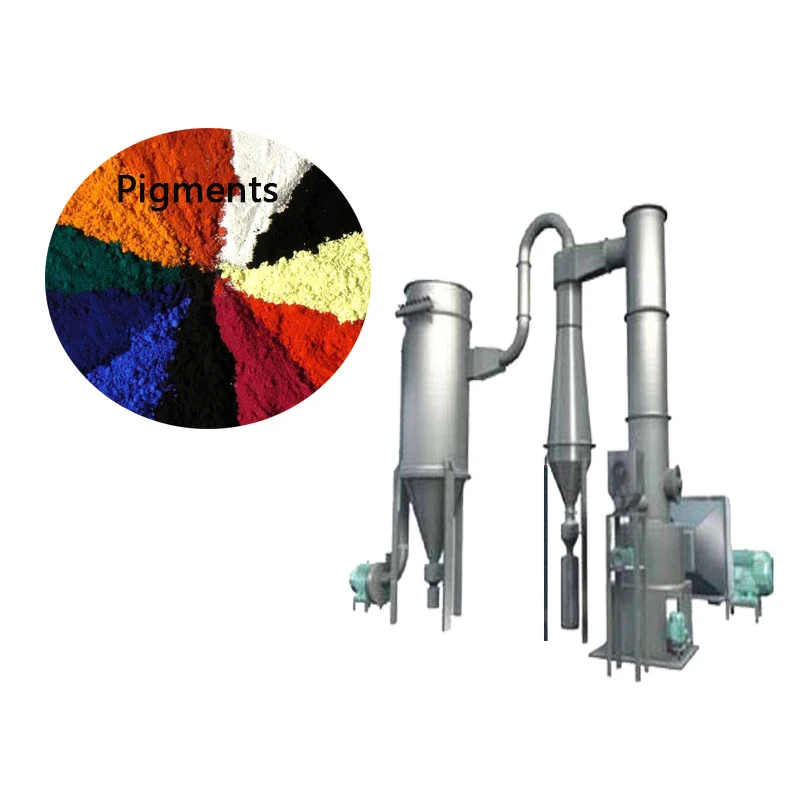

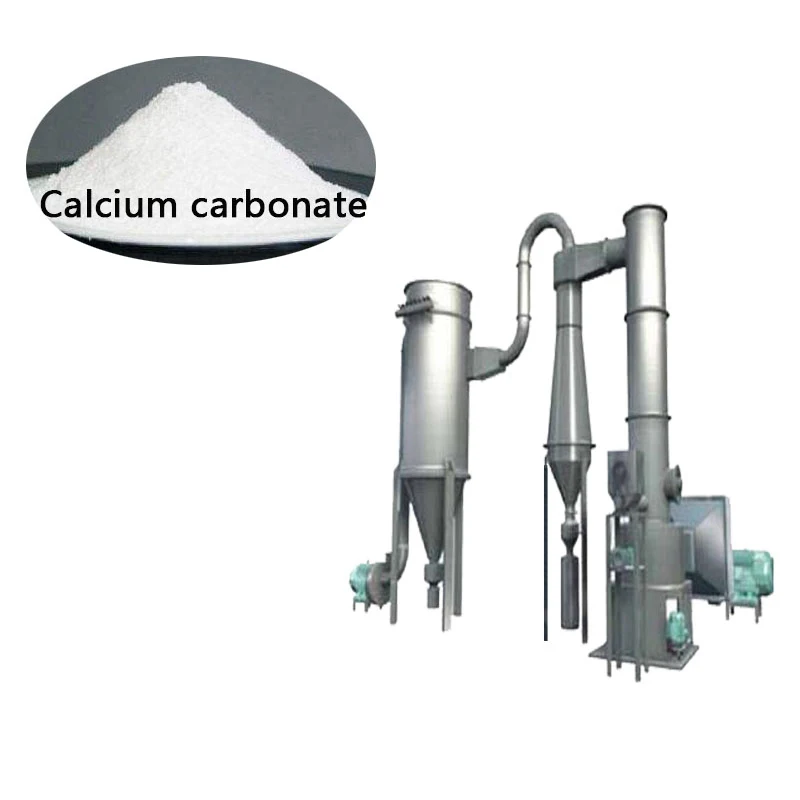

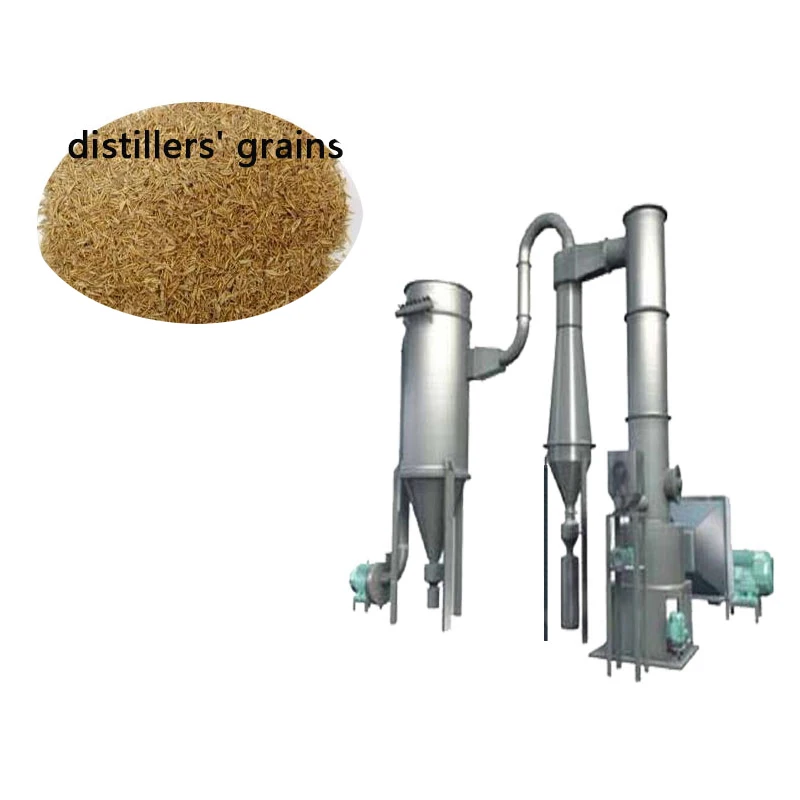

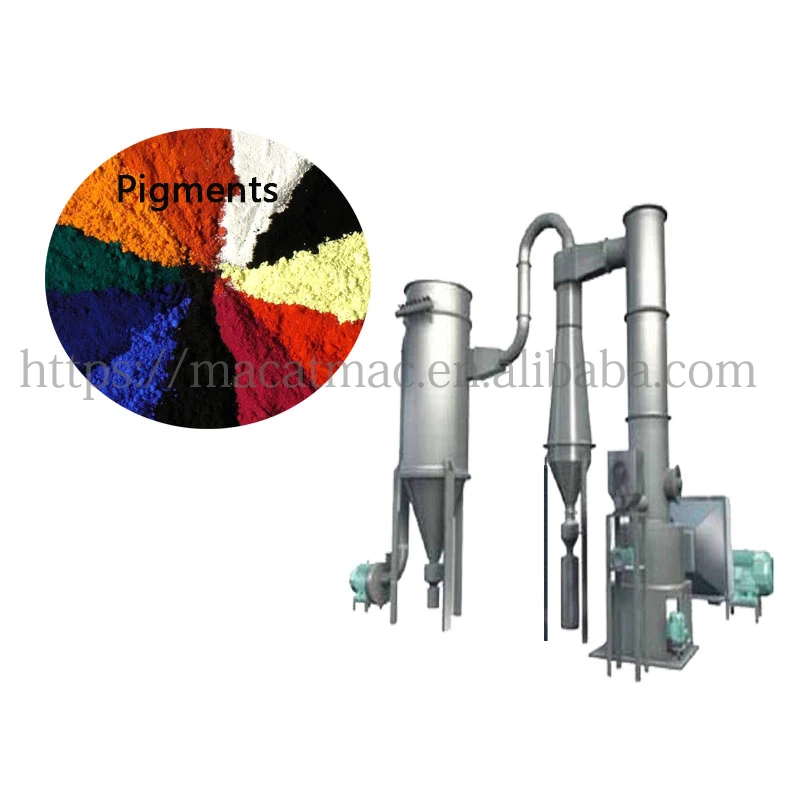

The machine has a wide range of applications and can be used for the drying of flame retardants, molecular sieves, rubber and plastic additives, pesticides, pigments, dyes, fine chemicals, feed, pharmaceuticals and some intermediate industries.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
