The valve is a new generation of hydraulic control butterfly valve in our country, which has the functions of both gate valve and check valve. It is an ideal control device that can eliminate the damage of water hammer to the pipe network by fast closing and slow closing in two stages according to the preset procedure.
Main Technical Parameters
Place of Origin
Liaoyang, China
Product Name
Accumulator Type Hydraulic Control Slow Closing Non-return Metal Check Valves
Model
D741X/H
Power
Pneumatic, hydraulic actuator
Connection
Flange
Nominal Diameter
DN40-DN4200
Nominal pressure
0.6-4.0MPa
Medium
Air, water, oil.
Temperature of Media
-30℃-120℃
Body Material
Ductile cast iron, carbon steel, stainless steel
Seat Material
Stainless steel
Disc Sealing Material
Rubber, stainless steel
Standard
ISO9001:2015, ISO14001:2015, Intertek
The valve body is composed of valve body, disc, valve shaft, sliding bearing, sealing components and other main parts. The sealing surface of the main valve is a three-eccentric metal seal structure, the sealing ring is a composite layer of stainless steel/flexible graphite, and the valve seat is a hard alloy. The three-eccentric valve plate metal sealing ring and the sealing surface of the conical valve body realize instantaneous disengagement and instant contact when opening and closing. There is no macroscopic friction between the seals, little wear and small opening and closing torque. The additional increase of a eccentricity is to enhance the valve's self-closing, self-sealing performance, that is, when the valve is closed, increased hydraulic eccentricity torque to help close; When in place, torque causes the valve to compress tighter.

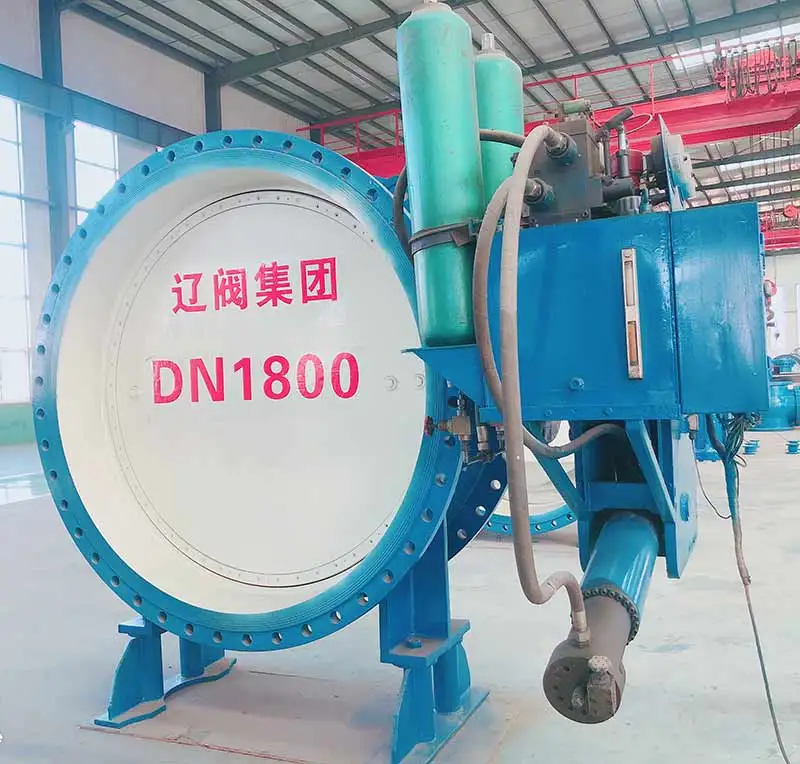

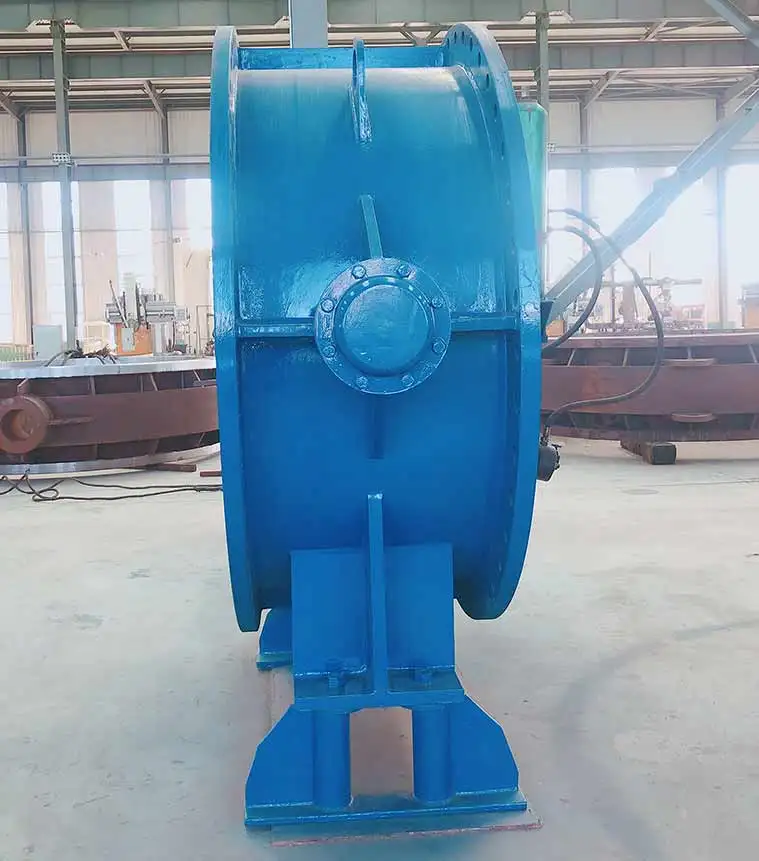

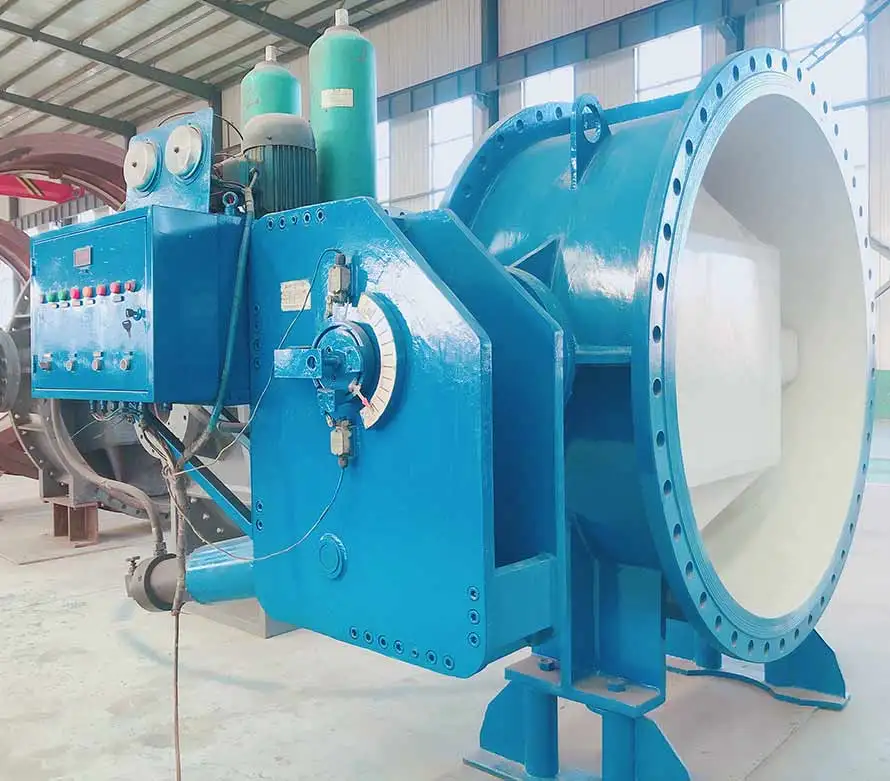

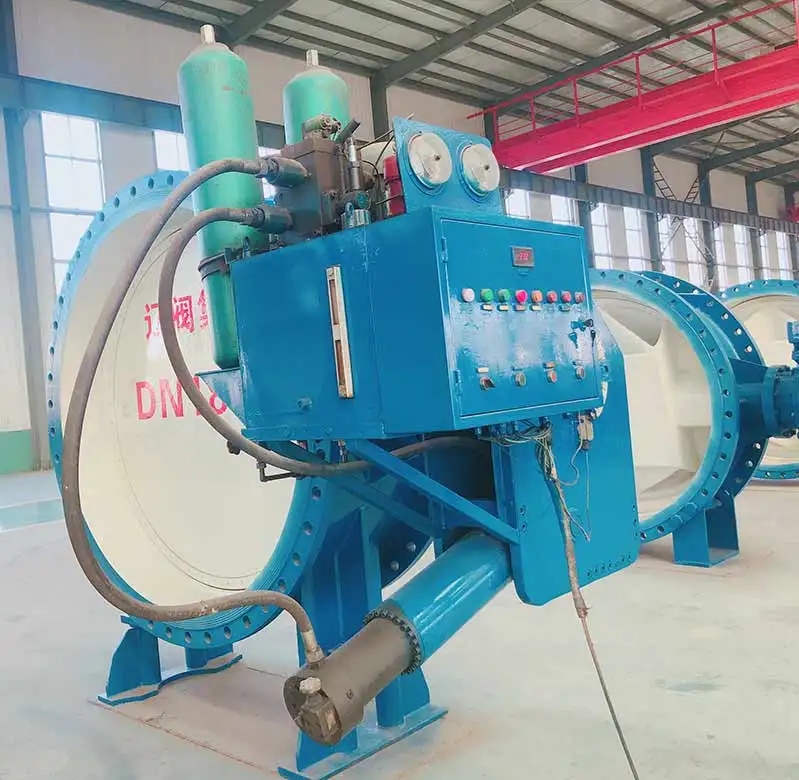

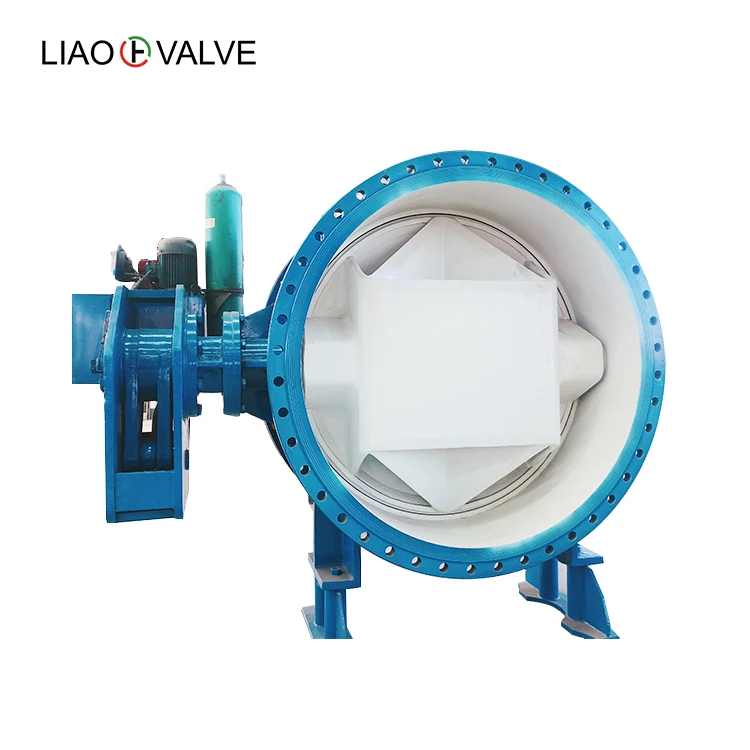

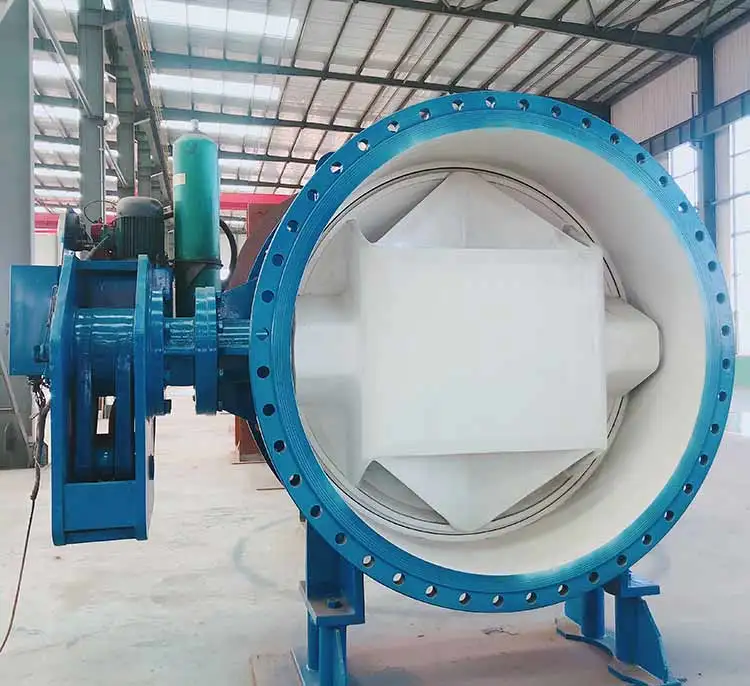

Detailed Images
Packing&Shipping
Related Products

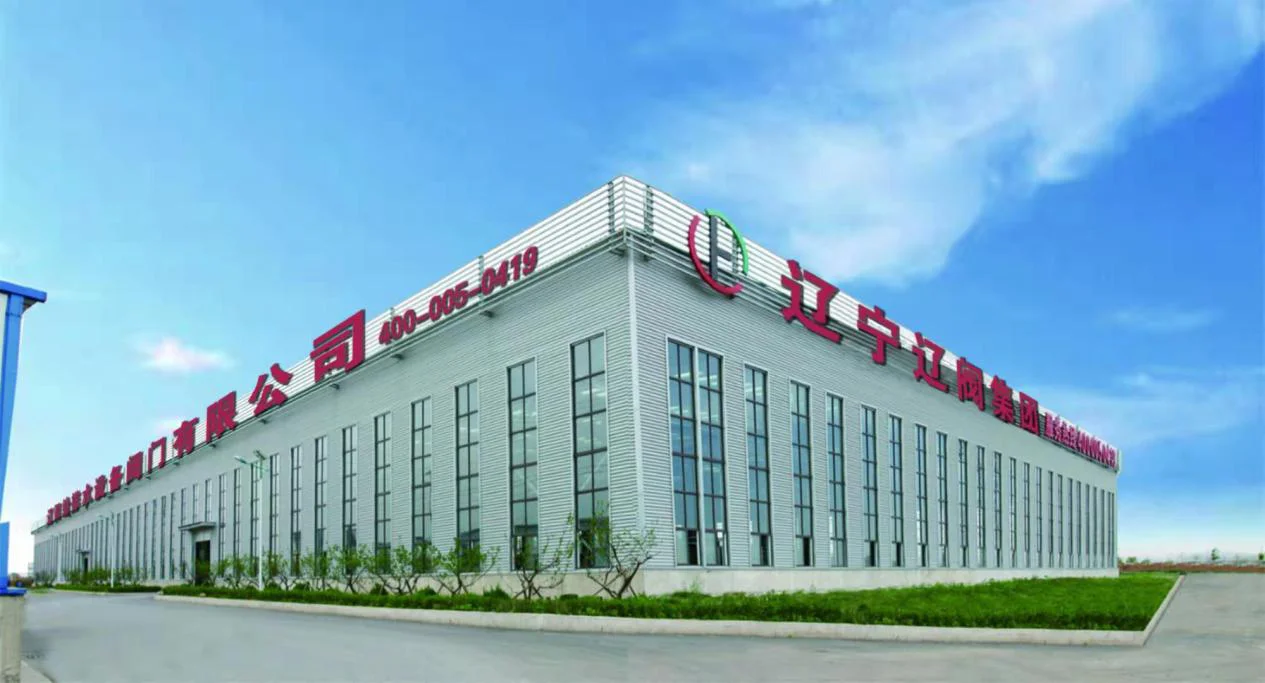

Company Introduction

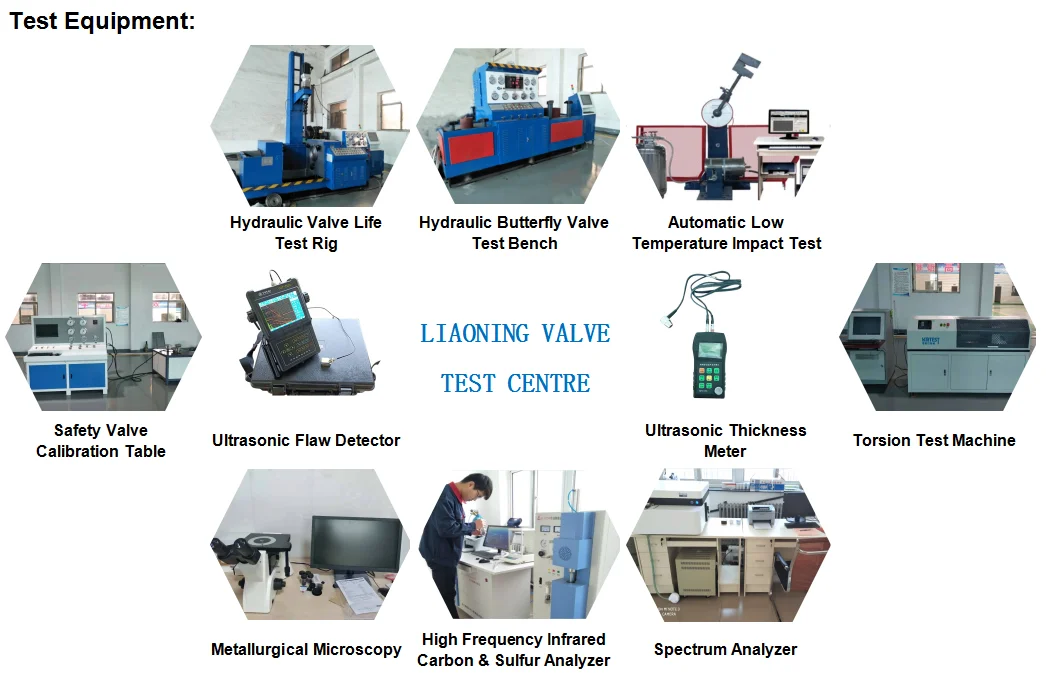

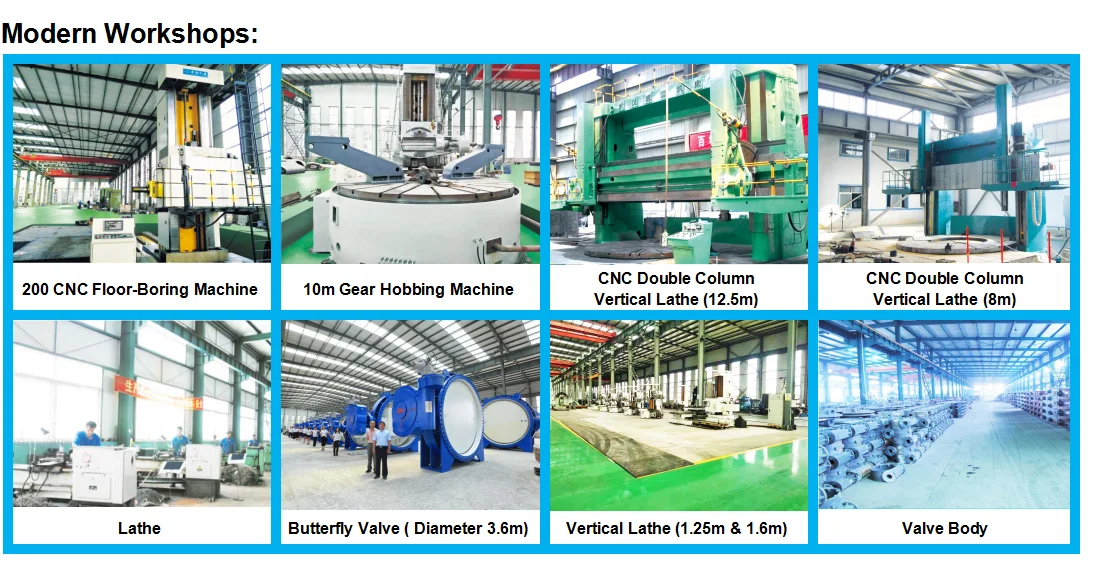

Our company was founded in 1994, with the total assets of 155 million yuan, covering an area of 80,000 m2, and has 320 employees, 30 senior engineering and technical personnel. Our company has an independent Product R&D Center, and the R&D team is led by senior engineers with strong technical force. Our company has a modern manufacturing plant and workshops, with large workshops of casting, welding, rubber vulcanization, mechanical processing, assembly and painting etc., equipped with advanced processing equipment, CNC lathe, vertical lathes of 12.5m, 8m, 6.3m, 5m, 4m, 3.5m, 2.5m, 1.6m, large boring machine, large drilling machine, large gear hobbing machine, plasma welding, testing center, chemical composition analysis, mechanical test, hardness test, spectrum analysis, nondestructive flaw detection, ultrasonic thickness meter and all kinds of professional equipment.
