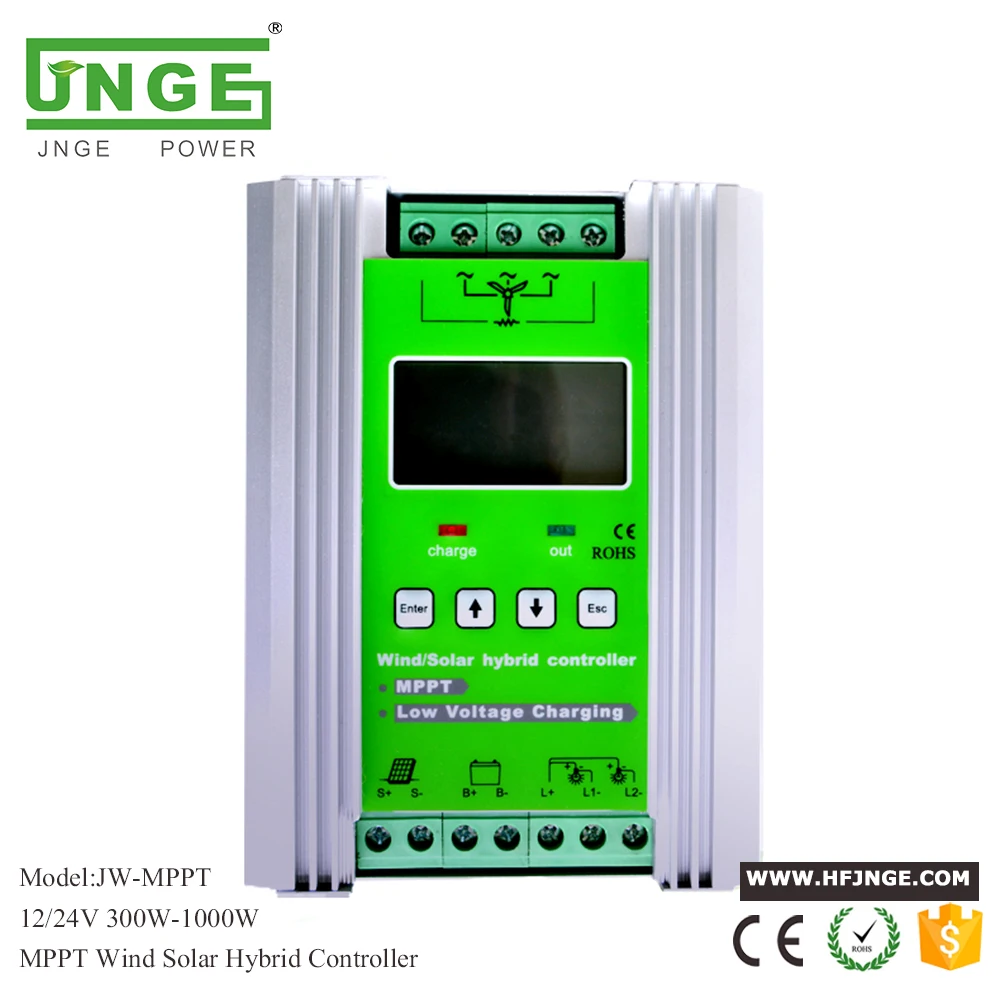

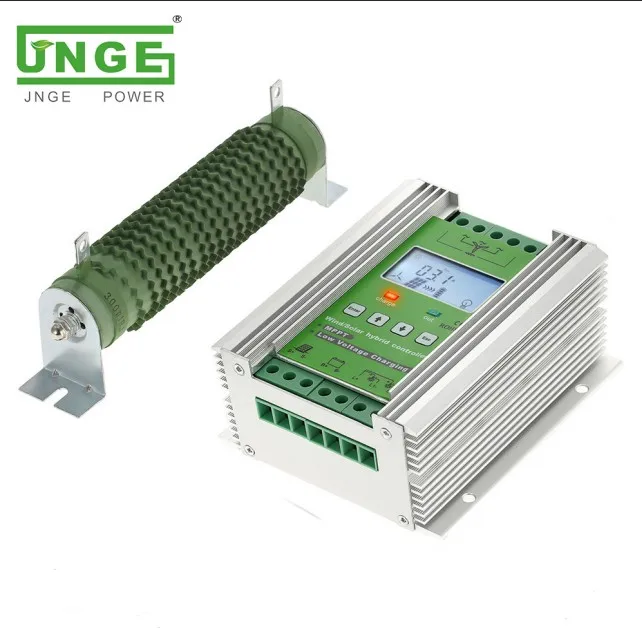

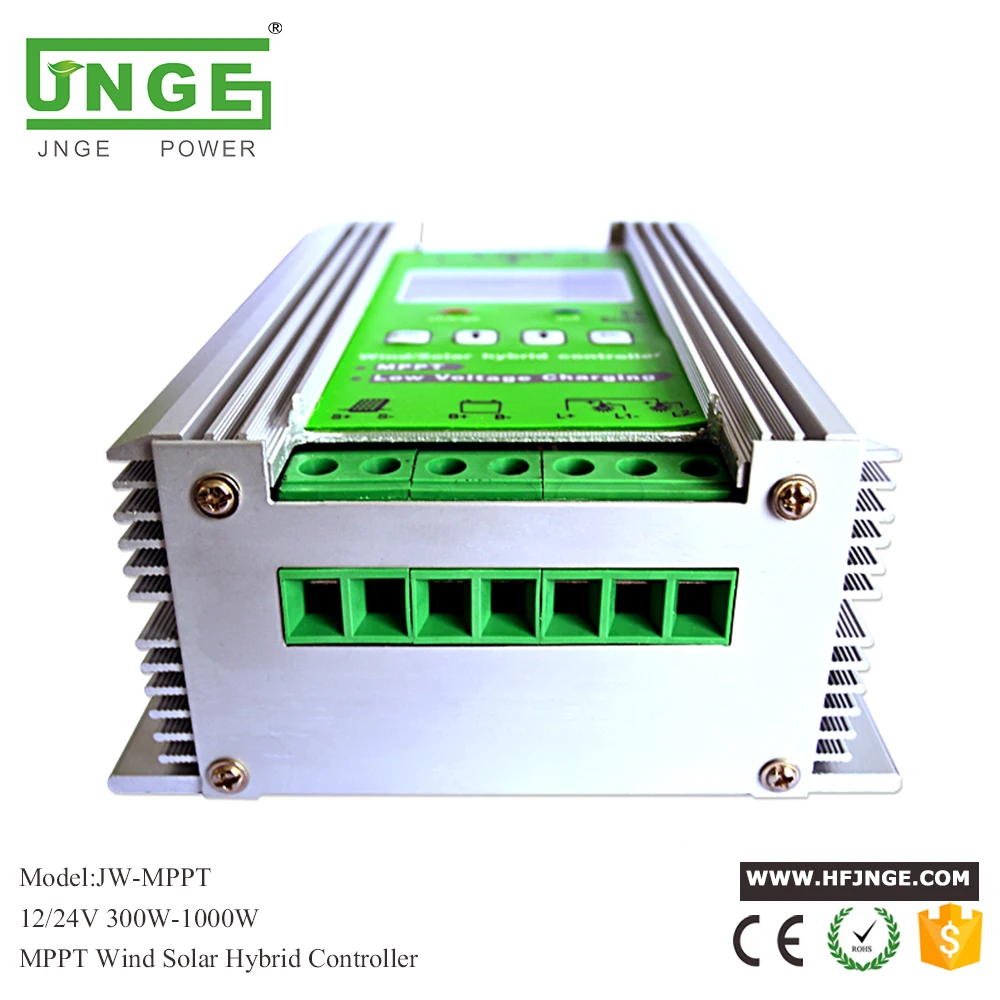

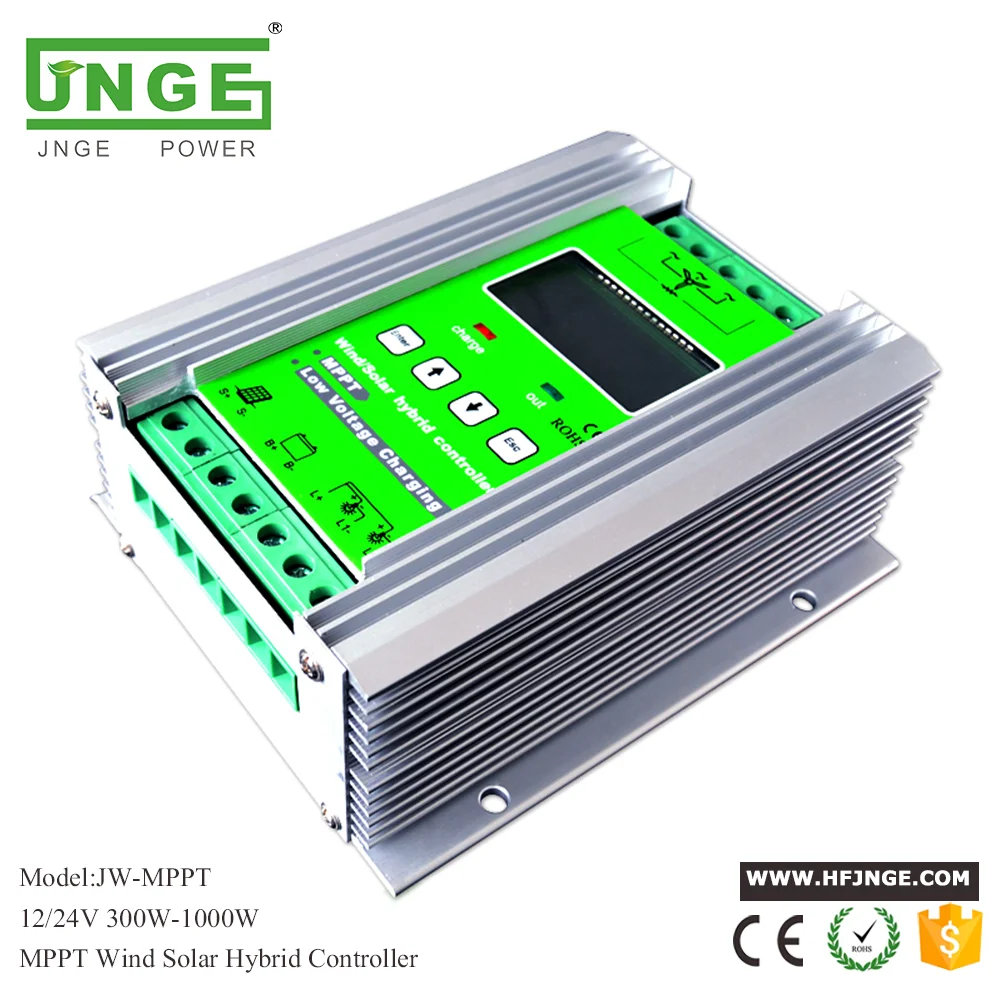

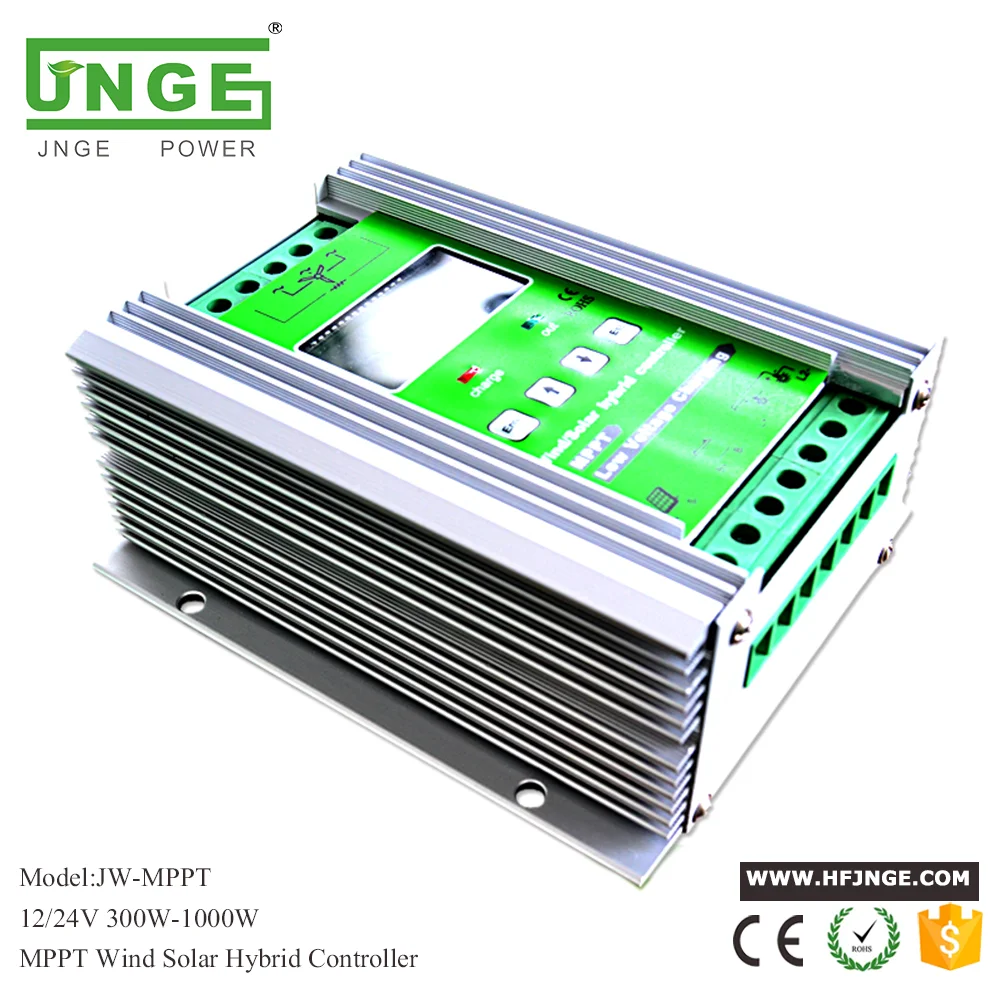

MPPT Wind Solar Hybrid Charger Controller With Booster Function

Product Overview

Description

                            Wind and Solar Hybrid Solar Controller



Product Introduction:





Product Parameters:



system parameters
model	JW-MPPT1230		JW-MPPT2430	JW-MPP2450	JW-MPPT2460	JW-MPPT2480
System rated voltage	12V/24V		24V
Photovoltaic module power	150W		150W	250W	300W	600W
Wind turbine power	300W		300W	500W	600W	800W
Charging	Charging	37.5A	20A	35A	37.5A	50A
	Eaqualization protection	14.4V±1%	28.8V±1%
	Floating charge	13.8V±1%	27.6V±1%
	Equalization recovery	13.2V±1%	26.4±1%
	Temperature compensation	-24mV/°C	-48mV/°C
Over discharge	Disconnected(DC)	10.8V±1%	21.8V±1%
	Recovery(DC)	12.3V±1%	24.6V±1%
Overvoltage	Cut off(DC)	16V±1%	32V±1%
	Recovery(DC)	15V±15	30V±1%
No-load current(DC)		≤0.1A	≤0.1A
Voltage drop(DC)		≤0.5V
Control method		MPPT boost charge for fan, and PWM charge for solar
Boost charging		Flexible independent boost circuit(optional)
Display method		LCD+LED
Display parameter		Voltage,battery power,state of charge
Type of protection		Lighting protection,solar battery anti-reverse protection,battery open circuit protection,battery reverse protection,over-wind speed and over-voltage soft,automatic brake protection,overload protection
Heat dissipation method		heat sink
Ambient temperature		-25°C~+55°C
Use altitude		≤5500m(2000m  Above need to reduce power usage
Enviroment humidity		0~90%,No condensation
Weight		2.60KG
Size		Length162*width140*height64
