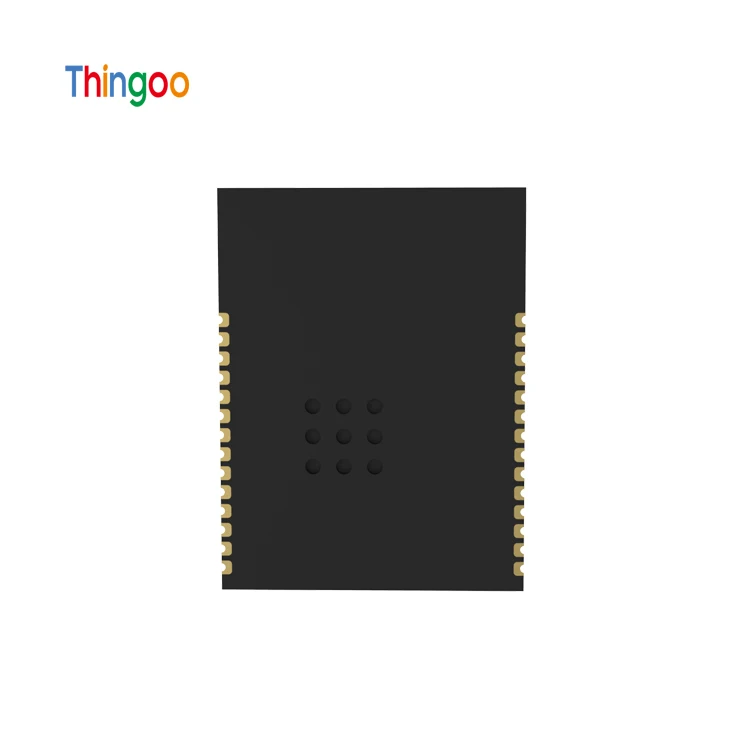

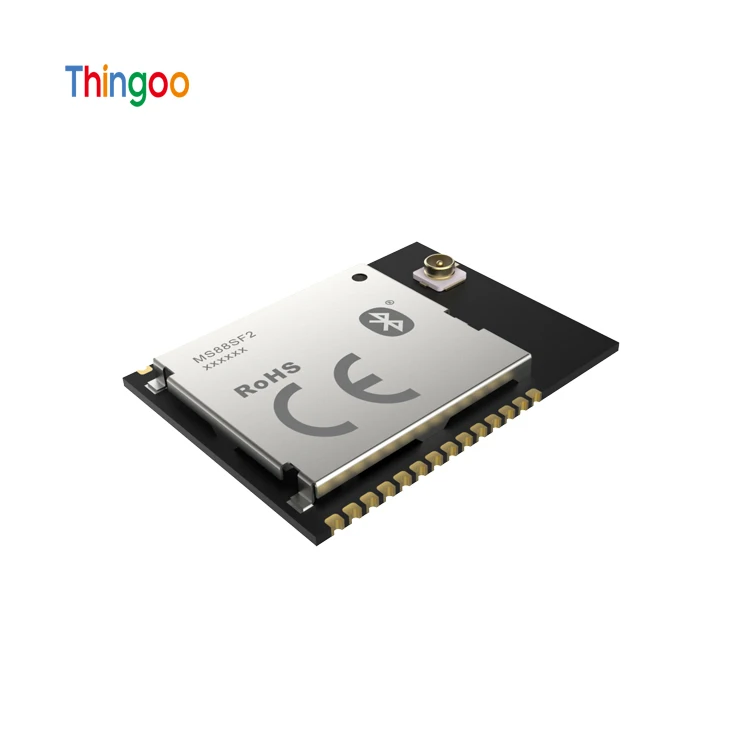

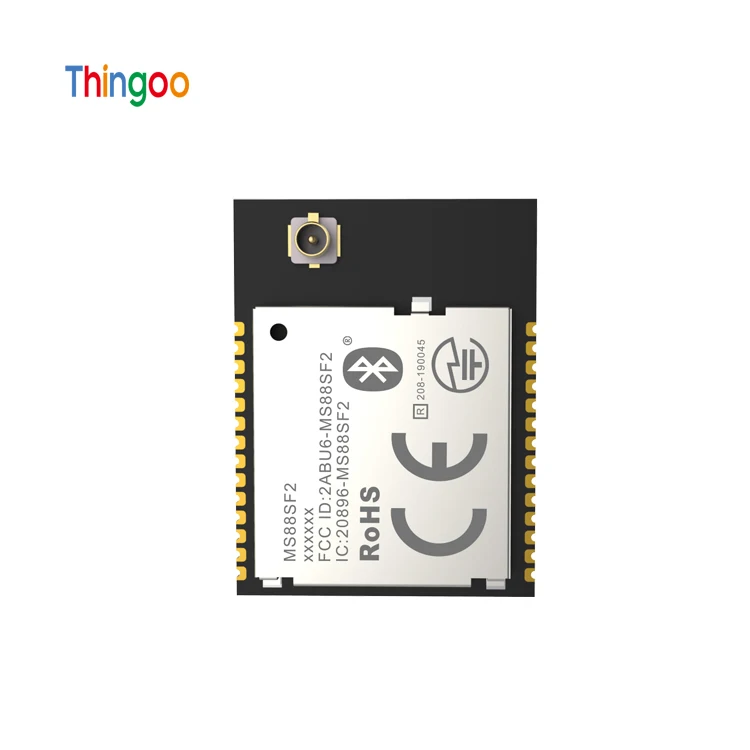

100m Long Range Micro Bluetooth 5.0 Module MS88SF23
- Category: >>>
- Supplier: Shenzhen Thingoo Co. Ltd.
Share on (62409982170):
Product Overview
Description
Certifications
Thingoo module can save your money up to US$8000
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product
that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up
to US$8000
that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up
to US$8000
Product Description
--Powerful nRF52840 Module
-- mesh networking supported.
With feature of advanced, ultra low power consumption, highly-flexible, MS88SF2 is a multiprotocol SoM for mesh embedded systems.
Newest Chipset nRF52840 can support Bluetooth 5.0 and IEEE 802.15.4, that is Zigbee and Thread. With an ARM® Cortex™-M4F CPU,

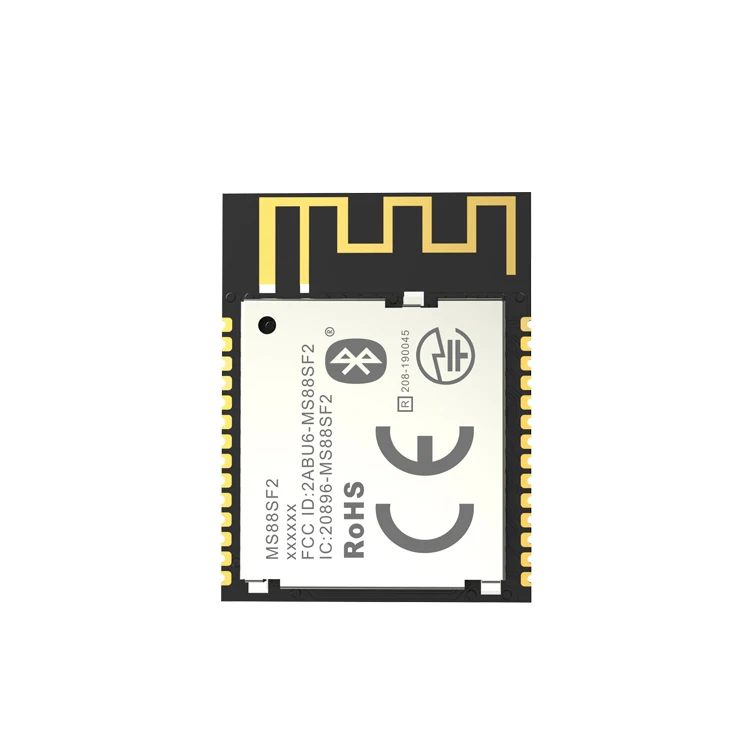

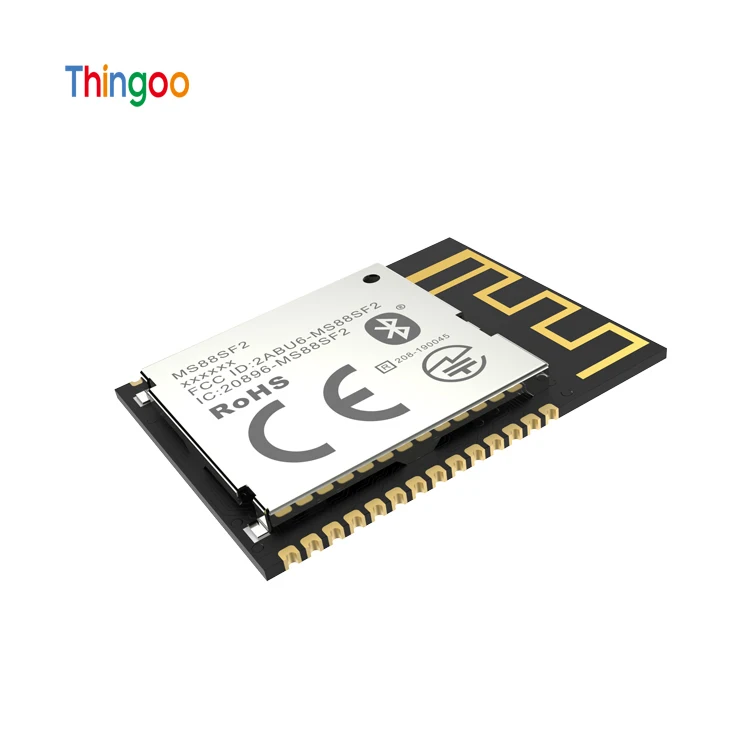

integrated 2.4GHz transceiver and PCB antenna, MS88SF2 is much easier to reduce the development costs and making faster speed.
Newest Chipset nRF52840 can support Bluetooth 5.0 and IEEE 802.15.4, that is Zigbee and Thread. With an ARM® Cortex™-M4F CPU,
integrated 2.4GHz transceiver and PCB antenna, MS88SF2 is much easier to reduce the development costs and making faster speed.
Application
Features
Frequency: | 2400 to 2483 MHz | |
Max. Output power: | +8dBm | |
Single power supply: | 1.8 – 3.9V | |
Range: | 10-100m (BER<0.1%, open space) | |
Chip: | nRF52840 (Nordic) | |
GPIO Quantity: | 20 | |
Module size: | 23.2 x 17.4 x 2.0 mm | |
Operating temperature range: | -25 to 85 degree Celsius | |
1MB Flash and 256kB RAM | ||
ARM Cortex-M4F processor | ||
Metal shielding with marking | ||
Supports USB data interfac | ||

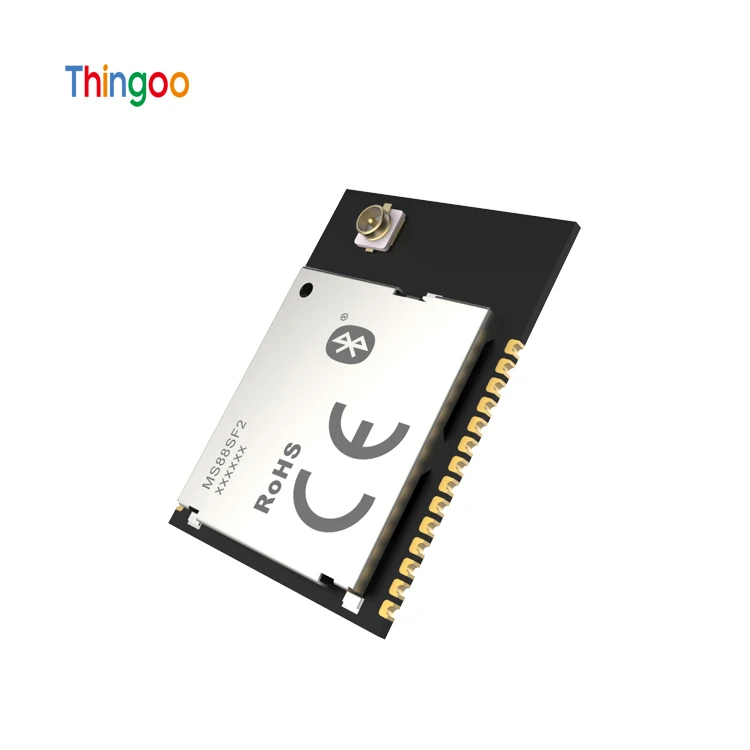

IPEX antenna type | ||
IEEE 802.15.4 with Thread and Zigbee support | ||

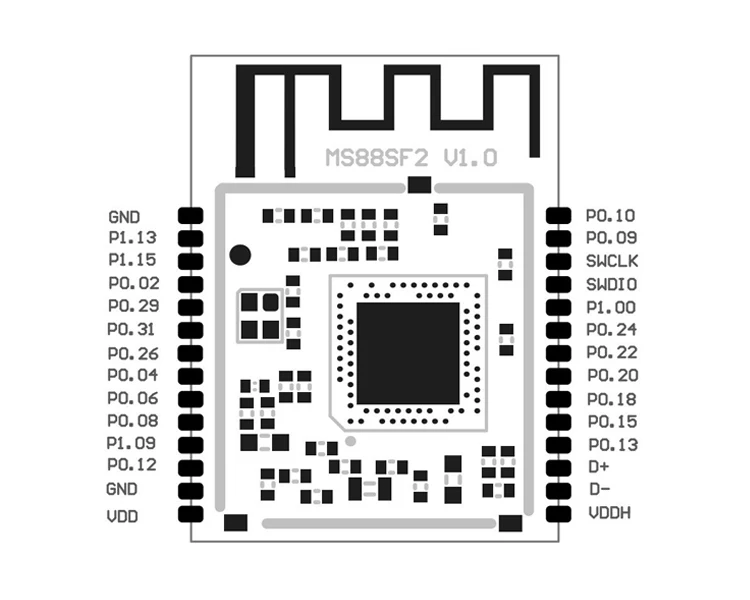

Pin description
Pin | Type | Description |
VDD | Power | Power supply |
VDDH | Power | Power supply，2.5V-5.5V |
GND | Power | Ground |
SWDIO | Digital I/O | System reset (active low). Hardware debug and |
D- | Digital I/O | USB D- |
D+ | Digital I/O | USB D+ |
P 0.13 | Digital I/O | General purpose I/O |
P 0.15 | Digital I/O | Digital I/O General purpose I/O |
P 0.20 | Digital I/O | General purpose I/O |
P 0.22 | Digital I/O | P 0.22 Digital I/O General purpose I/O |
P 0.24 | Digital I/O | General purpose I/O |
P 0.08 | Digital I/O | General purpose I/O |
P 0.06 | Digital I/O | General purpose I/O |
P 0.26 | Digital I/O | General purpose I/O |
SWCLK | Digital input（debug） | Hardware debug and flash programming I/O |
