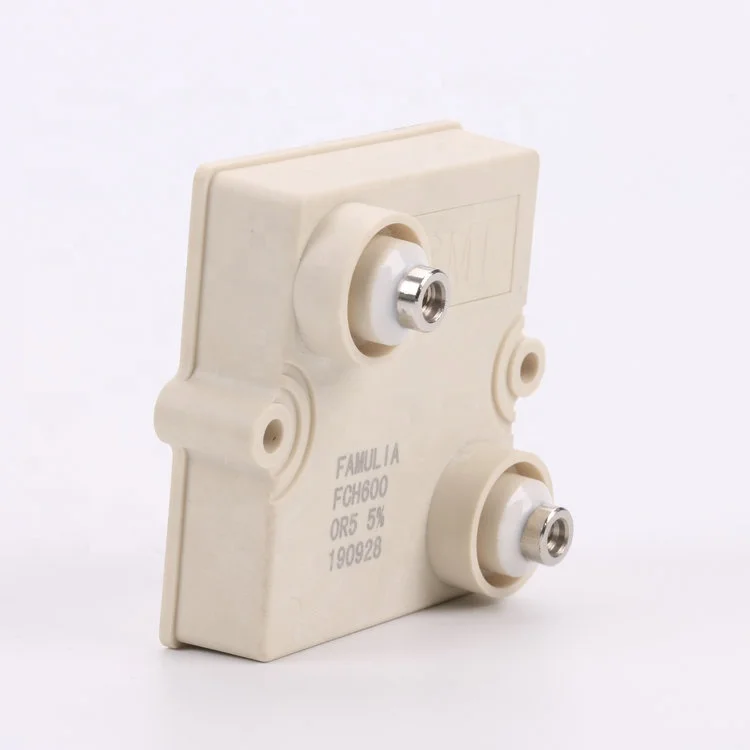

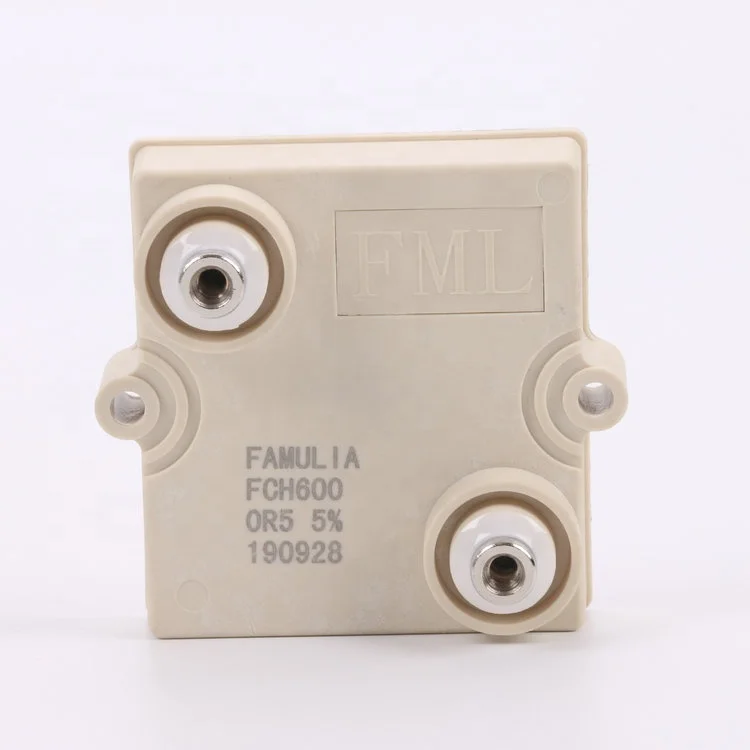

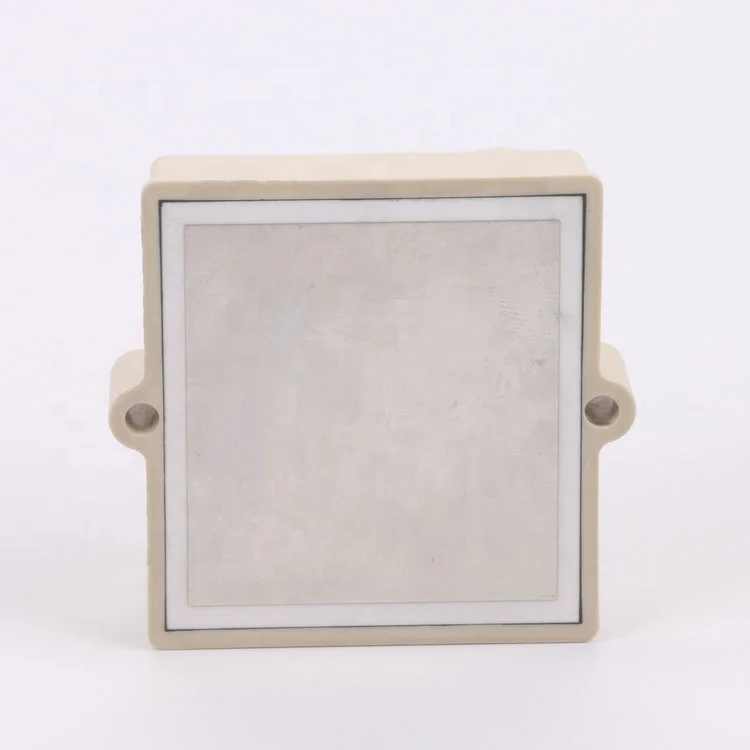

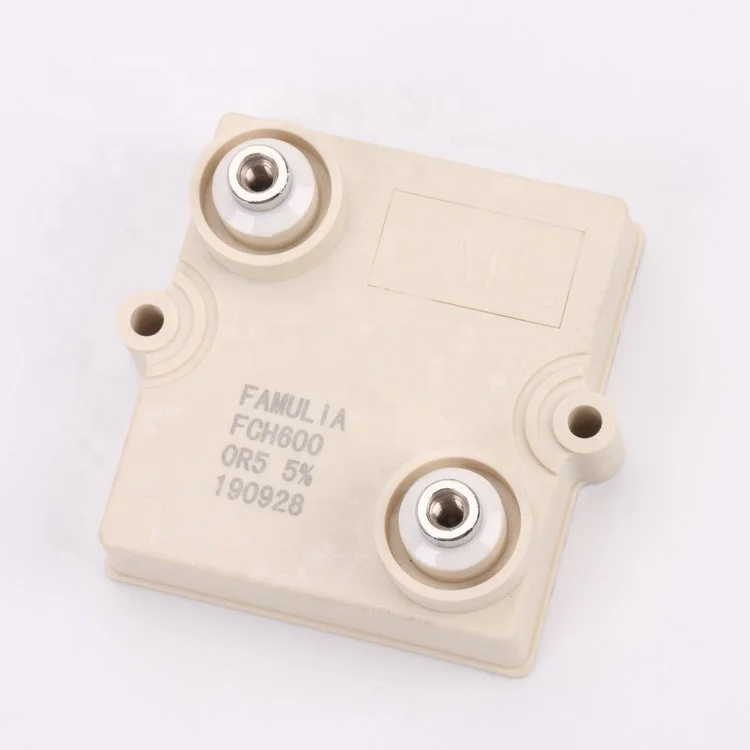

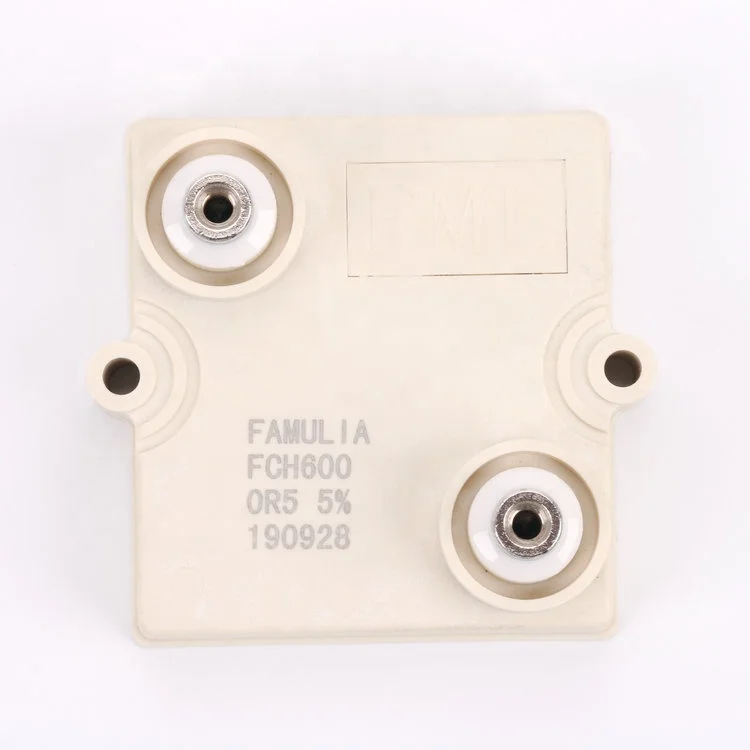

FCH300 Series Planar Thick Film Non Inductive Power Resistor for Evariable speed drives

Features
-Thick film & Non-inductive,ROHS compliant
-High voltage and pulse loading,easy load conecting with M4 or M5 screws
-Extremely low TCR down to 50PPM with high power
-High power rating up to 250 watts at 85 degree

Applications
-Evariable speed drives
-Power supplies
-Control devices, robotics, motor control and other power designs

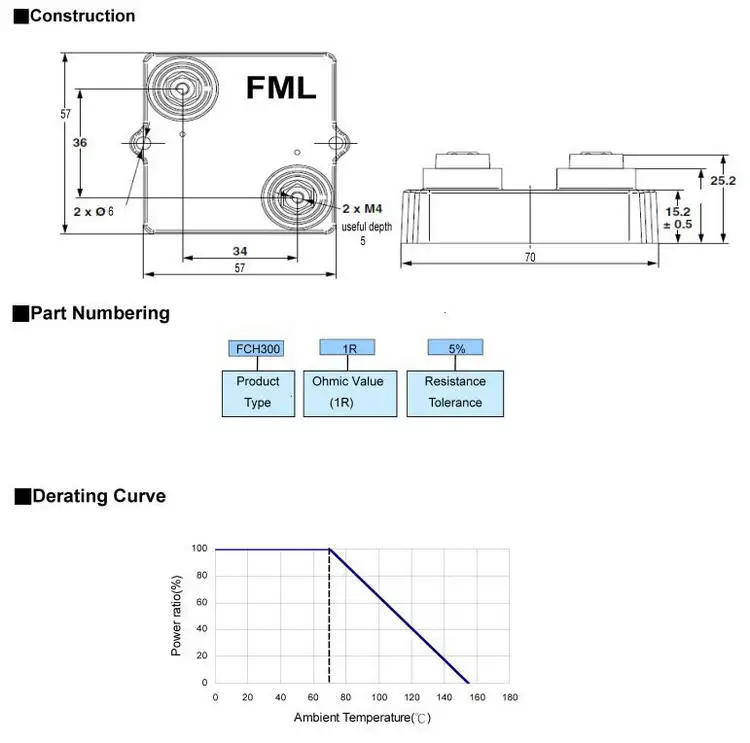

Technical and standard electrical specifications

Resistance tolerance;±5%~±10%
Temperature Coefficient:±150PPM℃(25℃-105℃) On special request
Power Rating: 250W at 85C Bottom case temperature
Maximum Working Voltage: 5000VDC, higher voltage in request, not exceeding max power
Peak Current: up to 1500 Amp. depending on pulse length and frequency please ask for details
Electric Strength Voltage: 6k Vrms, 50Hz, up to 12k Vrms On special request
Single Shot Voltage: up to 12KV Normwave(1.5/50usec)
Parital Discharge: 4K Vrms, <1OpC, up to 7kV On special request
Insulation Resistance: 10GΩ Min at 500V, C reeping Distance: 42 mm Min
Air Distance: 14 mm Min; Inductance: ≤80 nH: Capacity/Mass: ≤110 pF; Capacity/Parallel: ≤40 pF:
Working Temperature Range:-55℃-150℃
Max Torque for Contacts: 2Nm; Max. Torque for Mounting: 1.8Nm M4 screws;

Reference Standards: IEC60115-1: 2001(GB/T5729-2003)
MIL-STD-202/MIL-R-39009D

Storage Temperature:25±3℃; Humidity<80%RH
