Automatic Co2 gas beverage making machine mixer for cola / carbonated soft drink price
- Category: Mixer >>>
- Supplier: Zhangjiagang Crown Machinery Co. Ltd.
Share on (62410092141):
Product Overview
Description

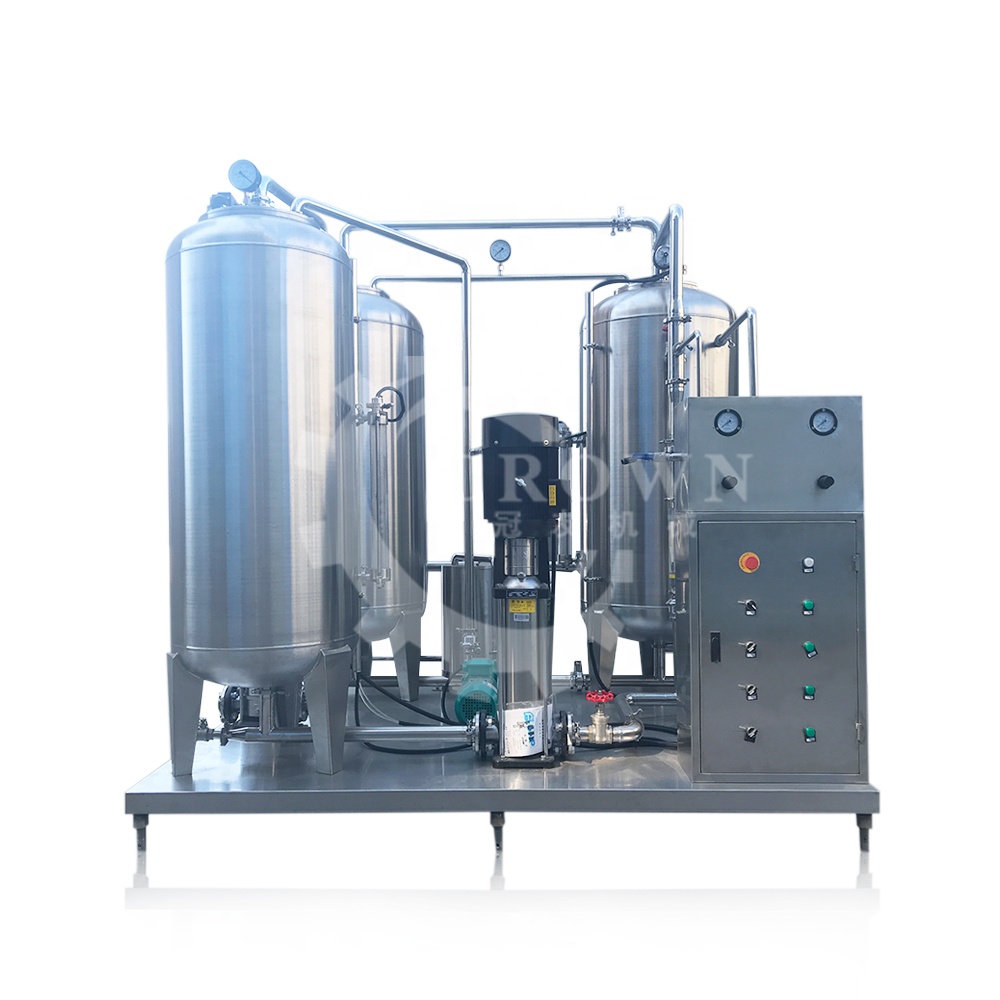

AUTOMATIC CARBONATED DRINK MIXER / MIXING TANK
Beverage mixer (carbonated drinks mixer)is used for producing all carbonated beverages (water, syrup, and CO2 mixing), for example lemon, coca cola, fruits juice and so on. It is the main equipment in whole beverage production line. (Especially for middle and higher standard beverage production).
Beverage mixer (carbonated drinks mixer)is used for producing all carbonated beverages (water, syrup, and CO2 mixing), for example lemon, coca cola, fruits juice and so on. It is the main equipment in whole beverage production line. (Especially for middle and higher standard beverage production).
1. Parameter
(1) Range of proportion on syrup and water 1:3 1:10
(2) Volume of Carbonation (CO2: H2O in volume) 2: 5
(3) Mixing precise error ≤2%
(4) Cooling water temperature in entry mouth 0-4
(5) Cooling water pressure in entry mouth 0.01-0.08Mpa
(6) Syrup temperature in entry mouth 2-8
(7) Syrup pressure in entry mouth 0.01-0.08Mpa
(8) CO2 pressure in entry mouth 0.7-0.8Mpa
(9) CO2 pure % 99.9% (10) Pressure for CO2 tank and syrup tank 0.05-0.09Mpa
(11) Working pressure of tank 0.2-0.5Mpa
(12) Total motor power 6.3KW
2. Products Structure and Working Procedure

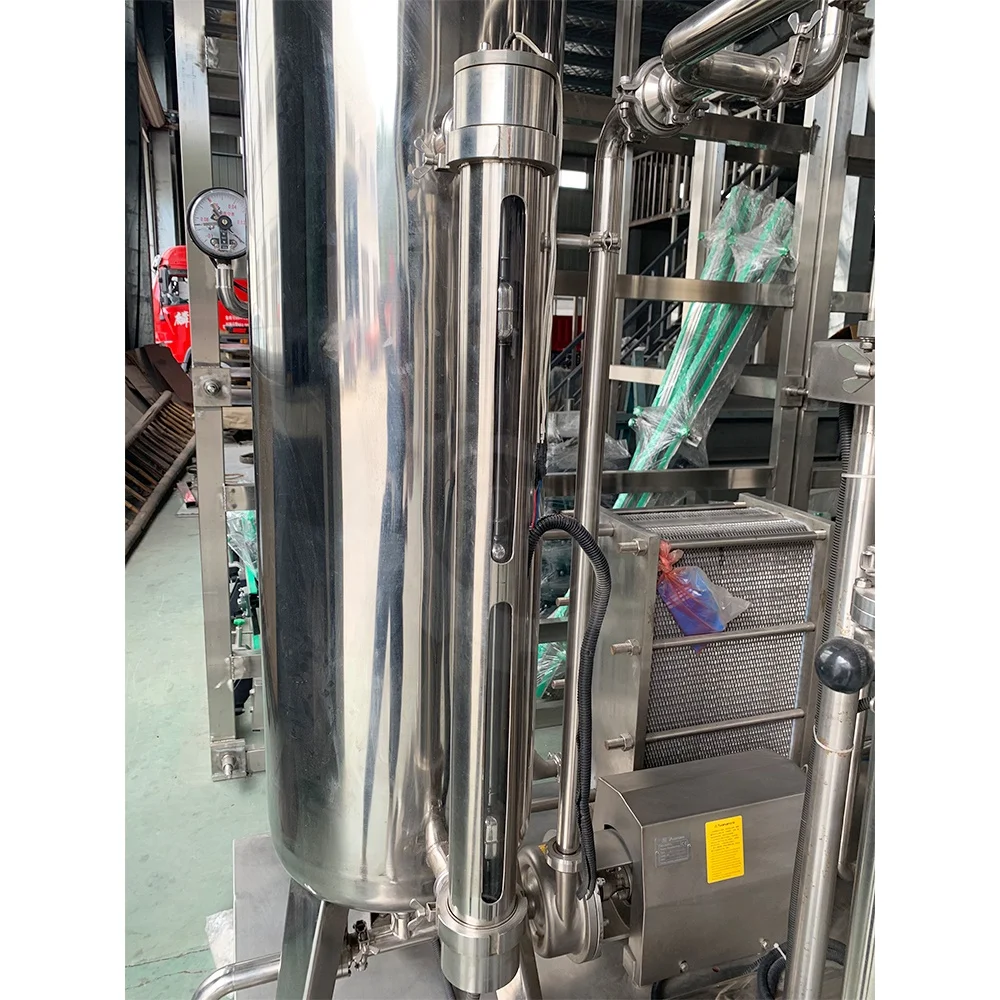

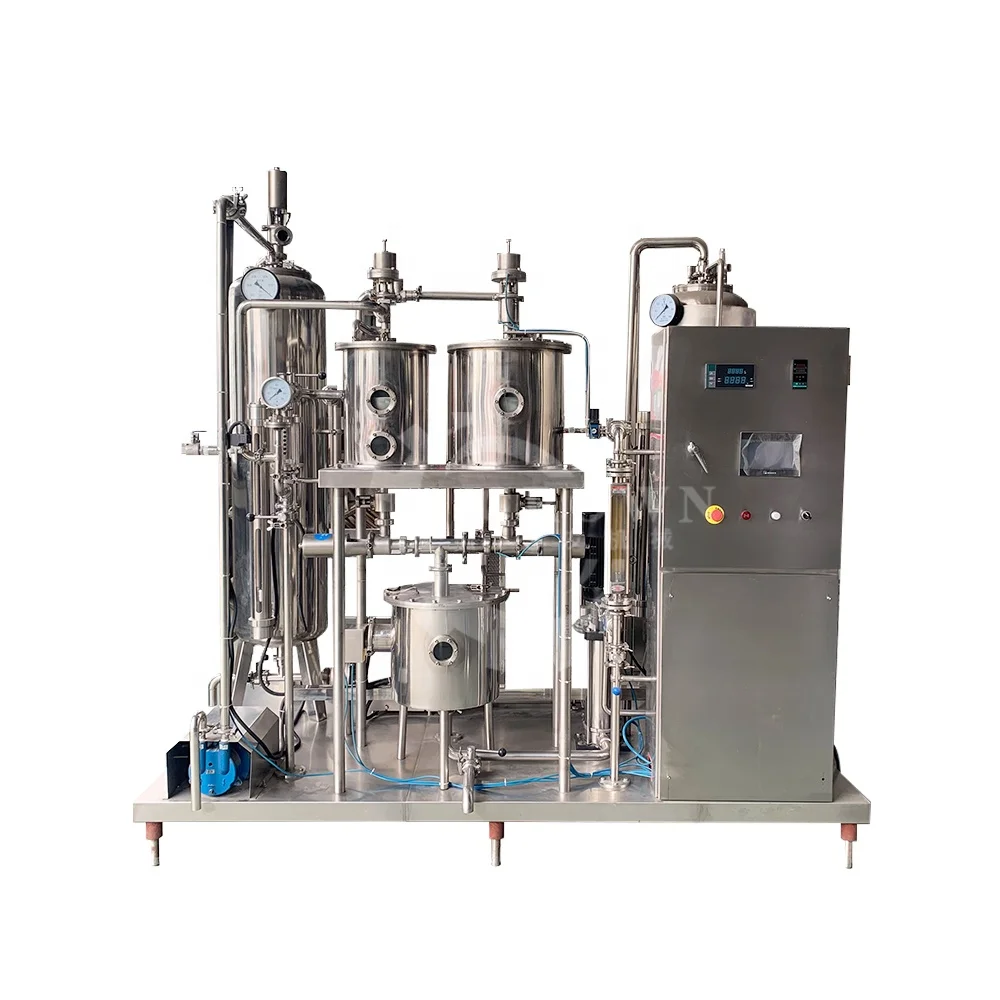

(1) CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)

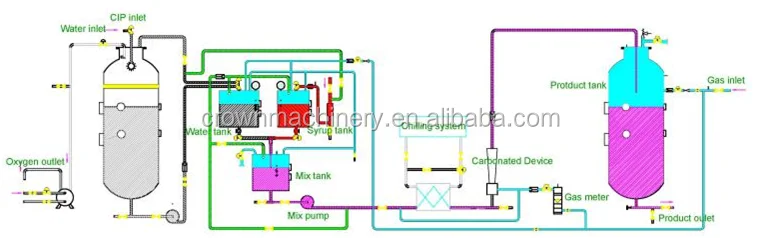

(2) Main working Procedure
1. Cooling water→multi-grade pump→oxygenating CO2→volume control
2. Cooling syrup→multi-grade pump→syrup tank→volume control (a and b → multi-grade pump→static mixing device→ CO2 air resource→filter and pressure reducing→ tank→filling machine
Characteristics
QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and SEIMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for
mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.
(1) Range of proportion on syrup and water 1:3 1:10
(2) Volume of Carbonation (CO2: H2O in volume) 2: 5
(3) Mixing precise error ≤2%
(4) Cooling water temperature in entry mouth 0-4
(5) Cooling water pressure in entry mouth 0.01-0.08Mpa
(6) Syrup temperature in entry mouth 2-8
(7) Syrup pressure in entry mouth 0.01-0.08Mpa
(8) CO2 pressure in entry mouth 0.7-0.8Mpa
(9) CO2 pure % 99.9% (10) Pressure for CO2 tank and syrup tank 0.05-0.09Mpa
(11) Working pressure of tank 0.2-0.5Mpa
(12) Total motor power 6.3KW
2. Products Structure and Working Procedure
(1) CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2) Main working Procedure
1. Cooling water→multi-grade pump→oxygenating CO2→volume control
2. Cooling syrup→multi-grade pump→syrup tank→volume control (a and b → multi-grade pump→static mixing device→ CO2 air resource→filter and pressure reducing→ tank→filling machine
Characteristics
QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and SEIMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for
mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.
Mixer machine is using injecting gas-water mixer is specially designed for soda and non-soda drinks such as lemonade, cola and juice, as well as for other soft drinks such as mineral water, grape juice, juice wine and apple juice.
In comparison with other domestic equipment of the same kind, it achieves functional completeness, great adaptability, a new structure, nice appearance, and high automation, action coordination, continuing production, good mixing and excellent electric control.
(1)The volume ratio of CO2 and 1L water is 2. 5 to 2. 8.
(2)The pre-cooled and pre-carbonized liquid flows through the inlet valve into the pot, in which, there is carbonic acid gas as well.
(3)The liquid flows out the groove and turns into a liquid curtain for better cooling and good carbonic acid gas absorption. Finally, the treated beverage liquid, powered by the carbonic acid gas pressure, flows into the filling machine. Quality materials are usedfor this machine. Especially polished and sanitary steel is used for parts directly contacting the liquid.
In comparison with other domestic equipment of the same kind, it achieves functional completeness, great adaptability, a new structure, nice appearance, and high automation, action coordination, continuing production, good mixing and excellent electric control.
(1)The volume ratio of CO2 and 1L water is 2. 5 to 2. 8.
(2)The pre-cooled and pre-carbonized liquid flows through the inlet valve into the pot, in which, there is carbonic acid gas as well.
(3)The liquid flows out the groove and turns into a liquid curtain for better cooling and good carbonic acid gas absorption. Finally, the treated beverage liquid, powered by the carbonic acid gas pressure, flows into the filling machine. Quality materials are usedfor this machine. Especially polished and sanitary steel is used for parts directly contacting the liquid.
(4)The machine is designed for various beverage productions. Besides the two-step carbonization, high CO2 content and low production temperature ensures the volume ratio of CO2 and 1L water to be 3. 5 to 4. 0, or higher.
Automatic Carbonated Drink Mixer / Mixing Tank Benifits
(1) Be designed and made for improving the proportion of the water, syrup and carbon dioxide
(2) It adopts foreign advanced technology-static mixer to lighted water layer, increase carbonizing time, ensure the mixing
efficiency
(3) Adopting carbon dioxide backflow deoxidization, which can save carbon dioxide and deoxidize

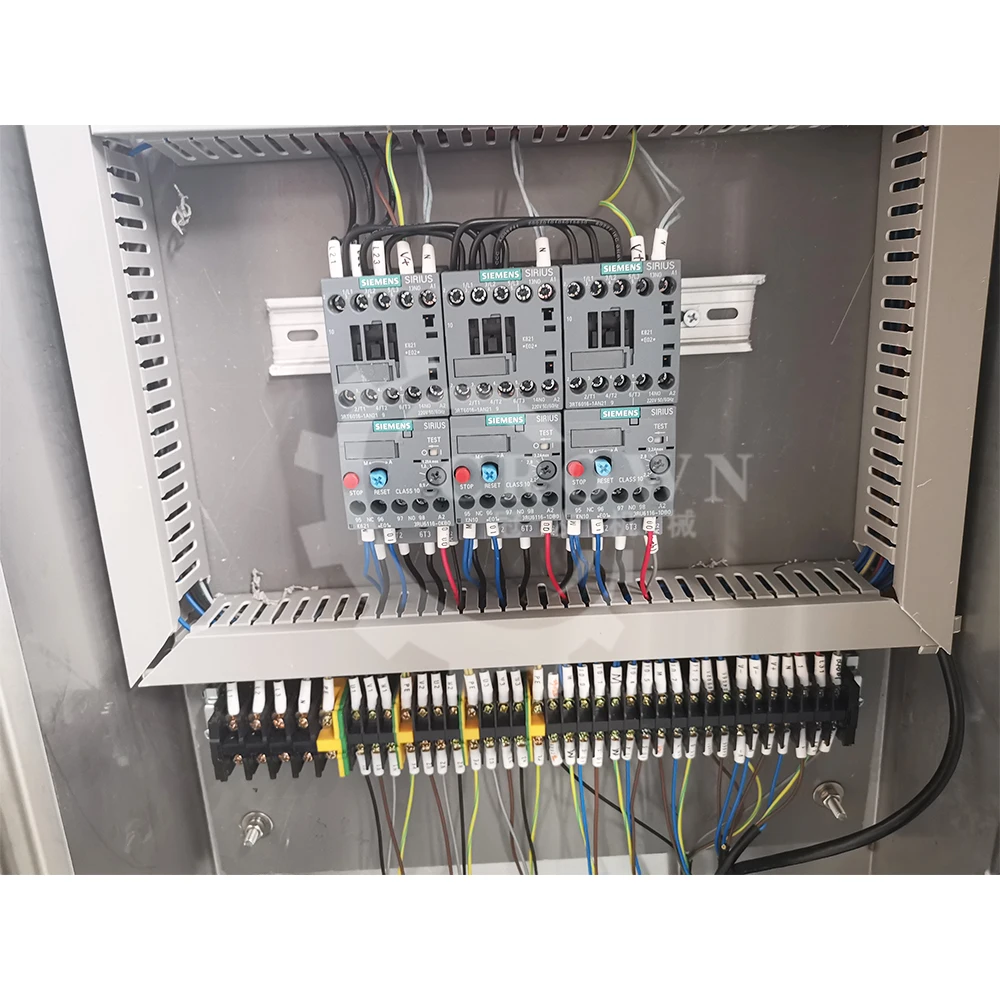

(4) High quality water pump and SIEMENS electrical equipment and other parts make up a complete automatic control system
(5) It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages
(6) It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola and other soft and hard drinks
Automatic Carbonated Drink Mixer / Mixing Tank Benifits
(1) Be designed and made for improving the proportion of the water, syrup and carbon dioxide
(2) It adopts foreign advanced technology-static mixer to lighted water layer, increase carbonizing time, ensure the mixing
efficiency
(3) Adopting carbon dioxide backflow deoxidization, which can save carbon dioxide and deoxidize
(4) High quality water pump and SIEMENS electrical equipment and other parts make up a complete automatic control system
(5) It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages
(6) It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola and other soft and hard drinks
Model | QHS-2500 | QHS-3500 | QHS-5500 | QHS-10000 | |||
Production capacity(kg/h) | 2000-2500 | 3000-3500 | 5000-5500 | 10000 | |||
Mixing production scale(water:sugar) | 3:1-6:1 | ||||||
Contect of CO2 | 2.5-3.5 | ||||||
Mixing temperature℃ | ＜4 | ||||||
Power consumption(KW) | 2.5 | 3 | 5 | 8 | |||
Overall size(mm) | 1500*1000*1900 | 1700*1000*2200 | 2000*1500*3000 | 3000*2000*3000 | |||
