Portable sandblasting machine/ Movable sandblaster/ pressure sand blasting pot
- Category: >>>
- Supplier: Foshan City Shunde District Sunmiga Trading Co. Ltd.
Share on (62410113617):
Product Overview
Description

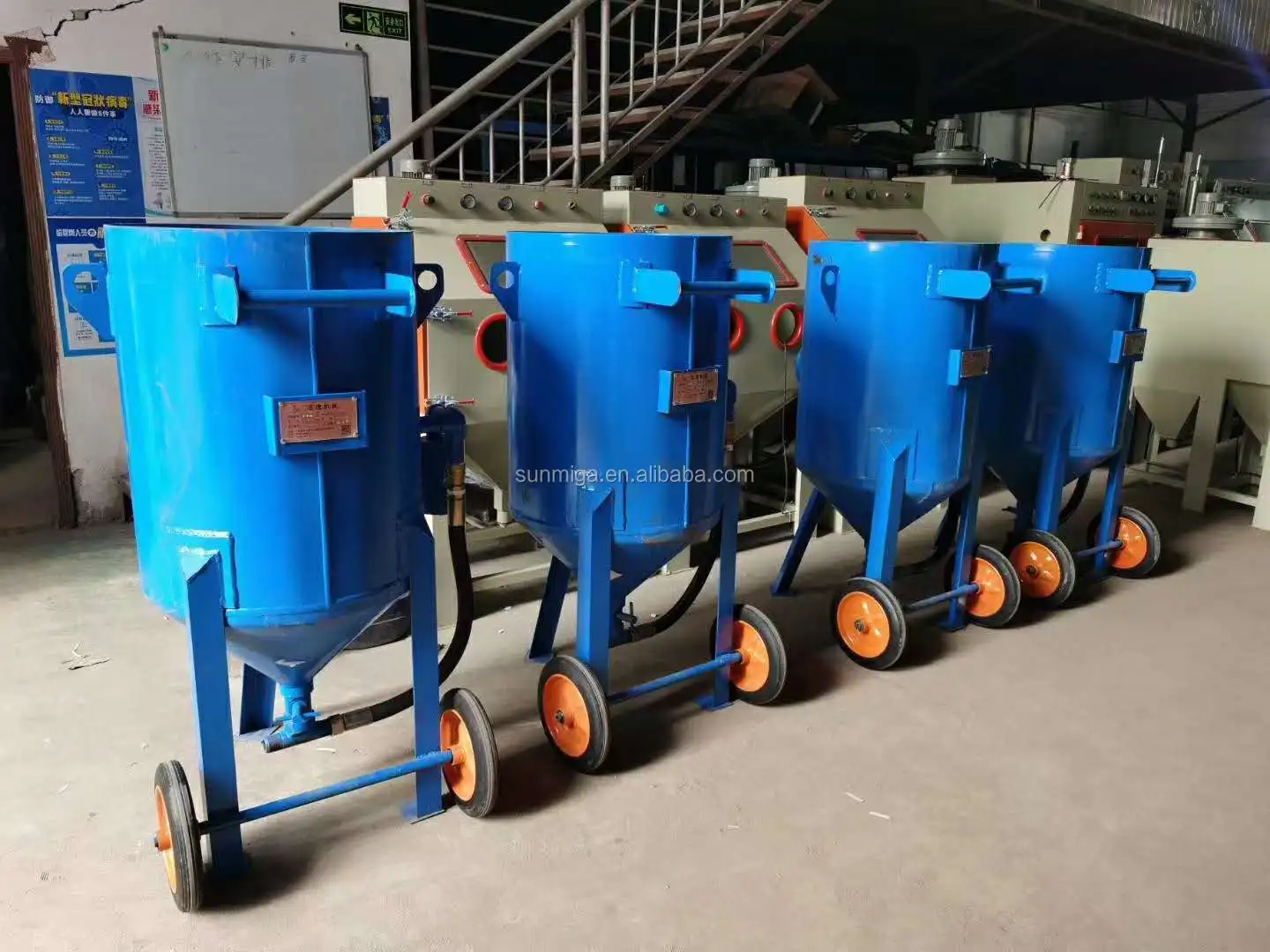

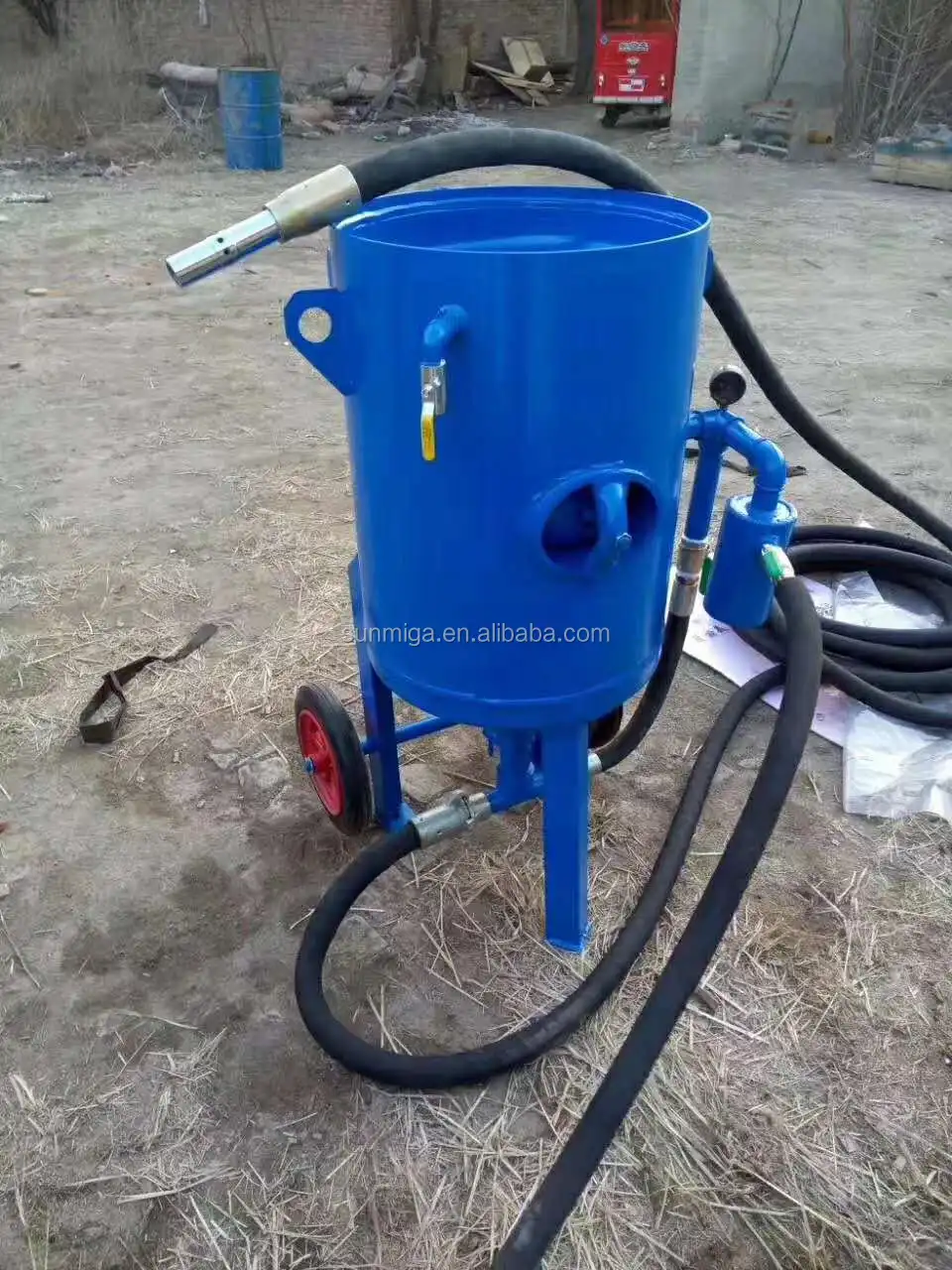

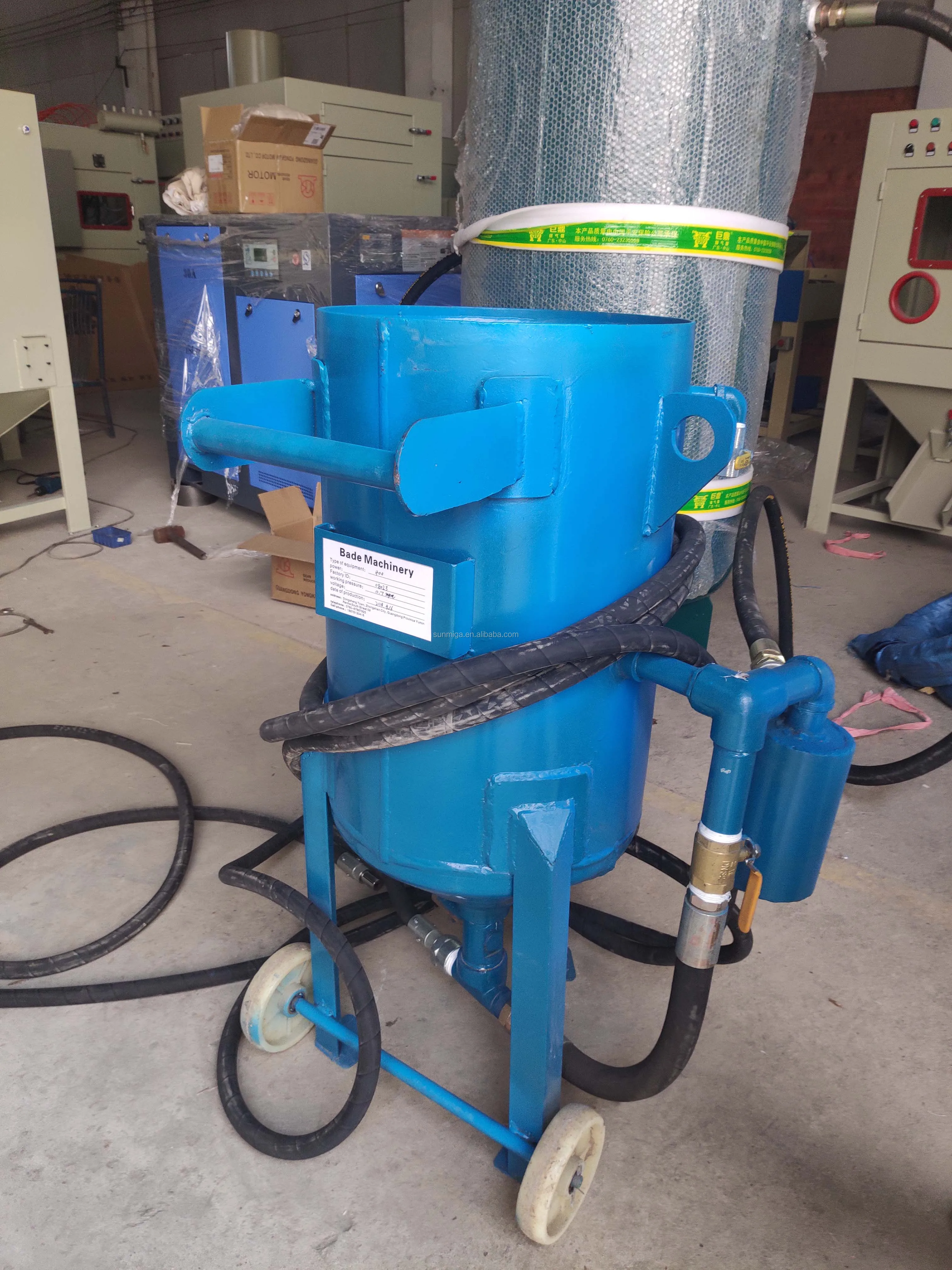

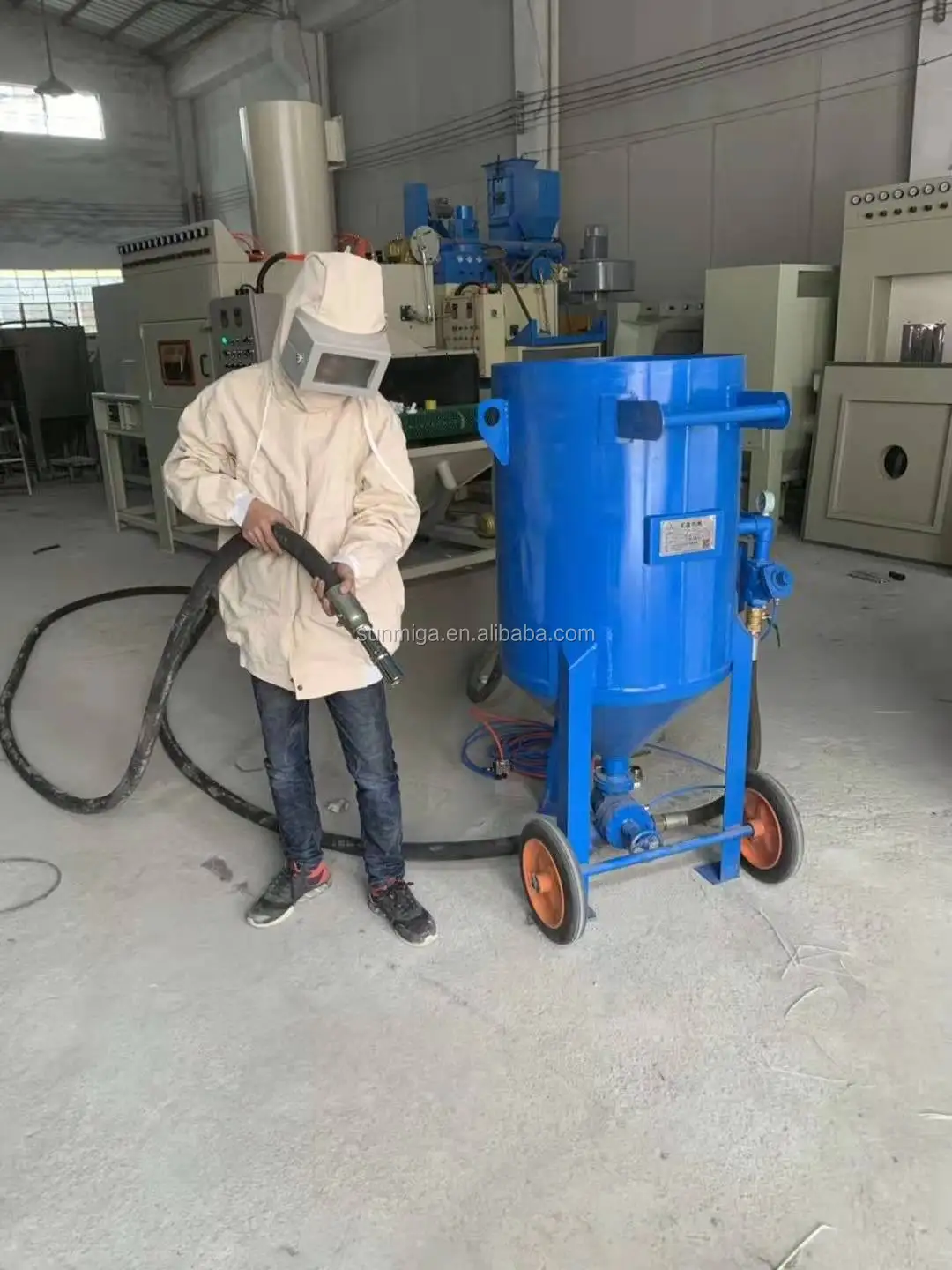

Portable sandblasting machine/ Movable sandblaster/ pressure sand blasting pot
Portable sandblasting machine suitable for processing different kinds of material, such as glass, metal, stone, tile etc.
Movable sandblaster is an ideal equipment for processing huge workpiece. It won't be limited by the workpiece size, can move to everywhere freely, working way is very flexible.
Pressure sand blasting pot can do the work of rust removal, making desigh on workpiece surface, caving and so on. It is a multifunctional machine.
|
Model |

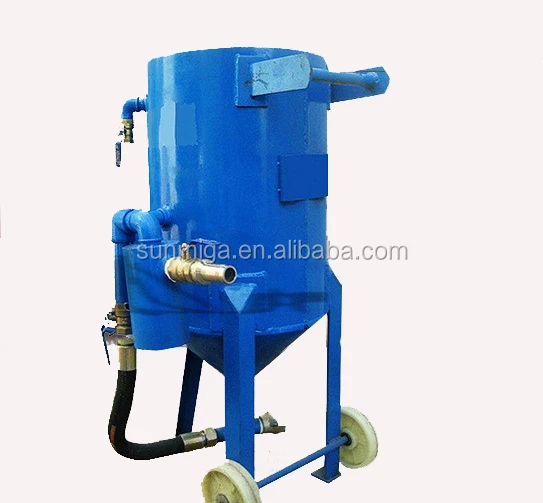

BD-400 |
|
Spraying Gun |
1pc |
|
Pot volumn |
0.2m3 |
| Pot diameter | 400mm |
|
Sand loading |
200kg |
|
Max. Glass Size |
no limited |
|
Glass thickness |
no limited |
|
Dimension |
750*700*1100mm |
|
Working pressure |
0.6-0.8Mpa |
|
Compressed Air Consumption |
3m³/min 22kw |
|
Abrasive Material |
different kins of sand |
|
Net weight |
170kg |

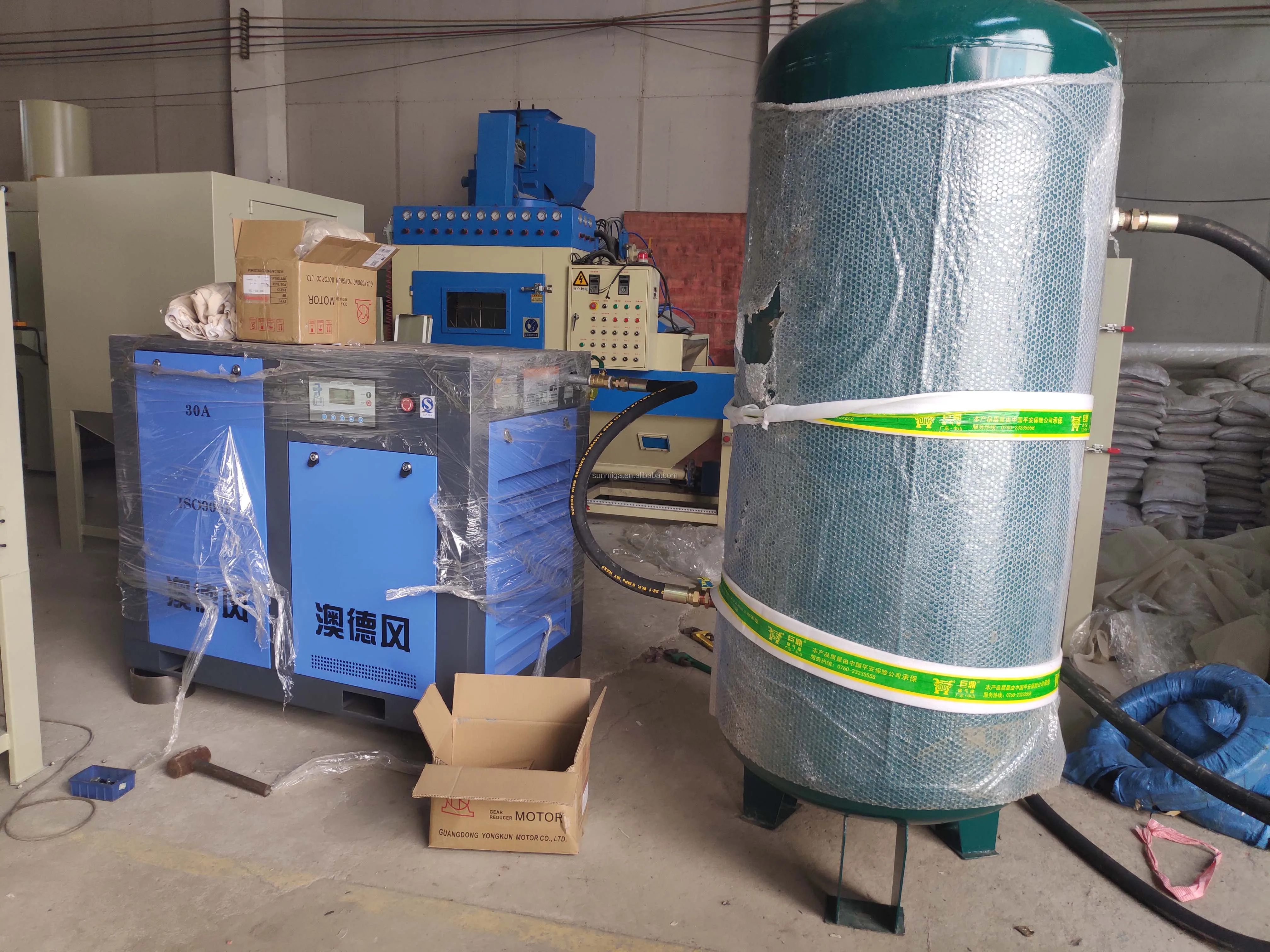

Related assistant equipment: Air compressor and air tank
Technical parameters:
| Air compressor | air displacement | 3.6m3/min |
| suction pressure | 0.1Mpa | |
| emission pressure | 0.8Mpa | |
| working medium | air | |
| rotation speed | 2940r/min | |
| spindle power | 22kw | |
| motor power | 22kw | |
| compression grade | 1 grade | |
| machine weight | 520kg | |
| Air tank | working pressure | 0.84Mpa |
| max. working temperature | 150C° | |
| air tank volumn | 1m³ | |
| puncture test pressure | 1.26Mpa | |
| working medium | air | |
| machine body material | Q235C | |
| machine weight | 207kg |
