Соединение с фланцем гибкий металлический шланг из нержавеющей стали
- Category: Stainless Steel Pipes >>>
- Supplier: Hengshui,Dexin,Rubber,&,Plastic,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Please tell us the type, length and connection mode of the metal hose you need or any problem, we will do our best for you.
Features
1. Corrosion resistance
2. High temperature resistance
3. Low temperature resistance(-196℃-+450℃)
4. Acid and alkali resistance
5. Abrasion resistance
6. Oil resistance
7. Light weight
8. Small volume
9. Good elasticity
Application
Transmission medium:
Acid,
Alkali,
Oil,
Gas,
Water,
Air,
Compressed Air,
etc
Product specifications
DN | 15mm~600mm |
Min.ID | 2.5mm~600mm |
Max.OD | 8.5mm~660mm |
PN | 0.6MPa~35MPa |
PS | 1.5PN |
PB | 3PN~4PN |
Min.bend radius static | >=10DN |
Min.bend radius dynamic | >=2Rj |
Related information

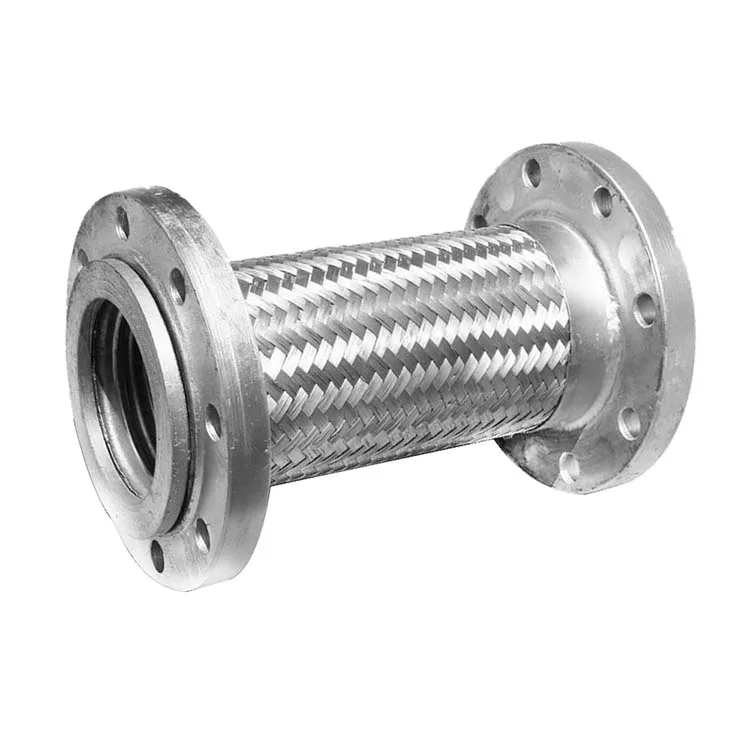

Stainless steel pressure resistant metal hose is a flexible component for conveying various media, which is made of stainless steel bellows with one or more layers of steel wire or steel belt net and connected by joint or flange at both ends.

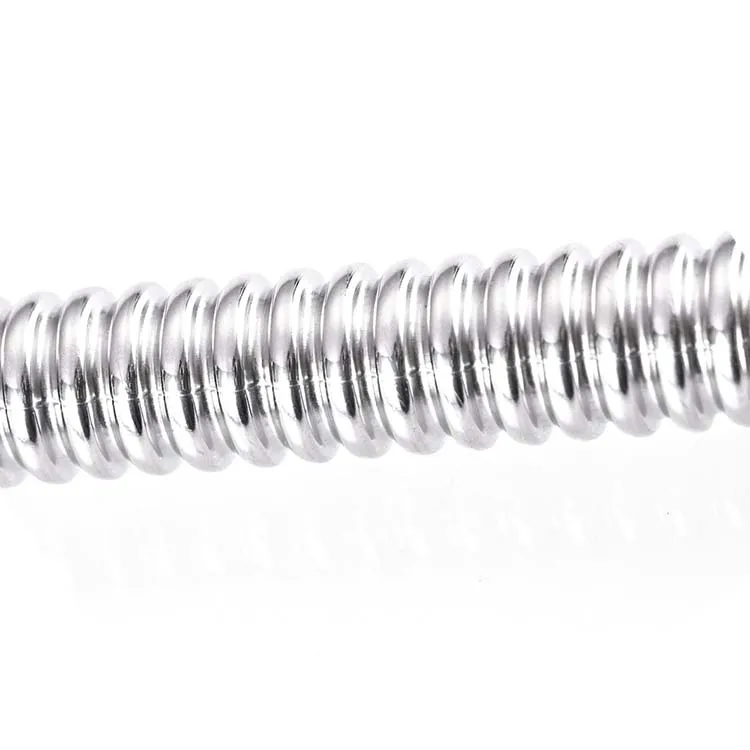

The corrugated pipe of metal hose is formed by the extremely thin seamless or longitudinal welded stainless steel thin-walled pipe through high-precision plastic deformation processing. The flexibility and fatigue resistance of the hose are determined by the elastic characteristics of the contour of the corrugated pipe. The metal hose is easy to absorb all kinds of movement deformation and cyclic load, especially to meet the needs of the system for large displacement compensation, and to absorb the movement, thermal expansion and vibration of the pipe system It plays an important role.
Company Introduction
Hengshui Dexin Rubber & Plastic Co., Ltd. is located in Hengshui City, Hebei Province, located in the north of China, 200
kilometers away from Tianjin port. The main products of the company are various kinds of thread braided (spiral) hose, oil
resistant hose, suction and drainage hose, acid resistant (alkali) rubber hose, dilute acid (alkali) suction hose, heat resistant hose, suction hot hose, high abrasion resistant jet hose, sandblasting hose, wear-resistant sand suction hose, Construction Engineering gas hose, water delivery hose, water suction and drainage hose, spray hose, oxygen hose, acetylene hose, double Welded rubber hose, constant pressure rubber hose, high-pressure steel wire braided rubber hose, high-pressure steel wire wound rubber hose, heavy-duty four-layer steel wire reinforced rubber hydraulic hose, heavy-duty high pulse multi-layer steel wire reinforced rubber hydraulic hose, flame retardant and high temperature resistant rubber hose, expansion pipe and other types of high-pressure hydraulic rubber hose, clamp rubber hose, resin pipe, various types of hydraulic rubber hose joints, metal hose, corrugated compensator, etc., the company We also produce all kinds of quick joints, stainless steel joints, high pressure joints, hydraulic equipment and various rubber products. Our products have the advantages of high pressure, high temperature resistance, good flexibility, good performance, small pulse pressure deformation and large length. At the same time, we process all kinds of special and customized rubber products. The products are produced with advanced equipment and technology to effectively guarantee the quality of the products. We have passed the international quality system certification, and all technical indicators of the products have reached the international advanced level. Our products have been exported to Africa, Thailand, India, Germany, Iranand other countries, and have been highly recognized by customers with excellent quality and longer service life. We promise you high quality products, competitive price and excellent service.
kilometers away from Tianjin port. The main products of the company are various kinds of thread braided (spiral) hose, oil
resistant hose, suction and drainage hose, acid resistant (alkali) rubber hose, dilute acid (alkali) suction hose, heat resistant hose, suction hot hose, high abrasion resistant jet hose, sandblasting hose, wear-resistant sand suction hose, Construction Engineering gas hose, water delivery hose, water suction and drainage hose, spray hose, oxygen hose, acetylene hose, double Welded rubber hose, constant pressure rubber hose, high-pressure steel wire braided rubber hose, high-pressure steel wire wound rubber hose, heavy-duty four-layer steel wire reinforced rubber hydraulic hose, heavy-duty high pulse multi-layer steel wire reinforced rubber hydraulic hose, flame retardant and high temperature resistant rubber hose, expansion pipe and other types of high-pressure hydraulic rubber hose, clamp rubber hose, resin pipe, various types of hydraulic rubber hose joints, metal hose, corrugated compensator, etc., the company We also produce all kinds of quick joints, stainless steel joints, high pressure joints, hydraulic equipment and various rubber products. Our products have the advantages of high pressure, high temperature resistance, good flexibility, good performance, small pulse pressure deformation and large length. At the same time, we process all kinds of special and customized rubber products. The products are produced with advanced equipment and technology to effectively guarantee the quality of the products. We have passed the international quality system certification, and all technical indicators of the products have reached the international advanced level. Our products have been exported to Africa, Thailand, India, Germany, Iranand other countries, and have been highly recognized by customers with excellent quality and longer service life. We promise you high quality products, competitive price and excellent service.

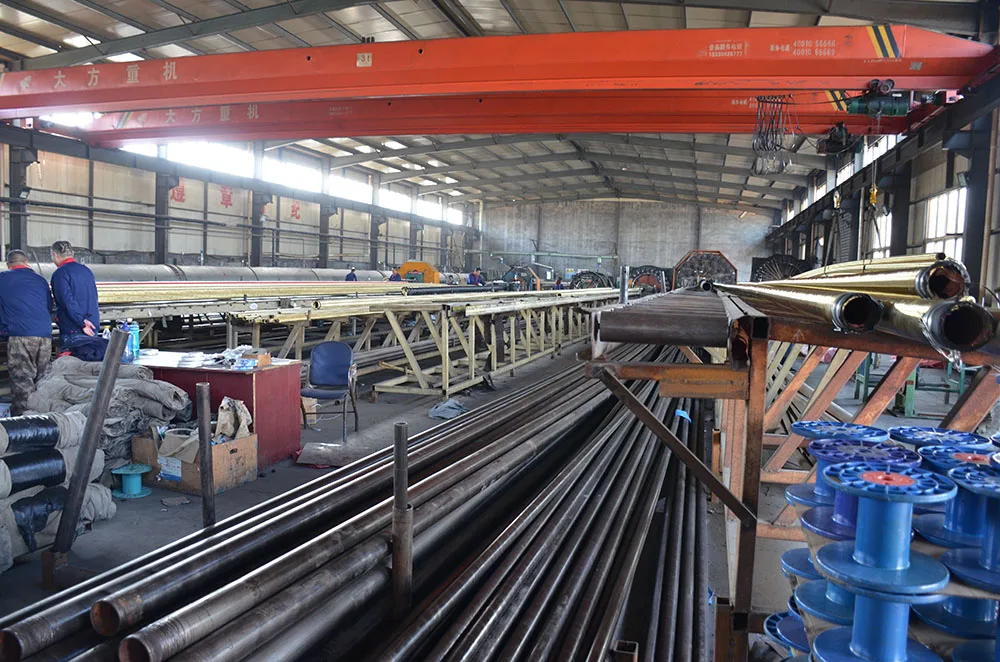

Our Factory
Packaging&Shipping
Customer Photos
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are the original manufacturer of custom rubber parts and custom plastic
parts.
parts.
Q2: Where is your company located?
A2: Our company is located in hengshui City, Hebei Province, China.
Q3: Could I get free samples?
A3: We could provide small samples for free, but air freight or sea freight should be borne by customer side.
Q4: What should I provide in order to get an offer?
A4: Customers are required to provide material, inner diameter, outer diameter, cross
section distance and quantity.
section distance and quantity.
Q5: How is the goods packed by your factory?
A5: The goods are normally packed by plastic bags, carton boxes with pallets or wooden boxes.
Q6: What are the incoterms applied?
A6: The incoterms applied are FOB, CIF and CFR.
Q7:What are the payment terms accepted?
A7: We accept Alibaba Trade Assurance, T/T, L/C,Paypal and West Union,etc.
Q8: What about the delivery time?
A8: The goods are normally dellivered to customer side within 7-30 days based upon the mode of transport required.
