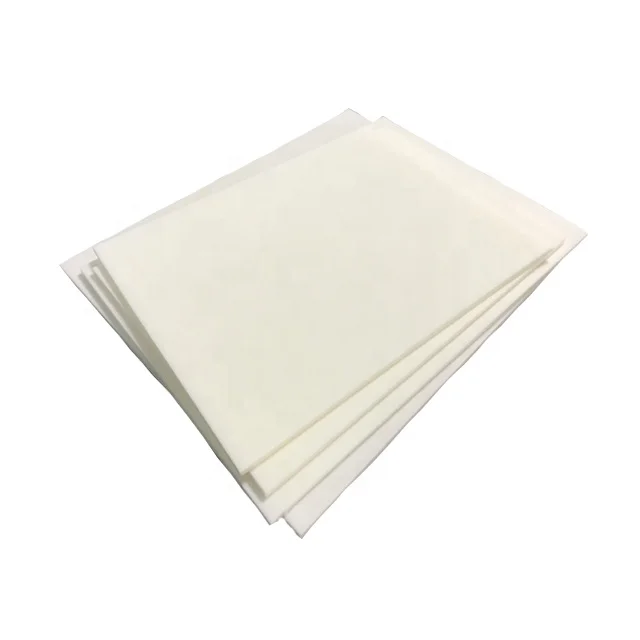

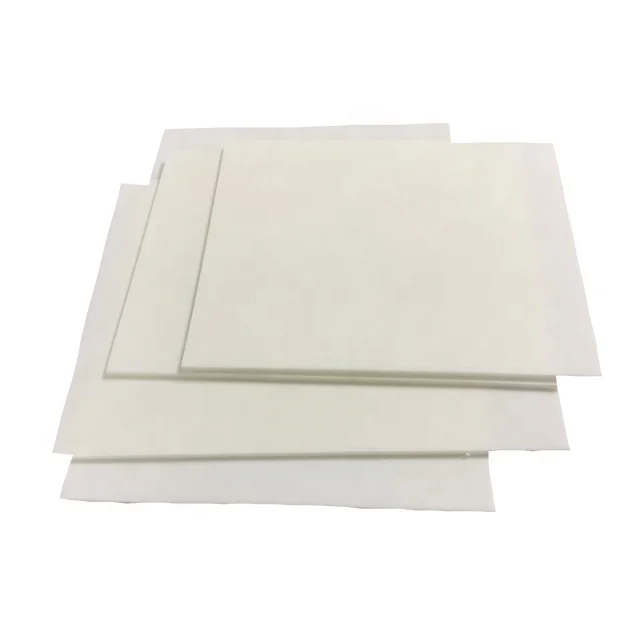

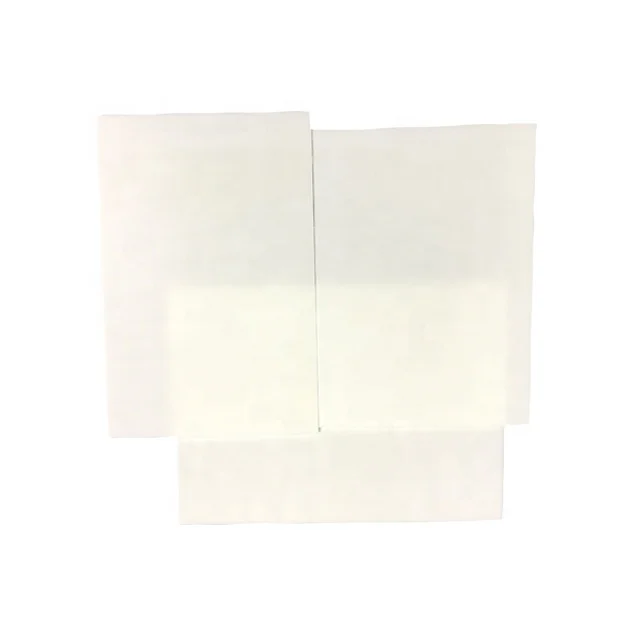

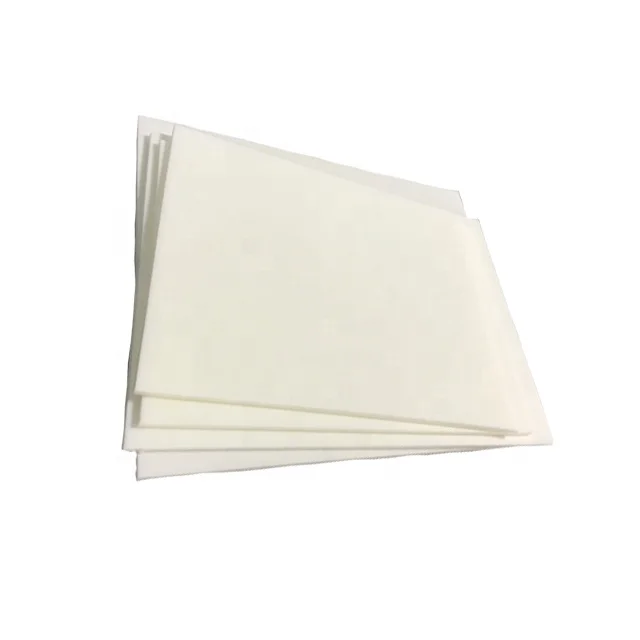

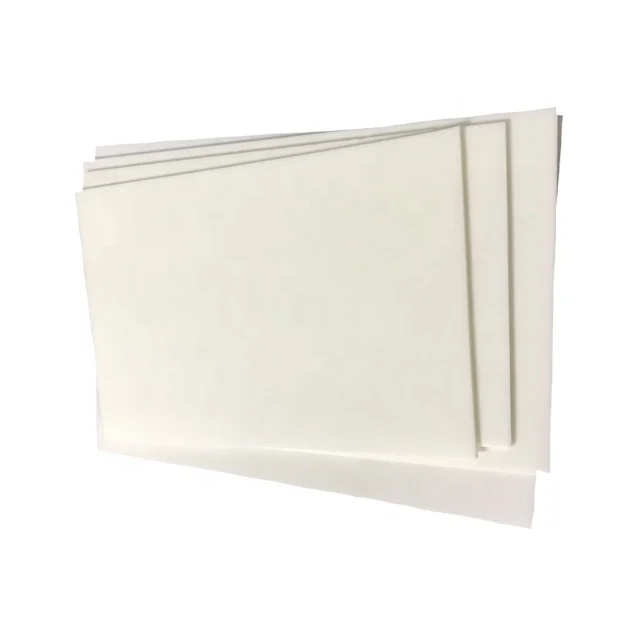

Aerogel nano-insulation foam is a new type of nano-insulation material that helps the electronics industry, new energy battery,automotive industry,shipbuilding,military and other industries to solve the needs of thermal insulation,fire prevention,cushioning and shock adsorption,noise reduction,lightweight and other aspects. It can be combined with heat-dissipating materials such as graphite sheets,copper foils and aluminum foils. One side of heat conduction and one side of thermal insulation buffer, to meet the actual needs of customers in a variety of different use scenarios.
New high and low temperature resistance,flame retardant,heat insulation buffer multifunctional foam
* Low Thermal Conductivity: 0.024-0.030W/(m.k)
* High and Low Temperature Resistance: -80-300℃ * Anti-permanent Deformation: <10% * Buffer Compression Ratio: >75% * Sound Insulation and Noise Reduction: 0.085-0.095 NRC * Flame Retardancy: UL94-V0 * Low Density: 0.04g/cm³
Product Data
Product Model
TEM-200
TEM-500
TEM-1000
TEM-2000
TEM-3000
TEM-4000
TEM-5000
Test Standard
Thickness
(mm)
0.2±10%
0.5±10%
1.0±10%
2.0±10%
3.0±10%
4.0±10%
5.0±10%
/
Colour
White
/
Density
(g/cm³)
0.04
/
Hardness
(Shore C/1S)
6-12
KSM6518
Tensile Rate
(%)
>5
Under Compression Deformation
Conditions
(%)
<10
GB/T6344-1996
Compression Ratio （%）
>75
GB/T6669-1986
Tensile Strength
(KPa)
110-160
GB/T6344-2008
Silencing Coefficient
(NRC)
0.89-0.95
ISO
354:2003
Thermal Conductivity
W/(m.k)
0.024-0.030
GB/T1029
5-2008
Water Absorption Rate (%)
≤3
/
Operating Temperature
Range (℃)
-80-300
/
Product Form
Sheet
/
Storage Conditions (℃)
Stored in a dry environment at room temperature,shelf life of 1 year
