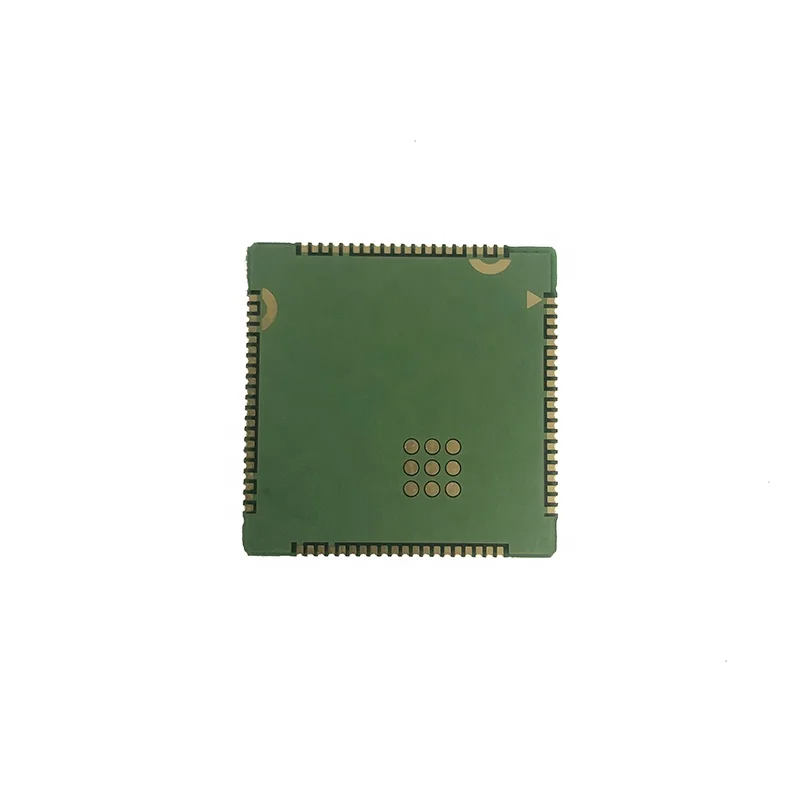

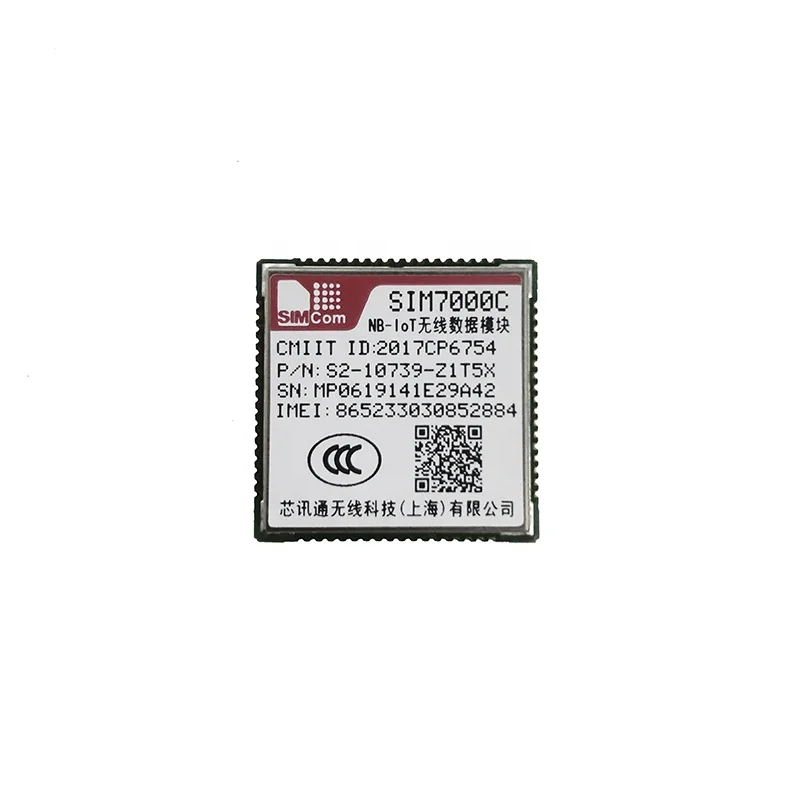

SIMCOM SIM7000 SIM7000A SIM7000E SIM7000G SIM7000C SIM7000JC SMT Type eMTC( CAT M1) NB IOT Module

Product Overview

Description



SIMCOM SIM7000 SIM7000A SIM7000E SIM70000G SIM7000C SIM7000JC SMT Type eMTC( CAT-M1) NB-IOT Module SIM7000 supply Hardware design datasheet Instruction manual Firmware



Feel free to contact us if you need any AT Command Newest Firmware datasheet hardware design windows drivers Linux Android drivers documents and so on



We can supply the customized PCB Board for SIM7000X





SIM7000X   eMTC( CAT-M1) Module



The SIM7000X is Multi-Band LTE-FDD module solution in aSMT type which supports LTE CAT-M1(eMTC) up to 375kbpsdata transfer.

It has strong extension capability with rich interfacesincluding UART, USB2.0, GPIO etc. The moduleprovides much flexibility and ease of integration for customer's application.

The package of SIM7000X is compatible with SIM900 and SIM800F. AT commands of SIM7000X are mostly compatible with SIM800F. This also minmize the investments of customers, and enables a short time-tomarket.

It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring , E-health, mobile pos terminals and sharing bike.



Product advantages



With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7000X can extend battery life to 10 years

SIM7000X provides deeper coverage enhancement compared to GSM

The package and AT commands of SIM7000X mostly are compatible with SIM900 and SIM800F.

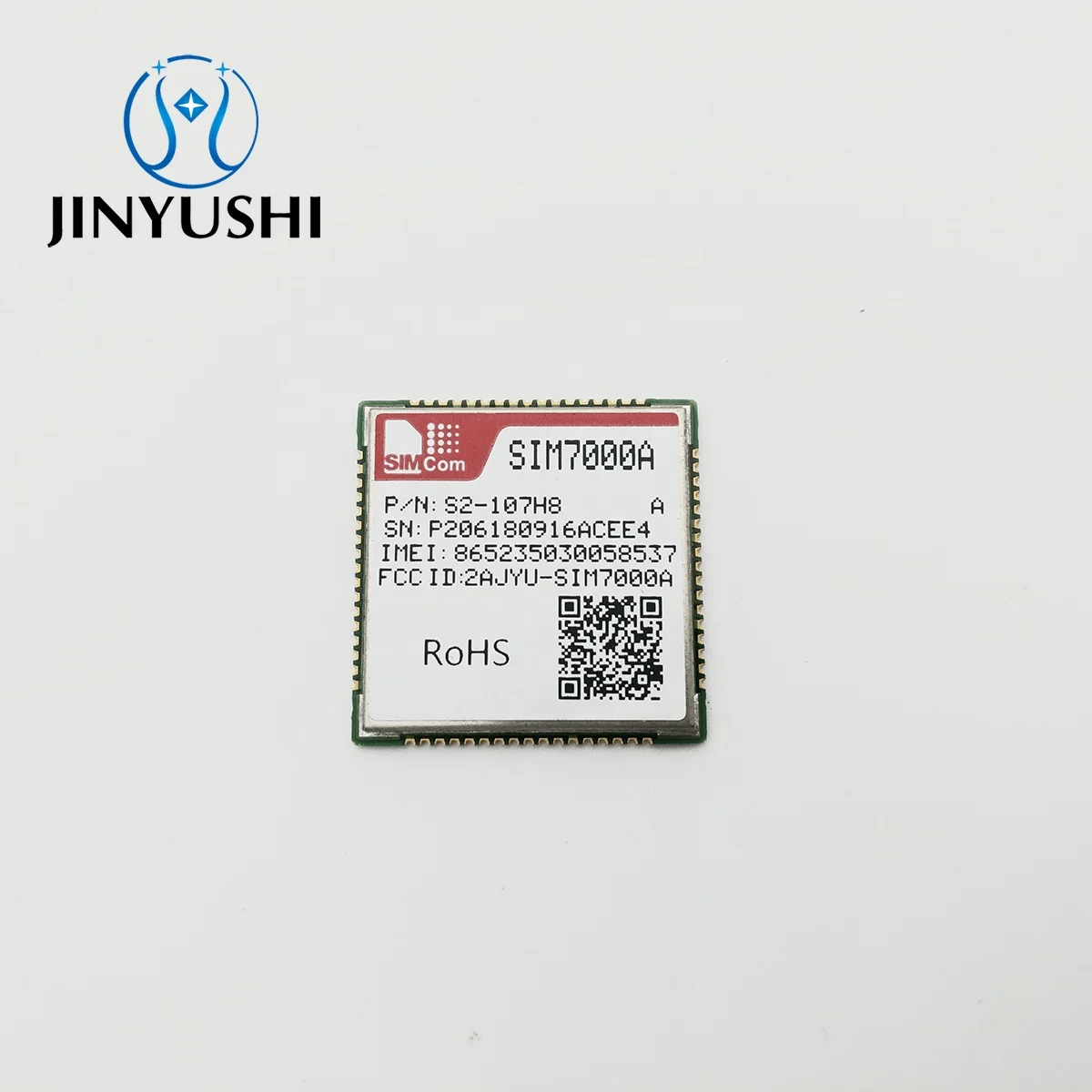

SIM7000A:

• Quad-Band LTE-FDD B2/B4/B12/B13

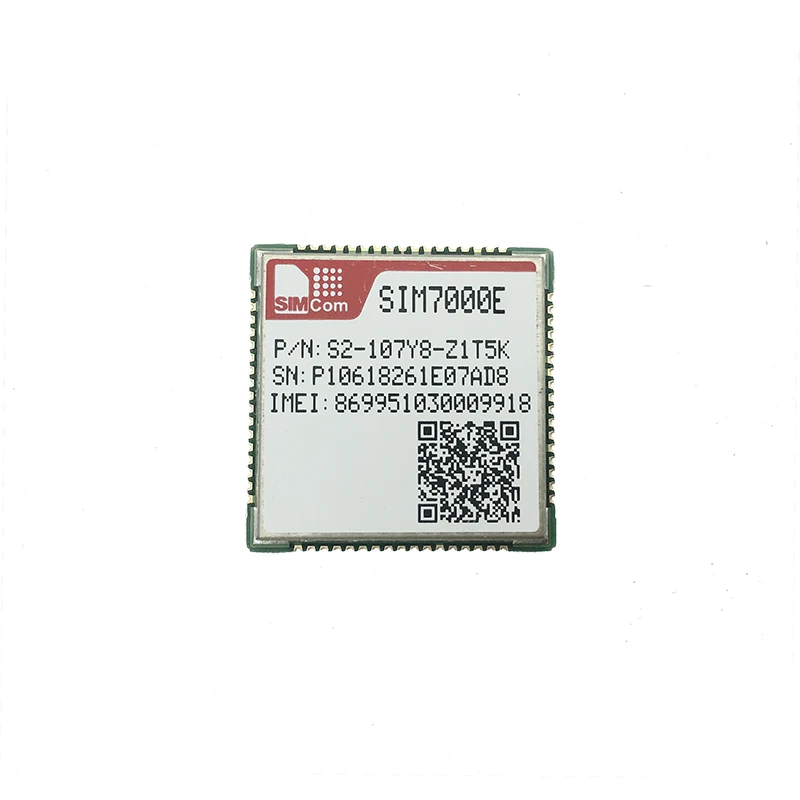

SIM7000E:

• Quad-Band LTE-FDD B3/B8/B20/B28

• GPRS/EDGE 900/1800Mhz

• Output power

   - GSM900: 2W

   - DCS1800: 1W

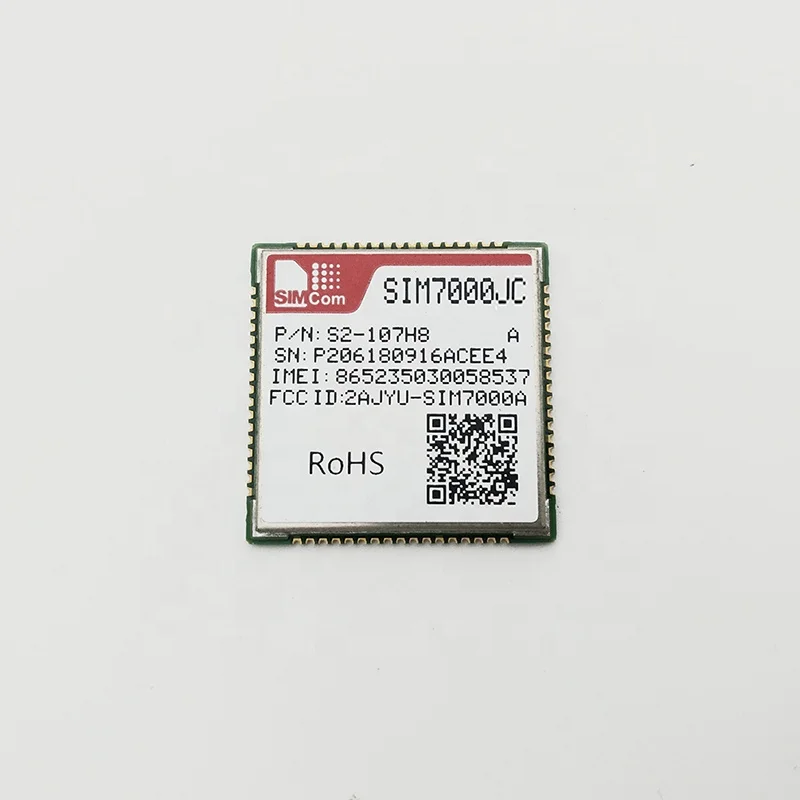

SIM7000JC:

Hept-Band LTE-FDD: B1/B3/B5/B8/B18/B19/B26



• Control Via AT Commands

• Supply voltage range:

   3.0V~ 4.3V,Typ:3.8V

• Operation temperature:

   -40℃ to +85℃

• Dimension: 24 x 24 x 2.6mm

• Weight: 3.0g

• GNSS (GPS,GLONASS )-SIM7000A

• GNSS (GPS,GLONASS,BeiDou and Galileo)-SIM7000E

• GNSS (GPS,GLONASS and BeiDou)-SIM7000JC



• USB Driver for Microsoft Windows XP/Vista/7/8

• USB Driver for Windows CE/Mobile

• USB Driver for Linux/Android

• Firmware update via USB

• TCP/IP

• UDP

• PPP

• SMS

• EMAIL

• FTP/HTTP/SSL

• VoLTE

• FOTA

• LTE CAT-M1(eMTC)

   - Uplink up to 375kbps,

      Downlink up to 300kbps

• NB-IoT

   - Uplink up to 66kbps,

      Downlink up to 34kbps

• EDGE Class

   - Uplink up to 236.8Kbps,

      Downlink up to 236.8Kbps

• GPRS

   - Uplink up to 85.6Kbps,

      Downlink up to 85.6Kbps



SMS

• Point to point MO and MT

• Text and PDU mode



Power

• Power off: 7uA

• PSM: 9uA

• Sleep: 1mA

• Idle: 11mA

Interface

• USB2.0  x1

   (high-speed)

• UART  x2

   (7-wire UART and 2-wire UART interface multiplex from GPIO)

• SIM card x1

   (1.8V and 3V)

• I2C x1

• GPIO x5

• ADC x1

SIM7000A

• RoHS

• REACH

• FCC

• Verizon

• PTCRB

• GCF(doing)

• AT& T(doing)



SIM7000E

• CE

• RoHS

• REACH



SIM7000JC:

• RoHS

• REACH

• Telec

• JATE



The SIM7000G is global-Band LTE-FDD,LTE-TDD and Quad-Band GPRS/EDGE  module solution in a LCC type which supports LTE CAT-M1(eMTC) and NB-IoT  up to 375kbps  data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0,  GPIO etc. The module provides much flexibility and ease of integration for customer's application.
The package of  SIM7000G is compatible with SIM900 and SIM800F. AT commands of SIM7000G are  mostly compatible with SIM800F. This also minimizes the investments of customers, and enables a short time-to-market.
It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring ,E-health , mobile pos terminals and sharing bike.

Product advantages



With  Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7000G can extend battery life to 10 years
SIM7000G provides deeper coverage enhancement compared to GSM
The package and AT commands of  SIM7000G mostly are compatible with SIM900 and SIM800F.

General Features

Global-Band LTE  CAT-M1:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B39;
Global-Band  LTE NB-IoT1:B1/B2/B3/B5/B8/B12/B13/B17/B18/B19/B20/B26/B28;
GPRS/EDGE  850/900/1800/1900Mhz
Control Via AT Commands
Supply voltage range: 3.0V~ 4.3V, Typ: 3.8V
Operation temperature: -40℃ to +85℃
Dimensions:  24 X 24 X 2.6mm
Weight: 3.0g
GNSS (GPS,GLONASS,BeiDou )



Date

LTE CAT-M1(eMTC)
- Uplink up to 375kbps, Downlink up to 300kbps
NB-IoT
- Uplink up to 66kbps, Downlink up to  34kbps
EDGE Class
- Uplink up to 236.8Kbps, Downlink up to 236.8Kbps
GPRS
- Uplink up to 85.6Kbps, Downlink up to 85.6Kbps



Specifications for SMS

 Point to point MO and MT
Text and PDU mode

Other Features





 USB Driver for Microsoft Windows  XP/Vista/7/8/10
USB Driver for Linux
Firmware update via USB
TCP/IP
UDP
PPP
SMS
MQTT
FTP/HTTP/SSL
FOTA
VoLTE( CAT-M1)
E-MAIL





Interfaces

USB2.0      x1     (high-speed)
UART         x2     (7-wire UART  and 2-wire UART interface multiplex from GPIO)
SIM card   x1      (1.8V and 3V)
I2C             x1
GPIO         x5
ADC           x1
PCM          x1

Consumption

  Power off: 7uA
  PSM: 9uA
  Sleep: 1mA
  Idle: 11mA



Certifications

  CE/FCC/GCF*/CCC*/RoHS/ REACH
