Unit type printing label sticker roll Flexo Printing Machine
- Category: >>>
- Supplier: Zhejiang Hongsheng Machinery Co. Ltd.
Share on (62410659009):
Product Overview
Description
Product Description

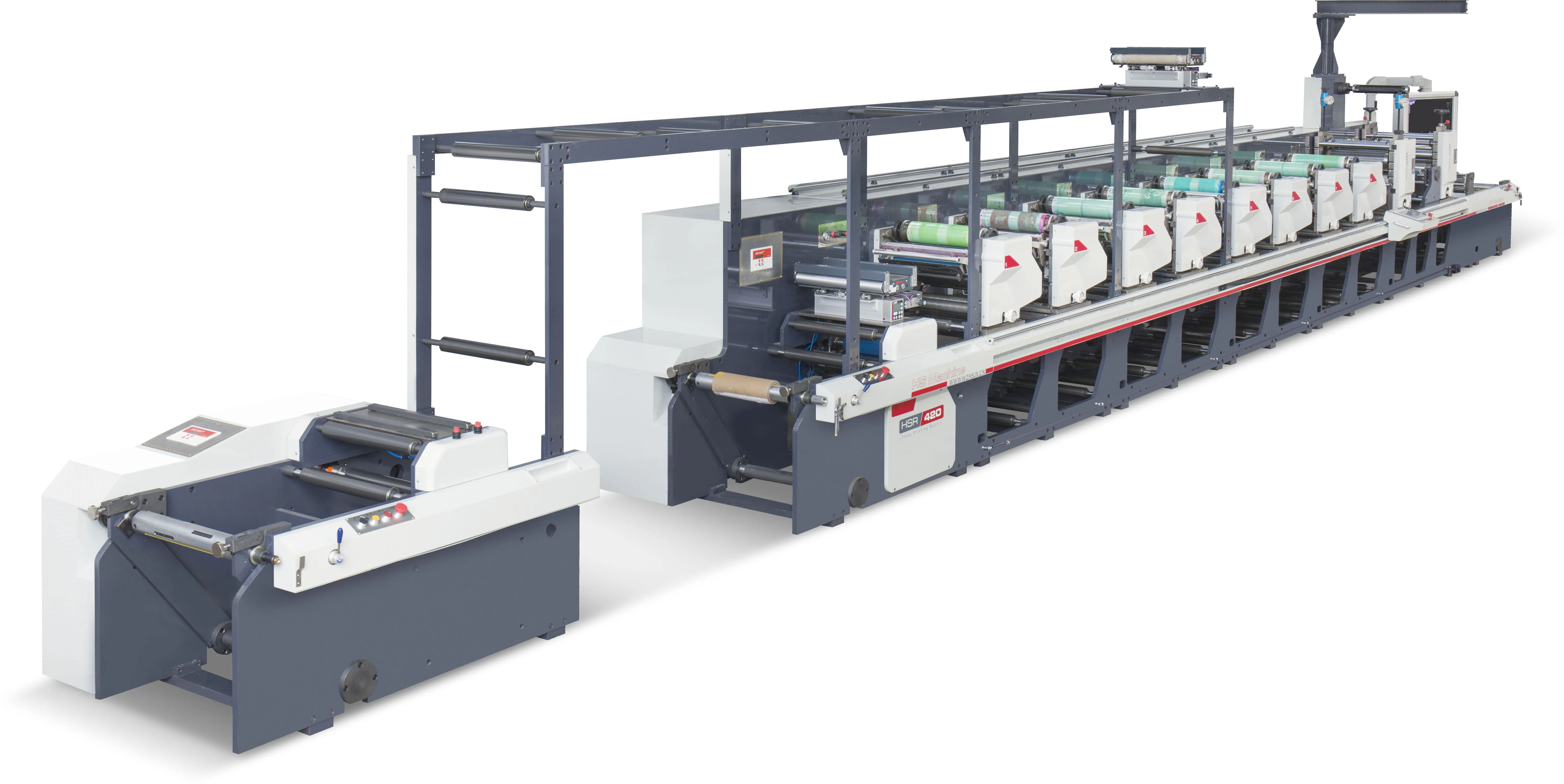

HSG 420s type machine special make for logistic label.
unit type flexographic printing machine (DRUM type) adopts the latest servo control system YASKAWA from JAPAN. Each printing unit is driven by double servo motor . Machine adopts 14 servo motors for 8 colors printing with 2- Die cutting stations， which ensure the accurate registration during high speed running.
Printing cylinder adopts pillow installation,material is aluminum alloy,high-precision helical gear transmission, simple and easy operation.
the adjustment of pressure to printing and ink transfer : printing roller adopt rolling pillow, only need to fine- tune the corresponding support frame on both side. when change new printing cylinder no need big adjustment . some special printing requirement only need a little fine tuning more that the printing efficiency will be improved greatly.
Anvil roller equipped with water chiller , ensuring unaffected by UV curing temperature when the machine printing film material .
Unwinding unit equipped with corona , dust, Anti-static system,ensure the stability before printing.
printing process equipped with high precision Germany BST web guiding system and video inspecting system , to provide protection when the label printing
Machine option LED -UV energy conservation and environmental protection.
Double material road design
Printing unit is intercalation design, can interchange to offset unit.
Model | HSG-420s |
Max. printing speed | 150m/min |
Max. web width | 430mm |
Max. printing width | 420mm |
Max .unwind diameter | 1050mm |
Max. exhaust diameter | 900mm |
Max. repeat length | 254-609.6 |
Loading method | tumble type |
Horizontal overprint adjustment | manual |
Longitudinal overprint control | 360°servo drive |
Preliminary overprint | Automatioc |
Fast changing ink system | Ink swift change |
Hot air drying | Option |
Cold wave process (movable) | Option |
Flip agencies(movable) | Option |
LED UV | Option |
Lubrication way | Automatic |
Packing&Shipping
Our engineer can be available to service machinery overseas.
1)Machines with good quality in one year, life-long maintenance
2)We have many machines can be throughed via the Internet, solve customer requirements in a timely manner.
3)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
4)Undertake various non-standard machinery, solve the customers' requirements.
1)Machines with good quality in one year, life-long maintenance
2)We have many machines can be throughed via the Internet, solve customer requirements in a timely manner.
3)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
4)Undertake various non-standard machinery, solve the customers' requirements.
Company Introduction
Zhejiang Hongsheng Machinery Co., Ltd. is located in Feiyun Industrial zone, with convenient
transportation.
Many elites in research, design, production and sales have been engaged in our company. Therefore, our
products remain superior, efficient and innovative. In addition, we have a very good procurement team that
can help us find better resources and suppliers and reduce our machine costs. It makes our prices more
reasonable and more competitive.
We produce a variety of machine, such as die cutter, slitter, rewinder, label inspector. What is worth
mentioning is our honor products, sleeve flexographic printing machine and flower petal flexographic printing
machine. There is a very large and experienced team of designer and engineers working on these machines.
Therefore, for these two flexo printers, we’ve achieved great success that the quality of printing is very high.
We have been selling our products to India, Middle East, Southeast Asia & South America. Our total
export amount was about 800,000.00 US dollars in 2017. Besides, all of our products have passed the CE and
ISO9001 QMS certification.As for our customers, we have an experienced team to assist all of our clients to purchase more useful and more suitable machines. They can respond to every inquiry rapidly, gently and patiently. We also have a
very robust system and clause in after sales. We have a permanent responsibility for every machine we produce.
We’re here confident to be your smartest choice, and wait for your needs.
transportation.
Many elites in research, design, production and sales have been engaged in our company. Therefore, our
products remain superior, efficient and innovative. In addition, we have a very good procurement team that
can help us find better resources and suppliers and reduce our machine costs. It makes our prices more
reasonable and more competitive.
We produce a variety of machine, such as die cutter, slitter, rewinder, label inspector. What is worth
mentioning is our honor products, sleeve flexographic printing machine and flower petal flexographic printing
machine. There is a very large and experienced team of designer and engineers working on these machines.
Therefore, for these two flexo printers, we’ve achieved great success that the quality of printing is very high.
We have been selling our products to India, Middle East, Southeast Asia & South America. Our total
export amount was about 800,000.00 US dollars in 2017. Besides, all of our products have passed the CE and
ISO9001 QMS certification.As for our customers, we have an experienced team to assist all of our clients to purchase more useful and more suitable machines. They can respond to every inquiry rapidly, gently and patiently. We also have a
very robust system and clause in after sales. We have a permanent responsibility for every machine we produce.
We’re here confident to be your smartest choice, and wait for your needs.
Our Services & Strength
A free service to creat trust between you and us
1. Know who you're dealing with.
2. Enjoy comprehensive protection 100% product quality protection,100% on-time shipment. protection,100% payment protection for
your covered amount.
3. Rate and influence your suppliers..
1. Know who you're dealing with.
2. Enjoy comprehensive protection 100% product quality protection,100% on-time shipment. protection,100% payment protection for
your covered amount.
3. Rate and influence your suppliers..
FAQ
1. your company is a manufacture or a trading company?
We are a manufacturer.
2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the
L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there?
Our factory located in Ruian city, the nearest airport is WENZHOU airport, the nearest train station is RUIAN city. If you need,
we can we pick you up from airport or train station.
4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,
hotel and transport, pay our engineer 100 usd / day / person as salary.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life
service, buyer pay for the material cost of exchanging spare parts and repairing.
We are a manufacturer.
2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the
L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there?
Our factory located in Ruian city, the nearest airport is WENZHOU airport, the nearest train station is RUIAN city. If you need,
we can we pick you up from airport or train station.
4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,
hotel and transport, pay our engineer 100 usd / day / person as salary.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life
service, buyer pay for the material cost of exchanging spare parts and repairing.
