Product Overview

Description



Product Description

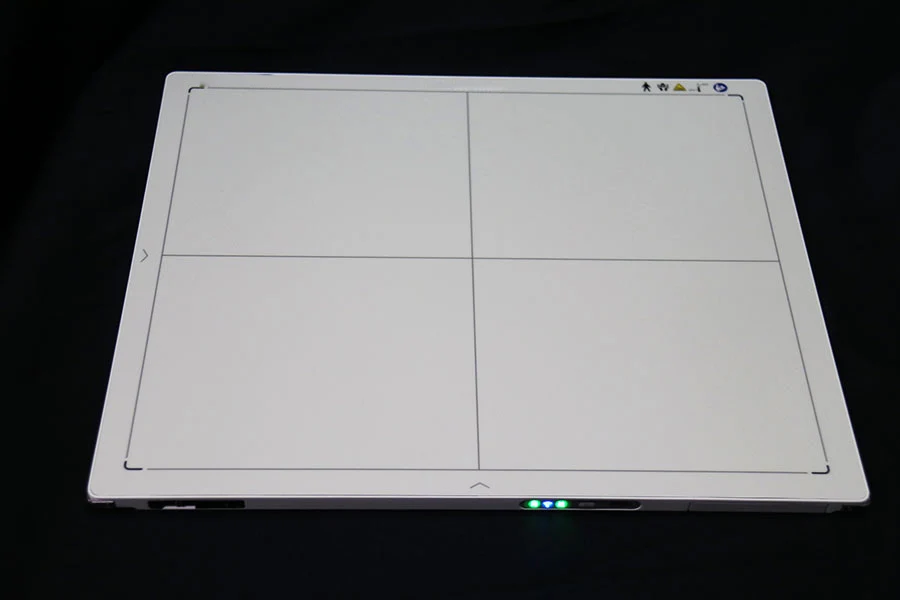

MSLFP03 is a 14x17 cassette-size wireless portable flat panel detector designed for Human used digital radiography.

Ø Fast workflow
Ø More image details
Ø Excellent image quality
Ø Cassette-size flat panel detector




Contact with me:+86 13657961088 Rainbow


Specs and Details Images




Detector Technology
Amorphous Silicon
Scintillator
CsI
Active Area
345.6mm x 420mm
Number of Pixels
2304 x 2800
Pixel Pitch
150 um
AD Conversion
16 bit
Trigger Mode
AED/Software
Data Interface
Ethernet/WiFi(802.11ac)
Dimension
384mm x 460mm x 15mm
Weight
3.6 kg
Drop Height
120cm
Static Loading
150kg Uniformly
Battery Capacity
5 h




Sensitivity(LSB/uGy)
Typ.750
Maximum Linear Dose(uGy)
Typ.60
MTF @ 1.0 LP/mm (Typ.)
68%
MTF @ 2.0 LP/mm(Typ.)
40%
MTF @ 3.0 LP/mm(Typ.)
22%
DQE @ 0 LP/mm(2.5uGy@RQA5, Typ.)
69%
DQE @ 1.0 LP/mm(2.5uGy@RQA5, Typ.)
52%
DQE @ 2.0LP/mm(2.5uGy@RQA5, Typ.)
36%
Limiting Resolution (without phantom or grid)
3.6 lp/mm




Trigger Mode
AED/Software/Prep
Preview Acquisition Time
Typ.3s
Full Image Time
Typ.5s
Cycle Time
Typ.8s








Feedback and related products






Packing&Shipping




Certificates




After Sales Service


After-sale service
1.Within guarantee period: Supply all-free repair and maintenance . For small problems, we can provide remote guidance and send the buyer free spare parts. For big problems that cannot be solved by buyer himself, we will recall the machine and repair it in our company. Spare parts my company provide for free.
2. Beyond warranty period, for small problems, we can also provide remote guidance, and the buyer only need to pay for the cost of the spare part and express fee. For big problems that cannot be solved by the buyer, we will recall the machine and repair it in our company. The clients are responsible for the transport and repair expenses.
