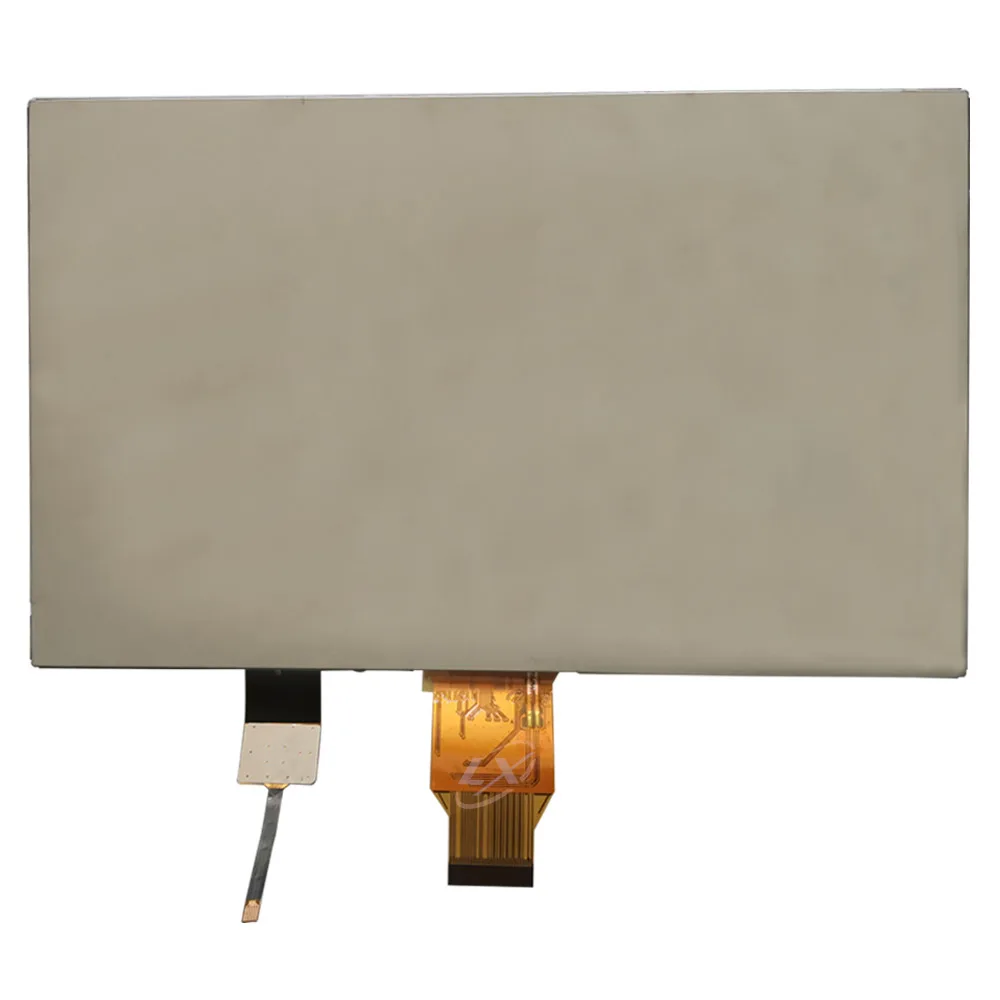

10 inch tft with capacitive touch panel 1024X600 TN type Tft Lcd Touch Display Panel with LVDS interface

Product Overview

Description

10 inch tft with capacitive touch panel 1024X600 TN type Tft Lcd Touch Display Panel with LVDS interface



Item	Contents	Unit
LCD Type	TFT TRANSMISSIVE	/
Viewing direction	6H	O' Clock
Module outline (W x HxD)	234.50(W) * 142.0 (H) * 4.80(T)	mm
Active area (WxH)	222.72(W) * 125.28(H)	mm
Number of Dots	1024(RGB) x600	/
Driver IC	-	/
Backlight Type	30 LEDs	/
Interface Type	4 LANE LVDS	/
Input voltage	2.8	V
Touch Panel Information
Touch Panel Type	Capacitive touch panel
CTP Structure	G+G
Working Voltage	2.8V-3.3V
Transparent rate	≥90%
Surface Hardness	≥6H
Operation Tem.	-10℃~+60℃
Storage Tem.	-20℃~+70℃





OUR MAIN ADVANTAGES:

1. The leaders in LianXun owns an average of 8-12 years experience in the LCD and LCM industries.

2. We are always striving to provide reliable and cost-effective products by our advanced equipments and rich resources. Meanwhile, our timely delivery, outstanding producing ability, stringent quality control systems are making Lianxun one of the top suppliers of LCD Modules in China.

3. We have strong R&D capabilities, responsible staffs, and sophisticated manufacturing experience, which all enable us to design, develop, produce LCMs and provide all-round service according to customers' requirements.

4. We have provided our products to customers over 20countries and regions across China, Korea, Japan, Malaysia, Brazil, Europe and North America.

QUALITY CONTROL

We are ISO9001:2008 and also ISO9001:2015 Certified company. We've been adhering to the standards strictly in our production. We provide environmentally-friendly products compliant with EU requirements: ROHS and CE.

Our products are 100% Visual and Function test before shipments. Meanwhile, All our products must pass necessary tests, Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop and Vibration Test. Our experience and proficiency make the qualification rate always being 99.7% or above.





Moreover:
   1. The leaders in LianXun owns an average of 8-12 years experience in the LCD and LCM industries.

   2. We are always striving to provide reliable and cost-effective products by our advanced equipments and rich resources. Meanwhile, our timely delivery, outstanding producing ability, stringent quality control systems are making LianXun one of the top suppliers of LCD Modules in China.

   3. We have strong R&D capabilities, responsible staffs, and sophisticated manufacturing experience, which all enable us to design, develop, produce LCMs and provide all-round service according to customers' requirements.

  4. We have provided our products to customers over 20 countries and regions across China, Korea, Japan, Malaysia, Brazil, Europe and North America.

WIN -WIN



FAQ

Q1. Can I have a sample order?
A: Yes, sample order is always welcome for new projects or as replacement of running projects.

Q2. What is the lead time for Sample order and Mass Production order?
A:
For LX standard products, the lead time for samples are usually 1-7 days.
For Customized products, it depends on the change requirements for FPC, Backlight…
For Mass production, we usually make delivery among 2-8weeks, special size may need some longer time. In summary, based on our years of big output, we have been keeping good relationship with Taiwan LCD panel and IC suppliers, we had a steady supply even when there was heavy shortage of materials.

Q3. Do you have any MOQ?
A: Yes, it depends on different sizes of products. Please refer to our sales. Thanks.

Q4.How long is the warranty?
A: Usually 12 Months. If there is any defect upon using within the warranty period, we require our clients to return the goods to us, with shipping cost paid by us.

Q5. How do I work with you on Customized products?
A: At the beginning please provide us any drawing , Specification, any special requirements…? Our engineers will work on the compatible solution and also moulds cost if any. ? We provide samples for approval. ? We make modification if necessary. ? We do small quantity of trial order. ? We do mass production.

Q6. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. While it requires MOQ, please refer to our sales, thanks.
