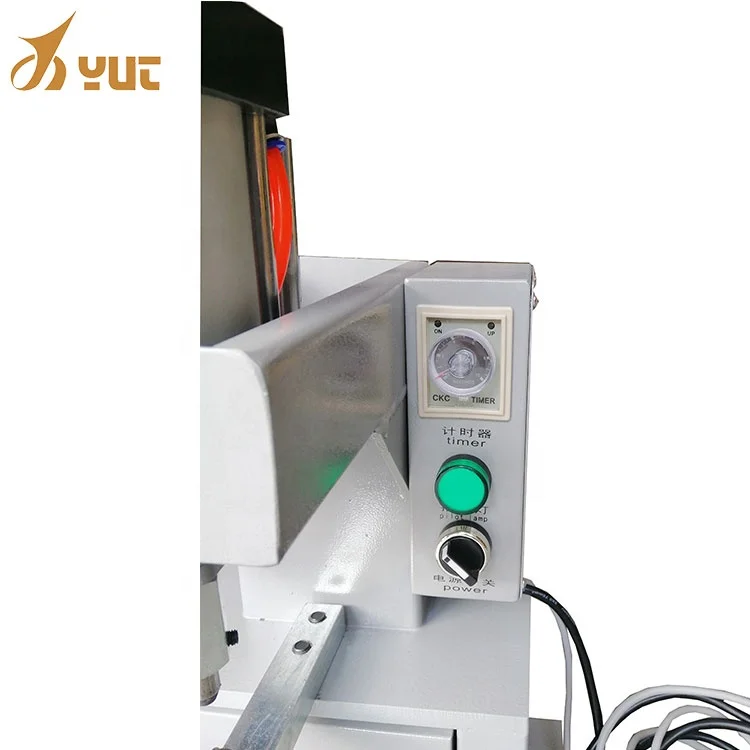

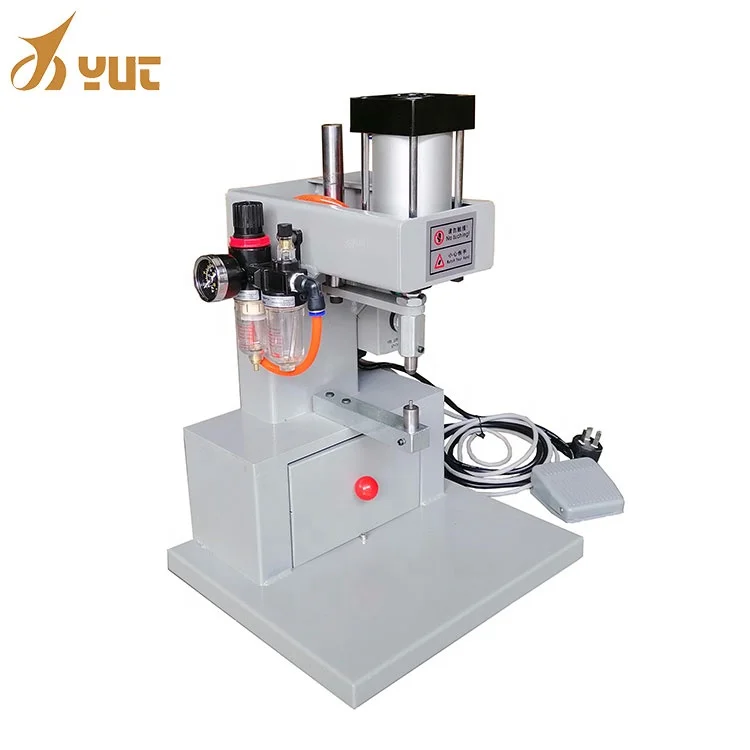

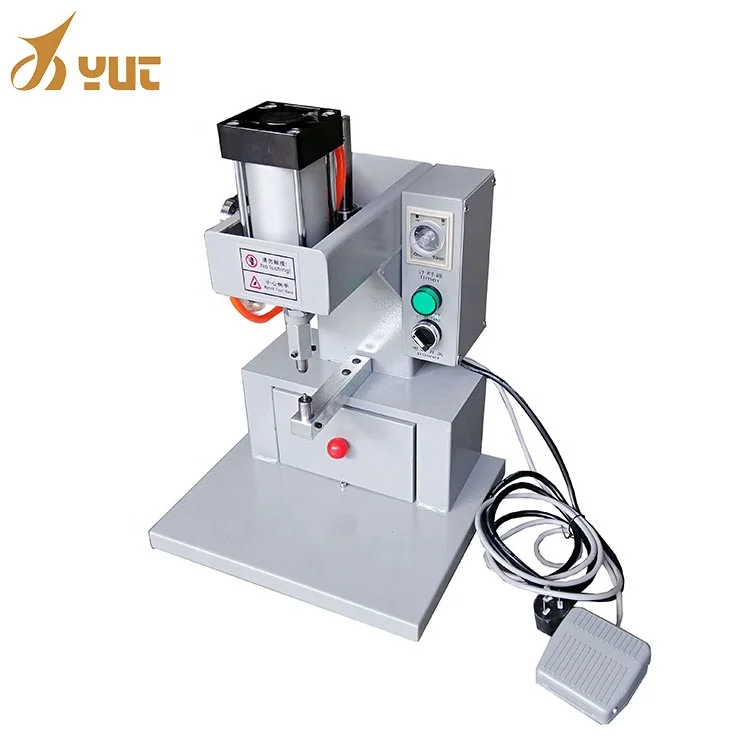

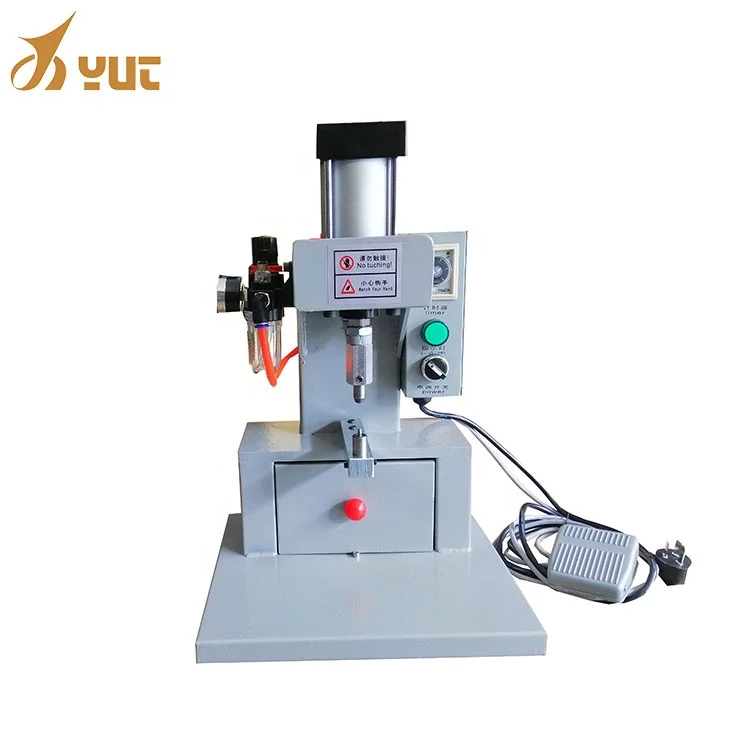

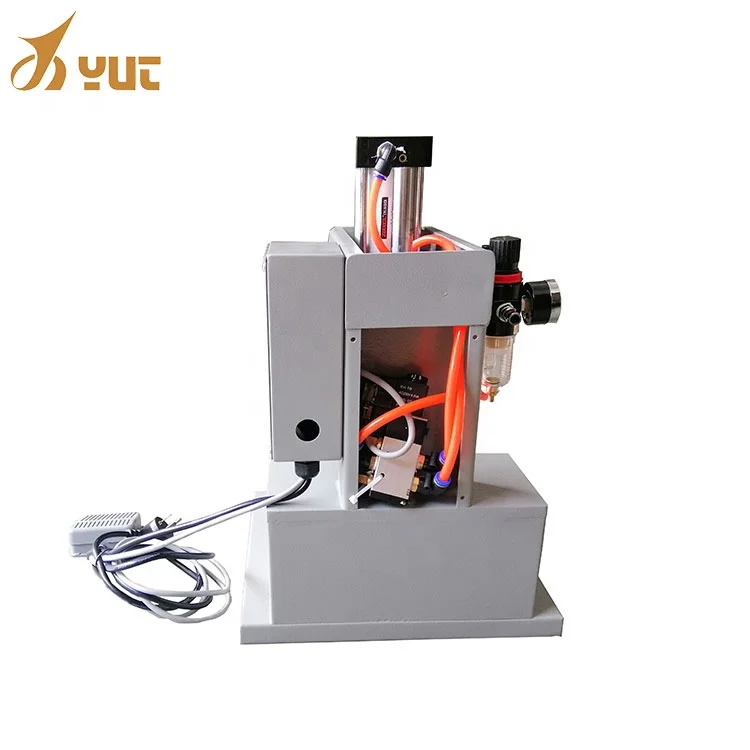

YT 08S Manual Eyelets Punching Grommet Machine
- Category: Other Shoemaking Machines >>>
- Supplier: Foshan City Yutai Machinery Automatic Technology Co. Ltd.
Share on (62410740263):
Product Overview
Description
Yt-08s Manual Pneumatic eyelets punching grommet machine
| Main Function |
Eyelet fixing machine is widely used in the binding and riveting of inkjet advertisements, suitcases and bags, leather belts and waist belts, clothing leathers, stationeries and lighting decorations, particularly tents and rain gears..
| Product Information |
| Number | YT-403 | YT-256 | YT-08S | YT-989 |
| Name | Automatic Pneumatic Shoes Making | Semi-automatic Pneumatic Heel Nailing Machine | Pneumatic Eyelet Grommet Machine | Automatic Eyeleting Machine |
| Power | 0.1KW | 0.1KW | 0.1kw | 2.7KW |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50HZ | 220V/50Hz |
| Type | Full-automatic | Semi-automatic | Pneumatic | Full-automatic |
| Air Pressure | 0.5-0.6Mpa | 0.6MPa | 4-6Mpa | |
| N.W | 365KG | 220KG | 20kg | 160KG |
| G.W | 450KG | 350KG | 35kg | 220KG |
| Dimensions | 900*850*2180mm | 750*800*2100mm | 380*450*780mm | 550*600*1430mm |
| Packaging Size | 1120*1080*2330mm | 770*820*2180mm | 400*500*880mm | 600*650*1600mm |
| CBM | 1.67m³ | 1.26m³ | 0.13M³ | 0.47M³ |
| Production | / | 1500-2000 pairs/ 8 hours | 500 Pairs/8hrs | 1000-1500 pairs/ 8 hours |
| Other | Pin number: 8 Exhaust volume: 300dm³/min | / | Custom Die size:6mm, 8mm, 9mm, 10mm, 12mm, 14mm | Eyelet flange dia: φ6-13mm φ3-8mm 3-8mm |
| Application | men's and womens shoes | men,women's and children's shoes. | binding and riveting of inkjet advertisements, suitcases and bags, leather, belts, stationeries and lighting decorations, particularly tents and rain gears. | attach hollow rivets to labels, clothing, shoes, belts, handbags, plastic products, paper materials, etc. |
| Product Display |

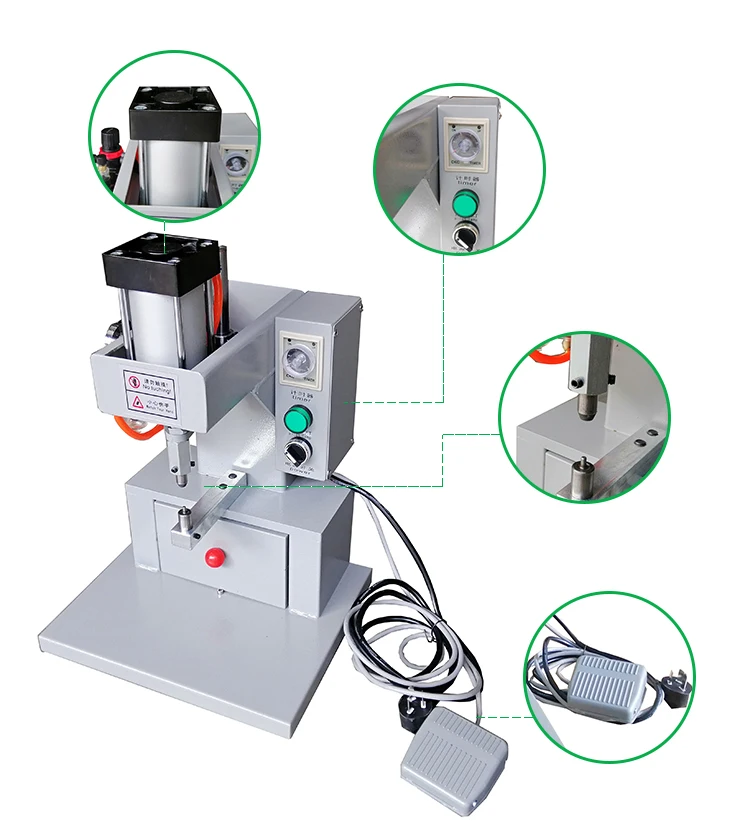

Features
1.Pneumatic style, Manual grommet feeding.
2.The machine can punch along the leather freely in fast speed .
3.The eye button punched by this machine is very firm and hard to turn .
4.According to various eyelet can choose the moulds, accurate riveting.
5.The machine adopts pneumatic structure,Air pressure can be adjusted at will, energy saving and noiseless.
6.It's movving easily instead of standing on the fixing floor.
Related Product
| Cutting Machine | YT-116 | YT-526 | YT-527-30T | |
| Leather, artificial leather, cloth, rubber sheets, bags, etc. | Non-metallic materials such as leather, plastic, foam, cloth, cardboard, synthetic fiber, etc. | Leather, rubber, plastic, cardboard,Cloth and other materials | ||
| YT-525-20T | YT-818A-420 | YT-988 | ||
| leather, plastic, flooring, cork, etc. | shoe, purse, luggage, leather split | joints for shoes, bags, clothing, Pvc, pu, natural leather and fabrics | ||
| Press Machine | YT-2005SD cover | YT-01S | ||
| manual hood sole | leather sports high heels shoes | sports casual high-top and riding boots | rolling of the sneaker tongue | |
| YT-2006 barrel | YT-700 | |||
| sports shoes, casual shoes and other rubber outsole shoes | sports shoes, casual shoes | sports shoes, casual shoes | shoe upper | |
| Lasting Machine | ||||
shoe last grasping | Toe Lasting | auto back tacking | ||
| YT-860 |
| ||
hydraulic shoe heel lasting | / | toe lasting | hydraulic toe lasting --9 Pincers | |
