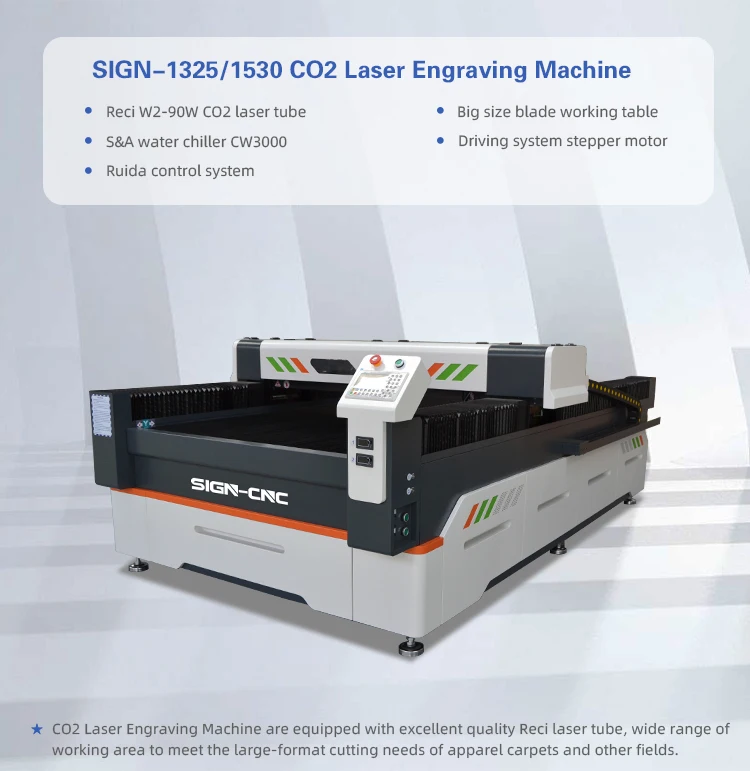

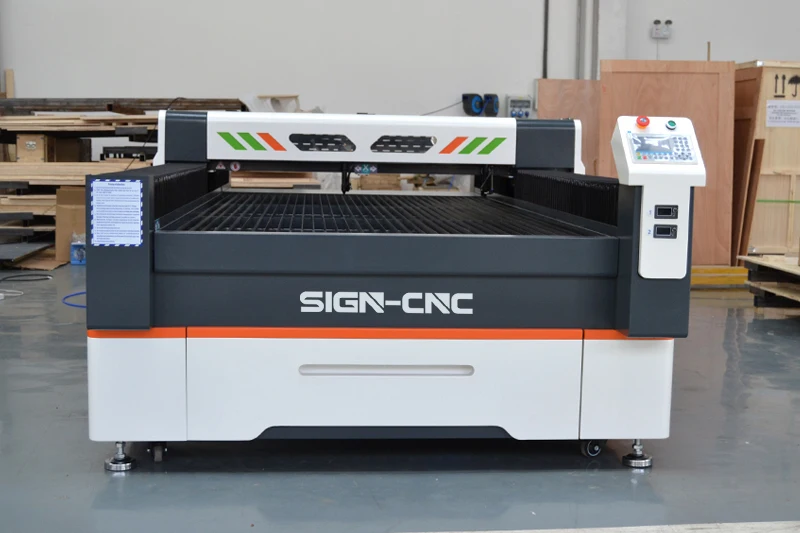

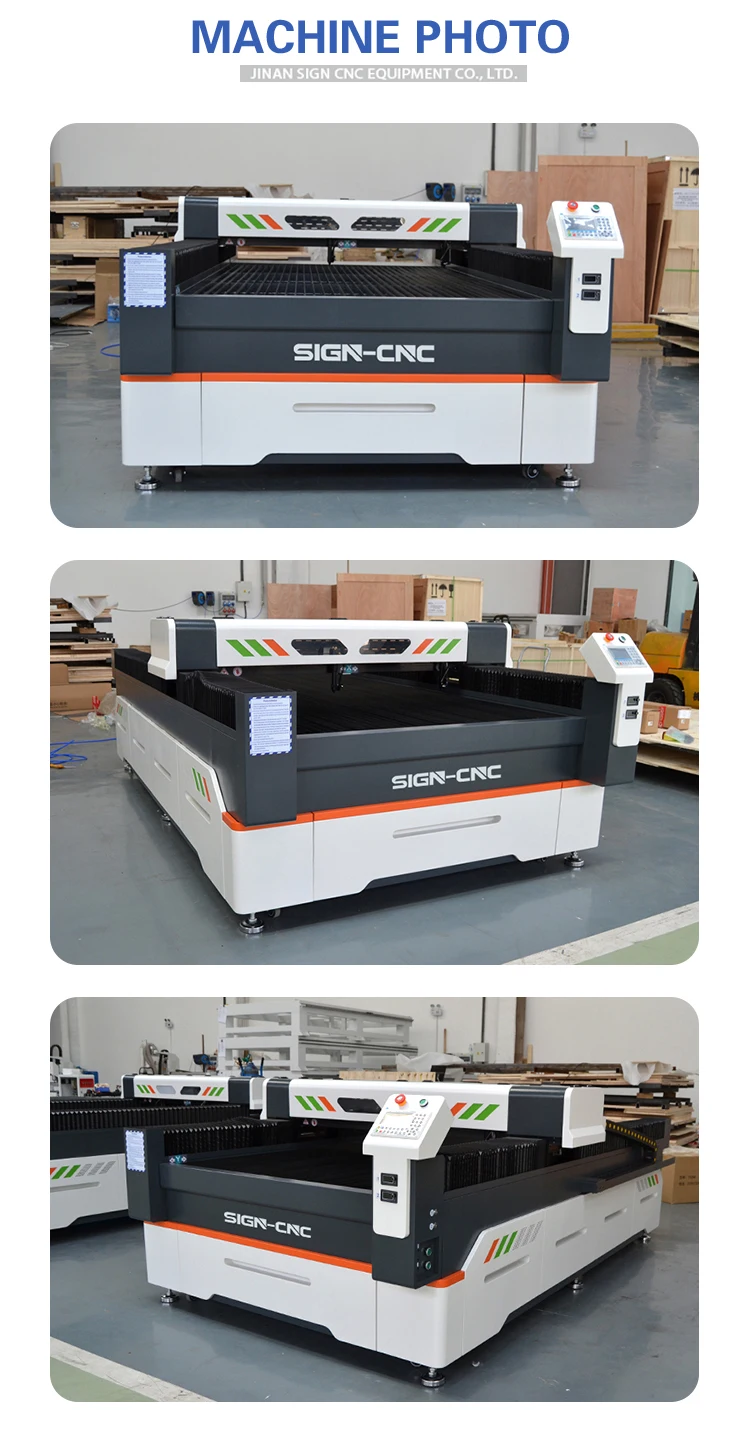

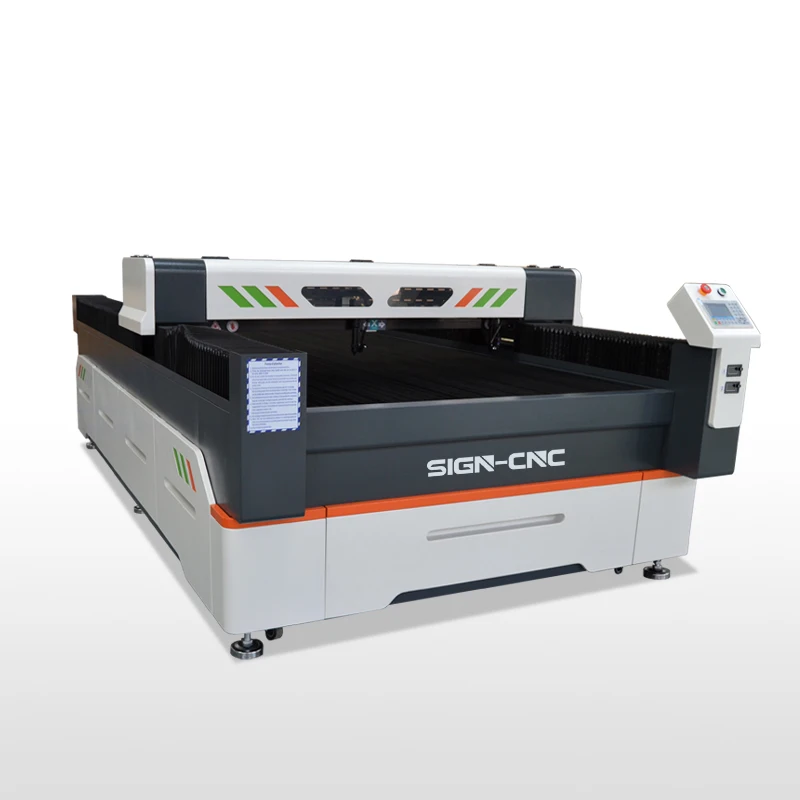

Sign Cnc Laser Machine Mdf Acrylic Stainless Steel Carbon Steel Sheet Metal Mixed Co2 Laser Metal Cutting Machine

Product Overview

Description

SIGN CNC laser machine mdf acrylic stainless steel carbon steel sheet metal mixed co2 laser metal cutting machine:

Different power 150W 280W 300W

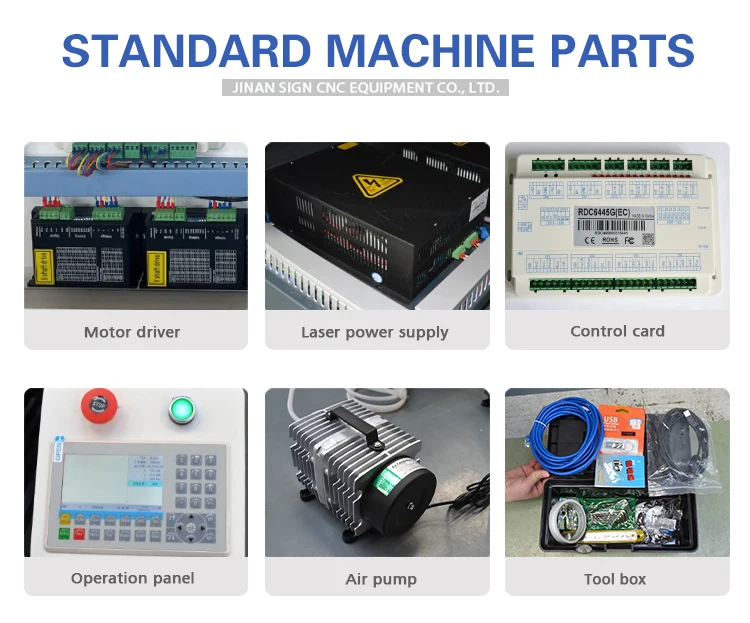

CNC laser machine parts:

1.---Hiwin Square guide rail

2.---Leadshine Stepper motor and driver

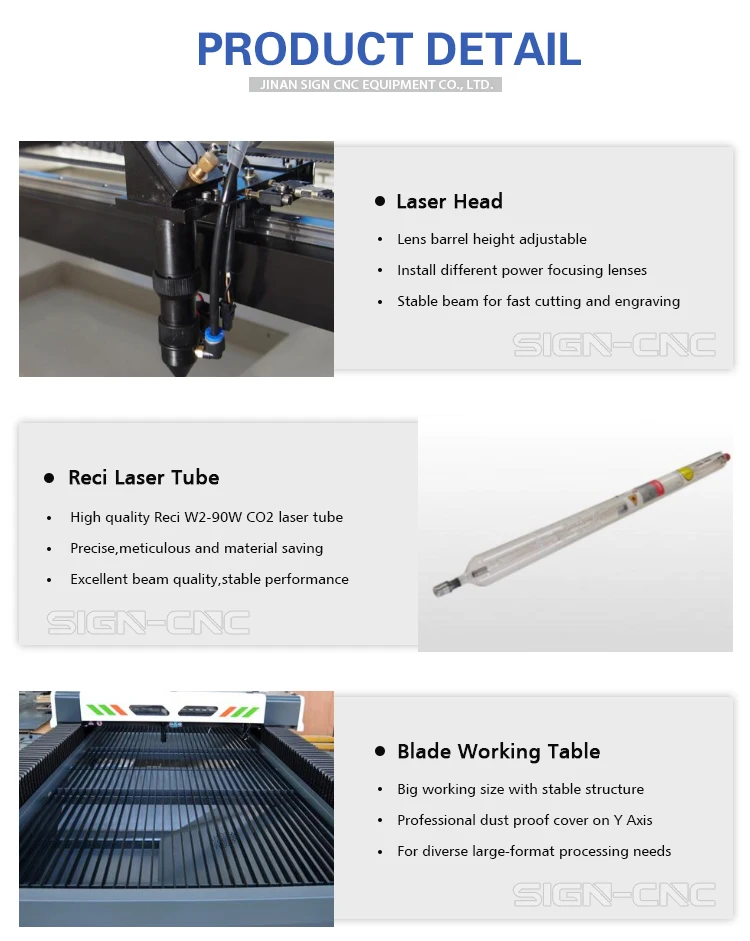

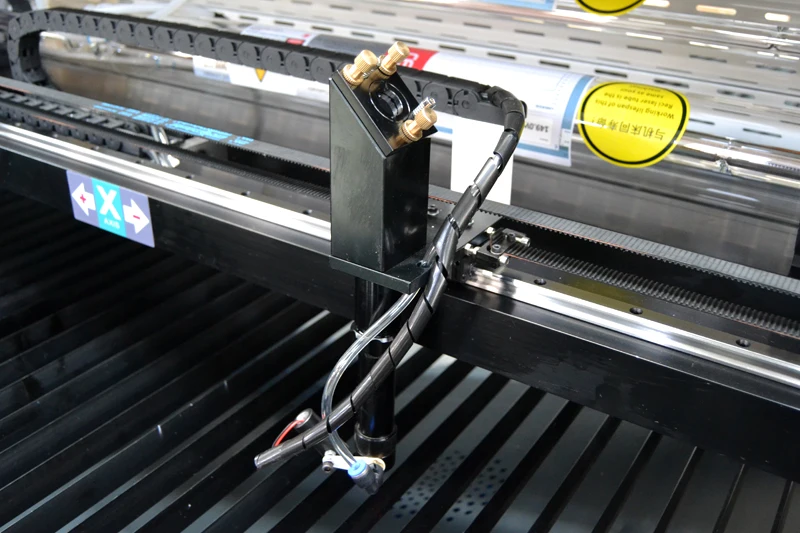

3.---Laser head with auto-focus

4.---Ruida control system

5.---Control panel (off line control panel)

6.---Control card

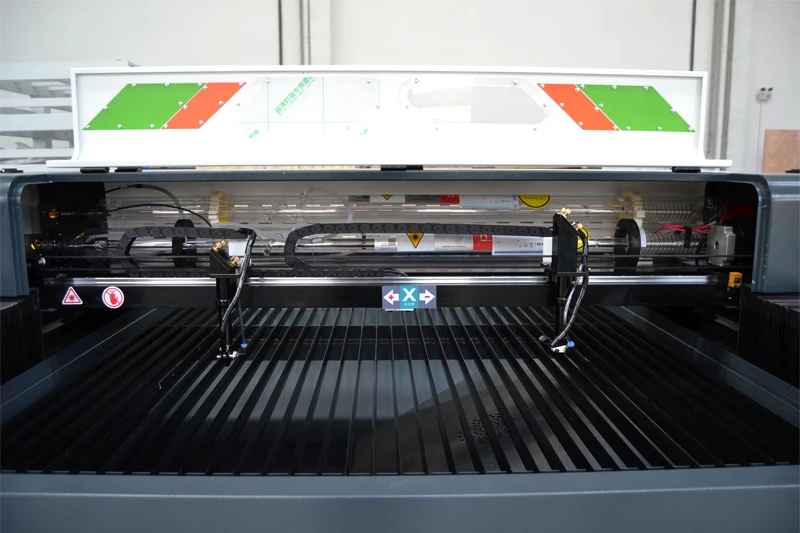

7.--- 150W / 280W / 300W laser tube

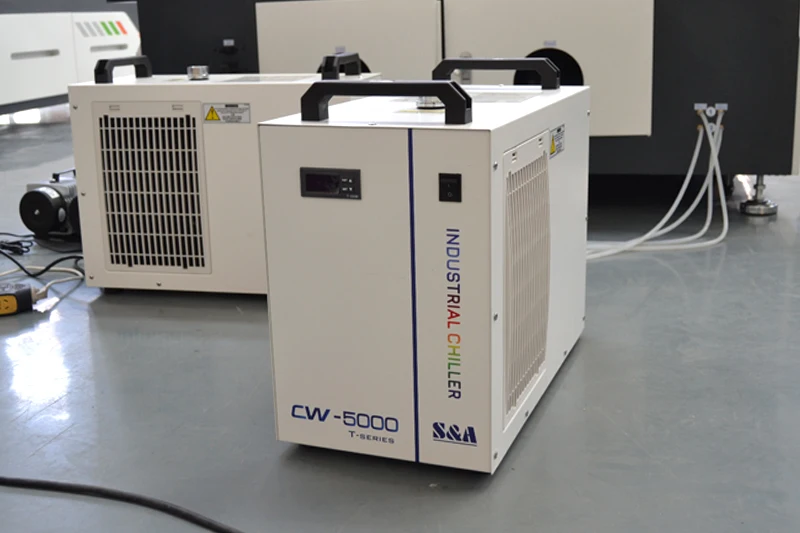

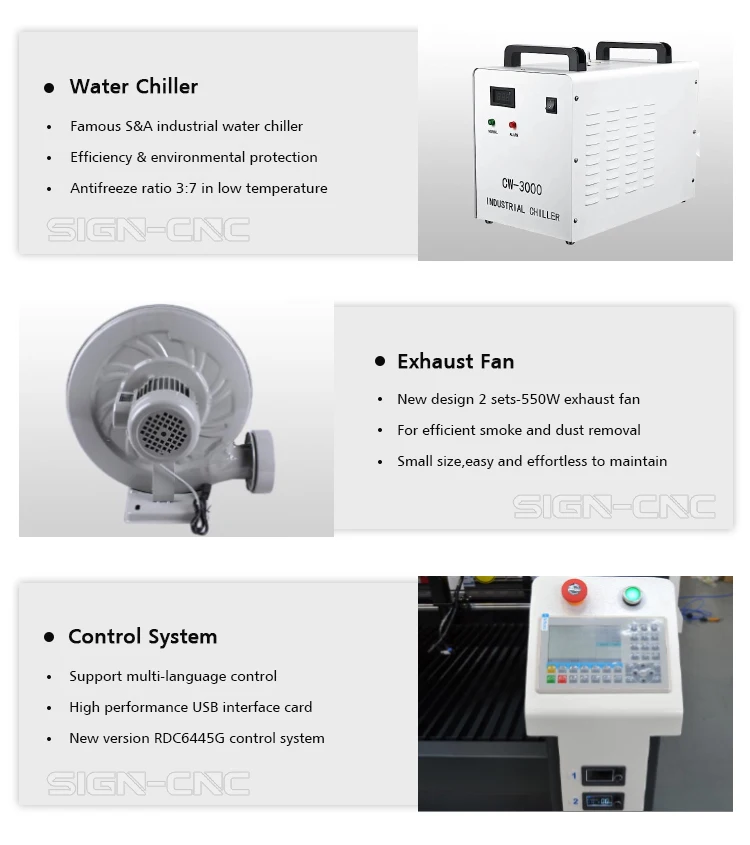

8.---Water pump or water chiller CW5200/CW6000

9.---Air pump

10.--Laser power supply

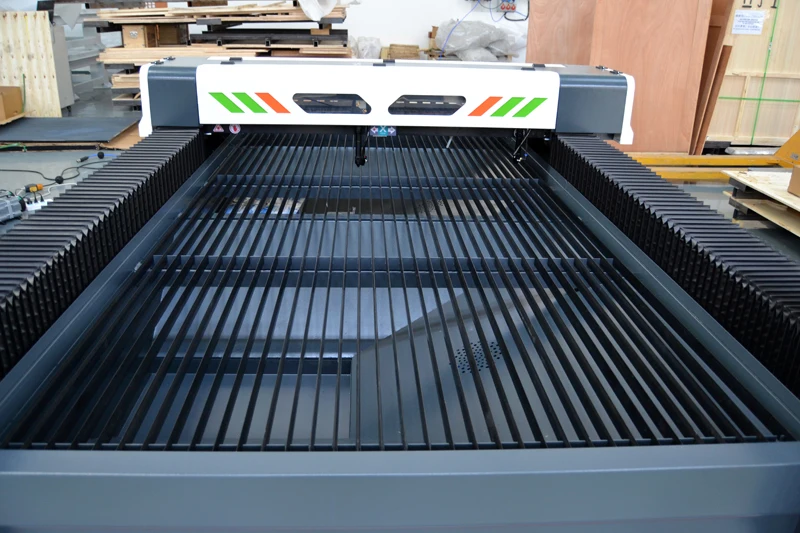

11.--Blade working table

12.--Suction system (exhaust fan)

13.--USB and PC port

14.--Singapore lens and mirror

15.--Tool box



Option parts:

- 260W and 300W

- Servo motor and driver and Ball screw

- Honeycomb table

- Rotary



Applicable Industries:

Advertising words making, Furniture industry, Model industry,Decoration,Electronics, Advertising, Embroidery, garments, label processing, arts and crafts, etc.



Applicable Materials:

Metal cutting, like stainless steel, carbon steel, Titanium plate, Galvanized sheet and so on. Non-metal materials such as label, rubber, marble, granite glass, tiles, paper boards, leather, embroidery, PVC,acrylic, plastic, MDF, wooden plates, garment and paper ware etc.



Technical Parameters:

Model	SIGN-1325
Cutting area	1300x 2500mm
Laser power	150W / 280W / 300W
Laser type	CO2 sealed laser tube,water-cooled
Working life of laser tube	More than 8000 hours
Engraving speed	0-60000mm/min
Resolution ratio	≤0.0125
Laser Output	1-100%software setting
Resetting positioning accuracy	≤±0.01mm
Power supply	AC 110 - 220V ± 10%, 50 - 60Hz
Operating temperature	0 - 45°C
Operating humidity	5 - 95%
Min. shaping character	English 1.0mm x 1.0mm
Graphic format supported	BMP, PLT, DST, DXF, AI
Software supported	Tajima, CorelDraw, Photoshop, AutoCAD
Driving system	Stepper motor and belt (servo motor and ball screw is option)
Cooling mode	Water-cooling by water chiller CW5200
Packing Dimensions	2300x1850x1380mm
Net Weight	1300kg
Optional Parts	Servo motor and ball screw, rotary, honeycomb table
Recommended   Spare Parts	Laser   Tube and Lens



Samples display:



Packing & Shipping

All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case( The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.



Warranty and Service:

1 Two year warranty for machine

2 We offer online service 24 hours all day Skype, Email and so on.

3 You can contact us any time,if urgently,please call us.

4 English manual and Video CD for machine using and maintenance.
