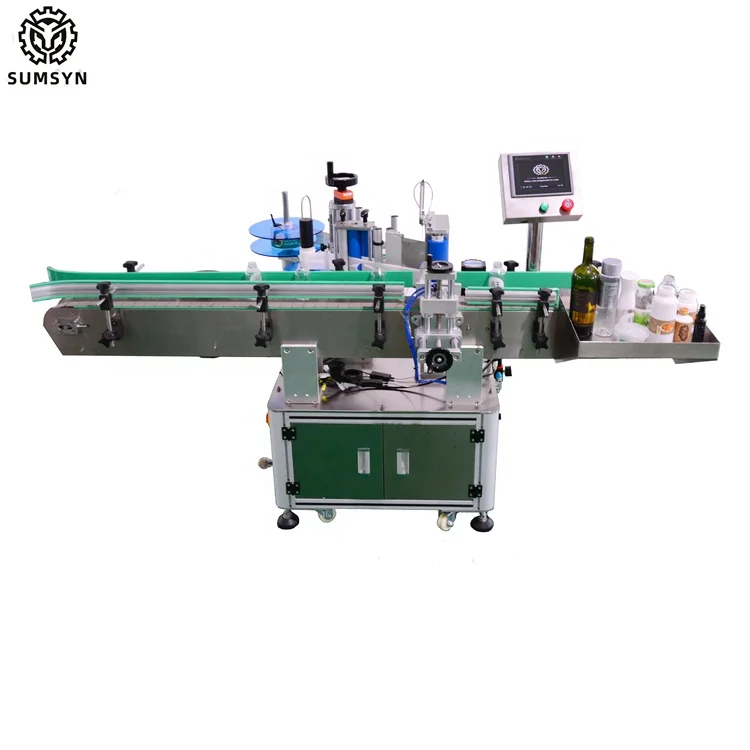

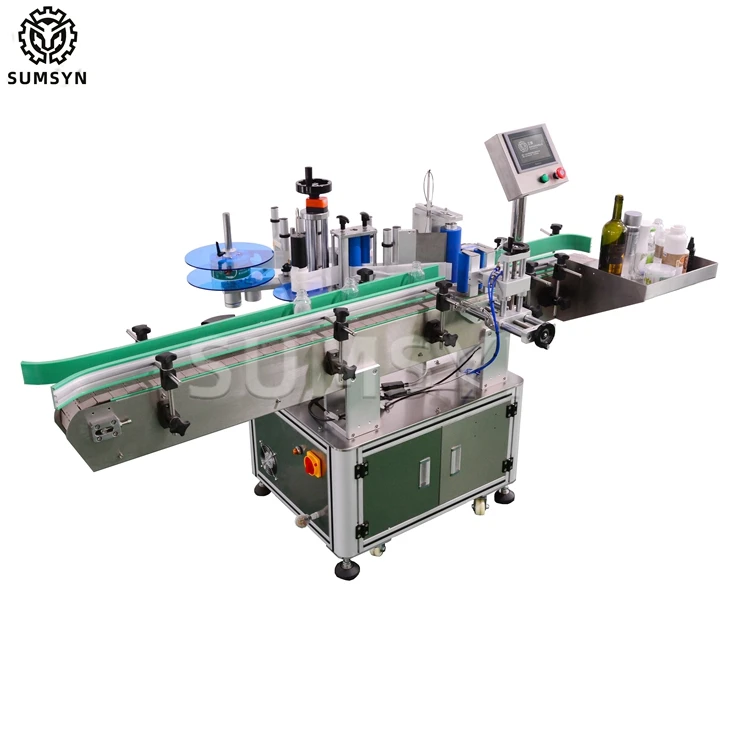

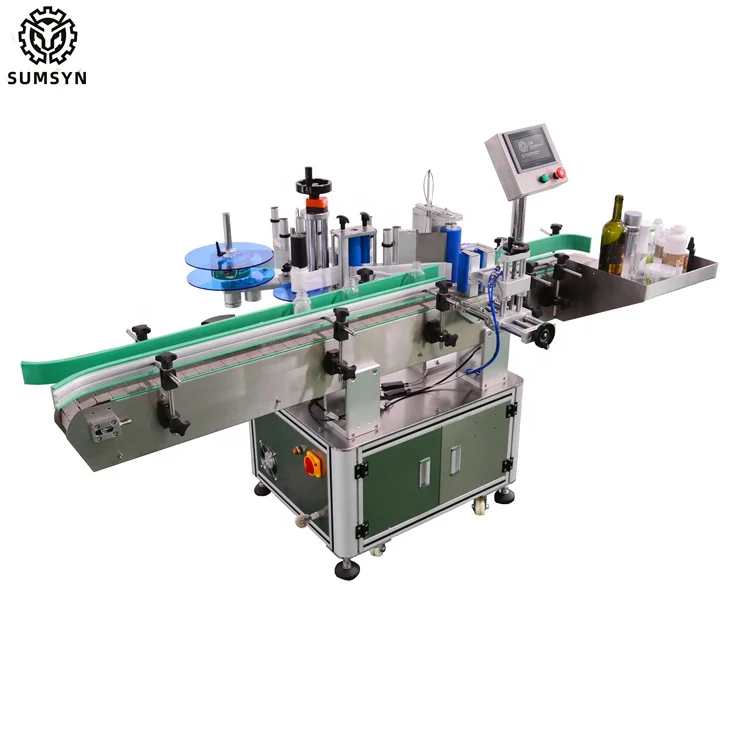

Automatic round bottle labeling machine for glass plastic bottle tin jars cans
- Category: Labeling Machines >>>
- Supplier: Dongguan Sumsyn Automation Equipment Co. Ltd.
Share on (62410814694):
Product Overview
Description
Product Information

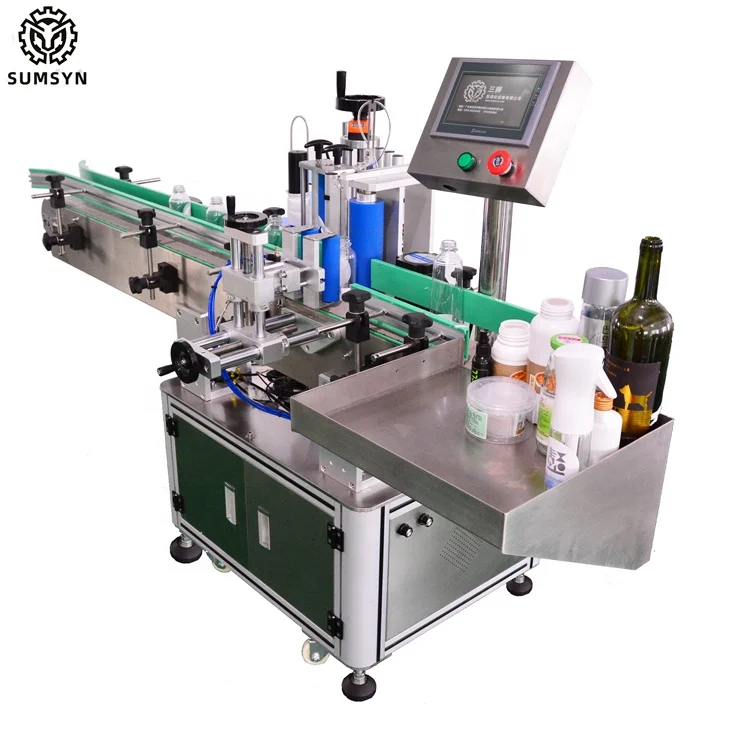

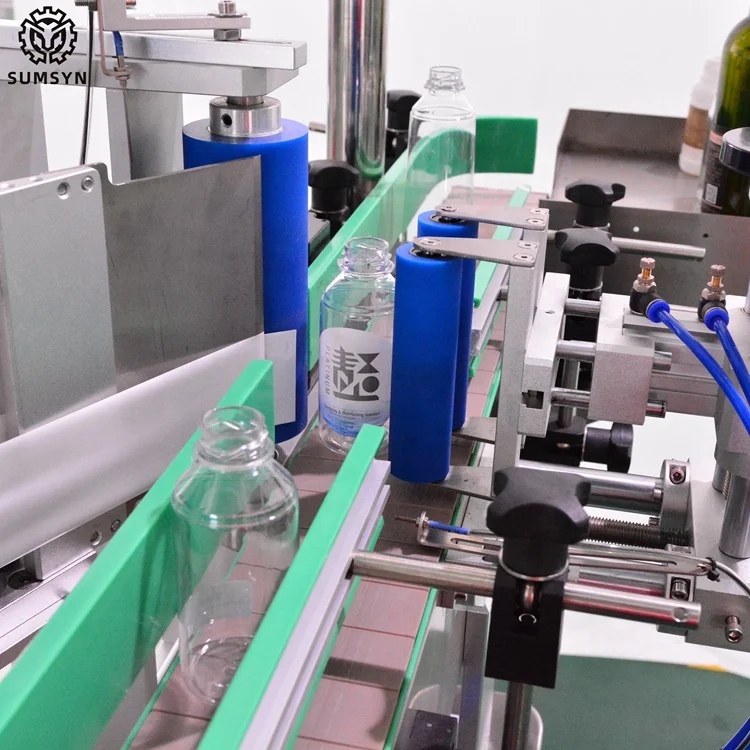

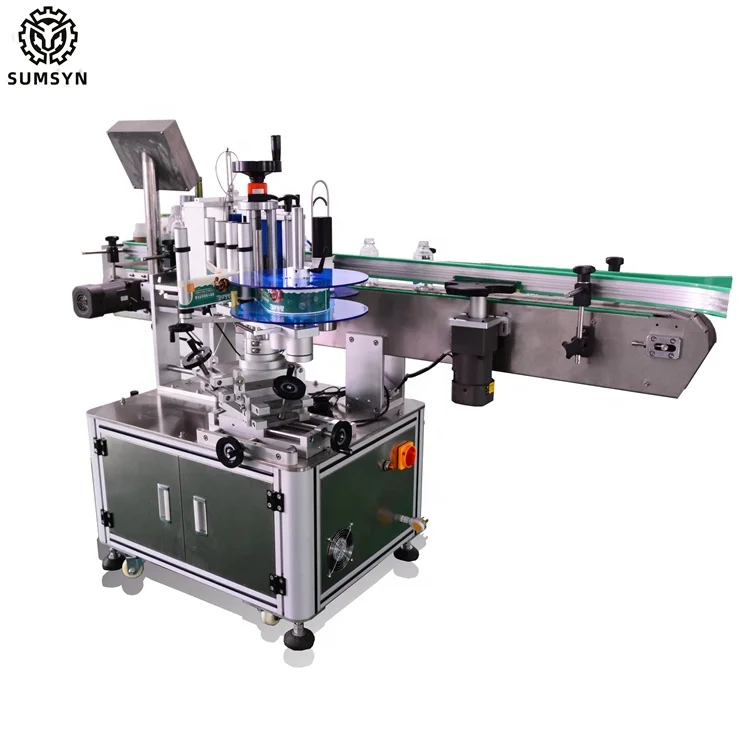

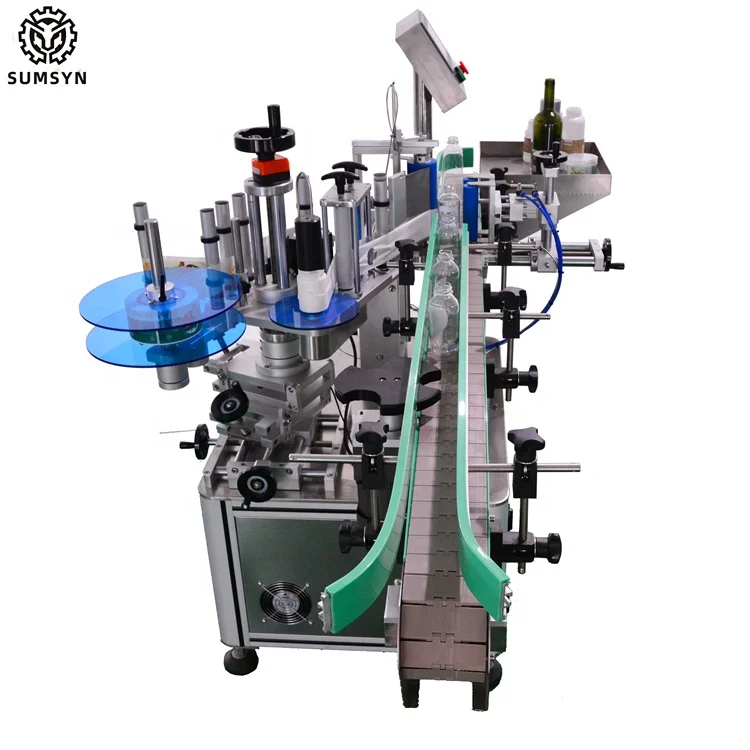

Product Name: Automatic positioning round bottle labeling machine
Model： SS-11321
General Information
1.Suitable for automatic labeling of cylindrical objects, single label, front and back double labels, label spacing can be adjusted arbitrarily, such as red wine bottle front and back label, fire extinguisher labeling, etc.;
2.can be pasted full circle, half circle, widely used in food, Daily chemical, cosmetics, wine, fire protection and other industries;
3.Optional circumferential positioning detection device to realize labeling at designated positions on the circumferential surface;
4.Optional ribbon coding machine to realize the integration of labeling and coding.
Application Range
Application Range
- Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
- Applicable products: require to label or film on circumference.
- Application industries: widely used in food, medicine, cosmetics, daily chemical, electronics, hardware, plastics and other
industries.
- Application examples: PET round bottle labeling, plastic bottle labeling and food cans labeling, etc.
- Applicable products: require to label or film on circumference.
- Application industries: widely used in food, medicine, cosmetics, daily chemical, electronics, hardware, plastics and other
industries.
- Application examples: PET round bottle labeling, plastic bottle labeling and food cans labeling, etc.
Machine Features
- Wide range of application,
- Flexible application, standing bottles labeling, automatic bottles dividing function, stand-alone and production-line
production。
- Flexible application, standing bottles labeling, automatic bottles dividing function, stand-alone and production-line
production。
- High precision of labels. can be adjusted by freedom,
- High-quality labeling. No bubble in label.
- Simple adjustment.
- High stability.
- High-quality labeling. No bubble in label.
- Simple adjustment.
- High stability.
- Intelligent control, no product- no label;
-Sturdy and durable.- Intelligent control, no product- no label;
-Sturdy and durable.
-Sturdy and durable.- Intelligent control, no product- no label;
-Sturdy and durable.
Machine Specification
Detail | Specification |
Applicable Product size | Product Diameter: 25 - 100 mm |
Applicable outer diameter of label roll: | φ280mm |
Applicable inner diameter of label roll | φ76mm |
Labeling precision | ± 1 mm |
Labeling speed | 25 ~ 40 pcs/min |
Weight | about 185 kg |
Frequency | 50HZ |
Voltage | 220V |
Power | 570W/980W Depend on motor |
Overall dimensions of the machine (L × W × H): | about 1950 mm × 1100mm × 1300 mm |
Air pressure | 0.4 - 0.6 Mpa |
Optional functions and components:
(1) hot print coding / ink-jet printing function;
(2) automatic materials loading function (based on products);
(3) automatic materials receiving function (based on products);
(4) increase of labeling devices;
(5) circumferential positioning labeling function;
(2) automatic materials loading function (based on products);
(3) automatic materials receiving function (based on products);
(4) increase of labeling devices;
(5) circumferential positioning labeling function;
